WESTINGHOUSE 5X00121G01 – 8-Channel RTD Input Module | OVATION DCS Platform
Engineering Background
The WESTINGHOUSE 5X00121G01 is a precision 8-channel Resistance Temperature Detector (RTD) input PMOD designed for the Ovation Distributed Control System (DCS) platform. Developed to meet the demanding measurement accuracy requirements of power generation, petrochemical, and heavy industrial process environments, this module provides direct RTD signal conditioning without the need for external transmitters, reducing wiring complexity and improving measurement fidelity.
Product Positioning
As a plug-in module (PMOD) within the Ovation I/O subsystem, the 5X00121G01 slots directly into Ovation I/O enclosures and communicates over the Ovation I/O bus. It is the preferred solution for engineers requiring multi-point temperature monitoring with high channel density, galvanic isolation, and native DCS integration — eliminating the cost and latency of standalone temperature transmitters.
Complete Technical Specifications
| Part Number | 5X00121G01 |
| Manufacturer | Westinghouse Electric / Emerson (Ovation) |
| Module Type | 8-Channel RTD Input PMOD |
| Platform | Ovation DCS |
| Input Channels | 8 (differential, individually configurable) |
| RTD Types Supported | PT100, PT200, PT500, PT1000, Ni100, Ni120, Cu10 |
| Connection Method | 2-wire, 3-wire, 4-wire RTD |
| Measurement Range | –200°C to +850°C (PT100 typical) |
| Accuracy | ±0.1°C typical (4-wire configuration) |
| Resolution | 0.01°C |
| Isolation | Channel-to-channel and channel-to-bus galvanic isolation |
| Power Supply | Supplied via Ovation I/O backplane (no external power required) |
| Communication | Ovation I/O bus (proprietary) |
| Form Factor | PMOD plug-in card |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Weight | Approx. 100 g |
| Certifications | CE, UL (per Ovation system certification) |
Proven Application Environments
- Power Generation: Turbine bearing temperature monitoring, boiler feed water temperature loops, and generator stator winding protection in coal, gas, and nuclear plants running Ovation DCS.
- Petrochemical & Refining: Reactor temperature profiling, heat exchanger monitoring, and distillation column temperature gradient measurement.
- Pulp & Paper: Dryer section temperature control and digester process monitoring.
- Water & Wastewater: Process temperature measurement in treatment plants with Ovation-based SCADA integration.
- Steel & Metals: Furnace zone temperature monitoring requiring high-density RTD input with DCS-native communication.
Engineering Advantages
- High Channel Density: 8 RTD inputs per PMOD slot reduces enclosure space requirements and lowers per-channel installed cost versus discrete transmitters.
- Direct RTD Connection: Eliminates transmitter loop power, 4–20 mA wiring, and transmitter calibration overhead — simplifying field wiring and maintenance.
- Galvanic Isolation: Channel-to-channel isolation prevents ground loop interference in multi-point temperature arrays, critical in high-noise industrial environments.
- Native Ovation Integration: Module is recognized and configured directly within Ovation Developer Studio — no third-party drivers or custom function blocks required.
- Hot-Swap Capable: Supports live replacement within Ovation I/O enclosures (subject to system configuration), minimizing process downtime during maintenance.
- Lead Resistance Compensation: 3-wire and 4-wire modes provide automatic lead resistance compensation, maintaining accuracy over long field cable runs.
System Architecture & Signal Flow

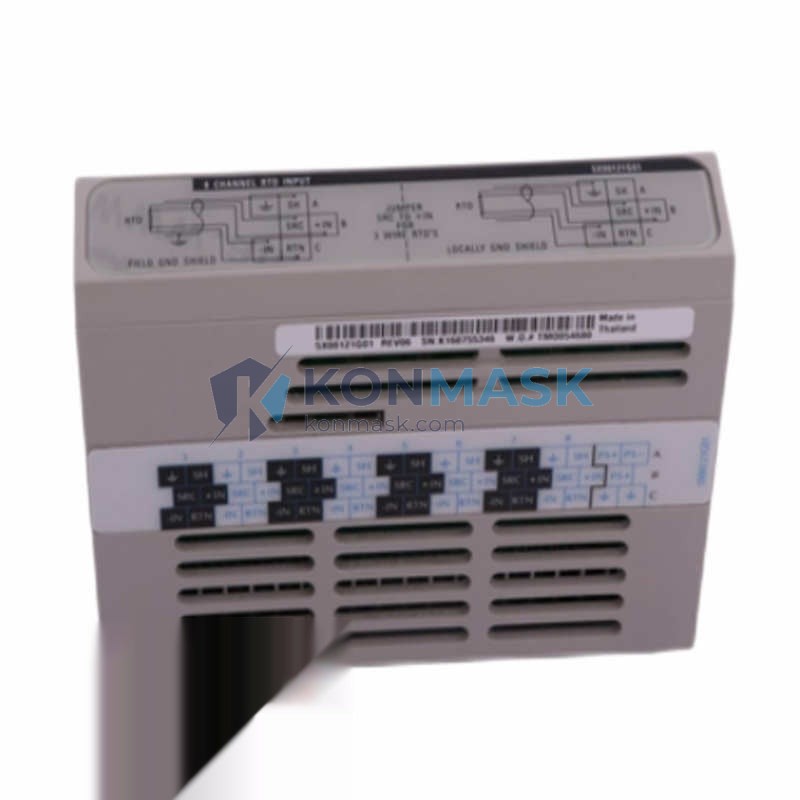

The 5X00121G01 installs into an Ovation I/O enclosure PMOD slot. Field RTD sensors connect to the module’s terminal block via 2-, 3-, or 4-wire configurations. The module’s internal A/D converter samples each channel sequentially, applies linearization and lead resistance compensation, and transmits engineering-unit values over the Ovation I/O bus to the Ovation Controller. The controller makes data available to the Ovation HMI, historian, and control strategy in real time. Channel configuration (RTD type, wire mode, alarm limits) is managed entirely within Ovation Developer Studio without hardware jumpers.
Sourcing & Quality Verification
- Source: Konmask.com sources 5X00121G01 modules from decommissioned plant inventories, authorized distributors, and verified surplus channels — never from unverified grey-market brokers.
- Inspection: Each unit undergoes visual inspection, connector integrity check, and firmware/label verification prior to listing.
- Condition: Units are listed as New Surplus (unused, original packaging where available) or Refurbished (tested, cleaned, and function-verified). Condition is stated explicitly on each order.
- Traceability: Date codes and revision levels are documented and available upon request for critical applications.
- Warranty: 12-month functional warranty against defects in materials and workmanship. Contact support@konmask.com for warranty claims.
Procurement Process
- Confirm Compatibility: Verify your Ovation system version and I/O enclosure type supports the 5X00121G01 PMOD. Contact our engineers if unsure.
- Request Quote: For orders of 2+ units or urgent requirements, email support@konmask.com with quantity, required condition, and delivery timeline.
- Place Order: Add to cart and complete checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Shipping: Orders ship within 1–3 business days. DHL Express, FedEx, and UPS international options available. Export documentation (commercial invoice, packing list, COO) provided for customs clearance.
- After-Sales: Our technical team provides installation guidance and Ovation configuration support post-delivery.
Technical FAQ
Q: Is the 5X00121G01 compatible with all Ovation DCS versions?
A: The module is designed for Ovation I/O systems. Compatibility depends on your specific Ovation controller version and I/O enclosure generation. Contact us with your system details for confirmation.
Q: Can I mix RTD types across the 8 channels?
A: Yes. Each channel is independently configurable for RTD type and wire mode within Ovation Developer Studio.
Q: What is the maximum cable length for RTD field wiring?
A: In 4-wire mode, cable lengths up to 300 m are typical with standard 0.5 mm² copper conductors. 3-wire mode supports shorter runs with acceptable accuracy. Consult the Ovation I/O hardware manual for site-specific guidance.
Q: Do you provide a test report or calibration certificate?
A: Function test reports are available for refurbished units. Factory calibration certificates are available for new surplus units where original documentation is retained. Request at time of order.
Q: Can this module be used outside of an Ovation DCS?
A: No. The 5X00121G01 communicates exclusively over the Ovation I/O bus and requires an Ovation Controller for operation. It is not compatible with third-party DCS or PLC platforms.
