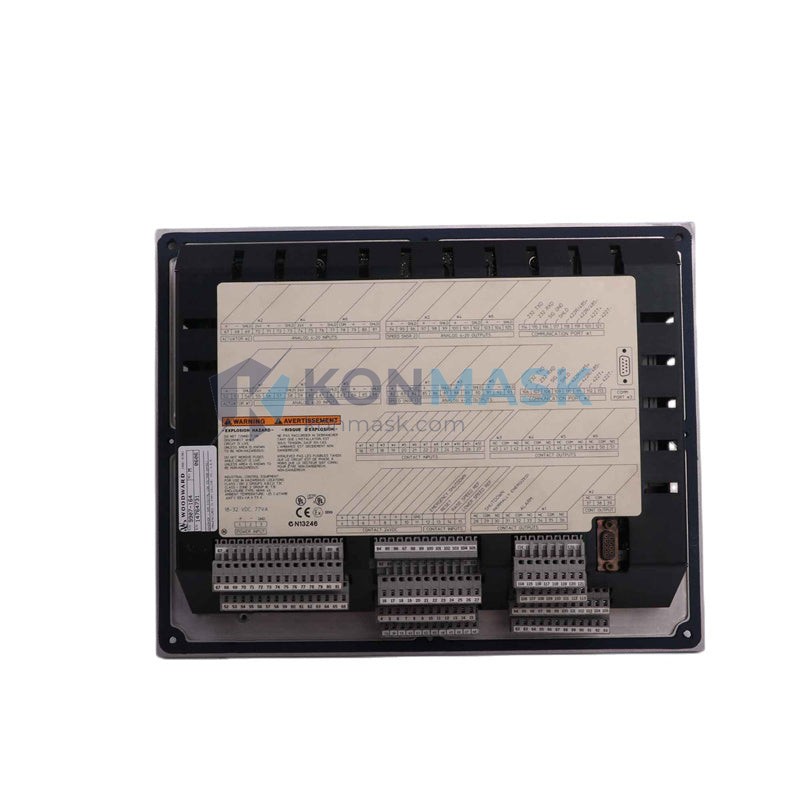

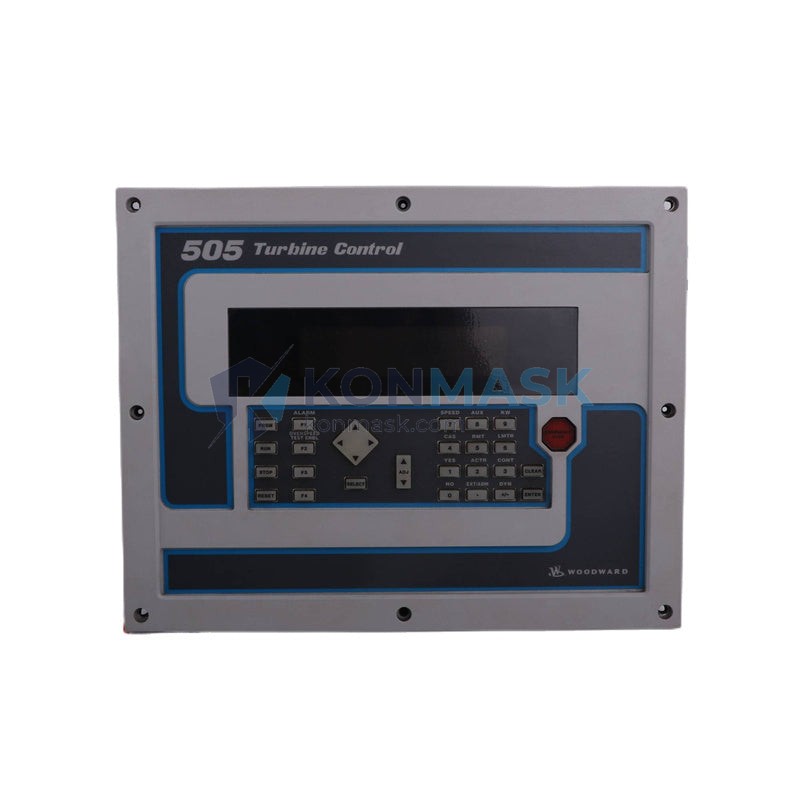

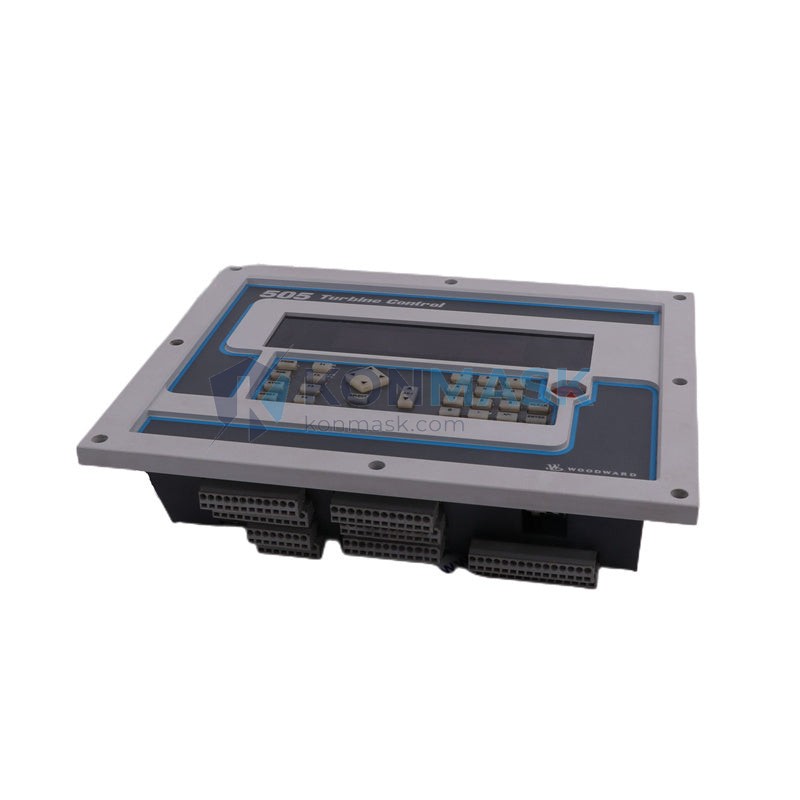

Turbine & Engine Governor Solution — WOODWARD 9907-164 | Digital Governor Control
Where This Product Is Used
The WOODWARD 9907-164 Digital Governor Control is deployed across a wide range of critical industrial applications where precise speed and load regulation of prime movers is essential:
- Gas & Steam Turbine Power Plants — Maintains stable frequency and load sharing in utility and cogeneration facilities.
- Diesel & Gas Generator Sets (Gensets) — Provides isochronous or droop speed control for standby and prime power generators.
- Marine Propulsion Systems — Governs main engine speed for vessels requiring precise RPM management under variable load.
- Oil & Gas Compression Stations — Controls reciprocating and centrifugal compressor drivers in upstream and midstream operations.
- Industrial Process Drives — Regulates engine-driven pumps, fans, and blowers in chemical, petrochemical, and water treatment plants.
- Cogeneration & Combined Heat and Power (CHP) — Synchronizes multiple generating units for parallel operation and load sharing.
Technical Specifications
| Manufacturer | WOODWARD |
| Part Number | 9907-164 |
| Product Series | Digital Governor Control |
| Control Type | Digital (Microprocessor-based) |
| Speed Control Modes | Isochronous, Droop, Load Sharing |
| Input Signal | Magnetic Pickup (MPU) speed sensing |
| Output | Proportional actuator drive signal |
| Power Supply | Refer to OEM datasheet for rated voltage range |
| Operating Temperature | -40°C to +70°C (typical industrial rating) |
| Weight | 4,450 g (approx.) |
| Enclosure | Panel-mount / DIN-rail compatible housing |
| Communication | Analog I/O; optional serial interface (model-dependent) |
| Certifications | CE, UL/CSA (verify with current datasheet) |
Note: Always cross-reference with the official WOODWARD 9907-164 datasheet for application-specific parameters before installation.
Why Engineers Specify This Model
- Proven Digital Architecture — Microprocessor-based PID control delivers tighter speed regulation (±0.25% or better) versus analog predecessors, reducing wear on actuators and fuel systems.
- Application Flexibility — Configurable gain, droop, and ramp settings allow a single unit to serve diverse prime mover types without hardware changes.
- Robust Field Track Record — The 9907-series has accumulated decades of deployment in harsh industrial environments, making it a low-risk specification choice.
- Drop-in Compatibility — Designed to interface with WOODWARD EG and TG series actuators, minimizing retrofit engineering effort.
- Simplified Commissioning — Front-panel adjustments and LED diagnostics reduce startup time and on-site troubleshooting costs.
- Long-term Parts Availability — Widely stocked by authorized distributors globally, supporting 10+ year asset lifecycles.
Complete System Bill of Materials
For a fully functional governor control loop using the WOODWARD 9907-164, engineers typically specify the following complementary components:
- Actuator — WOODWARD EG-3P, EG-10P, or TG-13 series electro-hydraulic actuator
- Speed Sensor — Magnetic Pickup Unit (MPU), 60-tooth gear recommended (e.g., WOODWARD 9905-458)
- Power Supply — 24 VDC regulated industrial power supply (DIN-rail mount)
- Wiring Harness — Shielded twisted-pair cable for MPU signal; 16 AWG minimum for power leads
- Terminal Block Assembly — Phoenix Contact or equivalent DIN-rail terminal blocks
- Panel Enclosure — NEMA 4 / IP65 rated enclosure for outdoor or wash-down environments
- Load Sharing Lines (if parallel operation) — WOODWARD load sharing cable kit
Compliance & Industry Standards
- ISO 8528-5 — Generating sets: control, switching and protective systems
- IEC 61511 — Functional safety for process industry sectors (SIL assessment required per application)
- API 670 — Machinery protection systems (speed sensing interface compliance)
- CE Marking — EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UL 508 — Industrial control equipment (verify current listing status)
- ATEX / IECEx — Consult WOODWARD for hazardous area variants if required
Quality Assurance & Sourcing
Konmask.com sources the WOODWARD 9907-164 exclusively through verified industrial supply channels. Every unit offered on this listing is:
- ✔ Inspected for physical integrity and label authenticity upon receipt
- ✔ Stored in ESD-safe, climate-controlled warehousing
- ✔ Traceable to documented supply chain records
- ✔ Shipped with original manufacturer packaging where available
- ✔ Backed by Konmask’s 30-day return policy for DOA units
We do not list counterfeit, refurbished-as-new, or untested surplus stock. If you require a Certificate of Conformance (CoC) or third-party inspection report, please contact us before ordering.
How to Source This Part
- Confirm your application requirements — Verify actuator type, supply voltage, and speed sensor output against your system design.
- Check stock availability — Use the “Add to Cart” button above or contact us directly for lead time on larger quantities.
- Request a quote for bulk orders — OEM integrators and EPC contractors can email support@konmask.com for volume pricing.
- Place your order — Secure checkout via major payment methods; export documentation available for international shipments.
- Receive & commission — Units ship within 1–3 business days from verified stock; expedited options available on request.
Application-Specific FAQ
Q: Is the WOODWARD 9907-164 compatible with my existing EG-3P actuator?
A: Yes. The 9907-164 is designed to drive WOODWARD EG-series proportional actuators. Verify the actuator coil resistance and current range against the governor’s output specification in the datasheet.
Q: Can this governor be used for parallel generator operation?
A: Yes, with the appropriate load sharing accessory. The 9907-164 supports droop mode and can be configured for isochronous load sharing when connected via WOODWARD’s load sharing lines.
Q: What is the difference between the 9907-164 and the 9907-165?
A: The suffix variants typically differ in input voltage range or output current rating. Always confirm the exact part number against your system’s power supply and actuator specifications before ordering.
Q: Do you provide technical support for commissioning?
A: Konmask provides pre-sales technical consultation to help confirm compatibility. For on-site commissioning support, we recommend engaging a certified WOODWARD service partner.
Q: Can I return the unit if it does not match my application?
A: Unused units in original packaging may be returned within 30 days. Contact support@konmask.com to initiate a return authorization.
