Yaskawa CSRA-CV05D01A YRC1000 Converter Unit | Replacement, Equivalent & Selection Guide

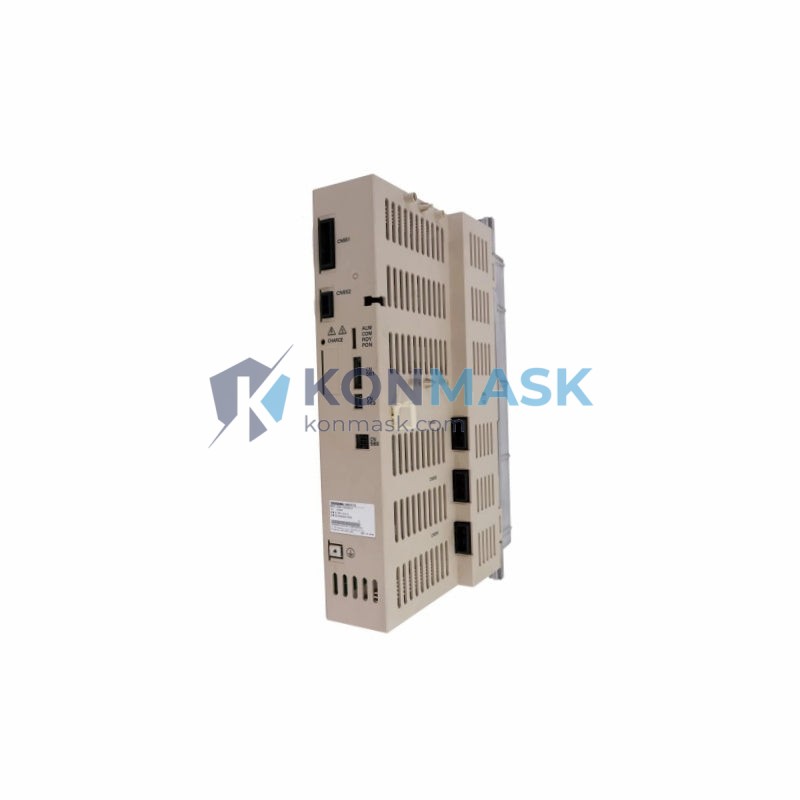

The Yaskawa CSRA-CV05D01A is a dedicated converter (rectifier) unit designed for the YRC1000 robot controller platform. It converts incoming AC power to stable DC bus voltage, supplying the servo amplifier section with clean, regulated power. This page serves as a comprehensive selection, replacement, and compatibility reference for industrial automation engineers and procurement teams.
Technical Specifications
- Part Number: CSRA-CV05D01A
- Compatible Controller: Yaskawa YRC1000
- Function: AC-to-DC Converter / Rectifier Unit
- Input Voltage: 3-phase AC 200–480 V (±10%)
- Output: DC Bus Voltage for servo amplifier section
- Capacity: 5 kVA class
- Cooling: Forced air cooling (internal fan)
- Weight: Approx. 560 g
- Mounting: Internal rack-mount within YRC1000 cabinet
- Communication: Internal bus interface to YRC1000 main board
- Standards: CE, UL (per YRC1000 system certification)
Compatible Replacement & Equivalent Models
When the original CSRA-CV05D01A is unavailable, the following models may serve as direct or functional replacements. Always verify electrical ratings and mechanical fit before installation.
- CSRA-CV05D01A – Original OEM unit (this listing)
- CSRA-CV05D00A – Earlier revision; functionally equivalent in most YRC1000 configurations
- CSRA-CV03D01A – 3 kVA variant; suitable for lower-payload robot models
- JZRCR-YPU01B – Power unit assembly (includes converter stage); verify compatibility with your YRC1000 revision
- Third-party rebuilt units – Available from certified repair centers; confirm DC bus output spec matches OEM
Note: Always cross-reference the YRC1000 controller serial number and software version before substituting converter units.
Why Choose the Original CSRA-CV05D01A
- Guaranteed compatibility with Yaskawa YRC1000 firmware and hardware revisions
- Precision-matched DC bus output for stable servo performance
- Factory-tested and calibrated to Yaskawa quality standards
- Full traceability and warranty support through authorized channels
- Minimizes integration risk in safety-critical robotic applications
Typical Applications
- Yaskawa MOTOMAN industrial robot systems (6-axis, SCARA, delta configurations)
- Automotive body welding and assembly lines
- Electronics manufacturing and PCB handling automation
- Palletizing, pick-and-place, and material handling cells
- Arc welding and spot welding robot stations
- Painting and coating robot systems
System Compatibility
- Controller: Yaskawa YRC1000 (all standard variants)
- Robot Series: MOTOMAN GP, MH, MA, AR, HP series compatible with YRC1000
- Not compatible with: DX100, DX200, FS100, YRC1000micro (different power architecture)
- Software: Compatible with YRC1000 system software versions as specified in Yaskawa service documentation
Selection Guide
Use the following criteria to select the correct converter unit for your YRC1000 system:
- Step 1 – Identify your robot payload class: Match the converter kVA rating to your robot model’s power requirement (3 kVA for small payload, 5 kVA for medium/large payload).
- Step 2 – Check controller revision: Locate the YRC1000 nameplate for hardware revision code. D01 suffix indicates current production revision.
- Step 3 – Verify input voltage: Confirm site power is 3-phase 200–480 V AC before ordering.
- Step 4 – Confirm part suffix: CSRA-CVXXDXXA — XX denotes capacity and revision. Do not substitute across capacity classes without engineering review.
- Step 5 – Contact Konmask: Send your YRC1000 serial number and robot model for final confirmation before purchase.
Quality Assurance & Sourcing
- All units sourced from authorized Yaskawa distributors or certified surplus channels
- Each unit inspected and tested prior to shipment
- Genuine OEM parts with original Yaskawa labeling and traceability
- Secure anti-static packaging for safe international shipping
- Certificate of conformance available upon request
How to Order
- Add the CSRA-CV05D01A to your cart, or contact us directly for bulk/project pricing.
- Provide your YRC1000 controller serial number and robot model for compatibility confirmation.
- Our team will confirm availability, lead time, and shipping options within 24 hours.
- Payment via T/T, PayPal, or trade terms for qualified accounts.
- Express DHL/FedEx worldwide shipping available.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can CSRA-CV05D01A replace CSRA-CV05D00A?
A: In most cases yes — the D01 is the updated revision of D00. Verify with your YRC1000 service manual or contact Konmask for confirmation.
Q: Is this unit compatible with YRC1000micro?
A: No. The YRC1000micro uses a different power architecture. This unit is for the standard YRC1000 only.
Q: Can I use a 3 kVA unit (CSRA-CV03D01A) instead of the 5 kVA?
A: Only if your robot model’s power requirement is within the 3 kVA rating. Undersizing the converter will cause fault alarms and potential damage.
Q: Do you offer repair/refurbishment of failed CSRA-CV05D01A units?
A: Yes. Contact us with your failed unit details for a repair quotation.
Q: What is the lead time for new OEM units?
A: Stock units ship within 1–3 business days. Non-stock orders typically 2–6 weeks depending on Yaskawa availability.
