YASKAWA JZRCR-YPP21-1 DX200 Robot Controller Teach Pendant Cable | Replacement, Equivalent & Selection Guide

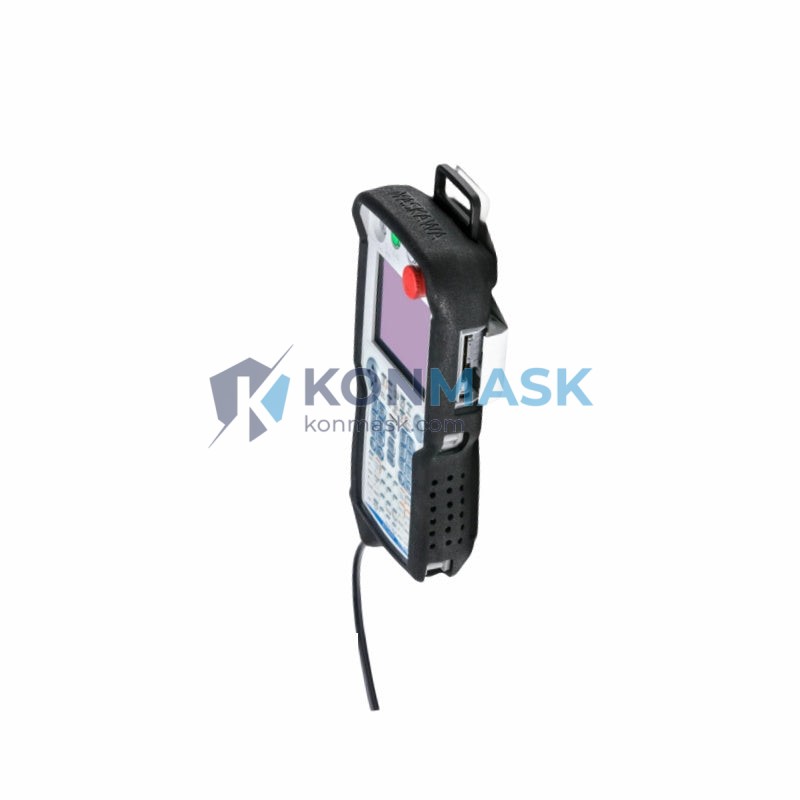

The YASKAWA JZRCR-YPP21-1 is the OEM teach pendant cable designed for the YASKAWA DX200 robot controller series. This cable provides the critical communication link between the DX200 controller and the programming pendant (teach pendant / HPU), enabling real-time robot programming, jogging, and safety interlock functions. This page serves as a comprehensive selection, replacement, and compatibility reference for industrial automation engineers and procurement teams.
Technical Specifications
- Part Number: JZRCR-YPP21-1
- Compatible Controller: YASKAWA DX200
- Cable Type: Teach Pendant / HPU Communication Cable
- Connector: Multi-pin shielded connector (OEM specification)
- Cable Length: Standard OEM length (custom lengths available upon request)
- Signal Type: Digital communication + safety interlock
- Shielding: Fully shielded for EMI/RFI resistance in industrial environments
- Operating Temperature: -10°C to +60°C
- Compliance: CE, RoHS
- Weight: ~560 g
- Country of Origin: Japan
Compatible Replacement & Equivalent Models
The following models are known compatible replacements or functional equivalents for the YASKAWA JZRCR-YPP21-1. Always verify connector type and cable length before substitution:
- JZRCR-YPP21-1 — OEM original (this listing)
- JZRCR-YPP21 — Earlier revision; functionally equivalent for most DX200 applications
- JZRCR-YPP01-1 — Compatible with NX100 / XRC controllers (verify before use)
- JZRCR-YPP11-1 — Compatible with NX100 series (different connector profile)
- Third-party OEM-equivalent cables rated for DX200 HPU interface — consult Konmask for verified alternatives
Note: Cross-referencing by part number suffix (-1, -2) is recommended. Contact our team for confirmed interchangeability.
Why Choose the Original JZRCR-YPP21-1
- ✅ OEM-guaranteed compatibility with YASKAWA DX200 controller and pendant
- ✅ Safety interlock integrity — critical for E-stop and deadman switch circuits
- ✅ Full EMI shielding for reliable signal in high-noise factory environments
- ✅ Plug-and-play replacement — no firmware or parameter changes required
- ✅ YASKAWA warranty compliance — maintains controller warranty when using OEM parts
Typical Applications
- YASKAWA Motoman robot cell teach pendant replacement
- DX200 controller cable repair / spare parts stocking
- Robot system integration and commissioning
- Automotive body welding and assembly lines
- Palletizing, material handling, and arc welding automation
- Preventive maintenance programs for DX200-based robot fleets
System Compatibility
| Controller | Compatible | Notes |
|---|---|---|
| YASKAWA DX200 | ✅ Yes | Primary application |
| YASKAWA NX100 | ⚠️ Verify | Different cable revision required |
| YASKAWA XRC | ❌ No | Incompatible connector |
| YASKAWA FS100 | ❌ No | Different pendant interface |
| YASKAWA YRC1000 | ❌ No | Next-gen controller, different cable |
Selection Guide
Use the following criteria to confirm JZRCR-YPP21-1 is the correct part for your application:
- Confirm controller model: Must be YASKAWA DX200 (check nameplate on controller cabinet)
- Identify pendant type: Standard DX200 HPU / teach pendant (not YRC1000 or FS100 pendant)
- Check cable length requirement: Standard OEM length vs. extended length (specify at order)
- Verify revision suffix: -1 suffix indicates current production revision
- Inspect connector condition: If replacing a damaged cable, photograph both ends before ordering
Not sure? Send us your controller nameplate photo and current cable part number — our engineers will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
- All units sourced from authorized YASKAWA distribution channels or verified surplus with full traceability
- Each cable inspected for connector integrity, shielding continuity, and jacket condition prior to shipment
- Serialized packaging with batch traceability available on request
- Export-compliant documentation (COO, packing list, commercial invoice) provided for international orders
- Konmask.com specializes in industrial automation components — DCS, PLC, robot controllers, and accessories
How to Order
- Add YASKAWA JZRCR-YPP21-1 to cart and proceed to checkout
- For bulk orders (5+ units), contact [email protected] for volume pricing
- Lead time: In-stock items ship within 1–3 business days; sourced items 7–15 business days
- Payment: T/T, PayPal, credit card accepted
- Shipping: DHL / FedEx / UPS international express available
Replacement & Compatibility FAQ
Q: Can JZRCR-YPP21-1 replace JZRCR-YPP21 (without the -1 suffix)?
A: In most DX200 applications, yes. The -1 suffix denotes a minor revision. Verify with your YASKAWA service manual or contact us to confirm.
Q: Is this cable compatible with the YRC1000 controller?
A: No. The YRC1000 uses a different pendant interface and cable. Please inquire for YRC1000-specific cables.
Q: Can I use a third-party equivalent cable?
A: Third-party cables may work functionally but can void YASKAWA controller warranty and may not meet safety interlock specifications. We recommend OEM for safety-critical circuits.
Q: What if my cable is damaged mid-length (not at the connector)?
A: Full cable replacement is recommended. Splicing teach pendant cables is not advised due to shielding and safety interlock integrity requirements.
Q: Do you offer custom cable lengths?
A: Yes, custom lengths are available for OEM-equivalent cables. Contact us with your length requirement and robot cell layout.
