Industrial Robot Programming Solution – Yaskawa NX100JZRCR-NPP01-1 | NX100 Series

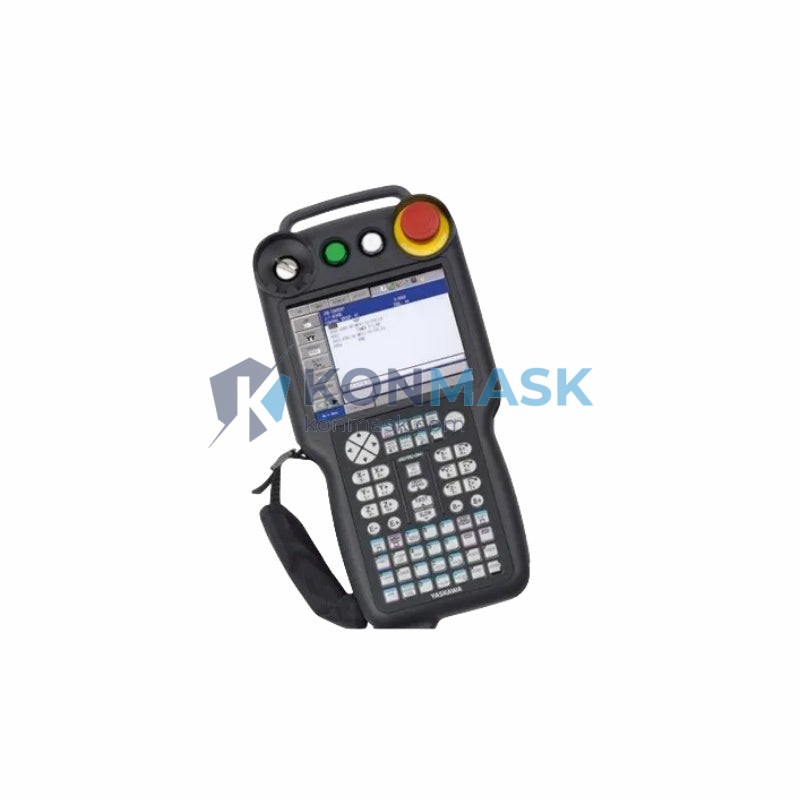

The Yaskawa NX100JZRCR-NPP01-1 is the dedicated teach pendant for the Yaskawa NX100 robot controller series. Engineered for precision robot programming, jogging, and real-time monitoring in demanding industrial automation environments, this pendant is the primary human-machine interface for Yaskawa NX100-based robotic cells.
Where This Product Is Used
The NX100JZRCR-NPP01-1 teach pendant is deployed across a wide range of industrial robot applications:
- Automotive Assembly Lines – Spot welding, arc welding, and body-in-white handling with Yaskawa UP series robots
- Material Handling & Palletizing – Programming pick-and-place paths for high-speed logistics robots
- Arc Welding Cells – Fine-tuning torch angles, weave patterns, and weld schedules via pendant interface
- Painting & Coating Lines – Teaching spray paths and synchronizing with conveyor systems
- Machine Tending – CNC load/unload programming with precise positional teach points
- Electronics Manufacturing – Precision assembly and inspection robot programming
- Food & Beverage Packaging – Hygienic environment robot path teaching and monitoring
Technical Specifications
| Attribute | Details |
|---|---|
| Part Number | NX100JZRCR-NPP01-1 |
| Manufacturer | Yaskawa Electric Corporation |
| Series | NX100 Robot Controller |
| Type | Robot Teach Pendant (Programming Terminal) |
| Display | Color LCD touchscreen |
| Interface | Dedicated cable connection to NX100 controller |
| Enable Switch | 3-position deadman safety enable switch |
| Emergency Stop | Integrated E-Stop button (IEC 60204-1 compliant) |
| Language Support | Multi-language (English, Japanese, and others) |
| Weight | Approx. 600 g |
| Compatible Controllers | Yaskawa NX100 series |
| Condition Available | New, Refurbished, Used |
Why Engineers Specify This Model
- Native NX100 Compatibility – Plug-and-play with all NX100 controller variants; no firmware adaptation required
- 3-Position Enable Switch – Meets ISO 10218-1 safety requirements for robot teach mode operation
- Intuitive INFORM III Programming – Yaskawa’s proprietary robot language fully accessible via pendant keypad and touchscreen
- Real-Time Diagnostics – Live I/O monitoring, alarm history, and axis position display during teach operations
- Ergonomic Design – Balanced grip with ambidextrous layout for extended programming sessions
- Robust Construction – Industrial-grade housing rated for factory floor environments
Complete System Bill of Materials
For a complete Yaskawa NX100 robotic cell, the following components are typically required alongside the NX100JZRCR-NPP01-1:
- Yaskawa NX100 Robot Controller (main cabinet)
- Yaskawa Motoman robot arm (UP6, UP20, EA1400, etc.)
- Teach pendant cable (JZRCR-NPP01 series)
- I/O expansion modules (JANCD-NIO series)
- Servo amplifier boards (JANCD-MSP series)
- Power supply unit (JZNC-NZU series)
- Safety relay / fence interlock module
Compliance & Industry Standards
- ISO 10218-1: Robots and robotic devices – Safety requirements for industrial robots
- IEC 60204-1: Safety of machinery – Electrical equipment of machines
- EN 60947-5-8: Three-position enabling switches for machinery
- CE Marking compliant (for EU market deployments)
- RoHS compliant
Quality Assurance & Sourcing
At Konmask.com, every Yaskawa NX100JZRCR-NPP01-1 teach pendant is:
- Sourced directly from authorized Yaskawa distributors or verified industrial surplus channels
- Inspected for physical integrity, display function, keypad response, and cable connector condition
- Tested for enable switch and E-Stop circuit continuity prior to shipment
- Packaged with anti-static protection and foam cushioning for safe international shipping
- Backed by our 90-day functional warranty on all refurbished units
How to Source This Part
Ready to order the Yaskawa NX100JZRCR-NPP01-1? Here’s how to proceed:
- Request a Quote – Contact us at support@konmask.com with your required quantity and condition preference (new / refurbished / used)
- Confirm Compatibility – Provide your NX100 controller serial number or robot model for cross-verification
- Receive Proforma Invoice – We issue a detailed PI within 24 business hours
- Arrange Payment & Shipping – T/T, PayPal, and trade assurance options available; DHL / FedEx / sea freight supported
- Track Your Order – Real-time shipment tracking provided for all orders
Application-Specific FAQ
Q: Is the NX100JZRCR-NPP01-1 compatible with the Yaskawa XRC or DX100 controller?
A: No. This pendant is designed exclusively for the NX100 controller series. For XRC, use JZRCR-XPP01; for DX100, use JZRCR-DPP01.
Q: Can I use this pendant to program both handling and welding robots on NX100?
A: Yes. The NX100 controller supports multiple robot application types (handling, arc welding, spot welding), and this pendant provides full access to all application-specific job files and parameters.
Q: What happens if the teach pendant cable is damaged?
A: The pendant cable is a separate replaceable component. Contact us to source the correct JZRCR-NPP01 series cable. Operating without a functional cable or bypassing the enable switch is a safety violation.
Q: Do you supply the pendant with the NX100 controller as a bundle?
A: Yes. We can configure complete NX100 controller packages including pendant, cables, and I/O modules. Contact us for bundle pricing.
Q: Is training or documentation available?
A: Yaskawa’s official NX100 operator manual (document number HW0480864) covers full pendant operation. We can assist in sourcing documentation upon request.
