YASKAWA PGB-2K – Servo Drive PCB Control Board | Sigma Series Platform
Engineering Background

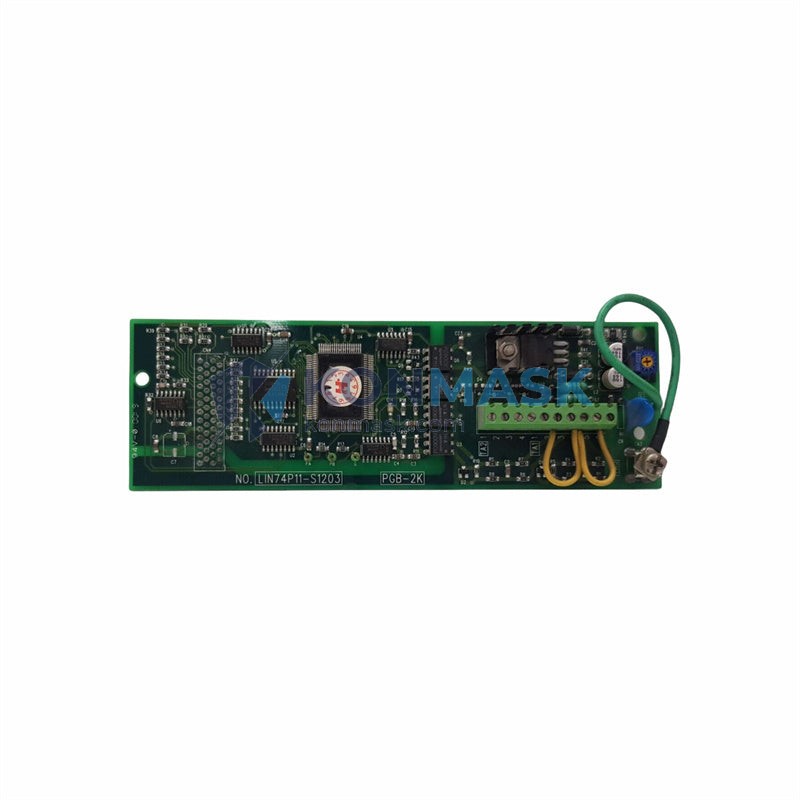

The YASKAWA PGB-2K is a dedicated PCB control board engineered for YASKAWA Sigma series AC servo drives. As the core signal-processing and gate-drive interface board within the servo amplifier assembly, the PGB-2K governs PWM command execution, encoder feedback decoding, and fault-protection logic. Its failure is one of the most common root causes of servo drive malfunction in high-cycle industrial environments.
Product Positioning
Konmask.com supplies the PGB-2K as a precision OEM-equivalent replacement targeting maintenance engineers and procurement teams who require a verified, drop-in solution with minimal downtime. This board is sourced through authenticated industrial channels and undergoes functional verification prior to dispatch.
Complete Technical Specifications
| Part Number / SKU | PGB-2K |
| Manufacturer | YASKAWA Electric Corporation |
| Compatible Platform | YASKAWA Sigma Series AC Servo Drives |
| Board Function | Servo Drive PCB Control Board (Gate Drive & Signal Interface) |
| Board Type | Printed Circuit Board (PCB) – Control & Drive Interface |
| Signal Interface | Encoder feedback, PWM command, fault I/O |
| Protection Features | Overcurrent, overvoltage, thermal fault logic |
| Weight | 6,280 g (shipping weight) |
| Condition | New / Refurbished OEM-grade (specify at inquiry) |
| Country of Origin | Japan |
| HS Code | 8537.10 (Control boards for industrial servo systems) |
Proven Application Environments
- CNC Machining Centers – Spindle and axis servo drive maintenance on YASKAWA-equipped machines
- Robotic Assembly Lines – Replacement of failed control boards in YASKAWA Motoman robot servo amplifiers
- Injection Molding Machines – Restoring servo precision in hydraulic-electric hybrid presses
- Semiconductor Fabrication Equipment – High-precision motion control restoration in cleanroom environments
- Packaging & Conveyor Systems – Rapid board swap to minimize production line downtime
- Elevator & Crane Drive Systems – Safety-critical servo drive restoration
Engineering Advantages
- OEM-Equivalent Design – Identical PCB layout, component specification, and firmware compatibility as original YASKAWA production boards
- Pre-Dispatch Functional Test – Each PGB-2K is bench-tested for signal integrity, gate-drive output, and fault-logic response before shipment
- Immediate Availability – In-stock inventory eliminates lead times associated with factory repair or new-unit procurement
- Cost-Effective MRO Solution – Board-level replacement at a fraction of full servo drive replacement cost
- Worldwide Logistics – Export-compliant packaging with ESD protection; DHL / FedEx / UPS international shipping available
- Technical Support Included – Pre-sale compatibility verification and post-sale installation guidance from Konmask engineering team
System Architecture & Signal Flow
Within the YASKAWA Sigma series servo amplifier, the PGB-2K board sits at the intersection of the control CPU and the IGBT power stage. Signal flow is as follows:
- Command Input – Receives position/velocity/torque commands from the host controller (MECHATROLINK, analog, or pulse-train interface)
- Encoder Feedback Decoding – Processes incremental or absolute encoder signals for closed-loop position verification
- PWM Generation – Generates gate-drive PWM signals for the IGBT bridge, controlling motor phase currents
- Fault Monitoring – Continuously monitors overcurrent, overvoltage, undervoltage, and thermal thresholds; triggers protective shutdown and fault code output
- Communication Interface – Relays status and alarm data back to the host system via the drive’s communication bus
Sourcing & Quality Verification
Konmask.com operates as a specialist distributor of industrial automation components with a focus on YASKAWA, Siemens, ABB, Mitsubishi, and Rockwell platforms. All PGB-2K units are:
- Sourced from verified industrial surplus, OEM overstock, or authorized refurbishment channels
- Inspected for physical integrity (PCB trace condition, component seating, connector pin integrity)
- Functionally tested on compatible servo drive test rigs
- Shipped in anti-static ESD bags with foam-padded export cartons
- Accompanied by a Konmask inspection certificate and 90-day warranty
Procurement Process
- Inquiry Submission – Contact us via support@konmask.com or WhatsApp +0086 19859288691 with your servo drive model number and fault symptoms for compatibility confirmation
- Quotation & Lead Time – Receive a formal quotation within 24 hours including unit price, shipping cost, and estimated delivery window
- Order Confirmation – Place order via Konmask.com checkout or via proforma invoice for bank transfer / TT payment
- Dispatch & Tracking – Board ships within 1–3 business days; tracking number provided via email
- Installation Support – Konmask technical team available for remote installation guidance and commissioning advice
Technical FAQ
Q: Is the PGB-2K compatible with all YASKAWA Sigma series drives?
A: The PGB-2K is designed for specific Sigma series amplifier models. Please provide your full drive model number (e.g., SGDV-xxxA) to our team for exact compatibility verification before ordering.
Q: What is the difference between a new and refurbished PGB-2K?
A: New units are unused OEM or OEM-equivalent boards. Refurbished units have been professionally reconditioned, tested, and certified to OEM performance specifications. Both carry Konmask’s 90-day warranty.
Q: Can I send my failed board for repair instead of purchasing a replacement?
A: Yes. Konmask offers board-level repair services. Contact support@konmask.com with photos of the failed board and fault description for a repair assessment.
Q: What fault codes typically indicate PGB-2K failure?
A: Common indicators include A.400 (parameter setting error), A.710 (overload), A.820 (regenerative overload), and drive-level communication faults. However, board failure diagnosis should be confirmed by a qualified servo technician.
Q: Do you provide a datasheet or wiring diagram?
A: Yes. Technical documentation is available upon request for verified engineering inquiries. Contact our team with your application details.
