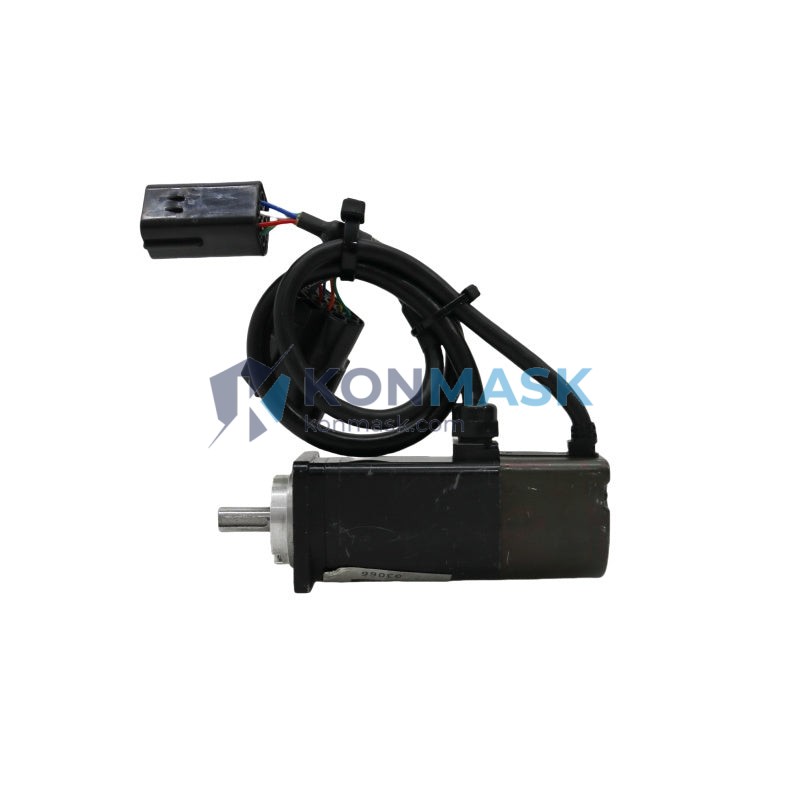

Precision Motion Control Solution – YASKAWA SGM-01U3AP01 | Sigma Series AC Servo Motor
The YASKAWA SGM-01U3AP01 is a compact, high-performance AC servo motor from the renowned Sigma Series, rated at 3000 R/MIN. Designed for demanding industrial motion control applications, this motor delivers exceptional torque consistency, low cogging, and seamless integration with YASKAWA SERVOPACK drives. Sourced directly through verified supply channels at Konmask.com, this unit is available for immediate procurement by engineering and MRO teams worldwide.
Where This Product Is Used
The SGM-01U3AP01 is specified across a broad range of precision automation environments:
- CNC Machining Centers – Axis feed drives requiring smooth, repeatable positioning at high cycle rates
- Industrial Robotics – Joint actuators in articulated arms and SCARA robots demanding compact form factor and high torque density
- Semiconductor & Electronics Assembly – Pick-and-place machines, wafer handlers, and PCB drilling systems
- Packaging Machinery – High-speed indexing, filling, and labeling lines with synchronous multi-axis coordination
- Textile & Printing Equipment – Tension control and web-guiding systems requiring precise speed regulation
- Medical Device Manufacturing – Cleanroom-compatible motion stages and dispensing systems
- Laser Cutting & Engraving – Gantry and galvo positioning systems requiring sub-millimeter accuracy
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | YASKAWA Electric Corporation |
| Model / SKU | SGM-01U3AP01 |
| Series | Sigma (SGM) |
| Motor Type | AC Servo Motor (Brushless) |
| Rated Speed | 3000 R/MIN |
| Reference Part Numbers | 200875 / IC-KP2-2HB6-V15B / E17322790 / 8043532G006 |
| Country of Origin | Japan |
| HS Code | 8501.52.0000 |
| Weight | Approx. 20 g (shipping weight; verify motor nameplate for exact mass) |
| Encoder Type | Incremental / Absolute (confirm suffix code) |
| Mounting | Flange mount (IEC standard) |
| Protection Class | IP65 (shaft seal standard for SGM series) |
| Compatible Drive | YASKAWA SERVOPACK SGDA / SGDB / SGDE series |
Why Engineers Specify This Model
- Sigma Series Reliability – YASKAWA’s SGM platform has decades of field-proven performance in harsh industrial environments across Asia, Europe, and North America
- 3000 RPM Rated Speed – Optimal balance between torque output and dynamic response for mid-range servo applications
- Compact Footprint – High power density enables integration into space-constrained machine designs without sacrificing performance
- Direct SERVOPACK Compatibility – Plug-and-play pairing with YASKAWA drives eliminates tuning complexity and reduces commissioning time
- Low Cogging Torque – Smooth rotation at low speeds critical for precision positioning and contouring operations
- Broad Ecosystem Support – Extensive global service network, spare parts availability, and YASKAWA SigmaWin+ software compatibility
Complete System Bill of Materials
For a fully operational servo axis using the SGM-01U3AP01, engineers typically specify:
- AC Servo Motor: YASKAWA SGM-01U3AP01 (this unit)
- SERVOPACK Drive: YASKAWA SGDA-01AS / SGDB-01AN or equivalent Sigma-series drive
- Encoder Cable: YASKAWA JZSP-CMP00-03 or compatible shielded encoder cable
- Power Cable: YASKAWA JZSP-B9P3A-03 or equivalent motor power cable
- Regenerative Resistor: Application-dependent (consult SERVOPACK sizing guide)
- Coupling / Gearhead: Application-specific (inline, planetary, or harmonic drive)
- Controller: YASKAWA MP series, Siemens S7, or third-party EtherCAT master
Compliance & Industry Standards
- CE Marking – Compliant with EU Machinery Directive 2006/42/EC
- UL Listed – Recognized under UL 1004 (Electric Motors)
- RoHS Compliant – Restriction of Hazardous Substances Directive 2011/65/EU
- ISO 9001 – Manufactured under YASKAWA’s certified quality management system
- HS Classification: 8501.52.0000 – AC motors, multi-phase, output ≤ 750W
Quality Assurance & Sourcing
Every unit listed on Konmask.com undergoes a structured verification process before dispatch:
- Visual inspection of housing, shaft, connectors, and nameplate legibility
- Cross-reference of all reference part numbers (200875, IC-KP2-2HB6-V15B, E17322790, 8043532G006) against YASKAWA documentation
- Encoder connector integrity check and seal inspection
- Anti-static packaging with humidity indicator card for international shipment
- Traceability documentation available upon request for regulated industries
How to Source This Part
- Submit Inquiry – Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline
- Receive Quote – Our team responds within 1 business day with pricing, lead time, and availability confirmation
- Place Order – Secure checkout via Konmask.com with support for T/T bank transfer, PayPal, and major credit cards
- Inspection & Dispatch – Unit is inspected, photographed, and shipped with tracking via DHL / FedEx / UPS Express
- After-Sales Support – Technical assistance available for installation, drive pairing, and parameter configuration
Application-Specific FAQ
Q: Is the SGM-01U3AP01 compatible with YASKAWA Sigma-II or Sigma-III SERVOPACKs?
A: The SGM prefix denotes the original Sigma series. Compatibility with Sigma-II (SGMAH) or Sigma-III (SGMAS) drives requires encoder adapter cables. Contact us to confirm your specific drive model before ordering.
Q: What is the encoder resolution of this motor?
A: The “U3” suffix in the model number indicates the encoder specification. Please contact our technical team or refer to the YASKAWA SGM series catalog for the exact pulse count and encoder type (incremental vs. absolute).
Q: Can this motor be used in a vertical axis application?
A: Yes, with appropriate brake option or external holding brake on the drive side. Confirm the “A” suffix in the model code does not include an integrated brake; if a brake is required, specify the SGM-01U3BP01 variant.
Q: What is the lead time for this part?
A: Stock availability varies. Contact support@konmask.com for real-time inventory status. Express shipping options are available for urgent MRO requirements.
Q: Do you provide a warranty on this unit?
A: All units are sold with a 90-day functional warranty covering defects identified upon receipt. Extended warranty and exchange programs are available for volume orders.
