CNC Machining & Robotics Motion Control Solution – YASKAWA SGMSS-20A2A-YR12 | Sigma-V Series

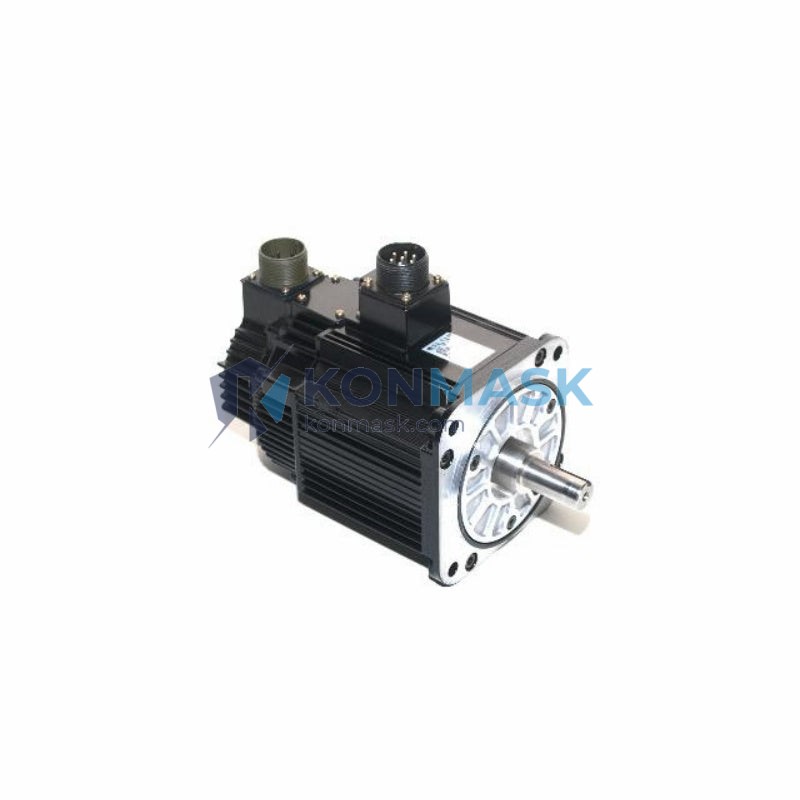

The YASKAWA SGMSS-20A2A-YR12 is a high-performance AC servo motor from Yaskawa’s renowned Sigma-V (Σ-V) Series, rated at 2.0 kW / 200 V. Engineered for precision motion control in demanding industrial environments, this motor delivers exceptional torque response, low vibration, and long-term reliability — making it the preferred choice for engineers specifying servo solutions in CNC, robotics, and high-speed automation systems.
Where This Product Is Used
- CNC Machining Centers — Spindle and axis positioning on vertical/horizontal machining centers requiring sub-micron repeatability.
- Industrial Robots — Joint actuation in 6-axis articulated arms and SCARA robots for automotive and electronics assembly.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and cartoning lines demanding rapid acceleration/deceleration cycles.
- Semiconductor & FPD Equipment — Wafer handling stages and panel transport systems where vibration suppression is critical.
- Printing & Converting Machines — Web tension control and register mark tracking in flexographic and gravure printing lines.
- Injection Molding Machines — Clamp, injection, and ejector axis drives requiring precise force and position control.
Technical Specifications
- Model: SGMSS-20A2A-YR12
- Series: Sigma-V (Σ-V)
- Rated Output Power: 2.0 kW
- Rated Voltage: 200 V AC (3-phase)
- Encoder Type: 20-bit Absolute Encoder
- Shaft Configuration: Straight shaft with key (YR12 suffix)
- Protection Rating: IP67
- Mounting: Flange-mount (IEC standard)
- Insulation Class: Class F
- Cooling Method: Self-cooled (natural convection)
- Compatible Servo Drive: SGDV / SGDH Series (Sigma-V)
- Weight: Approx. 5.6 kg
- Country of Origin: Japan
Why Engineers Specify This Model
- High Torque Density — Compact frame delivers 2.0 kW output, minimizing machine footprint without sacrificing performance.
- 20-bit Absolute Encoder — 1,048,576 pulses/rev resolution eliminates homing routines after power-off, reducing machine downtime.
- Vibration Suppression — Integrated notch filter and adaptive tuning suppress mechanical resonance up to 4,000 Hz.
- IP67 Sealing — Withstands coolant splash, dust ingress, and wash-down environments common in metalworking and food processing.
- Wide Speed Range — Stable operation from 0 to 3,000 rpm with ±0.01% speed regulation under load variation.
- Long Service Life — Yaskawa’s proven winding technology and sealed bearings deliver MTBF exceeding 30,000 hours.
Complete System Bill of Materials
- Servo Motor: YASKAWA SGMSS-20A2A-YR12 (this item)
- Servo Drive: YASKAWA SGDV-200A01A (Sigma-V, 2.0 kW, 200 V)
- Encoder Cable: JZSP-CVP02-XX-E (absolute encoder cable, specify length)
- Power Cable: JZSP-B9403-XX-E (motor power cable, specify length)
- Regenerative Resistor: JUSP-RA04-E (for high-inertia or frequent braking applications)
- Safety Module: SGDV-OSA01A (STO / Safe Torque Off, IEC 61800-5-2)
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL Listed — UL 1004 (Rotating Electrical Machines)
- RoHS Compliant — Directive 2011/65/EU
- ISO 9001:2015 — Yaskawa Electric Corporation Quality Management System
- IEC 60034 — Rotating Electrical Machines standard compliance
Quality Assurance & Sourcing
Every SGMSS-20A2A-YR12 unit offered by Konmask.com is:
- Sourced directly from authorized Yaskawa distributors or verified OEM surplus channels
- Inspected for physical integrity, encoder connector condition, and shaft/flange concentricity
- Tested for insulation resistance (≥100 MΩ at 500 VDC) prior to shipment
- Shipped in anti-static, moisture-barrier packaging with desiccant
- Accompanied by traceable documentation (serial number, production date code)
How to Source This Part
- Add to Cart — Click Buy Now or Add to Cart for immediate checkout.
- Request a Quote — For volume orders (5+ units), email support@konmask.com for a quote within 4 business hours.
- Confirm Compatibility — Share your existing servo drive model number and we will verify compatibility before shipment.
- Global Shipping — DHL / FedEx express to 200+ countries. Typical lead time: 3–7 business days.
Application-Specific FAQ
Q: Is the SGMSS-20A2A-YR12 compatible with the SGDV-200A01A drive?
A: Yes. The SGMSS-20A2A-YR12 is factory-matched to the SGDV-200A01A Sigma-V servo drive. The absolute encoder interface is plug-and-play with Yaskawa’s SigmaWin+ tuning software.
Q: Can this motor be used in a vertical axis application?
A: Yes, with the appropriate holding brake option. The YR12 suffix denotes a straight shaft with key; if a brake is required, specify the SGMSS-20A2A-YR21 (with brake) variant.
Q: What is the maximum cable length between motor and drive?
A: Yaskawa specifies a maximum encoder cable length of 50 m and power cable of 30 m for standard configurations.
Q: Is this motor suitable for food & beverage applications?
A: The IP67 rating makes it suitable for wash-down environments. For direct food-contact zones, consult Yaskawa’s hygienic series options.
Q: Do you provide a warranty?
A: All units carry a 12-month warranty against manufacturing defects from the date of shipment. DOA units are replaced within 5 business days.
