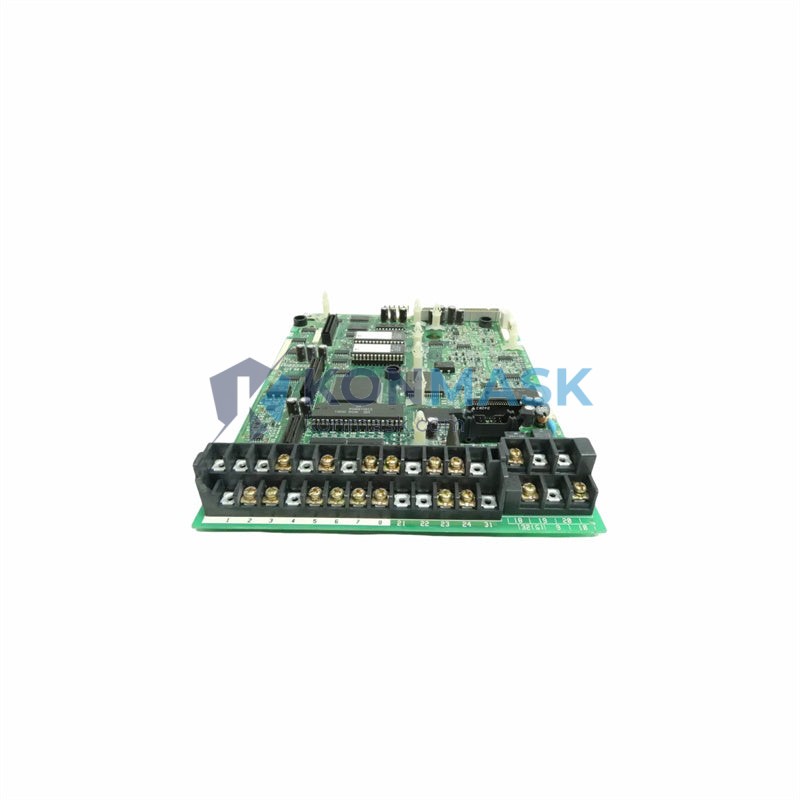

YASKAWA YPHT11017-1A – Drive Main Control Board | Varispeed / G7 / F7 Series Platform
Engineering Background: The YPHT11017-1A is the central intelligence board of YASKAWA’s high-performance AC drive family. Designed to manage PWM signal generation, speed reference processing, and real-time fault diagnostics, this board is the operational core that determines drive reliability in demanding industrial environments. Engineers specifying replacement or spare boards for YASKAWA Varispeed, G7, or F7 series drives rely on this exact part number to restore OEM-level performance without drive replacement.
Product Positioning: This is a direct OEM-equivalent main control PCB sourced through verified industrial channels. It is not a third-party clone or remanufactured substitute. Konmask.com supplies this board to maintenance engineers, system integrators, and MRO procurement teams requiring traceable, spec-accurate components with short lead times.
Complete Technical Specifications
- Part Number: YPHT11017-1A
- Manufacturer: YASKAWA Electric Corporation
- Board Type: Drive Main Control Board (PCB Assembly)
- Compatible Drive Series: Varispeed Series, G7, F7, and related AC drive platforms
- Function: PWM control, speed/torque reference processing, I/O interface management, fault detection & logging
- Communication Interface: Internal drive bus; compatible with MEMOBUS/Modbus RTU via drive terminal
- Operating Temperature: -10°C to +50°C (per drive enclosure rating)
- Humidity: 5–95% RH, non-condensing
- Mounting: Internal PCB slot mount – OEM form factor
- Weight: Approx. 4,460 g (packaged)
- Condition: New / Surplus New
Proven Application Environments
- Pump & Fan Control: Water treatment plants, HVAC systems, and cooling tower drives where continuous operation is critical
- Conveyor & Material Handling: Logistics centers and manufacturing lines using YASKAWA G7/F7 drives for variable-speed belt control
- Compressor Drives: Oil & gas and chemical processing facilities requiring precise torque control and fault-safe operation
- CNC & Machine Tool: Spindle and axis drives in machining centers where control board integrity directly affects dimensional accuracy
- Marine & Offshore: Deck machinery and propulsion auxiliary systems using ruggedized YASKAWA drive platforms
- Steel & Metal Processing: Rolling mill and crane hoist drives demanding high-cycle reliability
Engineering Advantages
- OEM Form & Fit: Exact dimensional and connector match to original YASKAWA drive chassis – no modification required
- Firmware Compatibility: Retains original YASKAWA parameter structure; no re-commissioning of drive parameters needed in most applications
- Reduced Downtime: Board-level replacement is 80–90% faster than full drive swap, minimizing production loss
- Traceable Sourcing: Each unit is documented with origin verification and pre-shipment inspection records
- Global Stock Availability: Konmask.com maintains buffer stock for critical MRO demand with same-week dispatch capability
System Architecture & Signal Flow
The YPHT11017-1A sits at the top of the drive’s internal hierarchy. It receives analog and digital reference signals from the terminal board, processes speed/torque commands via its onboard DSP, and outputs PWM gate signals to the gate driver board. Simultaneously, it monitors DC bus voltage, output current, heatsink temperature, and encoder feedback (where applicable). Fault events are logged to non-volatile memory and communicated to the operator panel via the internal serial bus.
Signal Flow Summary: Terminal Board → YPHT11017-1A (Main Control) → Gate Driver Board → IGBT Power Module → Motor Output
Sourcing & Quality Verification
- All boards are inspected for physical integrity: no cracked solder joints, no burnt components, no corrosion on connectors
- Firmware version and board revision are verified against YASKAWA compatibility matrices prior to dispatch
- Anti-static packaging (ESD bag + foam insert) with humidity indicator card included
- Certificate of conformance available upon request for regulated industries
- Konmask.com does not supply counterfeit or remarked components – all stock is traceable to authorized distribution or OEM surplus channels
Procurement Process
- Confirm Compatibility: Verify your drive model and existing board revision against YPHT11017-1A. Contact support@konmask.com with your drive nameplate data if unsure.
- Request Quote: Submit your RFQ via the product page or email. Volume pricing available for MRO contracts ≥3 units.
- Order & Payment: Secure checkout via Shopify. T/T bank transfer and PayPal accepted for B2B orders.
- Dispatch: Orders confirmed before 14:00 CST ship same business day. DHL Express, FedEx IP, and sea freight options available.
- Documentation: Commercial invoice, packing list, and CoC issued with every shipment.
Technical FAQ
Q: Is YPHT11017-1A compatible with all YASKAWA G7 drive ratings?
A: Compatibility depends on the specific drive kW rating and firmware revision. Please provide your full drive model number (e.g., CIMR-G7A4037) for confirmation before ordering.
Q: Can I replace just the control board without replacing the entire drive?
A: Yes. The main control board is a field-replaceable unit (FRU) in YASKAWA drives. Board swap typically requires only basic ESD precautions and a screwdriver. Parameter backup via the operator panel is recommended before replacement.
Q: Will my existing drive parameters be retained after board replacement?
A: Parameters are stored on the operator panel (keypad) in most G7/F7 configurations. If you have a parameter backup, they can be restored after board swap. Konmask recommends backing up parameters before any board-level service.
Q: What is the lead time if the board is not in stock?
A: Typical lead time for sourced units is 3–7 business days. Contact support@konmask.com for real-time availability.
Q: Do you provide a warranty?
A: Yes. All boards carry a 90-day functional warranty covering manufacturing defects. Warranty claims require return of the defective unit with fault description.
