YOKOGAWA AAI135-S00 S2 Analog Input Module | Replacement, Equivalent & Selection Guide

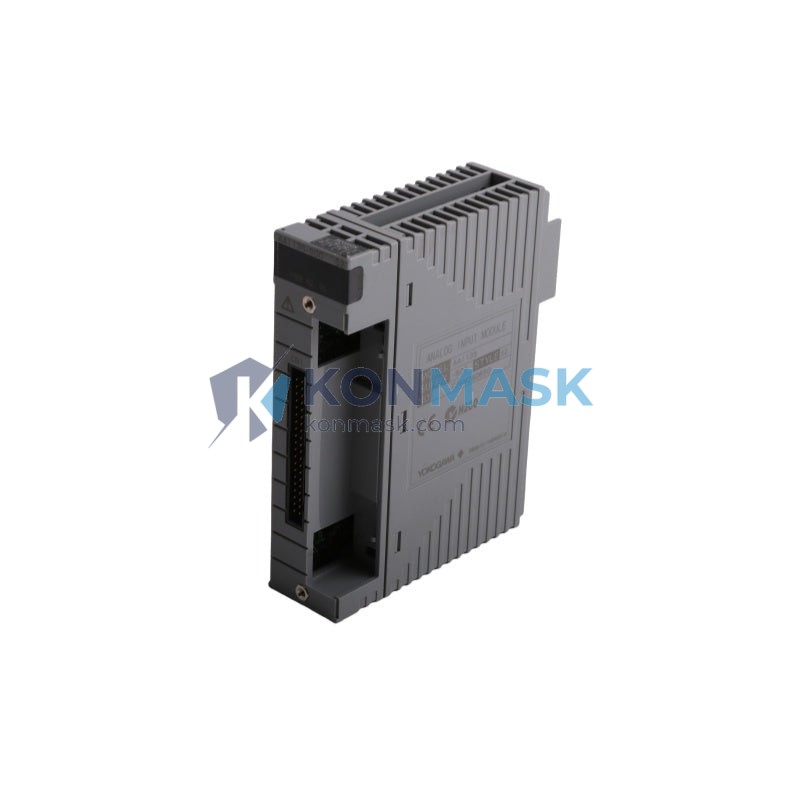

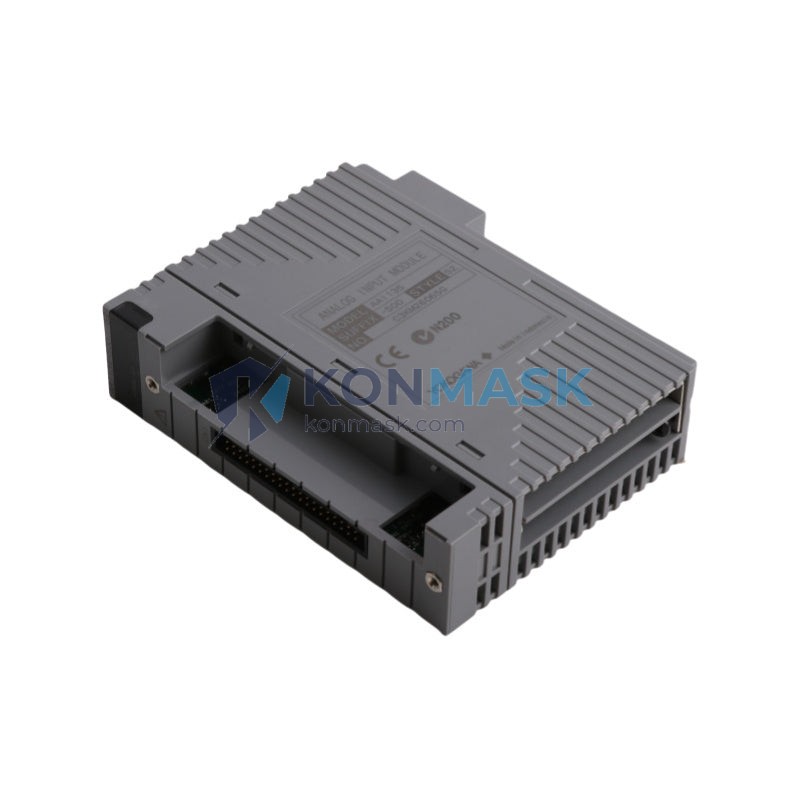

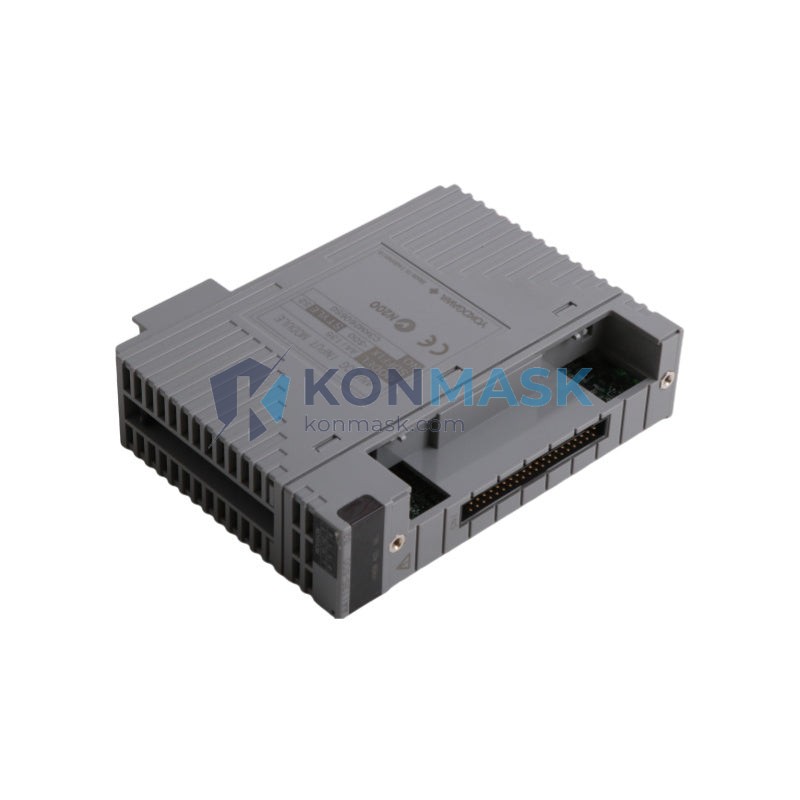

The YOKOGAWA AAI135-S00 S2 is a 16-channel analog input I/O module designed for the CENTUM VP and CS 3000 Distributed Control Systems. Engineered for high-density signal acquisition in process automation environments, this module delivers reliable 4–20 mA current loop input with galvanic isolation and high-speed scanning. At Konmask.com, we help engineers and procurement teams identify the right module — whether sourcing the original AAI135-S00 S2 or evaluating compatible alternatives.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | AAI135-S00 S2 |
| Manufacturer | YOKOGAWA Electric Corporation |
| Series / Platform | CENTUM VP / CS 3000 |
| Module Type | Analog Input (AI) |
| Number of Channels | 16 Channels |
| Input Signal Type | 4–20 mA (Current Loop) |
| Input Impedance | 250 Ω (typical) |
| Resolution | 16-bit A/D Conversion |
| Isolation | Channel-to-channel & channel-to-bus galvanic isolation |
| Scan Cycle | Compatible with CENTUM VP standard scan periods |
| Power Consumption | Per CENTUM VP I/O nest specification |
| Operating Temperature | 0°C to 55°C |
| Mounting | CENTUM VP I/O nest (standard slot) |
| Weight | Approx. 300 g |
| Certifications | CE, UL, IECEx (refer to datasheet) |
Compatible Replacement & Equivalent Models
When the AAI135-S00 S2 is unavailable or end-of-life, the following models may serve as functional equivalents or replacements depending on system configuration:
- AAI135-S00 S1 — Earlier hardware revision; functionally equivalent in most CENTUM VP applications. Verify firmware compatibility before substitution.
- AAI141-S00 — 8-channel AI module; suitable when channel density can be reduced. Lower cost per unit.
- AAI143-S00 — 16-channel AI with HART communication support; recommended upgrade path for HART-enabled field devices.
- AAI835-S00 — High-accuracy AI module for precision measurement applications requiring tighter tolerances.
- Third-party compatible modules — Contact Konmask.com for cross-reference analysis. We evaluate signal type, channel count, bus protocol, and nest compatibility before recommending any alternative.
⚠ Important: Always verify hardware revision, firmware version, and nest slot compatibility before installing any replacement module in a live DCS environment.
Why Choose the Original AAI135-S00 S2
- Guaranteed compatibility — Factory-matched to CENTUM VP / CS 3000 I/O architecture with no configuration workarounds.
- Proven field reliability — Widely deployed in oil & gas, petrochemical, and power generation plants globally.
- Full YOKOGAWA support — Eligible for YOKOGAWA technical support, firmware updates, and spare parts programs.
- Regulatory compliance — Meets CE, UL, and IECEx standards as originally certified; no re-certification required.
- Reduced commissioning risk — Drop-in replacement for existing AAI135-S00 S2 slots with zero software reconfiguration.
Typical Applications
- Oil & gas upstream/downstream process monitoring (flow, pressure, temperature, level)
- Petrochemical plant DCS expansion and I/O upgrade projects
- Power generation boiler and turbine control systems
- Chemical processing continuous monitoring loops
- Water treatment and utilities SCADA/DCS integration
- Pharmaceutical batch process control (FDA-regulated environments)
System Compatibility
- Primary Platform: YOKOGAWA CENTUM VP (all generations)
- Legacy Platform: YOKOGAWA CS 3000 (with appropriate nest)
- I/O Nest: Standard CENTUM VP I/O nest — no adapter required
- Field Control Station (FCS): Compatible with LFCS, SFCS, PFCS series
- Engineering Tool: CENTUM VP Builder / CS 3000 Builder
- Not compatible with: YOKOGAWA STARDOM, ProSafe-RS, or third-party DCS platforms without gateway hardware
Selection Guide
Use the following criteria to confirm the AAI135-S00 S2 is the correct module for your application:
- ✅ Signal type: Your field devices output 4–20 mA analog current signals
- ✅ Channel count: You require 16 input channels per module slot
- ✅ Platform: Your DCS is CENTUM VP or CS 3000
- ✅ HART not required: Field devices do not require HART digital communication (if HART needed → consider AAI143-S00)
- ✅ Standard accuracy: Application does not require high-precision measurement (if high accuracy needed → consider AAI835-S00)
- ✅ Hardware revision: Confirm S2 revision is specified in your system BOM or spare parts list
Not sure which module fits your system? Contact our selection team with your FCS model, nest drawing, and field device list — we’ll confirm the right part number.
Quality Assurance & Sourcing
- Authorized & verified supply chain — All YOKOGAWA modules sourced through traceable, documented channels
- Pre-shipment inspection — Visual inspection, label verification, and functional check on every unit
- Anti-counterfeit screening — Serial number and firmware version cross-referenced against manufacturer records
- Packaging integrity — ESD-safe packaging with original or equivalent protective materials
- Documentation provided — Certificate of conformance, test report, and sourcing declaration available on request
How to Order
- Confirm part number: AAI135-S00 S2 (verify hardware revision S2 is required)
- Specify quantity: Single unit or bulk order — volume pricing available
- Request documentation: Indicate if CoC, test report, or datasheet is required
- Submit inquiry: Email support@konmask.com or call +0086 19859288691
- Receive quote: Typical response within 24 business hours with lead time and pricing
- Confirm & ship: Order confirmed upon payment; global shipping with tracking provided
Replacement & Compatibility FAQ
Q: Can I replace AAI135-S00 S2 with AAI135-S00 S1?
A: In most cases yes — S1 and S2 are hardware revisions of the same module family. However, verify that your CENTUM VP firmware version supports the S1 revision. Contact us for a compatibility check.
Q: Does the AAI135-S00 S2 support HART communication?
A: No. The AAI135-S00 S2 is a standard 4–20 mA analog input module without HART support. For HART-enabled applications, consider the AAI143-S00.
Q: Can this module be used in a CS 3000 system?
A: Yes, with the appropriate I/O nest. Confirm nest model compatibility with your CS 3000 system drawing before ordering.
Q: What is the lead time for AAI135-S00 S2?
A: Lead time varies by stock availability. Contact Konmask.com for current stock status and estimated delivery.
Q: Do you provide a warranty?
A: Yes. All modules supplied by Konmask.com include a quality guarantee. Terms provided with each order confirmation.
Q: Can you supply multiple units for a plant turnaround?
A: Yes. We support bulk and emergency orders. Contact us with your required quantity and delivery deadline.
