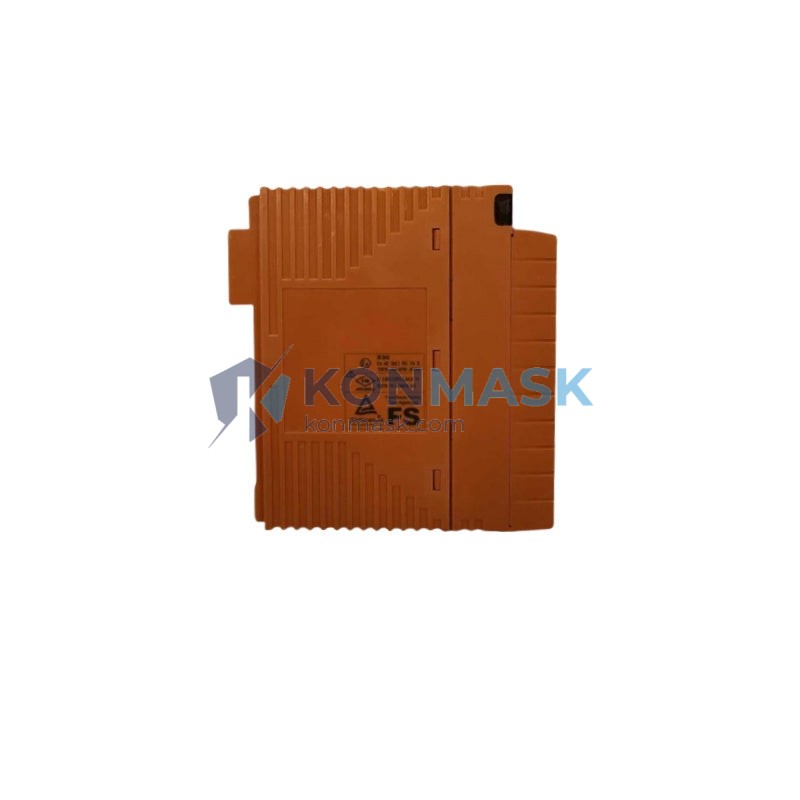

Yokogawa SAI533-H33 – 16-Channel Analog Output Module | CENTUM CS3000 DCS Platform
Engineering Background
The Yokogawa SAI533-H33 is a high-density analog output module engineered for the CENTUM CS3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in refining, petrochemical, power generation, and pharmaceutical manufacturing. Designed to Yokogawa’s IEC 61511 functional safety standards, this module delivers precision 4–20 mA current loop outputs with the reliability demanded by continuous-process environments.
Product Positioning
The SAI533-H33 serves as the field interface between the CS3000 controller and final control elements — control valves, variable-speed drives, and positioners. Its 16-channel density reduces cabinet footprint while maintaining channel-to-channel isolation and loop integrity. It is the preferred replacement and expansion card for CS3000 installations requiring verified OEM-grade hardware.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | SAI533-H33 |
| Manufacturer | Yokogawa Electric Corporation |
| Platform | CENTUM CS3000 DCS |
| Module Type | Analog Output (AO) |
| Output Channels | 16 channels |
| Output Signal | 4–20 mA DC (current loop) |
| Output Resolution | 13-bit (1 in 8000) |
| Load Resistance | 0–750 Ω per channel |
| Isolation | Channel-to-channel isolated |
| Power Supply | Supplied via CS3000 I/O bus backplane |
| Communication Bus | Yokogawa V-net / ER Bus (CS3000 native) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Module Weight | 630 g |
| Form Factor | Single-slot CS3000 I/O module |
| Certifications | CE, UL, cUL (per Yokogawa OEM spec) |
| Country of Origin | Japan |
Proven Application Environments
- Oil & Gas Refining — Valve positioner control in crude distillation and hydrocracking units
- Petrochemical Plants — Flow and pressure setpoint transmission to final control elements
- Power Generation — Turbine governor and boiler feed control loops
- Pharmaceutical Manufacturing — Batch reactor temperature and pressure control under GMP environments
- Pulp & Paper — Consistency and basis-weight control loops
- Water Treatment — Dosing pump and valve control in SCADA-integrated DCS architectures
Engineering Advantages
- 16-Channel Density — Maximizes I/O per cabinet slot, reducing hardware cost and wiring complexity
- 13-Bit Resolution — Provides 0.012% full-scale accuracy for tight loop control
- Channel Isolation — Prevents ground loops and cross-channel interference in multi-loop installations
- Hot-Swap Compatible — Supports online replacement without process shutdown (CS3000 redundancy configuration)
- OEM Firmware — Factory-loaded Yokogawa firmware ensures full compatibility with CS3000 engineering tools (CENTUM VP Builder)
- Long Service Life — Designed for 10+ year continuous operation in industrial environments
System Architecture & Signal Flow
The SAI533-H33 installs into the CS3000 I/O nest and communicates with the Field Control Station (FCS) via the Yokogawa V-net ER bus. The FCS downloads setpoint values to the module, which converts digital process data to precision 4–20 mA current signals. Each channel drives an independent current loop to the field device (valve, drive, or positioner). The module supports both simplex and redundant I/O configurations when paired with a CS3000 dual-redundant FCS.
Signal path: FCS Controller → V-net ER Bus → SAI533-H33 Backplane → 16× 4–20 mA Field Loops → Final Control Elements
Sourcing & Quality Verification
- All SAI533-H33 units are sourced from decommissioned plant upgrades or verified surplus inventories
- Each module undergoes visual inspection, connector integrity check, and firmware version verification prior to listing
- Units are shipped in anti-static packaging with individual serial number documentation
- Konmask.com maintains traceability records for all stocked modules
- Functional test reports available upon request for volume orders (5+ units)
Procurement Process
- Step 1 — Confirm your CS3000 FCS model and I/O nest revision with your DCS engineer
- Step 2 — Verify SAI533-H33 firmware compatibility with your CENTUM VP Builder version
- Step 3 — Place order via Konmask.com or contact support@konmask.com for volume pricing
- Step 4 — Receive module with inspection report; install per Yokogawa CS3000 I/O Module Replacement Procedure
- Lead Time — In-stock units ship within 2 business days; EXW Xiamen, China
- Payment — T/T, PayPal, credit card accepted; Net 30 available for qualified accounts
Technical FAQ
Q: Is the SAI533-H33 compatible with CENTUM VP?
A: The SAI533-H33 is a CS3000-native module. It is physically compatible with CENTUM VP I/O nests in legacy-integration configurations, but firmware and tag mapping must be verified with Yokogawa engineering before deployment in a VP system.
Q: Can this module be used in a redundant I/O configuration?
A: Yes. When paired with a CS3000 dual-redundant FCS and appropriate I/O nest, the SAI533-H33 supports redundant operation. Consult Yokogawa CS3000 Hardware Manual (IM 33S01B30-01E) for wiring details.
Q: What is the difference between SAI533-H33 and SAI533-H31?
A: The suffix designates the terminal block and isolation specification variant. H33 indicates a specific connector and channel isolation configuration. Confirm your existing nest wiring before substituting variants.
Q: Do you provide a warranty?
A: Konmask.com offers a 90-day functional warranty on all surplus modules. DOA claims are accepted within 7 days of receipt with photographic evidence.
Q: Can I request a datasheet or test report?
A: Yes. Contact support@konmask.com with your order reference or inquiry number.
