Yokogawa AAI143-H50 S1 Analog Input Module | Replacement, Equivalent & Selection Guide

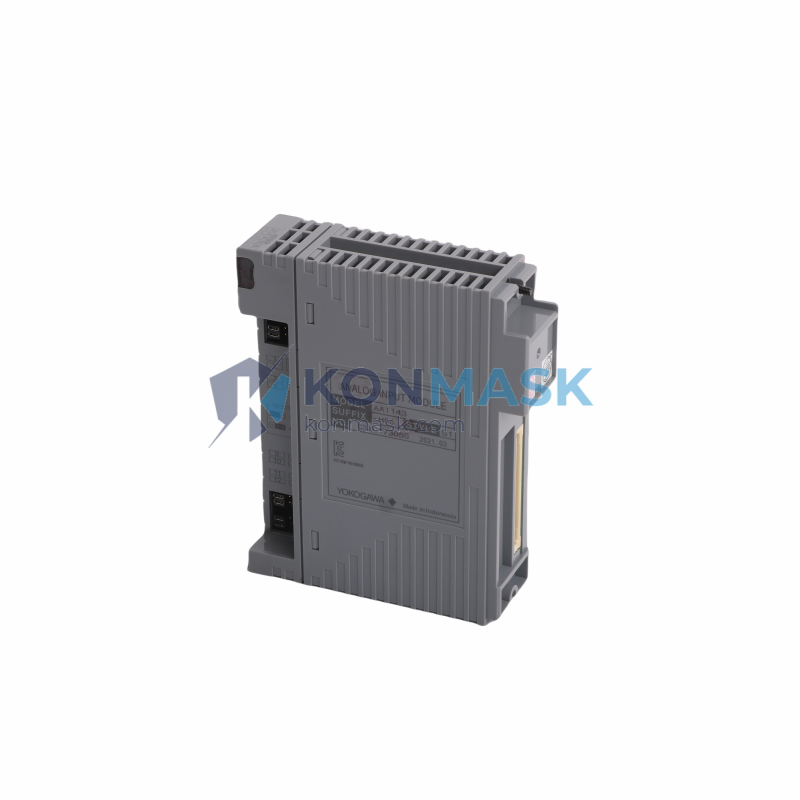

The Yokogawa AAI143-H50 S1 is a 16-channel analog input module designed for the CENTUM VP and CS 3000 distributed control systems. Engineered for high-density signal acquisition in continuous process industries, it delivers reliable 4–20 mA / 1–5 V DC measurement with HART pass-through capability. Konmask.com supplies verified OEM units with full traceability for MRO, capital projects, and emergency replacements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI143-H50 S1 |
| Manufacturer | Yokogawa Electric Corporation |
| Platform | CENTUM VP / CS 3000 |
| Module Type | Analog Input (AI) |
| Channel Count | 16 channels |
| Input Signal | 4–20 mA DC / 1–5 V DC (selectable per channel) |
| HART Support | Yes – HART pass-through (H suffix) |
| Resolution | 16-bit A/D conversion |
| Isolation | Channel-to-channel & channel-to-bus isolation |
| Power Consumption | Supplied via I/O bus (no external power required) |
| Operating Temperature | 0 °C to +60 °C |
| Weight | Approx. 180 g |
| Suffix Code – H50 | 50 Ω input resistor, HART-enabled |
| Suffix Code – S1 | Standard specification, revision 1 |
| Compliance | CE, UL, IECEx (per system certification) |
Compatible Replacement & Equivalent Models
When the AAI143-H50 S1 is unavailable or under evaluation, the following models may serve as functional equivalents or upgrades. Always verify firmware compatibility and I/O bus slot assignment before substitution.
| Model | Channels | HART | Notes |
|---|---|---|---|
| AAI143-H50 S2 | 16 | Yes | Revised spec – direct drop-in replacement |
| AAI143-S50 S1 | 16 | No | Non-HART variant; same channel density |
| AAI141-H50 S1 | 8 | Yes | Half-density; use two modules to match capacity |
| AAI135-H50 S1 | 16 | Yes | Older generation; confirm bus compatibility |
| AAI543-H50 S1 | 16 | Yes | FOUNDATION Fieldbus variant – different protocol |
| Honeywell MC-TAIH02 | 16 | Yes | Cross-brand; requires gateway/migration adapter |
| ABB AI810 | 8 | No | Cross-brand; not pin-compatible |
⚠ Cross-brand replacements require engineering validation. Contact Konmask for a compatibility assessment.
Why Choose the Original Model
- Guaranteed bus compatibility – native CENTUM VP / CS 3000 I/O bus protocol, zero configuration overhead
- HART pass-through – enables remote device diagnostics and calibration without loop interruption
- 16-bit resolution – superior measurement accuracy for flow, pressure, and temperature loops
- Hot-swap capable – replace under power without process shutdown (system configuration dependent)
- Long lifecycle support – Yokogawa provides extended spare-parts availability for CENTUM VP platforms
- Proven field reliability – deployed in refineries, chemical plants, and LNG facilities worldwide
Typical Applications
- Oil & gas upstream/downstream process control
- Petrochemical and refinery DCS expansions
- LNG liquefaction and regasification plants
- Power generation boiler and turbine control
- Pharmaceutical batch process monitoring
- Water treatment and desalination facilities
- Pulp & paper mill process automation
System Compatibility
- CENTUM VP R4.xx – R6.xx (all revisions)
- CENTUM CS 3000 R3.xx
- I/O Unit: ANB10D, ANB11D, ANR10D series node units
- Engineering Tool: CENTUM VP Builder / CS 3000 Builder
- HART DTM: Compatible with FDT/DTM framework via HART multiplexer
Not compatible with CENTUM CS 1000, ProSafe-RS, or STARDOM platforms without additional I/O adapters.
Selection Guide
Use the decision matrix below to confirm the correct AAI143 variant for your project:
| Requirement | Recommended Model |
|---|---|
| 16-ch AI + HART + 50 Ω resistor, standard spec | AAI143-H50 S1 ✓ |
| 16-ch AI + HART, revised spec / newer firmware | AAI143-H50 S2 |
| 16-ch AI, no HART required | AAI143-S50 S1 |
| 8-ch AI + HART (space-constrained rack) | AAI141-H50 S1 |
| FOUNDATION Fieldbus segment integration | AAI543-H50 S1 |
| Intrinsically safe / hazardous area (Zone 1) | Consult Yokogawa IS barrier catalog |
Quality Assurance & Sourcing
- OEM-sourced inventory – units procured through authorized Yokogawa distribution channels
- Visual & functional inspection – every module inspected for physical integrity and label authenticity
- Serialization traceability – serial numbers logged and cross-referenced against manufacturer records
- Anti-counterfeit verification – holographic labels, PCB markings, and firmware version checks
- Packaging – ESD-safe bags, foam-lined cartons; original Yokogawa packaging where available
- Warranty – 12-month Konmask quality guarantee on all verified units
How to Order
- Confirm your CENTUM VP / CS 3000 system revision and node unit model
- Verify HART requirement and input resistor value (50 Ω standard)
- Contact Konmask via email or phone with your PO or RFQ
- Receive quotation with lead time, unit price, and shipping options within 24 hours
- Approve quotation → payment → dispatch with tracking number
- Post-delivery technical support available for installation and commissioning
Part Number: AAI143-H50 S1 | Brand: Yokogawa | Stock Status: Contact for availability
Replacement & Compatibility FAQ
Q: Can AAI143-H50 S2 replace AAI143-H50 S1 directly?
A: Yes. The S2 revision is backward-compatible and is the recommended drop-in replacement when S1 is discontinued or unavailable.
Q: Does the H50 suffix mean HART is mandatory?
A: No. HART is optional per channel. The H50 module supports HART but operates normally in standard 4–20 mA mode without a HART master.
Q: Can I use this module in a CS 1000 system?
A: No. The AAI143 series is not compatible with CENTUM CS 1000 I/O buses. A separate module family is required.
Q: Is hot-swap supported?
A: Hot-swap is supported when the CENTUM VP system is configured for redundant I/O. Verify your node unit supports online replacement before proceeding.
Q: What is the difference between AAI143-H50 and AAI143-S50?
A: The H50 variant includes a 50 Ω HART resistor and HART communication circuitry. The S50 variant omits HART support and is used in non-HART loops.
Q: Do you supply refurbished units?
A: Konmask supplies new OEM and certified-used units. All used units undergo full functional testing. Condition is clearly stated in the quotation.
