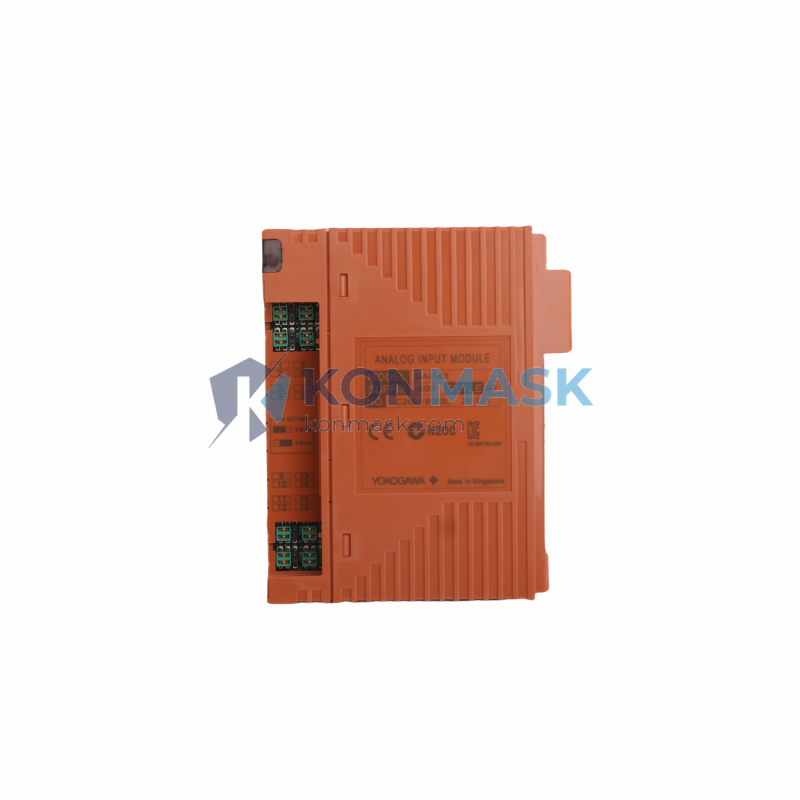

Yokogawa SAI143-S03 S2 – 16-Channel Analog Input Module | CENTUM VP / CS 3000 Platform
Engineering Background
The SAI143-S03 S2 is a high-density analog input module engineered for Yokogawa’s CENTUM VP and CS 3000 Distributed Control Systems (DCS). Designed to meet the rigorous demands of continuous process industries, this module delivers reliable 4–20 mA signal acquisition with built-in HART communication capability, enabling seamless integration into modern smart-instrument architectures.
Product Positioning
Targeted at process automation engineers and instrumentation specialists, the SAI143-S03 S2 serves as the primary field-signal interface in refinery, petrochemical, power generation, and pharmaceutical control loops. Its compact 16-channel density reduces cabinet footprint while maintaining full IEC 61511 functional safety compliance pathways.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | SAI143-S03 S2 |
| Platform Compatibility | Yokogawa CENTUM VP, CS 3000 |
| Module Type | Analog Input (AI) |
| Number of Channels | 16 channels |
| Input Signal Range | 4–20 mA DC (with HART) |
| Input Impedance | 250 Ω (internal burden resistor) |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| HART Support | HART 5/6/7 pass-through per channel |
| Power Consumption | ≤ 5 W typical |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Mounting | Node Unit / I/O nest hot-swap capable |
| Dimensions (W×H×D) | Approx. 25 × 200 × 200 mm |
| Weight | Approx. 300 g |
| Certifications | CE, UL, cUL, ATEX (zone 2 barrier required) |
| Country of Origin | Japan |
Proven Application Environments
- Oil & Gas Refining – Crude distillation column temperature and pressure loop monitoring
- Petrochemical Plants – Reactor feed-flow and differential-pressure measurement
- Power Generation – Boiler drum level and steam-flow analog acquisition
- Pharmaceutical Manufacturing – GMP-compliant batch process signal recording
- Pulp & Paper – Continuous digester pressure and consistency control
- Water & Wastewater Treatment – Multi-point flow and pH analog input aggregation
Engineering Advantages
- High Channel Density – 16 isolated AI channels per slot minimise rack space and wiring cost
- HART Transparency – Full HART pass-through enables remote device diagnostics without additional multiplexers
- Hot-Swap Design – Module replacement under power without process interruption (bumpless transfer)
- Galvanic Isolation – Per-channel isolation eliminates ground-loop interference in multi-transmitter loops
- Redundancy Ready – Supports dual-redundant I/O node configurations for SIL-rated loops
- Long Service Life – Yokogawa’s proven CENTUM hardware platform with 20+ year installed base
System Architecture & Signal Flow
Field transmitters (4–20 mA / HART) connect to the SAI143-S03 S2 via marshalling cabinets or direct I/O termination units. The module resides in a CENTUM VP Node Unit (e.g., ANB10D/ANR10D) and communicates with the Field Control Station (FCS) over the V-net/IP or ESB bus. Engineering workstations access HART device parameters through the FCS without additional hardware. Redundant power feeds from the Node Unit power supply ensure continuous operation during single-supply failure.
Sourcing & Quality Verification
- All units sourced from authorised distributors or directly decommissioned from documented plant shutdowns
- Each module undergoes incoming inspection: visual, firmware-version check, and functional power-on test
- Serialised traceability records retained for 5 years
- Original Yokogawa packaging and documentation supplied where available
- Counterfeit-prevention: holographic labels and Yokogawa part-number verification against official BOM
Procurement Process
- Enquire – Submit your RFQ via the product page or email support@konmask.com with quantity and required delivery date
- Quote – Receive a formal quotation with lead time, warranty terms, and shipping options within 24 hours
- Order – Confirm PO; payment via T/T, PayPal, or trade-credit terms for approved accounts
- Inspection – Pre-shipment inspection report and photos provided on request
- Dispatch – DHL / FedEx express or sea freight; export documentation (CO, packing list, commercial invoice) included
- After-Sales – 12-month warranty; technical support via email and WhatsApp
Technical FAQ
Q: Is the SAI143-S03 S2 compatible with CENTUM CS 3000 R3?
A: Yes. The module is backward-compatible with CS 3000 R3 Node Units using the same I/O nest form factor.
Q: Can I use this module in a SIL 2 safety loop?
A: The SAI143 series supports SIL 2 applications when used with Yokogawa’s ProSafe-RS safety system in a certified architecture. Consult your functional safety engineer for loop SIL verification.
Q: What is the HART revision supported?
A: HART 5, 6, and 7 are all supported via pass-through. HART primary/secondary master arbitration is handled by the FCS.
Q: Do you supply the termination unit (TB) separately?
A: Yes. Compatible termination units (e.g., ATB141) are available. Please specify when enquiring.
Q: What warranty do you offer?
A: 12 months from date of shipment, covering manufacturing defects and functional failure under normal operating conditions.
