Yokogawa AAI543-H50 S1 Analog Output Module | Replacement, Equivalent & Selection Guide

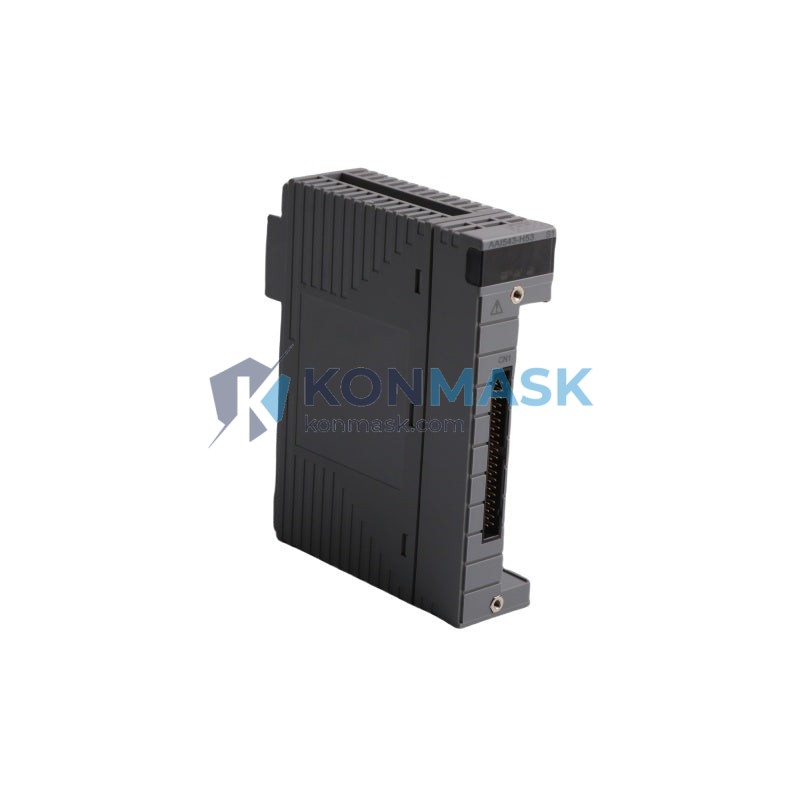

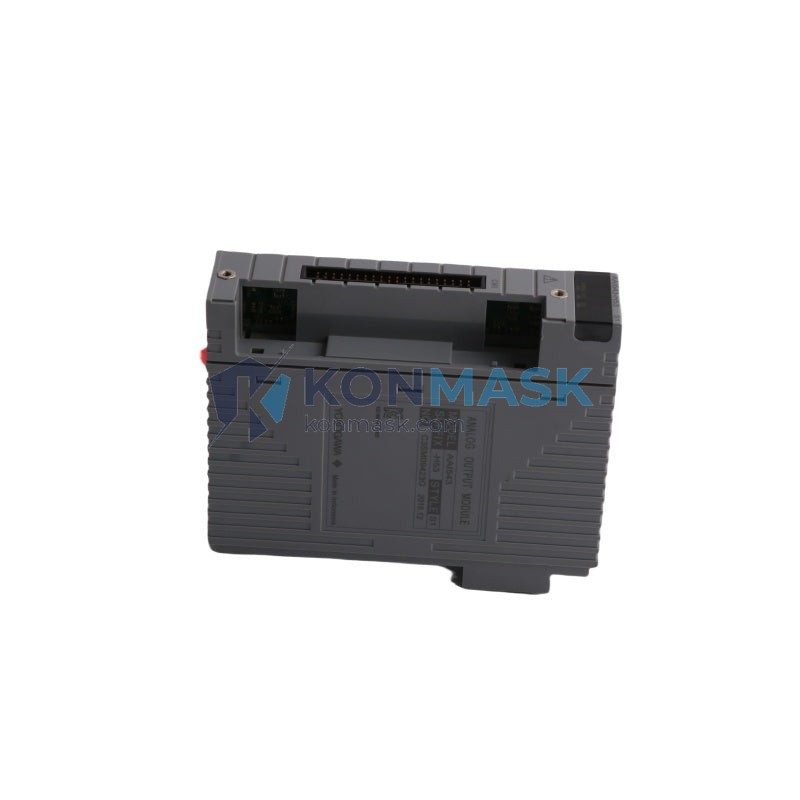

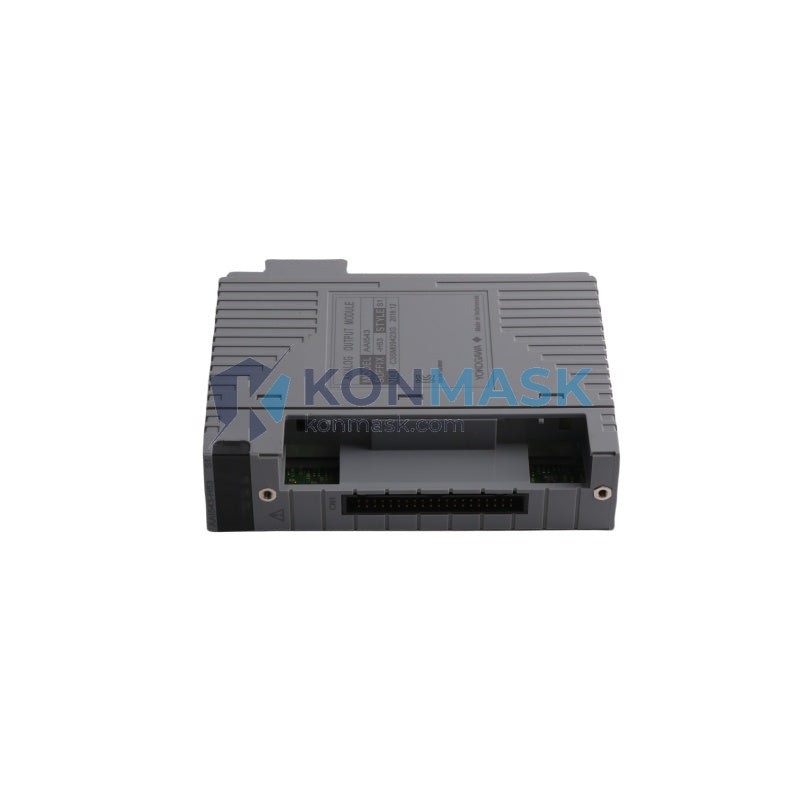

The Yokogawa AAI543-H50 S1 is a 16-channel analog output module designed for the CENTUM VP / CS 3000 distributed control system (DCS). It delivers precision 4–20 mA current output signals for field device control in process automation environments. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers source the right module confidently.
Technical Specifications
- Model: AAI543-H50 S1
- Manufacturer: Yokogawa Electric Corporation
- Module Type: Analog Output (AO)
- Number of Channels: 16 channels
- Output Signal: 4–20 mA DC (current output)
- Output Range: 0–21.6 mA (extended range)
- Resolution: 13-bit (1 in 8000)
- Accuracy: ±0.1% of full scale
- Load Resistance: 0–750 Ω
- Isolation: Channel-to-channel and channel-to-bus isolation
- Power Consumption: Supplied via I/O bus
- Compatible Platform: Yokogawa CENTUM VP, CENTUM CS 3000
- Suffix -H50: Hazardous area rated (ATEX / IECEx Zone 2)
- Suffix S1: Standard build option
- Operating Temperature: 0°C to +55°C
- Humidity: 5% to 95% RH (non-condensing)
- Dimensions: Standard CENTUM I/O module form factor
- Weight: Approx. 300 g
- Certifications: CE, ATEX, IECEx
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the AAI543-H50 S1. Always verify firmware version and bus compatibility before substitution.
- AAI543-H00 S1 — Standard (non-hazardous) variant; identical channel count and output spec
- AAI543-H50 S2 — Alternate build suffix; confirm with Yokogawa BOM for exact differences
- AAI543-S50 — Earlier generation equivalent; check I/O bus connector compatibility
- AAI841-H50 S1 — 8-channel AO alternative when reduced channel density is acceptable
- Honeywell MC-TAOY22 — Cross-brand equivalent for Experion PKS migration projects (requires I/O adapter)
- ABB AI830A — Cross-brand AO module for S800 I/O; suitable for hybrid DCS architectures
Note: Cross-brand replacements require engineering validation. Contact support@konmask.com for compatibility assessment.
Why Choose the Original Model
- Native CENTUM VP Integration: Plug-and-play with Yokogawa’s DCS without additional configuration or adapters
- Hazardous Area Certification: -H50 suffix confirms ATEX Zone 2 / IECEx compliance for petrochemical and offshore environments
- Proven Field Reliability: Widely deployed in refinery, power generation, and chemical plant applications globally
- Manufacturer Support: Full Yokogawa lifecycle support, firmware updates, and spare parts availability
- Consistent Signal Quality: 13-bit resolution ensures precise valve and actuator positioning
Typical Applications
- Control valve positioner signal output in oil & gas processing
- Variable frequency drive (VFD) speed reference in power plants
- Flow control loop output in chemical and pharmaceutical manufacturing
- Pressure and temperature setpoint transmission in refinery DCS
- Burner management and combustion control systems
- Water treatment plant dosing pump control
System Compatibility
- Primary Platform: Yokogawa CENTUM VP (all versions)
- Legacy Platform: Yokogawa CENTUM CS 3000 R3 and above
- I/O Bus: Yokogawa ESB (Enhanced Serial Bus) / RIO bus
- Node Unit: Compatible with ANB10D, ANB11D node units
- Not Compatible With: CENTUM XL, YEWPACK, or third-party DCS without I/O gateway
Selection Guide
Use the table below to select the correct AAI543 variant for your project:
| Requirement | Recommended Model |
|---|---|
| 16-ch AO, hazardous area (Zone 2) | AAI543-H50 S1 ✓ This model |
| 16-ch AO, safe area only | AAI543-H00 S1 |
| 8-ch AO, hazardous area | AAI841-H50 S1 |
| 16-ch AO, HART communication | AAI543-H50 S1 + HART multiplexer |
| Voltage output (0–10 V) required | Consult Yokogawa AVO series |
Not sure which model fits your system? Send us your I/O list and our engineers will recommend the correct module.
Quality Assurance & Sourcing
- Source: Authorized distributor stock and verified surplus channels
- Inspection: Every unit undergoes visual inspection, label verification, and functional pre-check before shipment
- Authenticity: Genuine Yokogawa modules with original packaging where available
- Warranty: 12-month warranty against manufacturing defects
- Traceability: Batch records and serial number documentation provided on request
How to Order
- Click Add to Cart or Buy Now on this page
- For bulk orders (>5 units) or urgent requirements, email support@konmask.com
- Provide your PO number, delivery address, and required delivery date
- We confirm stock availability and lead time within 24 business hours
- Payment: T/T, PayPal, credit card, and trade credit (approved accounts)
📞 Phone / WhatsApp: +0086 19859288691
📧 Email: support@konmask.com
🌐 Website: https://konmask.com
Replacement & Compatibility FAQ
Q: Can AAI543-H00 S1 replace AAI543-H50 S1 in a hazardous area?
A: No. The -H50 suffix denotes hazardous area certification. Using -H00 in Zone 2 areas violates safety standards.
Q: Is AAI543-H50 S1 compatible with CENTUM VP R6?
A: Yes, the AAI543 series is fully supported in CENTUM VP R5 and R6 with no hardware changes required.
Q: Can I use this module in a CS 3000 system?
A: Yes, with CS 3000 R3.08 or later. Verify node unit firmware version before installation.
Q: What is the lead time for AAI543-H50 S1?
A: In-stock units ship within 3–5 business days. Out-of-stock lead time is 4–8 weeks depending on sourcing channel.
Q: Do you provide a test report or certificate of conformance?
A: Yes, available on request for all orders. Contact us before placing your order to confirm documentation requirements.
