Process Control Solution – Yokogawa AAM10-S1 | CENTUM VP / CS 3000 Analog Input Module

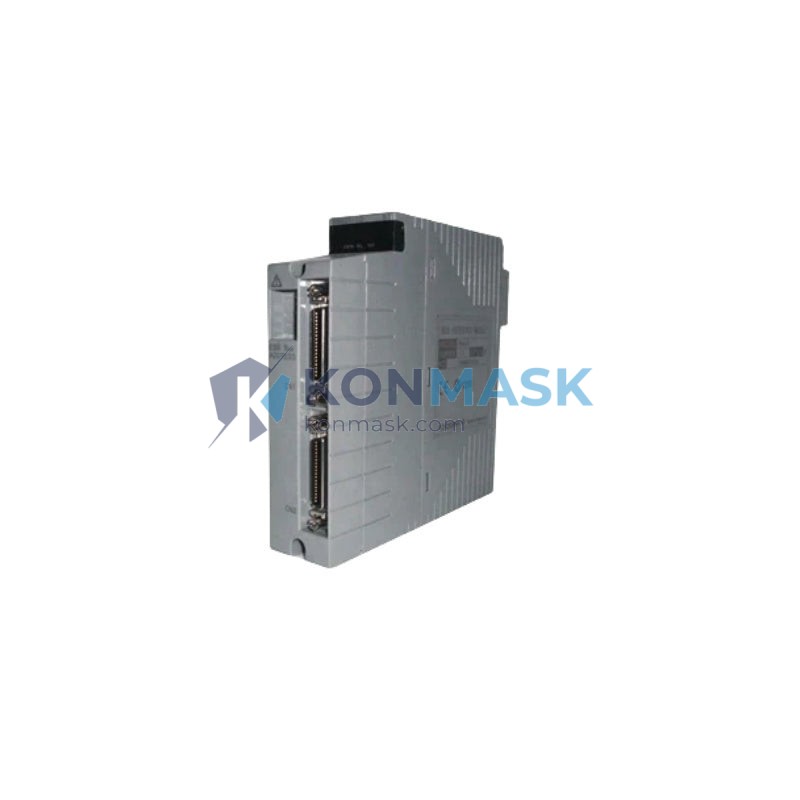

The Yokogawa AAM10-S1 is a 16-channel analog input module engineered for the CENTUM VP and CS 3000 distributed control systems. Deployed across refineries, chemical plants, and power generation facilities worldwide, this module serves as the critical sensing interface between field instruments and the DCS controller — converting 4–20 mA signals into precise digital values for real-time process monitoring and control.
Where This Product Is Used
- Oil & Gas Refineries – Flow, pressure, and temperature measurement loops in crude distillation and hydrocracking units
- Chemical & Petrochemical Plants – Continuous process monitoring for reactor temperature, vessel pressure, and feed-rate control
- Power Generation – Boiler drum level, turbine inlet pressure, and generator cooling system monitoring
- Pulp & Paper Mills – Digester pressure and bleaching chemical flow measurement
- Water & Wastewater Treatment – Influent flow metering, pH, and dissolved oxygen monitoring integrated into CENTUM VP SCADA loops
- Pharmaceutical Manufacturing – cGMP-compliant process variable acquisition for batch reactors and CIP systems
Technical Specifications
| Model | AAM10-S1 |
| Manufacturer | Yokogawa Electric Corporation |
| Series | CENTUM VP / CS 3000 |
| Module Type | Analog Input (AI) |
| Number of Channels | 16 channels |
| Input Signal | 4–20 mA DC (with HART support on select variants) |
| Input Impedance | ≤ 250 Ω |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Power Supply | Supplied via CENTUM VP / CS 3000 I/O bus |
| Operating Temperature | 0°C to 55°C |
| Mounting | CENTUM VP / CS 3000 I/O nest (standard slot) |
| Weight | Approx. 100 g |
| Certifications | CE, UL, cUL |
Why Engineers Specify This Model
- Native DCS Integration – Plug-and-play compatibility with CENTUM VP and CS 3000 I/O nests; no additional signal conditioning required
- High-Density I/O – 16 channels per slot maximizes cabinet space efficiency in large-scale process plants
- Proven Field Reliability – Yokogawa’s AAM10 series has accumulated millions of operating hours in harsh industrial environments
- Hot-Swap Capable – Supports online replacement without process shutdown when used with redundant I/O configurations
- Diagnostic Transparency – Built-in channel-level diagnostics surface faults directly in the CENTUM VP HIS operator station
Complete System Bill of Materials
The AAM10-S1 operates within the CENTUM VP / CS 3000 I/O subsystem. Typical companion components include:
- AFV10 / AFV20 – Field Control Station (FCS) processor cards
- ANB10S / ANB11S – Node interface units for remote I/O nests
- AAM21 / AAM51 – Analog output modules (paired with AAM10 for control loops)
- ADM12 / ADM52 – Digital input/output modules for discrete signals
- AKB331 / AKB332 – I/O nest backplanes (8-slot and 16-slot)
- AIP588 – Intrinsically safe barrier unit for hazardous area field wiring
Compliance & Industry Standards
- IEC 61511 – Functional Safety for Process Industry Sectors (SIL-capable configurations)
- IEC 61000-4 – EMC immunity (ESD, EFT, surge, conducted RF)
- CE Marking – EU Low Voltage Directive and EMC Directive compliance
- UL / cUL Listed – North American safety certification
- RoHS Compliant – Restriction of Hazardous Substances
- NAMUR NE 43 – Signal levels for transmitter fault indication
Quality Assurance & Sourcing
Konmask.com sources the Yokogawa AAM10-S1 exclusively through verified industrial distributors and authorized channel partners. Every unit undergoes incoming inspection including:
- Visual and mechanical integrity check
- Firmware version verification against Yokogawa’s compatibility matrix
- Functional power-on test prior to dispatch
- Anti-static packaging with humidity indicator cards for long-haul shipping
We maintain traceability records for all stocked units and can provide documentation upon request.
How to Source This Part
- Request a Quote – Email [email protected] with your required quantity and delivery timeline
- Phone / WhatsApp – +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Bulk Orders – Volume pricing available for 5+ units; lead time typically 3–7 business days
- Urgent Requirements – Express air freight available to most destinations within 48–72 hours
Application-Specific FAQ
Q: Is the AAM10-S1 compatible with both CENTUM VP and CS 3000?
A: Yes. The AAM10-S1 is backward-compatible with CS 3000 I/O nests and fully supported under CENTUM VP R6.x and later.
Q: Can the AAM10-S1 accept HART signals?
A: The standard AAM10-S1 supports 4–20 mA. HART pass-through requires the AAM10-H variant or an external HART multiplexer connected to the field wiring terminals.
Q: What is the maximum cable length for field wiring?
A: Yokogawa recommends a maximum loop resistance of 600 Ω total (cable + barriers). Typical 0.5 mm² shielded cable supports runs up to 1,000 m depending on transmitter compliance voltage.
Q: Can I replace an AAM10-S1 online without shutting down the FCS?
A: Yes, when the I/O nest is configured in redundant mode and the FCS is in dual-redundant operation. Single-nest configurations require a controlled I/O inhibit procedure.
Q: Do you supply the matching I/O nest and terminal boards?
A: Yes. Contact us with your full BOM and we will quote the complete I/O subsystem including nests, terminal boards, and cables.
