Yokogawa ADV151-E50 S2 – 32-Channel Digital Input Module | CENTUM VP / CS 3000
Engineering Background

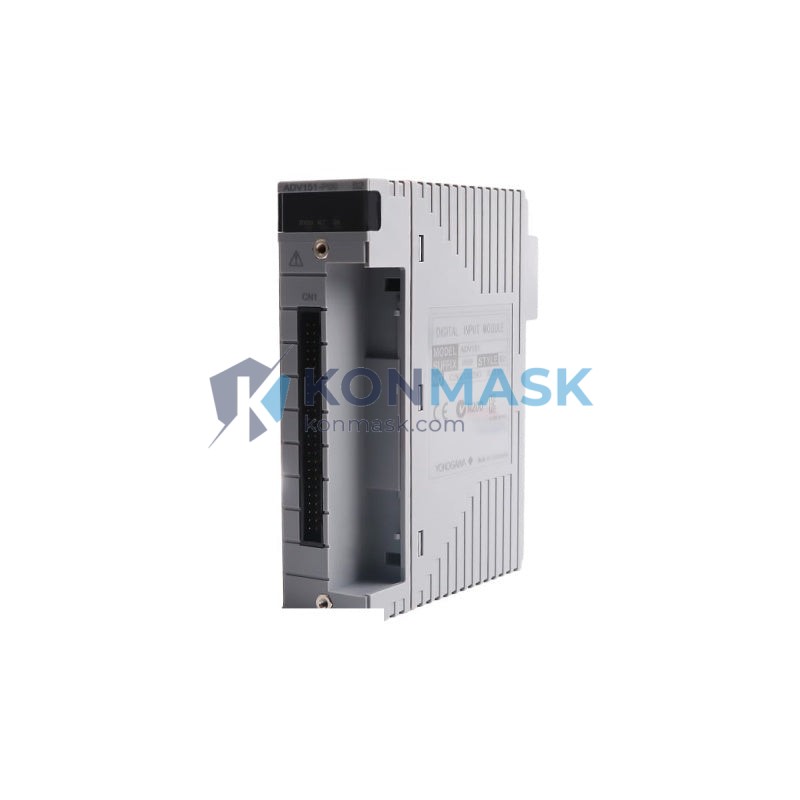

The Yokogawa ADV151-E50 S2 is a high-density digital input (DI) module engineered for Yokogawa’s CENTUM VP and CS 3000 distributed control systems (DCS). Designed to meet the rigorous demands of continuous process industries, this module provides reliable field signal acquisition across 32 independent digital channels, enabling precise monitoring of discrete process states in real time.
Product Positioning
As a core I/O component within the CENTUM VP / CS 3000 field control station (FCS), the ADV151-E50 S2 is the preferred choice for procurement engineers sourcing verified replacement or expansion modules for refinery, petrochemical, power generation, and pharmaceutical automation infrastructure. Konmask.com supplies this module from authenticated surplus and OEM channels with full traceability.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV151-E50 S2 |
| Manufacturer | Yokogawa Electric Corporation |
| Module Type | Digital Input (DI) |
| Number of Channels | 32 channels |
| Platform Compatibility | CENTUM VP, CS 3000 |
| Input Signal Type | Dry contact / Voltage input (DC) |
| Isolation | Channel-to-bus optical isolation |
| Scan Cycle | Synchronized with FCS control cycle |
| Connector Type | 50-pin connector (E50 suffix) |
| Suffix Code | S2 – Standard specification |
| Mounting | Node unit / I/O nest (CENTUM VP FCS) |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Power Consumption | Per Yokogawa FCS node specification |
| Approvals | CE, cULus (per platform certification) |
| Country of Origin | Japan |
Proven Application Environments
- Oil & Gas: Wellhead monitoring, pipeline valve position feedback, compressor status acquisition
- Petrochemical & Refining: Reactor interlock status, pump run/stop feedback, emergency shutdown (ESD) integration
- Power Generation: Turbine auxiliary status, breaker position monitoring, BOP discrete signal collection
- Pharmaceutical & Life Sciences: Clean-room equipment status, batch process discrete monitoring, GMP-compliant DCS architectures
- Pulp & Paper / Chemical: Conveyor status, valve limit switch feedback, motor control center (MCC) integration
Engineering Advantages
- High Channel Density: 32 DI channels per module minimizes rack space and reduces total installed cost in large-scale DCS architectures.
- Optical Isolation: Channel-to-bus isolation protects the FCS backplane from field-side transients and ground loops.
- Hot-Swap Compatibility: Supports online replacement within CENTUM VP redundant FCS configurations, eliminating planned downtime for module swap.
- Deterministic Scan: Input scan synchronized to FCS control cycle ensures consistent, predictable data latency for safety-critical logic.
- Long Product Lifecycle: Yokogawa’s extended support commitment for CENTUM VP ensures continued firmware and diagnostic compatibility.
System Architecture & Signal Flow
The ADV151-E50 S2 installs into the I/O nest of a CENTUM VP or CS 3000 Field Control Station (FCS). Field wiring terminates at the 50-pin connector (E50) via a marshalling terminal board. Each of the 32 DI channels reads the state of a dry contact or DC voltage signal from field devices (limit switches, relay contacts, proximity sensors). The module converts these discrete states to digital data, which is transmitted over the FCS internal bus to the control processor for logic execution and SCADA/HMI display. In redundant FCS configurations, both primary and secondary processors receive synchronized DI data, ensuring bumpless failover.
Sourcing & Quality Verification
- Source: Authenticated surplus from decommissioned Yokogawa DCS installations and authorized distributor channels.
- Inspection: Each unit undergoes visual inspection, connector integrity check, and firmware version verification prior to shipment.
- Traceability: Lot documentation and serial number records available upon request for regulated industries.
- Warranty: 90-day functional warranty against DOA; extended warranty options available — contact sales.
- Packaging: Anti-static ESD bag + foam-lined carton; export-compliant packaging for international freight.
Procurement Process
- Submit your RFQ via support@konmask.com or the on-site inquiry form, including required quantity and delivery timeline.
- Receive a formal quotation with lead time, unit price (HKD/USD), and shipping options within 1 business day.
- Confirm purchase order; payment via T/T bank transfer or approved credit terms for qualified accounts.
- Module ships with inspection report, packing list, and commercial invoice for customs clearance.
- Post-delivery technical support available for installation verification and DCS integration queries.
Technical FAQ
Q: Is the ADV151-E50 S2 compatible with both CENTUM VP and CS 3000?
A: Yes. The ADV151-E50 series is designed for use across both CENTUM VP and CS 3000 FCS platforms. Verify your node unit slot assignment and I/O builder configuration before installation.
Q: What is the difference between ADV151-E50 and ADV151-P50?
A: The E50 suffix denotes a 50-pin European-style connector; P50 denotes a 50-pin PCB-mount connector variant. Confirm your marshalling terminal board type before ordering.
Q: Can this module be used in a Safety Instrumented System (SIS)?
A: The ADV151-E50 S2 is a standard DCS I/O module and is not SIL-rated. For SIS applications, Yokogawa’s ProSafe-RS platform with dedicated safety I/O modules is required.
Q: What firmware version does the S2 suffix indicate?
A: The S2 suffix denotes the standard hardware revision. Firmware compatibility is managed at the FCS level via Yokogawa’s System View engineering tool. Contact us for specific firmware version documentation.
Q: Do you provide a Certificate of Conformance (CoC)?
A: Yes, a CoC and inspection report are available upon request for orders destined for regulated industries (pharmaceutical, nuclear, offshore).
