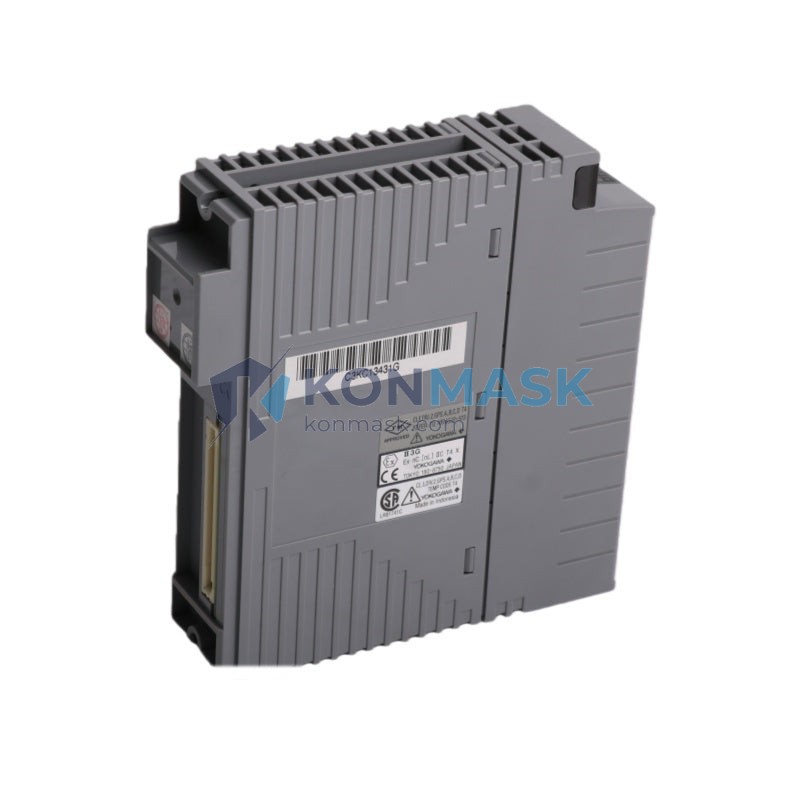

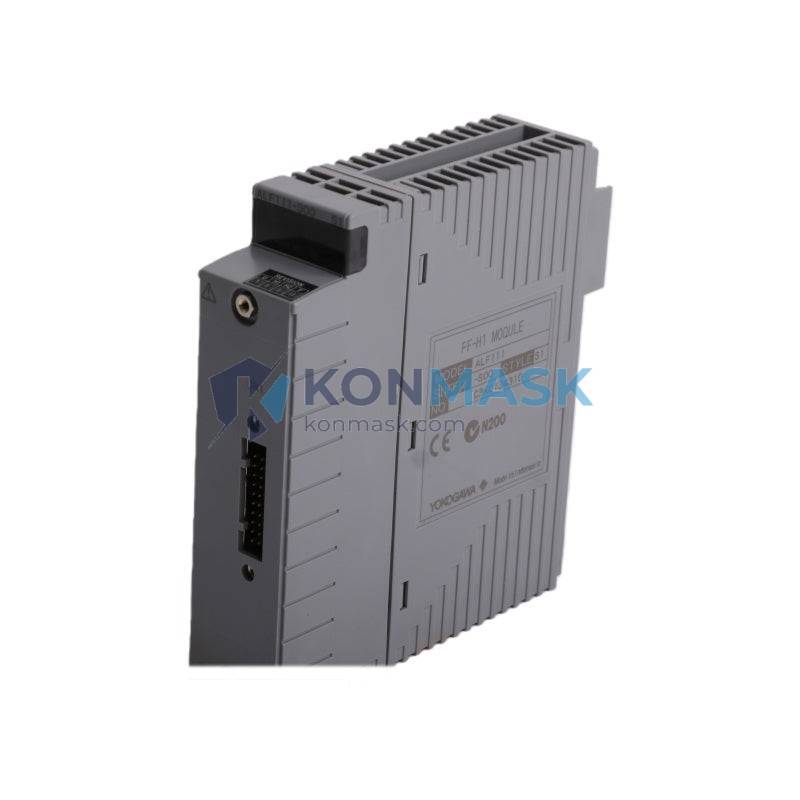

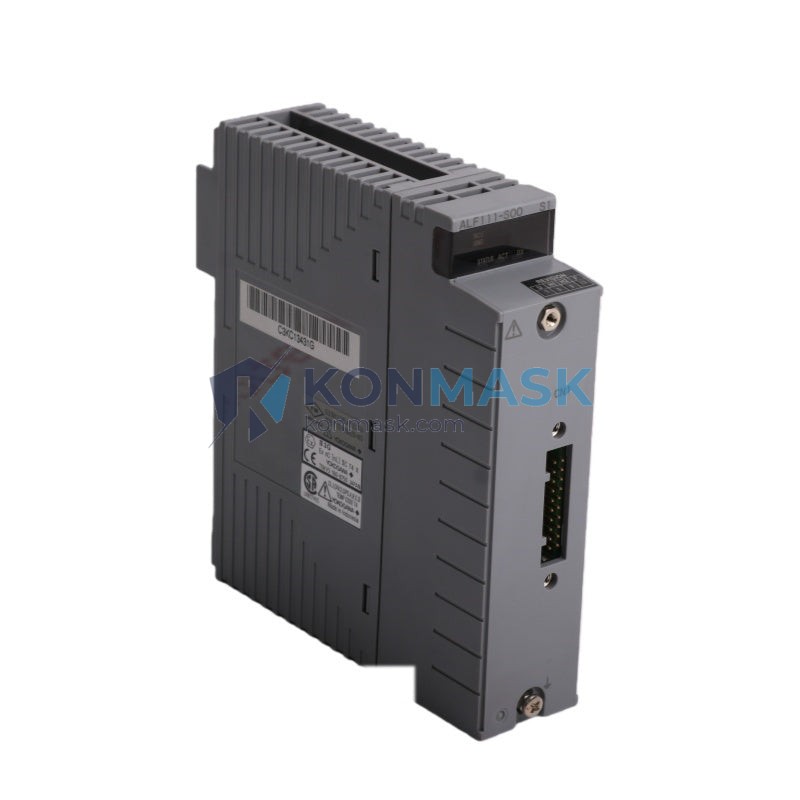

Yokogawa ALF111-S50 – FOUNDATION Fieldbus Communication Module | CENTUM VP / CS 3000 Platform
Engineering Background: The ALF111-S50 is Yokogawa’s dedicated FOUNDATION Fieldbus H1 communication module, engineered for seamless integration within the CENTUM VP and CS 3000 Distributed Control System (DCS) architectures. Designed to meet the rigorous demands of continuous process industries, this module enables deterministic, high-integrity digital communication between field instruments and the DCS controller over a single twisted-pair cable.
Product Positioning: Targeted at process automation engineers and instrumentation specialists in oil & gas, petrochemical, power generation, and pharmaceutical sectors, the ALF111-S50 replaces legacy 4–20 mA point-to-point wiring with a multi-drop digital fieldbus topology — reducing installation costs, improving diagnostics, and enabling advanced device management from the control room.
Complete Technical Specifications
- Part Number / SKU: ALF111-S50
- Manufacturer: Yokogawa Electric Corporation
- Platform Compatibility: CENTUM VP, CENTUM CS 3000
- Communication Protocol: FOUNDATION Fieldbus H1 (FF-H1)
- Fieldbus Segments: 1 segment per module
- Max Field Devices per Segment: Up to 16 devices (topology dependent)
- Transmission Speed: 31.25 kbps
- Power Supply: Supplied via DCS backplane (no external PSU required)
- Bus Power Output: Integrated bus power conditioner (S50 suffix)
- Intrinsic Safety: Supports IS barriers for hazardous area installations
- Redundancy: Supports dual-redundant configuration
- Mounting: DCS I/O nest / node unit slot
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 300 g
- Compliance: IEC 61158, IEC 61784, CE, UL/cUL
- Country of Origin: Japan
Proven Application Environments
- Oil & Gas upstream/downstream process control
- Petrochemical and refinery DCS upgrades
- Power plant boiler and turbine control systems
- Pharmaceutical batch and continuous manufacturing
- Chemical plant safety instrumented systems (SIS) integration
- Water treatment and utilities automation
Engineering Advantages
- Integrated Bus Power Conditioner (S50): Eliminates the need for a separate external power conditioner, simplifying panel design and reducing BOM cost.
- Native DCS Integration: Plug-in compatibility with CENTUM VP/CS 3000 I/O nests — no gateway or protocol converter required.
- Advanced Device Diagnostics: Supports FF Device Description (DD) and Field Device Tool (FDT/DTM) for remote health monitoring and predictive maintenance.
- Deterministic Communication: FF H1 Link Active Scheduler (LAS) ensures time-critical control loops execute with guaranteed cycle times.
- Hazardous Area Ready: Compatible with certified IS barriers and entity parameters for Zone 0/1/2 and Division 1/2 installations.
- Redundancy Support: Dual-module redundancy configuration available for high-availability process loops.
System Architecture & Signal Flow
The ALF111-S50 occupies a standard slot in the Yokogawa CENTUM VP or CS 3000 I/O node unit. The module interfaces directly with the DCS controller via the high-speed V-net/IP or ESB bus on the backplane. On the field side, the integrated H1 bus power conditioner supplies 9–32 VDC to the fieldbus segment, supporting up to 16 FOUNDATION Fieldbus-compliant field devices (transmitters, positioners, analyzers) in a multi-drop topology. The Link Active Scheduler (LAS) function, resident in the module firmware, manages cyclic and acyclic communication scheduling, ensuring deterministic data exchange between field devices and the DCS function blocks.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels.
- Each module undergoes visual inspection, label verification, and functional pre-shipment checks.
- Original Yokogawa packaging and documentation preserved where available.
- Traceability records maintained for B2B procurement compliance.
- Certificates of conformity available upon request for regulated industries.
Procurement Process
- Confirm Part Number: Verify ALF111-S50 against your Yokogawa CENTUM VP/CS 3000 BOM or I/O list.
- Request Quote: Contact support@konmask.com for volume pricing, lead time, and availability confirmation.
- Order Placement: Purchase order accepted via website checkout or direct PO submission.
- Shipping: Worldwide DHL/FedEx express shipping with full tracking. Export documentation provided for cross-border shipments.
- After-Sales Support: Technical assistance available post-delivery for installation and commissioning queries.
Technical FAQ
Q: Is the ALF111-S50 compatible with CENTUM VP R6.x?
A: Yes. The ALF111-S50 is compatible with CENTUM VP R4.x through R6.x. Confirm firmware revision with your Yokogawa system integrator for the latest release.
Q: Can this module be used with third-party FOUNDATION Fieldbus devices?
A: Yes, provided the field devices are FF-H1 certified and their Device Descriptions (DD files) are registered in the CENTUM VP device library.
Q: Does the S50 suffix indicate bus power capability?
A: Yes. The “-S50” suffix designates the variant with an integrated 50 mA bus power conditioner, eliminating the need for an external power supply unit on the fieldbus segment.
Q: What is the maximum cable length for the FF H1 segment?
A: Per IEC 61158, the maximum trunk length is 1,900 m for Type A cable (shielded twisted pair), with spur lengths up to 120 m depending on the number of devices.
Q: Is redundancy supported without additional hardware?
A: Dual-module redundancy requires two ALF111-S50 units installed in adjacent slots with appropriate CENTUM VP redundancy configuration — no additional interface card is needed.
