YOKOGAWA F3BU13-0N – Base Unit Module | STARDOM FCN/FCJ DCS Platform
Engineering Background
The YOKOGAWA F3BU13-0N is a base unit module designed for the STARDOM FCN/FCJ distributed control system (DCS) platform — Yokogawa’s field-proven, open-architecture controller series widely deployed in oil & gas, chemical, power generation, and water treatment industries. The FCN/FCJ platform is engineered for high-availability process automation, combining IEC 61131-3 programming with Ethernet-based field communication.
Product Positioning

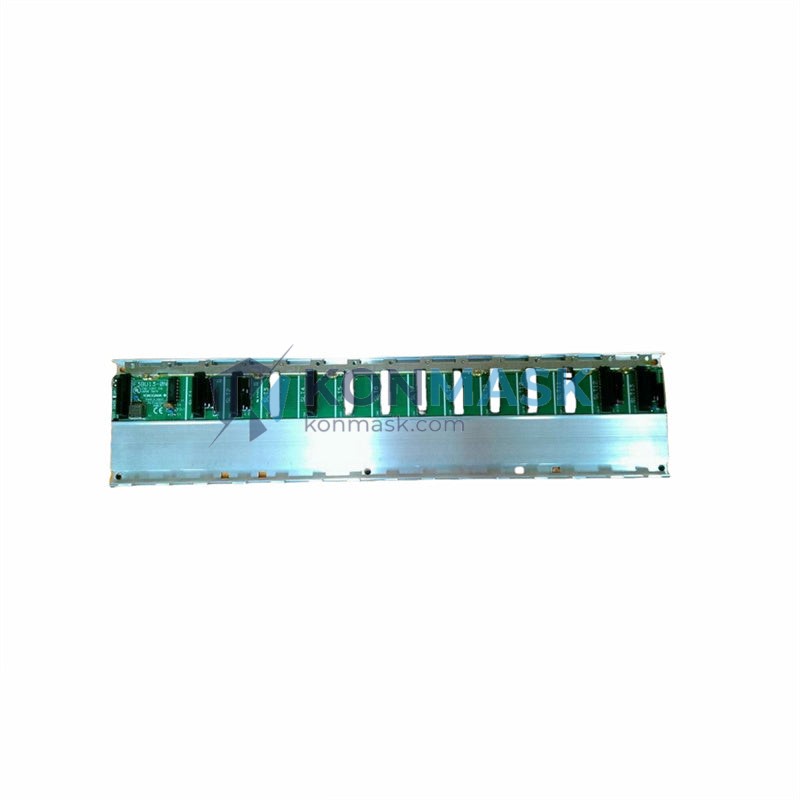

The F3BU13-0N serves as the structural and electrical backbone of the FCN controller rack, providing the backplane interconnect for I/O modules, power supplies, and CPU units. It is the foundational hardware element that determines rack capacity and system expandability. Procurement engineers specifying STARDOM FCN systems or sourcing replacement base units will find the F3BU13-0N essential for both greenfield builds and brownfield expansions.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | F3BU13-0N |
| Manufacturer | YOKOGAWA Electric Corporation |
| Product Series | STARDOM FCN / FCJ |
| Module Type | Base Unit Module (Backplane / Rack) |
| Slot Capacity | 13 slots |
| Compatible Platform | STARDOM FCN Controller |
| Mounting | DIN rail / panel mount |
| Weight | 680 g |
| Origin | Japan |
| Condition | New / Surplus / Refurbished (specify on inquiry) |
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline SCADA, downstream refinery DCS integration
- Chemical & Petrochemical: Batch process control, reactor management, safety instrumented systems (SIS) adjacent architectures
- Power Generation: Turbine control, boiler management, substation automation
- Water & Wastewater: Pump station control, treatment plant automation, remote telemetry
- Pharmaceutical: GMP-compliant process control, clean-room automation
Engineering Advantages
- 13-Slot Capacity: Maximizes I/O density per rack, reducing cabinet footprint and wiring complexity
- Open Architecture: IEC 61131-3 compliant, supports standard function blocks and structured text programming
- High Availability Design: Compatible with redundant CPU and power supply configurations for mission-critical loops
- Ethernet Backbone: Native Ethernet communication supports FOUNDATION Fieldbus, PROFIBUS, and Modbus integration
- Long Product Lifecycle: YOKOGAWA’s commitment to 10+ year parts availability reduces obsolescence risk for long-horizon projects
System Architecture & Signal Flow
In a STARDOM FCN system, the F3BU13-0N base unit provides the passive backplane over which the CPU module (e.g., F3RP61, F3RP66) communicates with I/O modules via a high-speed internal bus. Power is distributed from the power supply module through the backplane to all installed modules. Field signals enter via I/O modules seated in the base unit slots, are processed by the CPU, and transmitted upstream via Ethernet to the SCADA/DCS host or historian.
Signal path: Field Device → I/O Module → F3BU13-0N Backplane → CPU Module → Ethernet → SCADA/DCS Host
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels
- Pre-shipment inspection: visual, dimensional, and functional checks performed
- Serialization and firmware version documented on request
- Counterfeit-risk mitigation: provenance traceability available for critical applications
- Packaging: anti-static ESD bag + foam-lined carton, compliant with IEC 61340-5-1
Procurement Process
- Inquiry: Submit RFQ via email or phone with required quantity, delivery timeline, and project specs
- Quotation: Receive itemized quote with lead time, unit price, and shipping options within 24 hours
- Order Confirmation: PO accepted; payment terms discussed (T/T, L/C, or platform checkout)
- Quality Check & Dispatch: Pre-shipment inspection completed; tracking number issued
- After-Sales Support: Technical documentation, warranty terms, and return policy provided
Technical FAQ
Q: Is the F3BU13-0N compatible with both FCN and FCJ controllers?
A: The F3BU13-0N is designed for the FCN platform. FCJ uses a different form-factor base unit. Please confirm your controller model before ordering.
Q: Can I mix I/O module generations in the same base unit?
A: Yes, within YOKOGAWA’s compatibility matrix. Contact us with your existing module list for a compatibility review.
Q: What is the lead time for new units?
A: Typically 3–10 business days for in-stock units; 4–8 weeks for factory-new orders. Surplus units ship faster.
Q: Do you provide YOKOGAWA factory certificates?
A: Factory certificates are available for new units. Surplus units come with Konmask inspection reports.
Q: What warranty is offered?
A: 12-month warranty against manufacturing defects. Extended warranty available on request.
