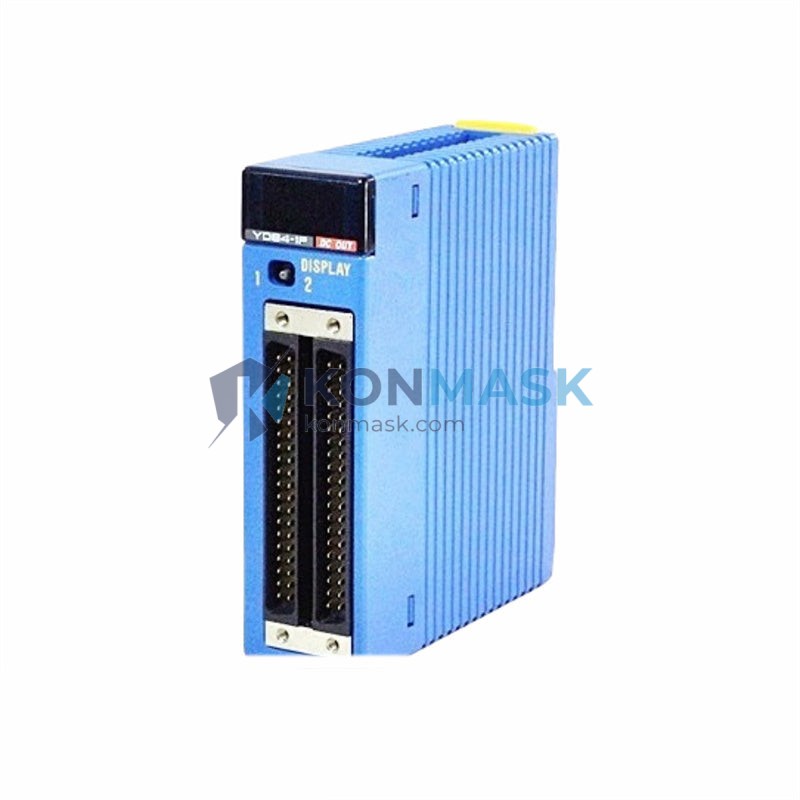

YOKOGAWA F3YD64-1P – 64-Channel Basic I/O Module | STARDOM FCN/FCJ DCS Platform
Engineering Background: The YOKOGAWA F3YD64-1P is a high-density digital output I/O module engineered for YOKOGAWA’s STARDOM FCN/FCJ distributed control system (DCS) platform. Designed to meet the rigorous demands of continuous process industries, this module delivers reliable, deterministic signal handling across 64 discrete output channels in a compact, rack-mounted form factor.
Product Positioning: The F3YD64-1P serves as a core field I/O building block for engineers designing or expanding STARDOM-based control architectures. Its high channel density reduces cabinet footprint and wiring complexity, making it the preferred choice for large-scale process automation projects in oil & gas, chemical, power generation, and water treatment facilities.
Complete Technical Specifications
- Part Number / SKU: F3YD64-1P
- Manufacturer: YOKOGAWA Electric Corporation
- Module Type: Basic Digital Output I/O Module
- Compatible Platform: STARDOM FCN / FCJ DCS
- Number of Channels: 64 digital output channels
- Output Type: Transistor (NPN/PNP, per channel configuration)
- Rated Load Voltage: 24 VDC
- Max Load Current: 0.1 A per channel
- Isolation: Photocoupler isolation between field and system bus
- Backplane Interface: STARDOM FCN/FCJ proprietary high-speed bus
- Operating Temperature: 0°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% RH (non-condensing)
- Power Consumption: Refer to YOKOGAWA F3YD64-1P datasheet for exact figures
- Mounting: Rack-mount, STARDOM FCN/FCJ base unit slot
- Weight: Approx. 290 g
- Certifications: CE, UL (per YOKOGAWA platform certification)
- Country of Origin: Japan
Proven Application Environments
- Oil & Gas: Wellhead control panels, pipeline SCADA, compressor station automation
- Chemical & Petrochemical: Reactor sequencing, valve actuation control, safety interlock systems
- Power Generation: Turbine auxiliary control, boiler management, substation automation
- Water & Wastewater: Pump station control, dosing system automation, remote telemetry
- Pharmaceutical: Batch process control, clean-room equipment sequencing
- Pulp & Paper: Drive control, conveyor sequencing, process line automation
Engineering Advantages
- High Channel Density: 64 outputs per module minimizes slot usage and reduces total system cost
- Photocoupler Isolation: Protects the control system bus from field-side transients and ground loops
- Hot-Swap Capable: Supports online module replacement without system shutdown (per FCN/FCJ architecture)
- Deterministic Response: Synchronized with FCN/FCJ scan cycle for precise, repeatable output timing
- Compact Form Factor: Single-slot module reduces panel space requirements in high-density installations
- Long Service Life: YOKOGAWA’s industrial-grade components rated for 10+ years continuous operation
System Architecture & Signal Flow
The F3YD64-1P plugs directly into any available I/O slot on the STARDOM FCN or FCJ base unit. The module communicates with the FCN/FCJ CPU via the proprietary high-speed backplane bus. Field wiring connects to the module’s terminal block, where each of the 64 output channels drives a transistor switch to control field devices such as solenoid valves, indicator lamps, relay coils, and motor starters. The photocoupler isolation barrier ensures that field-side faults do not propagate to the control network.
Signal path: FCN/FCJ CPU → Backplane Bus → F3YD64-1P Output Register → Photocoupler → Transistor Switch → Field Device
Sourcing & Quality Verification
- All units sourced from authorized YOKOGAWA distributors or verified industrial surplus channels
- Each module undergoes incoming inspection: visual check, label verification, and functional power-on test where applicable
- Original YOKOGAWA firmware and hardware — no third-party modifications
- Packaging inspected for transit damage; units shipped in anti-static protective packaging
- Certificate of conformance and test records available upon request for critical applications
Procurement Process
- Confirm Compatibility: Verify your FCN/FCJ base unit firmware version and slot availability against YOKOGAWA’s F3YD64-1P compatibility matrix
- Request a Quote: Contact support@konmask.com with your project quantity and delivery timeline
- Order Confirmation: Receive proforma invoice with lead time and shipping options (DHL Express, FedEx, sea freight)
- Quality Inspection: Pre-shipment inspection report issued upon request
- Delivery & Support: Post-delivery technical support available via email or phone
Technical FAQ
Q: Is the F3YD64-1P compatible with both FCN and FCJ base units?
A: Yes. The F3YD64-1P is designed for the STARDOM FCN/FCJ platform and fits all standard I/O expansion slots on both base unit variants.
Q: Can this module be replaced online without shutting down the controller?
A: Hot-swap capability depends on the FCN/FCJ system configuration and firmware version. Consult YOKOGAWA’s FCN/FCJ hardware manual (IM 34M06H11-01E) for hot-swap procedures.
Q: What is the maximum cable length for field wiring?
A: YOKOGAWA recommends field wiring not exceed 200 m for standard 24 VDC digital output applications. Shielded cable is recommended for noisy industrial environments.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 90-day functional warranty on all modules. Extended warranty options are available — contact us for details.
Q: Can you provide the original YOKOGAWA datasheet?
A: Yes. Request the F3YD64-1P datasheet and installation manual via support@konmask.com.
