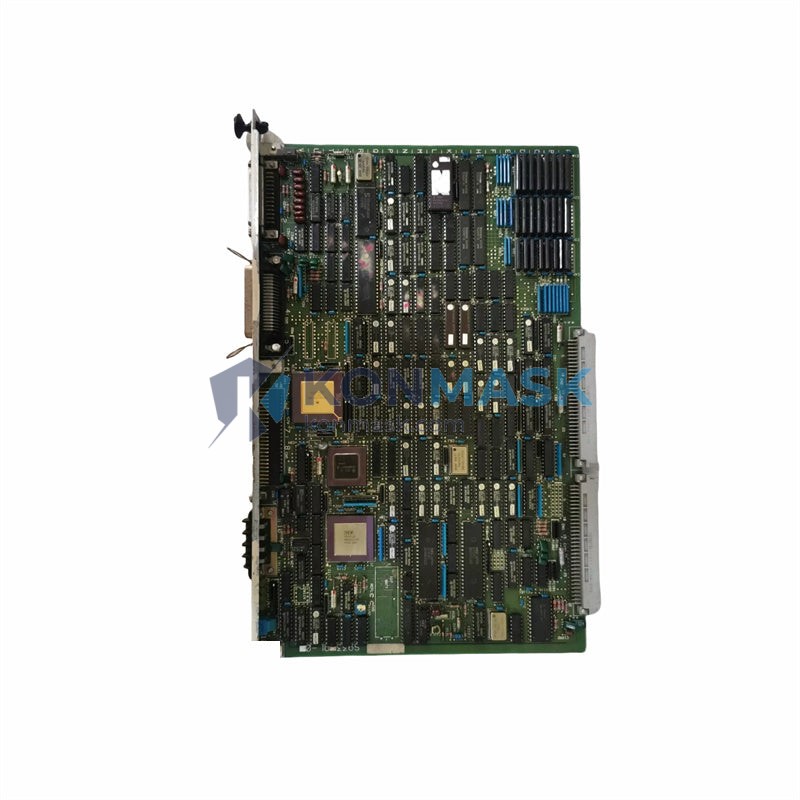

Yokogawa S9332AL-0 / S9330AL-03 — High-Reliability Circuit Board | CENTUM CS 3000 DCS Platform
Engineering Background
The Yokogawa CENTUM CS 3000 is one of the most widely deployed Distributed Control Systems (DCS) in the global process automation industry, trusted across oil & gas, petrochemical, power generation, and pharmaceutical sectors. The S9332AL-0 and its companion board S9330AL-03 are integral circuit board assemblies within this platform, providing the signal processing and communication backbone for field I/O subsystems.
Product Positioning
Sourced directly from verified industrial channels, this circuit board assembly is suited for maintenance replacement, system expansion, and spare-parts inventory for facilities running CENTUM CS 3000 infrastructure. Konmask.com specializes in hard-to-source Yokogawa spare parts with full traceability and pre-shipment inspection.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa Electric Corporation |
| Part Number (Primary) | S9332AL-0 |
| Part Number (Secondary) | S9330AL-03 |
| Component Type | PCB Circuit Board Assembly |
| Compatible Platform | CENTUM CS 3000 DCS |
| Country of Origin | Japan |
| Unit Weight | 4,460 g (approx.) |
| Operating Environment | Industrial control cabinet, DIN-rail or card-cage mount |
| Compliance | CE, RoHS (per Yokogawa platform standards) |
| Condition | Genuine OEM — tested prior to shipment |
Proven Application Environments
- Oil & Gas: Upstream/downstream process control panels running CENTUM CS 3000
- Petrochemical Plants: Reactor monitoring and safety interlock systems
- Power Generation: Turbine and boiler control subsystems
- Pharmaceutical Manufacturing: Batch process automation with FDA-compliant DCS architecture
- Pulp & Paper / Water Treatment: Continuous process control requiring high-availability I/O boards
Engineering Advantages
- OEM Genuine Part: Manufactured by Yokogawa — no third-party clones or refurbished unknowns
- Drop-in Replacement: Direct fit for existing CENTUM CS 3000 card slots — no firmware reconfiguration required
- Pre-Shipment Testing: Each unit undergoes functional verification before dispatch
- Long-Term Availability: Stocked as a critical spare to minimize plant downtime risk
- Traceability: Full documentation package available upon request (test report, origin certificate)
System Architecture & Signal Flow
Within the CENTUM CS 3000 architecture, the S9332AL-0 / S9330AL-03 board assembly operates at the field control station (FCS) level, interfacing between the I/O modules and the system bus. It handles signal conditioning, data acquisition, and communication relay to the engineering workstation (EWS) and operator station (HIS). Proper seating in the card cage and correct bus termination are required for nominal operation — refer to Yokogawa TI document series for installation torque and ESD precautions.
Sourcing & Quality Verification
- All units sourced from decommissioned plant upgrades or authorized distributor overstock
- Visual inspection: no burnt components, cracked PCB traces, or corroded connectors
- Functional bench test performed against CENTUM CS 3000 reference system
- Packaging: anti-static bag + foam-lined export carton, humidity indicator included
- Certificate of conformance available on request
Procurement Process
- Confirm compatibility — verify your CENTUM CS 3000 revision and card cage slot assignment
- Request quotation — contact [email protected] with your PO number and delivery timeline
- Order confirmation — receive proforma invoice within 24 business hours
- Shipment — DHL / FedEx express with full tracking; export documentation included
- Incoming inspection — recommended: verify part markings against Yokogawa BOM before installation
Technical FAQ
Q: Is S9332AL-0 interchangeable with S9330AL-03?
A: These two part numbers refer to the primary board (S9332AL-0) and its associated sub-board or revision assembly (S9330AL-03). They are typically supplied and replaced as a matched set. Consult your CENTUM CS 3000 maintenance manual for slot-specific requirements.
Q: Can this board be used in CENTUM VP or CENTUM XL?
A: The S9332AL series is designed for CENTUM CS 3000. Cross-platform compatibility with CENTUM VP or XL is not confirmed — contact our technical team before ordering for a different platform.
Q: What warranty is provided?
A: Konmask.com provides a 90-day functional warranty covering defects identified under normal operating conditions. Warranty claims require return of the unit with original packaging.
Q: Do you provide installation support?
A: We provide documentation support and can connect you with certified Yokogawa system integrators in your region upon request.
Q: What is the lead time?
A: In-stock units ship within 2–3 business days. Express delivery to most regions within 5–7 business days via DHL/FedEx.
