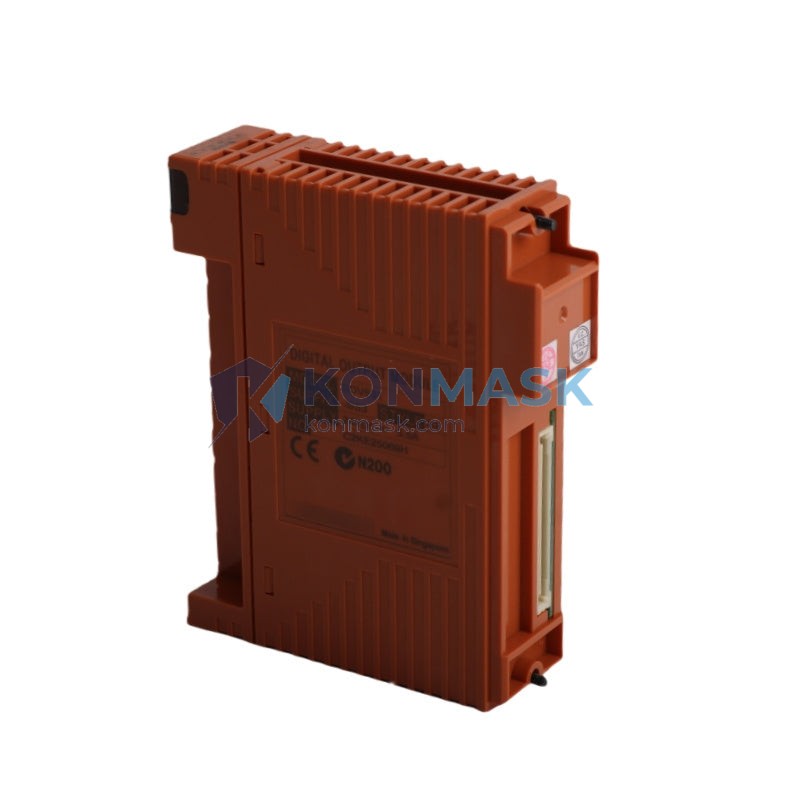

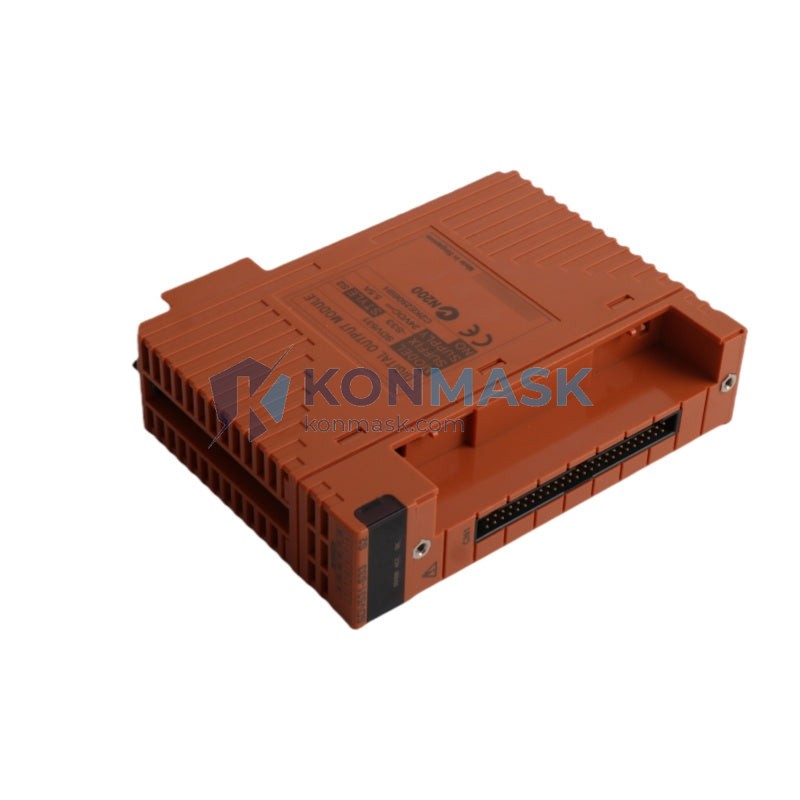

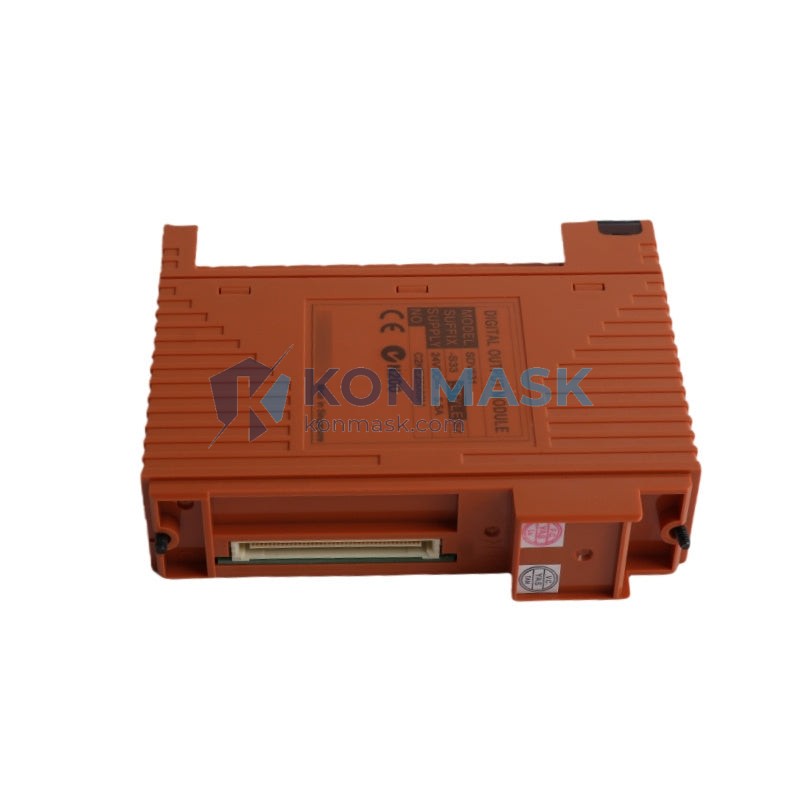

Yokogawa SDV531-S33/S3 – 32-Channel Digital Output Module | CENTUM VP DCS Platform
Engineering Background
The SDV531-S33/S3 is a field-proven digital output module engineered by Yokogawa for deployment within the CENTUM VP Distributed Control System (DCS) architecture. Designed to meet the rigorous demands of continuous-process industries, this module delivers deterministic, high-density discrete output control with the reliability expected in safety-critical environments.
Product Positioning
Targeting process automation engineers and system integrators in oil & gas, petrochemical, power generation, and advanced manufacturing, the SDV531-S33/S3 serves as the discrete output backbone of CENTUM VP field control stations (FCS). It is fully compatible with Yokogawa’s ProSafe-RS safety instrumented system architecture for integrated safety and control deployments.
Complete Technical Specifications
- Part Number: SDV531-S33/S3
- Module Type: Digital Output (DO) Module
- Platform: Yokogawa CENTUM VP DCS / ProSafe-RS
- Output Channels: 32 channels
- Output Voltage: 24 VDC (nominal)
- Output Type: Transistor sink output (NPN open-collector)
- Load Current: Max 0.5 A per channel
- Isolation: Optical isolation between field and system bus
- Connector Type: Terminal block via field terminal assembly (FTA)
- Backplane Interface: CENTUM VP I/O bus (hot-swap capable)
- Power Consumption: Approx. 5 W (system bus side)
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: –20 °C to +70 °C
- Humidity: 5% to 95% RH (non-condensing)
- Weight: Approx. 250 g
- Certifications: CE, UL, cUL
- Suffix -S33: CE marking + conformal coating (enhanced corrosion resistance)
- Suffix /S3: Tropical/harsh-environment coating option
- RoHS Compliance: Yes
- Country of Origin: Japan
Proven Application Environments
- Oil & Gas: Upstream wellhead control, midstream pipeline valve actuation, downstream refinery unit operations
- Petrochemical & Chemical: Reactor interlock outputs, agitator on/off control, pump start/stop sequencing
- Power Generation: Turbine auxiliary control, boiler burner management discrete outputs
- Pulp & Paper / Metals: Conveyor drive enable signals, press control discrete outputs
- Pharmaceutical: CIP/SIP valve control in GMP-compliant environments
- Water & Wastewater: Pump station on/off control, valve actuator commands
Engineering Advantages
- High Channel Density: 32 DO channels per module slot minimizes cabinet footprint and reduces wiring complexity
- Hot-Swap Capability: Module can be replaced under power without shutting down the FCS, ensuring zero unplanned downtime
- Optical Isolation: Full galvanic isolation protects the DCS backplane from field-side transients and ground loops
- Conformal Coating (S33/S3): PCB-level protection against humidity, salt fog, and corrosive atmospheres per IEC 60068-2-52
- Diagnostic Transparency: Per-channel open-load and short-circuit detection reported to CENTUM VP HIS operator station
- Redundancy Ready: Supports dual-module redundant DO configurations within CENTUM VP FCS for SIL-rated loops
System Architecture & Signal Flow
The SDV531-S33/S3 mounts into a CENTUM VP I/O nest and communicates with the Field Control Unit (FCU) via the high-speed V-net/IP or ESB bus. Control commands originate in the FCU’s application logic (function blocks), traverse the I/O bus, and are latched to the module’s output drivers. Each channel drives a transistor output that switches the field-side 24 VDC load (solenoid valve, relay coil, indicator lamp, etc.). The FTA (Field Terminal Assembly) provides the physical screw-terminal interface to field wiring, maintaining full isolation from the module’s logic circuitry.
For redundant configurations, a secondary SDV531-S33/S3 module mirrors the primary in standby mode; automatic bumpless switchover occurs within one scan cycle upon primary module fault detection.
Sourcing & Quality Verification
- All units sourced through authorized Yokogawa distribution channels or verified surplus with full traceability documentation
- Pre-shipment inspection: visual, label verification, firmware revision check, and functional power-on test
- Original Yokogawa packaging and documentation preserved where available
- Counterfeit-prevention: serial number cross-referenced against Yokogawa’s authorized product database
- Warranty: 90-day operational warranty against manufacturing defects
Procurement Process
- Inquiry: Submit your RFQ with required quantity and delivery timeline via support@konmask.com or the product page
- Quotation: Receive a formal quotation with lead time, unit price, and shipping options within 24 business hours
- Order Confirmation: Purchase order accepted; stock allocation confirmed
- Quality Inspection: Pre-shipment inspection report issued upon request
- Shipping: DHL / FedEx / UPS express with full tracking; EXW Xiamen or CIF destination available
- Documentation: Commercial invoice, packing list, COO, and test report provided
Technical FAQ
- Q: Is the SDV531-S33/S3 compatible with CENTUM CS 3000?
- A: The SDV531 series is designed for CENTUM VP. Backward compatibility with CS 3000 I/O nests is not supported; consult Yokogawa’s migration guide for CS 3000 → VP upgrades.
- Q: What is the difference between suffix -S33 and /S3?
- A: -S33 denotes CE marking with conformal coating for corrosive environments. /S3 is an additional tropical environment coating option. The combined suffix -S33/S3 provides maximum environmental protection.
- Q: Can this module be used in SIL 2 safety loops?
- A: When integrated with Yokogawa ProSafe-RS and configured per the applicable Safety Manual, the SDV531 series can participate in SIL 2-rated safety instrumented functions. Consult the ProSafe-RS Safety Manual (IM 32S04B10-01E) for detailed requirements.
- Q: What FTA is required for field wiring?
- A: The SDV531-S33/S3 pairs with Yokogawa FTA models in the ADV/SDV series FTA family. Confirm the specific FTA part number with your CENTUM VP I/O nest configuration drawing.
- Q: Do you provide a test report?
- A: Yes. A pre-shipment functional test report is available upon request at no additional charge.
