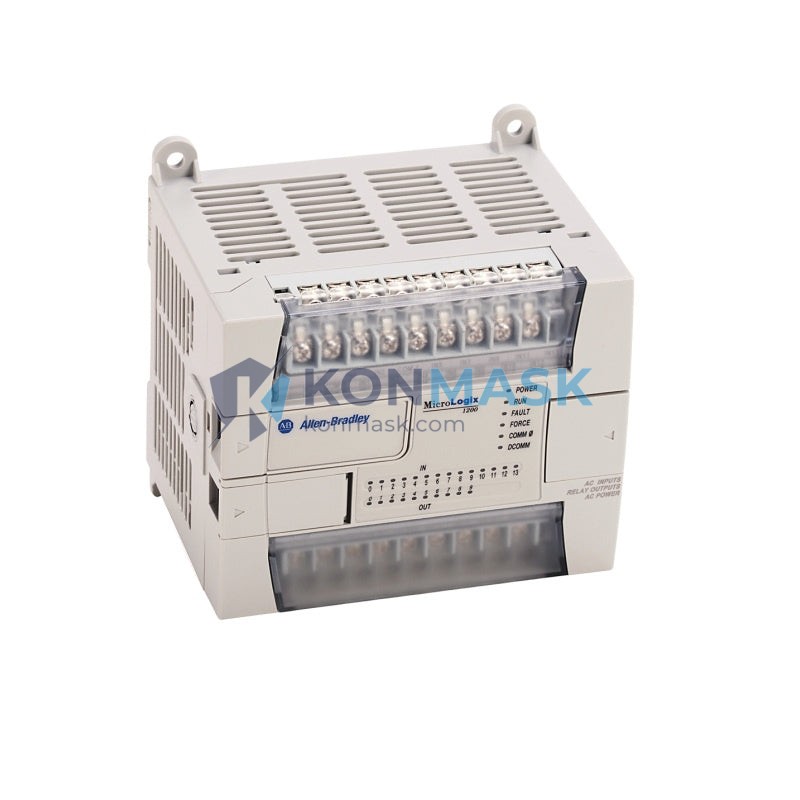

Allen-Bradley 1763-L16DWD – 16-Point DC/Relay Programmable Controller | MicroLogix 1100 Series
Engineering Background
The MicroLogix 1100 series represents Rockwell Automation’s entry-level yet highly capable PLC platform, engineered for applications demanding reliable discrete and analog control in a compact DIN-rail footprint. The 1763-L16DWD variant is the workhorse of this family — combining 10 DC inputs, 6 relay/DC outputs, and an embedded Ethernet port into a single, self-contained unit that eliminates the need for a separate communication module in most networked installations.
Product Positioning
Designed for OEM machine builders, panel integrators, and plant maintenance teams who require a cost-effective, field-proven controller with full Studio 5000 / RSLogix 500 compatibility. The 1763-L16DWD is a direct replacement or upgrade path for legacy SLC 500 and MicroLogix 1000 installations, and is widely deployed in conveyor systems, pump stations, HVAC controls, and light manufacturing automation.
Complete Technical Specifications
| Catalog Number | 1763-L16DWD |
| Series / Platform | MicroLogix 1100 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Total I/O Points | 16 (10 DI + 6 DO) |
| Digital Inputs | 10 × 24V DC sink/source |
| Digital Outputs | 6 × Relay (Form A, 2A @ 240V AC / 30V DC) |
| Analog I/O (onboard) | 2 × Analog Inputs (0–10V DC / 4–20mA), 1 × Analog Output (0–10V DC / 4–20mA) |
| Power Supply Input | 24V DC (19.2–26.4V DC operating range) |
| Current Draw (24V DC) | 350 mA typical |
| User Memory | 8 KB data / 8 KB program |
| Communication Ports | 1 × RS-232/485 (DH-485 / DF1), 1 × 10/100 Mbps Ethernet/IP (RJ-45) |
| Real-Time Clock | Yes (battery-backed) |
| LCD Display | 4-line × 20-character backlit LCD with 4 navigation keys |
| High-Speed Counter | Up to 20 kHz (single-phase) / 8 kHz (quadrature) |
| PTO / PWM Output | Yes (via dedicated output) |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Enclosure Rating | IP20 (panel-mount) |
| Mounting | DIN rail (EN 50022) or panel mount |
| Dimensions (H × W × D) | 90 × 130 × 87 mm |
| Weight | 650 g (approx.) |
| Certifications | UL, CE, C-Tick, RoHS |
| Programming Software | RSLogix 500 / Studio 5000 Logix Designer (Ladder, FBD, SFC) |
| Firmware | Field-upgradeable via Ethernet |
Proven Application Environments
- Conveyor & Material Handling: Discrete I/O control with high-speed counter for encoder feedback and PTO for variable-speed drive coordination.
- Pump & Compressor Stations: Analog I/O for pressure/flow monitoring; relay outputs for motor starter control; Ethernet for SCADA integration.
- HVAC & Building Automation: Real-time clock scheduling, analog setpoint control, and remote monitoring via EtherNet/IP.
- OEM Machine Control: Compact footprint and embedded display reduce panel space and eliminate HMI cost for simple operator interfaces.
- Water & Wastewater Treatment: Robust DC input thresholds and relay outputs rated for inductive loads in wet-environment panels.
- Food & Beverage Lines: RoHS-compliant, CE-marked, suitable for integration into CE-certified machinery.
Engineering Advantages
- Embedded EtherNet/IP: Native Modbus TCP and EtherNet/IP support without additional communication modules — reduces BOM cost and panel wiring complexity.
- Onboard LCD + Keypad: Eliminates the need for a dedicated HMI in simple applications; supports custom message display and operator input.
- Dual Serial Ports: Simultaneous RS-232 (DF1) and RS-485 (DH-485) allow connection to legacy devices and programming terminals concurrently.
- Integrated Analog I/O: 2 AI + 1 AO onboard removes the need for an analog expansion module in most single-loop applications.
- Battery-Backed RTC: Enables time-stamped data logging and scheduled control routines without external timekeeping hardware.
- Field-Upgradeable Firmware: Firmware updates delivered over Ethernet — no physical access to the controller required during maintenance windows.
System Architecture & Signal Flow
The 1763-L16DWD operates as a standalone controller with the following signal architecture:
- Power Rail: 24V DC input → internal regulated 5V DC backplane for CPU and I/O logic.
- Digital Input Path: Field 24V DC signals → optical isolation → input image table → ladder scan.
- Digital Output Path: Output image table → relay driver → Form A relay contact → field load (AC or DC).
- Analog Path: Field 0–10V / 4–20mA → 12-bit ADC → data file → PID or custom logic → 12-bit DAC → field actuator.
- Ethernet Path: EtherNet/IP Class 1 (cyclic) and Class 3 (explicit messaging) → SCADA / HMI / peer PLC.
- Serial Path: DF1 full-duplex (RS-232) for programming; DH-485 (RS-485) for multi-drop device networks up to 32 nodes.
Sourcing & Quality Verification
All units offered by Konmask.com are sourced through verified industrial surplus and authorized distribution channels. Each 1763-L16DWD unit undergoes the following pre-shipment checks:
- Visual inspection: housing integrity, terminal block condition, label legibility, firmware version confirmation.
- Power-on functional test: CPU OK LED, I/O scan verification, Ethernet link establishment.
- Catalog number and date code cross-reference against Rockwell Automation product lifecycle records.
- Anti-static packaging with humidity indicator card for international shipments.
Counterfeit risk mitigation: Konmask does not source from unverified brokers. All units are traceable to documented supply chain records available upon request for critical infrastructure procurement.
Procurement Process
- Step 1 — Inquiry: Contact support@konmask.com or call +0086 19859288691 with your required quantity, delivery timeline, and any firmware version requirements.
- Step 2 — Quote: Receive a formal quotation within 1 business day including unit price, shipping cost, lead time, and payment terms.
- Step 3 — Order Confirmation: Submit PO or complete checkout. Proforma invoice issued for T/T wire transfer or credit card payment.
- Step 4 — Shipment: Units dispatched within 1–3 business days. Tracking number provided via email. DHL / FedEx / UPS express available for urgent orders.
- Step 5 — After-Sales: 90-day warranty on all units. DOA replacement policy within 7 days of receipt. Technical support available via email.
Technical FAQ
Q: Is the 1763-L16DWD compatible with RSLogix 500?
A: Yes. The MicroLogix 1100 is fully programmed using RSLogix 500 (v8.10 or later recommended). It is not compatible with Studio 5000 Logix Designer, which is reserved for ControlLogix/CompactLogix families.
Q: Can I expand the I/O beyond the 16 onboard points?
A: Yes. The 1763-L16DWD supports up to 4 expansion modules via the 1762 MicroLogix I/O expansion bus, adding up to 96 additional I/O points depending on module selection.
Q: What is the difference between 1763-L16DWD and 1763-L16BWA?
A: The L16DWD uses 24V DC power supply input and relay/DC outputs; the L16BWA uses 120/240V AC power supply input and relay outputs. Choose based on your panel power architecture.
Q: Does this unit support Modbus TCP?
A: Yes. The 1763-L16DWD supports Modbus TCP (client and server) natively via its Ethernet port using MSG instructions in RSLogix 500.
Q: What is the product lifecycle status?
A: As of 2024, the MicroLogix 1100 series is in the Active lifecycle phase per Rockwell Automation’s product lifecycle page. Spare parts and firmware updates remain available.
Q: Can I get a test report or inspection certificate?
A: Yes. A pre-shipment inspection report is available upon request for orders of 2+ units. Third-party inspection (SGS, BV) can be arranged at buyer’s cost for large orders.
