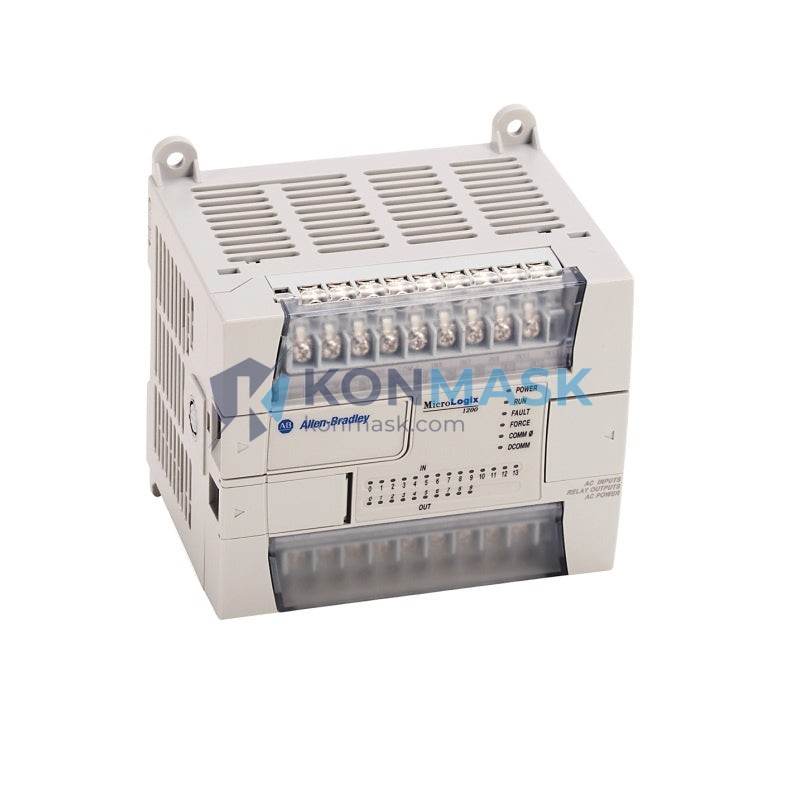

Allen-Bradley 1762-L24BWA Programmable Logic Controller – MicroLogix 1200 Series
Imagine a bottling line halted mid-shift, a conveyor frozen, or a packaging cell throwing fault codes with no clear path to recovery — all because the central controller has failed and no replacement is on hand. In modern industrial environments, the programmable logic controller is not a peripheral device; it is the nervous system of the entire operation. Without a reliable, spec-matched replacement like the Allen-Bradley 1762-L24BWA, every hour of downtime translates directly into lost production, missed delivery windows, and escalating maintenance costs.
The 1762-L24BWA sits at the heart of the MicroLogix 1200 family — Rockwell Automation’s proven mid-range PLC platform trusted across tens of thousands of installations worldwide. With 24 onboard I/O points, relay output capability, and AC power supply input, this controller strikes the optimal balance between compact footprint and robust functionality. It is the go-to choice for OEM machine builders, system integrators, and plant engineers who need deterministic control, broad communication options, and long-term parts availability in a single, field-proven package.
Technical Specifications
- Part Number: 1762-L24BWA
- Series: MicroLogix 1200
- Manufacturer: Allen-Bradley / Rockwell Automation
- Total Onboard I/O: 24 points (14 DC inputs / 10 relay outputs)
- Input Voltage: 24V DC (digital inputs)
- Power Supply: 100–240V AC, 50/60 Hz
- Output Type: Relay (B = relay output)
- Memory: 6K words user program / 6K words data
- Communication Port: RS-232 (DH-485 / DF1 protocol)
- Expansion Capability: Up to 6 expansion modules (1762 series)
- Real-Time Clock: Yes (built-in)
- High-Speed Counter: Yes
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Enclosure Rating: IP20 (panel mount)
- Weight: Approx. 650 g
- Certifications: UL, CE, CSA
Key Features & Benefits
- Relay Outputs for Versatile Load Switching: The relay output configuration (suffix “W”) allows direct switching of AC or DC loads without external interposing relays, reducing panel wiring complexity and component count.
- AC Power Supply Flexibility: The “A” suffix denotes AC power input (100–240V AC), making the 1762-L24BWA directly compatible with standard industrial panel power without an additional DC power supply.
- Expandable I/O Architecture: Support for up to 6 MicroLogix 1762-series expansion modules enables seamless scaling — add analog inputs, thermocouple modules, or additional digital I/O as your application grows.
- Built-In Real-Time Clock: Enables time-stamped data logging, scheduled operations, and shift-based control logic without external hardware.
- High-Speed Counter Inputs: Supports encoder feedback and pulse-train counting for motion-adjacent applications such as conveyor indexing and fill-level measurement.
- RS-232 Multi-Protocol Port: Native support for DF1 Full-Duplex, DF1 Half-Duplex, DH-485, ASCII, and Modbus RTU protocols provides broad SCADA and HMI connectivity out of the box.
- Compact DIN-Rail Form Factor: Optimized for space-constrained control panels; mounts directly on standard 35mm DIN rail.
- Long Product Lifecycle: The MicroLogix 1200 platform has an extensive installed base and Rockwell Automation’s long-term parts support commitment, protecting your maintenance investment.
Industry & Equipment Applications
- Food & Beverage: Conveyor sequencing, filling machine control, CIP cycle management
- Packaging: Case erectors, labelers, shrink-wrap tunnels, palletizers
- Water & Wastewater: Pump station control, level monitoring, dosing systems
- HVAC & Building Automation: Air handling unit sequencing, chiller plant control
- Material Handling: Conveyor systems, sortation, automated storage retrieval
- OEM Machinery: Injection molding auxiliaries, press controls, test stands
- Oil & Gas: Remote pump control, wellhead monitoring panels
System Integration & Compatible Parts
The 1762-L24BWA is designed to work seamlessly within the broader Allen-Bradley MicroLogix 1200 ecosystem. Compatible expansion modules and accessories include:
- 1762-IQ8 — 8-point 24V DC digital input module
- 1762-OW8 — 8-point relay output module
- 1762-IF4 — 4-channel analog input module
- 1762-OF4 — 4-channel analog output module
- 1762-IT4 — 4-channel thermocouple/mV input module
- 1761-CBL-PM02 — RS-232 programming cable (PC to controller)
- 1762-MM1 — Memory module for program backup and transfer
- 2711-K3A5L1 — PanelView 300 Micro HMI (DH-485 compatible)
Programming is performed using RSLogix 500 or Studio 5000 Logix Designer (via legacy compatibility mode), with firmware updates managed through ControlFLASH.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 1762-L24BWA unit offered undergoes a structured quality verification process before shipment:
- Source Verification: Units are sourced from authorized distributors, certified refurbishers, or factory-surplus channels with documented provenance.
- Visual & Physical Inspection: Enclosure integrity, connector condition, label legibility, and firmware revision label are checked against OEM specifications.
- Functional Power-On Test: Each unit is powered and verified for normal boot sequence, LED status indication, and communication port response.
- Anti-Static Packaging: Units are packed in ESD-safe bags with foam cushioning and clearly labeled outer cartons to prevent transit damage.
- Traceability Documentation: Lot number, inspection date, and technician ID are recorded for every unit shipped.
How to Order
- Submit an Inquiry: Use the contact form or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quotation: Our technical sales team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Upon agreement, a proforma invoice is issued. Payment terms are confirmed at this stage.
- Shipment & Tracking: Orders are dispatched via DHL / FedEx / UPS with full tracking. Export documentation (commercial invoice, packing list) is provided for international shipments.
- After-Sales Support: Our engineering team is available post-delivery for integration questions and warranty claims.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: We focus exclusively on PLC, DCS, HMI, and automation components — not a generalist marketplace.
- ✅ Global Export Experience: Serving customers in 30+ countries with compliant export documentation and multi-carrier logistics.
- ✅ Technical Pre-Sales Support: Our engineers can verify compatibility with your existing system before you commit to an order.
- ✅ Competitive Lead Times: Stocked items ship within 3–5 business days; sourced items within 7–14 business days.
- ✅ Transparent Quality Process: Every unit is inspected and documented — no blind-drop-ship from unknown sources.
- ✅ Long-Term Partnership: We maintain supplier relationships to support your ongoing MRO and project procurement needs.
Frequently Asked Questions
Q: Is the 1762-L24BWA still in production by Rockwell Automation?
A: The MicroLogix 1200 series has reached end-of-life status with Rockwell Automation. However, the platform remains widely installed and supported through authorized spare-parts channels. Konmask.com maintains access to new-surplus and refurbished stock to support ongoing maintenance needs.
Q: What is the difference between 1762-L24BWA and 1762-L24BXB?
A: The primary differences are power supply and output type. The L24BWA uses an AC power supply (100–240V AC) with relay outputs, while the L24BXB uses a DC power supply (24V DC) with transistor (sourcing) outputs. Choose based on your panel power architecture and load switching requirements.
Q: Can I use RSLogix 500 to program the 1762-L24BWA?
A: Yes. RSLogix 500 is the native programming environment for all MicroLogix 1200 controllers. The free RSLogix Micro Starter Lite version supports basic programming; the full RSLogix 500 license is required for advanced features such as online editing and data trending.
Q: How many expansion modules can I connect?
A: The 1762-L24BWA supports up to 6 expansion modules from the 1762 series. Total I/O expansion capacity depends on the module types selected and the controller’s power budget.
Q: Do you provide a warranty on this product?
A: Yes. All units sold by Konmask.com carry a minimum 90-day functional warranty covering defects identified under normal operating conditions. Extended warranty options are available upon request.
Q: Can you assist with cross-referencing to a newer Rockwell platform?
A: Absolutely. Our engineering team can advise on migration paths to the MicroLogix 1400 or CompactLogix 5370 platforms if you are planning a system modernization project.
