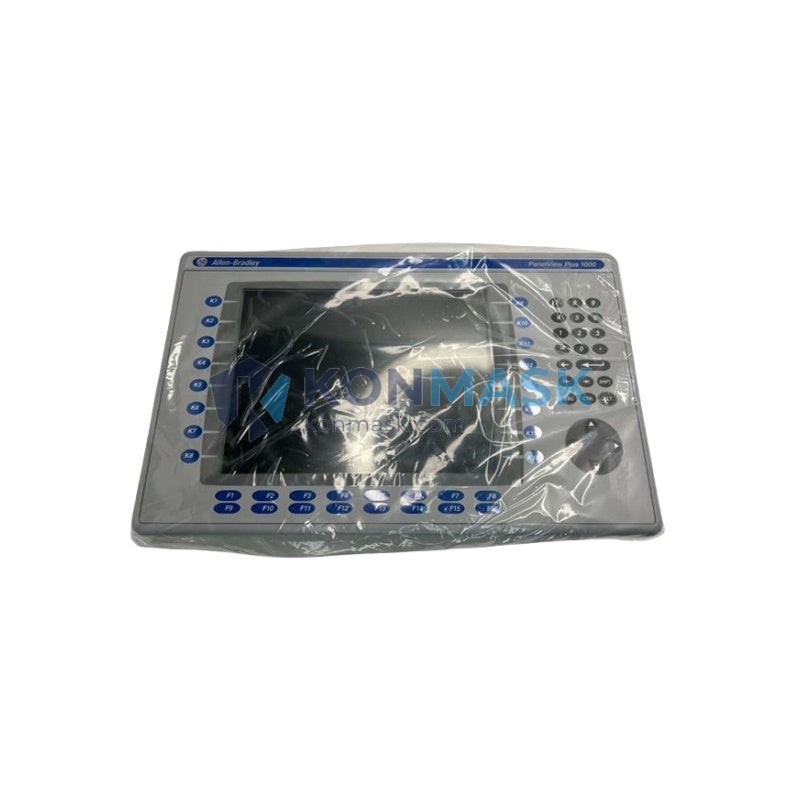

Allen-Bradley 2711P-K10C4A8 – 10.4″ Color Keypad HMI Terminal | PanelView Plus 1000 Series
Engineering Background
The PanelView Plus 1000 series represents Rockwell Automation’s proven mid-range HMI platform, engineered for demanding industrial environments where operator interface reliability is non-negotiable. The 2711P-K10C4A8 variant combines a 10.4-inch color TFT display with a full keypad input interface, making it the preferred choice for process engineers who require tactile control feedback in high-vibration or gloved-hand operating conditions.
Product Positioning
Designed for integration into Allen-Bradley control architectures, this terminal communicates natively over ControlNet and DH-485 networks, enabling seamless connectivity with PLC-5, SLC 500, and ControlLogix/CompactLogix platforms. It is widely deployed in automotive assembly, food & beverage processing, water treatment, and discrete manufacturing lines where operator panel standardization across a plant is critical.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 2711P-K10C4A8 |
| Series | PanelView Plus 1000 |
| Display Size | 10.4 inch (264 mm) diagonal |
| Display Type | Color TFT LCD |
| Resolution | 640 × 480 pixels (VGA) |
| Input Method | Keypad (function keys + numeric keypad) |
| Processor | Intel PXA255 @ 400 MHz |
| RAM | 64 MB SDRAM |
| Flash Storage | 64 MB |
| Operating System | Windows CE 5.0 |
| Communication Ports | ControlNet (coax), DH-485, RS-232, USB (Type A & B), Ethernet 10/100 (optional) |
| Supply Voltage | 24V DC (18–32V DC range) |
| Power Consumption | ≤ 35W typical |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Enclosure Rating | NEMA 4/4X, 12, 13 (front face); IP65 (front face) |
| Panel Cutout | 310 mm × 248 mm (W × H) |
| Weight | Approx. 1.2 kg |
| Certifications | UL, CE, C-Tick |
| Software | FactoryTalk View ME (ME Station) |
Proven Application Environments
- Automotive Manufacturing: Body-in-white assembly lines, paint shop controls, and end-of-line test stations requiring durable keypad input under gloved operation.
- Food & Beverage Processing: Washdown-rated panel installations in bottling, mixing, and packaging lines; IP65 front face withstands daily cleaning cycles.
- Water & Wastewater Treatment: Pump station HMI panels with DH-485 or ControlNet connectivity to legacy PLC-5 and SLC 500 controllers.
- Discrete Manufacturing: Machine-level operator stations on injection molding, CNC routing, and press brake equipment.
- Oil & Gas Upstream: Wellhead and compressor station control panels in Class I, Division 2 areas (with appropriate enclosure).
- Building Automation: HVAC and chiller plant control rooms requiring centralized operator interface with ControlLogix integration.
Engineering Advantages
- Tactile Keypad Input: 24 configurable function keys plus full numeric keypad — eliminates touchscreen calibration drift in high-vibration environments and enables gloved-hand operation without accuracy loss.
- Native Rockwell Network Support: Factory-integrated ControlNet and DH-485 ports eliminate the need for external communication modules, reducing panel BOM cost and wiring complexity.
- FactoryTalk View ME Compatibility: Full compatibility with Rockwell’s FactoryTalk View Machine Edition software ensures seamless application development, version control, and remote diagnostics via RSLinx.
- NEMA 4/4X Front Rating: Suitable for direct panel mounting in wash-down and outdoor-rated enclosures without additional protective measures on the operator face.
- Compact Footprint: 10.4″ display in a panel-efficient form factor reduces enclosure size requirements versus larger HMI alternatives while maintaining full VGA resolution for complex mimic diagrams.
- Long Field Service History: Widely deployed since mid-2000s; extensive spare parts ecosystem, trained integrators, and documented firmware revisions support long-term maintainability.
System Architecture & Signal Flow
The 2711P-K10C4A8 operates as a FactoryTalk View ME Station within a Rockwell Automation control architecture. Typical signal flow:
- Controller Layer: ControlLogix / CompactLogix / PLC-5 / SLC 500 PLC executes ladder or structured text logic and maintains tag database.
- Network Layer: ControlNet (coaxial, deterministic) or DH-485 (RS-485 token-passing) carries tag data between PLC and HMI terminal. Ethernet/IP variant available for EtherNet-based architectures.
- HMI Terminal: 2711P-K10C4A8 polls PLC tags at configured scan rates, renders graphic displays, and writes operator inputs back to PLC data files or controller tags.
- Operator Interface: Keypad function keys trigger pre-configured screen navigation, setpoint entry, and alarm acknowledgment without requiring touchscreen interaction.
- Alarm & Audit: FactoryTalk Alarms & Events integration provides timestamped alarm logging to CompactFlash or USB storage for regulatory compliance and post-incident analysis.
Sourcing & Quality Verification
Konmask.com sources the 2711P-K10C4A8 exclusively through verified industrial automation distributors and OEM decommission channels. Every unit undergoes the following pre-shipment verification protocol:
- Visual inspection: housing integrity, keypad key travel, display backlight uniformity, port connector condition.
- Power-on test: boot sequence to Windows CE desktop confirmed; FactoryTalk View ME runtime launch verified.
- Communication port continuity check: RS-232, USB, and network port pin-out verified against Rockwell wiring diagrams.
- Firmware revision documentation: installed firmware version recorded and disclosed in shipment documentation.
- Packaging: anti-static bag, foam-lined carton, and humidity indicator card included for international freight.
Counterfeit risk mitigation: all units are cross-referenced against Rockwell Automation’s published catalog number format and date code conventions. Units with inconsistent labeling or non-standard PCB markings are rejected.
Procurement Process
- Confirm Compatibility: Verify your existing FactoryTalk View ME application version and PLC communication driver requirements before ordering. Contact our engineering team with your current panel configuration for a compatibility check.
- Request a Quote: Submit your required quantity, delivery timeline, and destination via support@konmask.com or WhatsApp +0086 19859288691. Volume pricing available for orders of 3+ units.
- Order Confirmation: Pro-forma invoice issued within 24 business hours. Payment via T/T bank transfer or secure online checkout.
- Inspection & Dispatch: Pre-shipment inspection report and photos provided upon request. Units dispatched via DHL Express, FedEx International Priority, or sea freight for bulk orders.
- After-Sales Support: 90-day functional warranty. Technical support available for installation, network configuration, and FactoryTalk View ME application loading.
Technical FAQ
Q: Is the 2711P-K10C4A8 compatible with Studio 5000 / FactoryTalk View ME v8.x and later?
A: Yes. The terminal runs FactoryTalk View ME Station and is compatible with applications developed in ME v5.x through v8.x. Verify your application’s minimum runtime version requirement before deployment.
Q: Can this unit communicate over EtherNet/IP?
A: The base 2711P-K10C4A8 includes ControlNet and DH-485 ports. For EtherNet/IP connectivity, the 2711P-K10C4A8 requires an optional Ethernet communication card (2711P-RN15S) or consider the 2711P-T10C4A8 (touch) or 2711P-K10C4D8 (Ethernet-native) variants.
Q: What is the maximum number of tags supported?
A: PanelView Plus 1000 ME Station supports up to 500 tags per application with a maximum of 32 simultaneous connections depending on communication driver configuration.
Q: Is a CompactFlash card required for operation?
A: The terminal has 64 MB onboard flash. A CompactFlash card (Type II slot) is recommended for application storage, alarm logging, and data logging to prevent wear on internal flash memory.
Q: What is the panel cutout dimension?
A: Standard panel cutout is 310 mm (W) × 248 mm (H). Refer to Rockwell publication 2711P-IN006 for full installation dimensions and torque specifications.
Q: Do you provide a warranty?
A: Yes. All units carry a 90-day functional warranty covering power-on operation and communication port functionality. Warranty claims are processed via support@konmask.com with pre-shipment inspection report as reference.
