Allen-Bradley 2711P-T19C22D9P PanelView Plus 7 Performance 19″ Touch Terminal | Replacement, Equivalent & Selection Guide

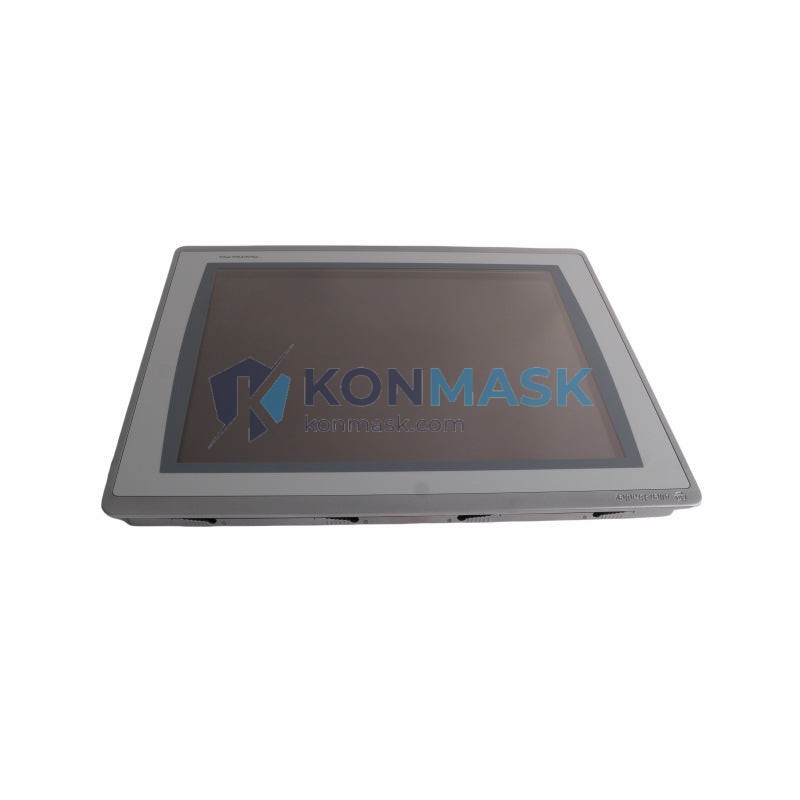

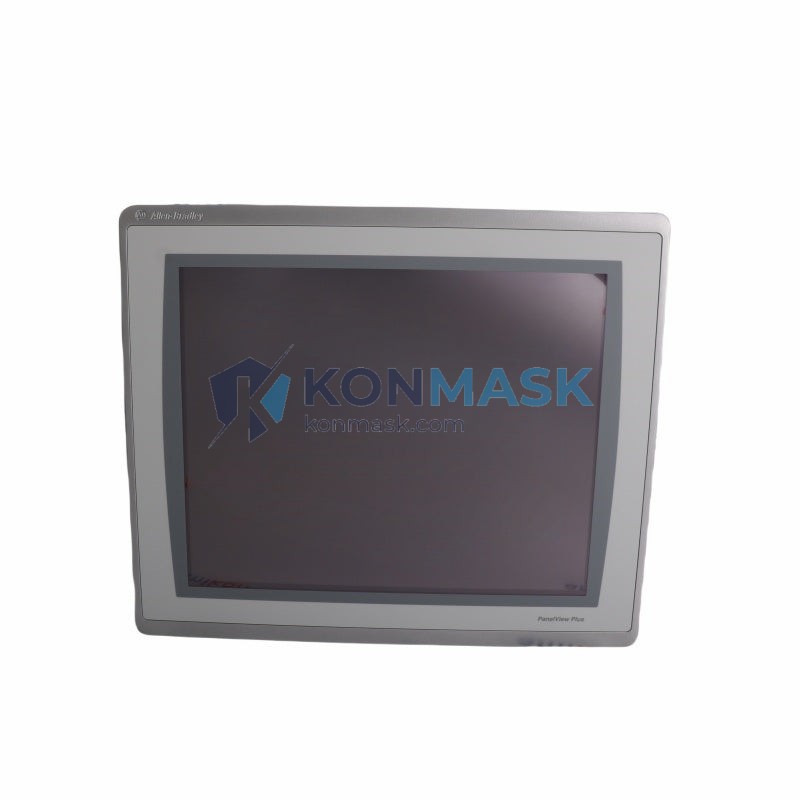

The Allen-Bradley 2711P-T19C22D9P is a 19-inch widescreen touch-screen HMI terminal from Rockwell Automation’s PanelView Plus 7 Performance series. Designed for demanding industrial environments, it delivers high-resolution visualization, robust connectivity, and seamless integration with Logix-based control systems. Konmask.com supplies genuine and compatible units with full traceability.

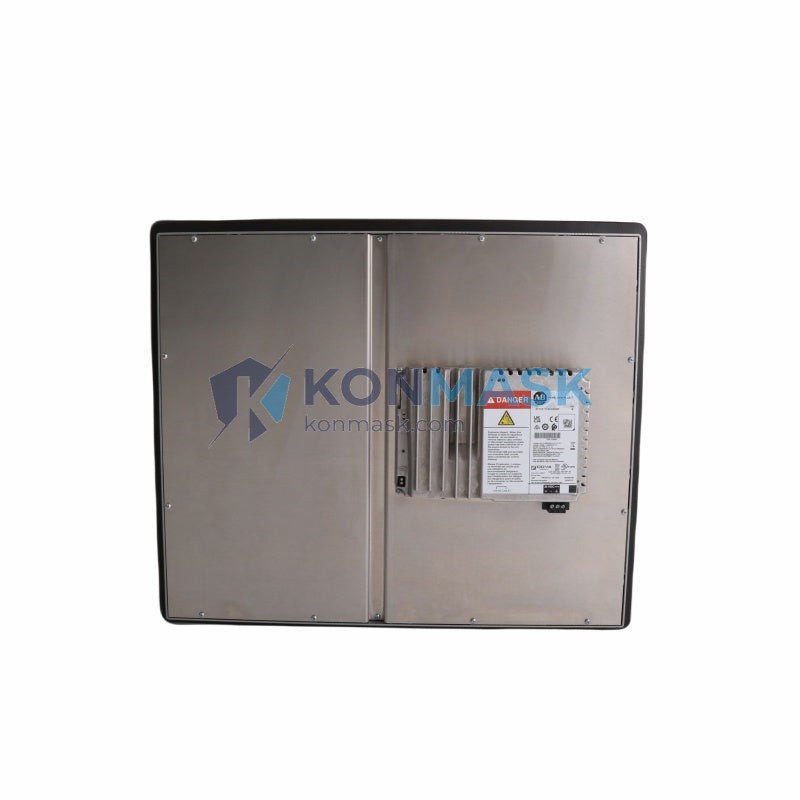

Technical Specifications
- Part Number: 2711P-T19C22D9P
- Series: PanelView Plus 7 Performance
- Display Size: 19″ Widescreen TFT LCD
- Resolution: 1366 × 768 (WXGA)
- Touch Type: Analog Resistive Touch
- Operating System: Windows Embedded Standard 7 (WES7)
- Processor: Intel Atom 1.6 GHz
- RAM: 1 GB DDR2
- Storage: 2 GB CompactFlash
- Communication Ports: 2× USB 2.0, 2× Ethernet (10/100 Mbps), 1× RS-232
- Power Supply: 24V DC (18–32V DC)
- Power Consumption: 60 W (max)
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: −40°C to 70°C (−40°F to 158°F)
- Humidity: 5–95% RH (non-condensing)
- Protection Rating: NEMA 4/4X, IP65 (front panel)
- Certifications: UL, CE, cUL
- Weight: 5.1 kg (approx.)
- Mounting: Panel mount (cutout required)
- Software: FactoryTalk View ME / SE compatible
Compatible Replacement & Equivalent Models
If the 2711P-T19C22D9P is unavailable or over budget, the following models offer compatible or equivalent functionality:
- 2711P-T19C22D9P-B — Revised hardware revision, direct drop-in replacement
- 2711P-T19C22A9P — AC-powered variant (120/240V AC input), same display and OS
- 2711P-T15C22D9P — 15″ version, same Performance series, reduced display area
- 2711P-T12W22D9P — 12.1″ widescreen, compact footprint alternative
- 2711P-T10C22D9P — 10.4″ entry-level Performance terminal for space-constrained panels
- 2711R-T19T — PanelView Plus 7 Standard series, 19″, lower-cost option with reduced performance specs
- 6AV2124-0QC02-0AX1 (Siemens SIMATIC TP1900) — Cross-brand equivalent for multi-vendor environments
- MT8150XE (Weintek) — Third-party 15″ equivalent for cost-sensitive projects
Contact Konmask.com for cross-reference verification before substitution.
Why Choose the Original 2711P-T19C22D9P
- ✅ Native integration with Studio 5000 / FactoryTalk View ME & SE — zero configuration overhead
- ✅ Certified for NEMA 4/4X & IP65 — suitable for washdown and harsh environments
- ✅ Dual Ethernet ports enable Device Level Ring (DLR) topology for network redundancy
- ✅ WES7 OS provides a stable, long-lifecycle platform with extended support
- ✅ Full Rockwell Automation TechConnect support and firmware update path
- ✅ Proven track record in automotive, food & beverage, oil & gas, and water treatment industries
Typical Applications
- Machine operator interfaces on production lines
- SCADA visualization panels in process plants
- Conveyor and packaging system HMI stations
- Water/wastewater treatment control rooms
- Oil & gas upstream and midstream monitoring panels
- Pharmaceutical batch control visualization
- Automotive assembly line operator terminals
System Compatibility
- PLC / Controller: Allen-Bradley ControlLogix, CompactLogix, MicroLogix, SLC 500, PLC-5 (via EtherNet/IP or DH+)
- Software: FactoryTalk View ME v8.x–v14.x, FactoryTalk View SE
- Network: EtherNet/IP, DH-485, DF1 (RS-232)
- Panel Cutout: Refer to Rockwell Automation installation drawing 2711P-IN006 for exact cutout dimensions
Selection Guide
Use the table below to select the right PanelView Plus 7 Performance model for your project:
- Display Size: 10.4″ → 2711P-T10C22D9P | 12.1″ → 2711P-T12W22D9P | 15″ → 2711P-T15C22D9P | 19″ → 2711P-T19C22D9P ✓
- Power Input: 24V DC → 2711P-T19C22D9P | 120/240V AC → 2711P-T19C22A9P
- Touch vs. Keypad: Touch only → 2711P-T19C22D9P | Touch + Function Keys → 2711P-K19C22D9P
- Budget tier: Performance (full feature) → 2711P series | Standard (cost-reduced) → 2711R series
- Environment: NEMA 4/4X required → 2711P-T19C22D9P (front panel rated) | General purpose → 2711R-T19T
Quality Assurance & Sourcing
- 🔍 Genuine units sourced from authorized distributors and verified supply chains
- 📦 Each unit inspected and function-tested prior to shipment
- 📄 Certificate of conformity and traceability documentation available on request
- 🔄 Refurbished / reconditioned units available with 90-day warranty (clearly labeled)
- 🌐 Global shipping with DHL, FedEx, and UPS express options
How to Order
- Confirm part number: 2711P-T19C22D9P
- Specify quantity and required delivery timeline
- Request a quote via support@konmask.com or WhatsApp +0086 19859288691
- Receive proforma invoice with lead time and shipping options
- Payment via T/T, PayPal, or credit card — shipment within 1–3 business days for in-stock units
Replacement & Compatibility FAQ
Q: Can the 2711P-T19C22D9P replace an older 2711P-T19C10 (PanelView Plus 6)?
A: Yes, with application migration. The PV+ 7 is not backward-compatible at the application level — you must convert the .mer file using FactoryTalk View ME migration tools.
Q: Is the 2711P-T19C22D9P compatible with RSView32?
A: No. RSView32 is a PC-based SCADA package. The PanelView Plus 7 runs FactoryTalk View ME (machine edition). Use FactoryTalk View SE for server-based architectures.
Q: What is the difference between 2711P-T19C22D9P and 2711P-T19C22D9P-B?
A: The “-B” suffix denotes a hardware revision with minor component updates. Both are functionally identical and run the same firmware.
Q: Can I use a Siemens TP1900 as a direct replacement?
A: Electrically similar, but not software-compatible. A full application rewrite in TIA Portal / WinCC would be required. Only recommended for new projects.
Q: Do you offer repair or exchange service?
A: Yes. Contact us for repair evaluation, board-level service, or advance exchange programs.
