Allen-Bradley 1336-BDB-SP5C PC Board | Replacement, Equivalent & Selection Guide

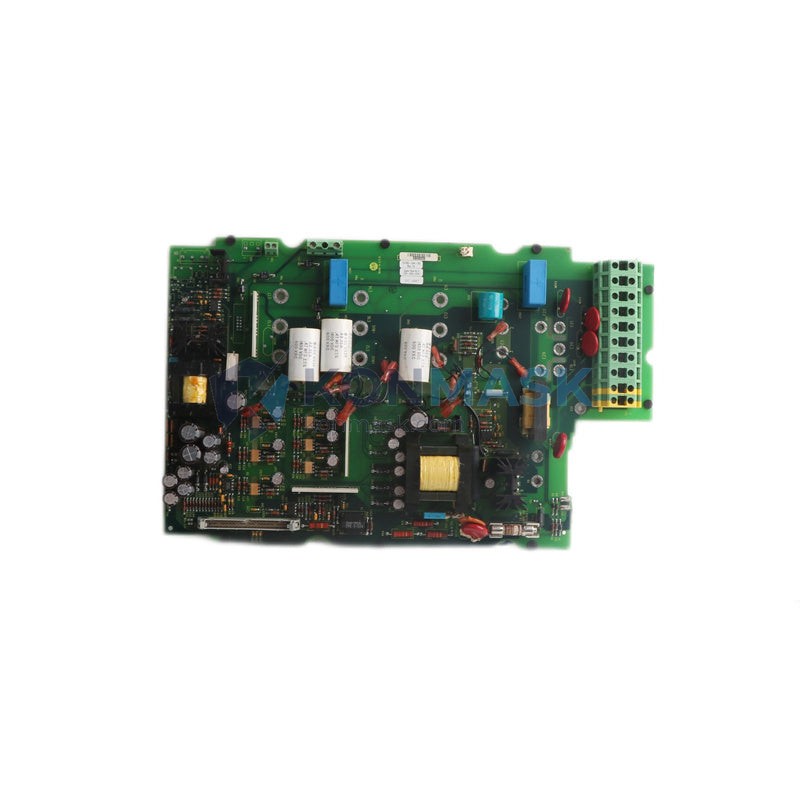

The Allen-Bradley 1336-BDB-SP5C is an OEM PC Board (Printed Circuit Board) designed for use in the Rockwell Automation 1336 PLUS series AC variable frequency drives. This board serves as a critical control or interface sub-assembly within the drive system. Whether you are performing a field repair, sourcing a spare, or evaluating compatible alternatives, this guide provides the technical and procurement information you need.
Technical Specifications
- Part Number: 1336-BDB-SP5C
- Manufacturer: Allen-Bradley / Rockwell Automation
- Description: PC Board (Printed Circuit Board Assembly)
- Compatible Drive Series: 1336 PLUS (1336F, 1336S, 1336T)
- Form Factor: OEM Spare Board
- Weight: 1,520 g (approx.)
- Condition Available: New, Refurbished, Tested Surplus
- Country of Origin: USA (OEM)
- RoHS Compliance: Consult datasheet for specific revision
Compatible Replacement & Equivalent Models
When the original 1336-BDB-SP5C is unavailable or discontinued, the following options may serve as functional replacements. Always verify compatibility with your specific drive firmware revision and hardware revision before installation.
- 1336-BDB-SP5C — OEM original (this listing)
- 1336-BDB-SP5 — Earlier revision; may be functionally equivalent depending on drive firmware
- 1336-BDB-SP5B — Intermediate revision; verify hardware compatibility
- Refurbished 1336-BDB-SP5C — Factory-tested surplus units; cost-effective alternative
- Third-party compatible boards — Available from certified repair centers; confirm pin-out and firmware compatibility
Note: Revision suffix (A/B/C) may indicate PCB layout or firmware changes. Always cross-reference the drive’s nameplate and existing board revision before ordering a replacement.
Why Choose the Original Model
- ✅ OEM Guaranteed Compatibility — Designed and tested specifically for 1336 PLUS drive platforms
- ✅ Rockwell Automation Quality Standards — Manufactured to ISO-certified production processes
- ✅ Firmware Alignment — Matched to drive firmware revisions to prevent parameter conflicts
- ✅ Warranty Support — Eligible for Rockwell Automation service and warranty programs
- ✅ Reduced Commissioning Risk — Drop-in replacement with no re-engineering required
Typical Applications
- Field repair and board-level replacement for 1336 PLUS AC drives
- Preventive maintenance spare parts stocking for critical production lines
- Drive refurbishment and remanufacturing programs
- OEM machine builders requiring certified spare assemblies
- Industrial automation system integrators managing multi-site drive fleets
System Compatibility
| Drive Series | Compatible | Notes |
|---|---|---|
| 1336 PLUS (1336F) | ✅ Yes | Primary target platform |
| 1336 PLUS II (1336E) | ⚠️ Verify | Different board architecture; confirm before ordering |
| 1336 IMPACT (1336T) | ⚠️ Verify | Consult Rockwell Automation compatibility matrix |
| PowerFlex 400 / 700 | ❌ No | Different platform; not interchangeable |
Selection Guide
Use the following decision flow to select the correct board for your application:
- Identify your drive model — Check the drive nameplate for the exact catalog number (e.g., 1336F-BRF30-AN-EN).
- Record the existing board revision — Note the revision letter on the board label (SP5, SP5B, SP5C, etc.).
- Check firmware version — Mismatched firmware and board revisions can cause faults. Retrieve via the HIM or DriveExplorer software.
- Confirm power rating — Ensure the replacement board is rated for your drive’s horsepower/kW range.
- Choose condition — New OEM for critical uptime applications; tested surplus for budget-sensitive or backup scenarios.
- Contact Konmask — Provide your drive catalog number and existing board revision for a confirmed compatibility check before purchase.
Quality Assurance & Sourcing
- Source: Authorized distributors, certified surplus dealers, and OEM channels
- Testing: All refurbished units are bench-tested under load conditions prior to shipment
- Packaging: Anti-static ESD packaging with moisture barrier for safe transit
- Documentation: Test reports and certificates of conformance available upon request
- Traceability: Lot and serial number tracking maintained for all inventory
How to Order
- Add the item to your cart and proceed to checkout, or
- Contact us directly for bulk orders, urgent requirements, or compatibility verification:
- 📧 Email: [email protected]
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://Konmask.com
Please provide your drive catalog number, existing board revision, and required quantity for fastest response.
Replacement & Compatibility FAQ
Q: Can I use a 1336-BDB-SP5B instead of the SP5C?
A: Possibly. The revision suffix indicates a PCB change. In many cases earlier revisions are functionally compatible, but you should verify with Rockwell Automation or contact Konmask with your drive’s full catalog number.
Q: Is this board compatible with the 1336 PLUS II series?
A: The 1336 PLUS II (1336E) uses a different board architecture. Cross-compatibility is not guaranteed — please confirm before ordering.
Q: Do you offer tested/refurbished units?
A: Yes. We stock both new OEM and tested surplus units. All refurbished boards are bench-tested and shipped in ESD-safe packaging.
Q: What is the lead time for new OEM units?
A: Lead times vary by stock availability. Contact us for real-time inventory status and expedited shipping options.
Q: Can you help me identify the correct replacement if my board is damaged?
A: Yes. Send us a photo of the damaged board label and your drive nameplate — our technical team will confirm the correct replacement part number.
