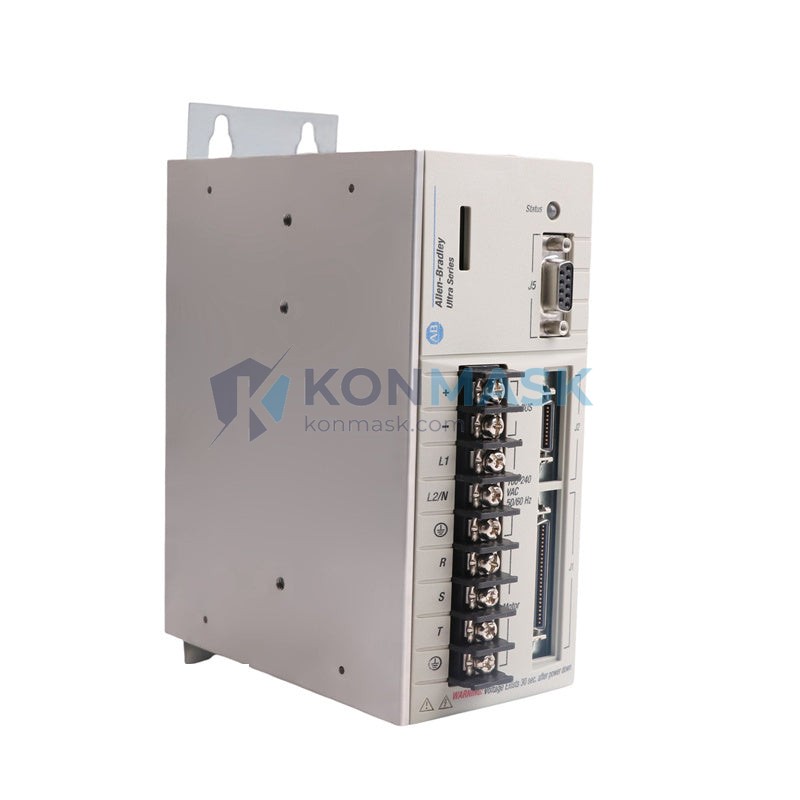

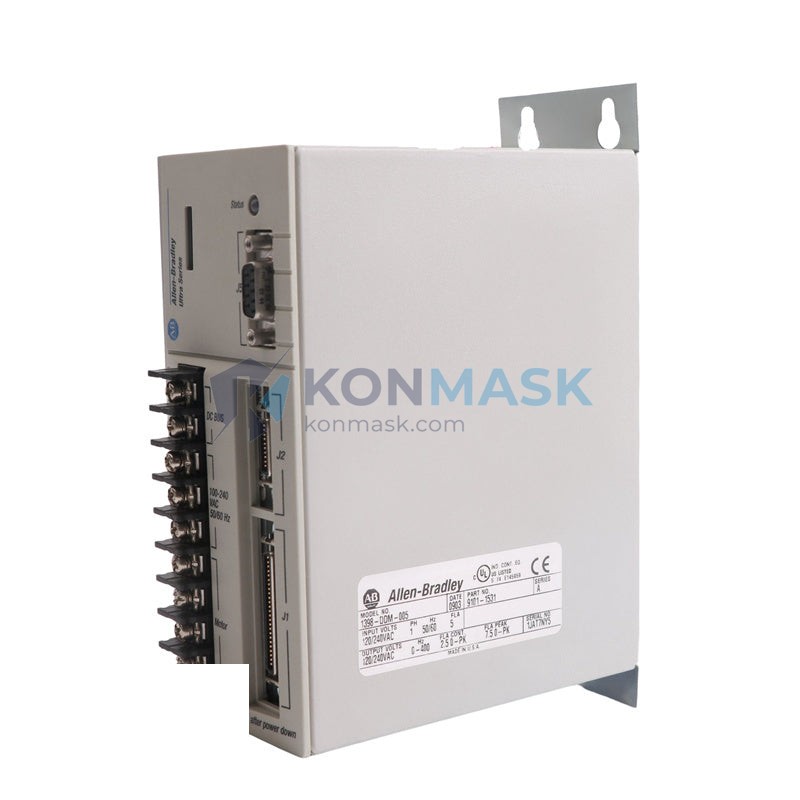

Servo Motion Control Solution — Allen-Bradley 1398-DDM-005 | Ultra 100 Series
Where This Product Is Used
The Allen-Bradley 1398-DDM-005 Ultra 100 Servo Drive is deployed across demanding industrial motion control environments where precise speed and torque regulation are non-negotiable. Typical application sites include:
- Packaging Machinery — High-speed pick-and-place, form-fill-seal lines, and cartoning systems requiring sub-millisecond position repeatability.
- CNC Machine Tools — Axis drives on milling centers, lathes, and grinding machines where dynamic stiffness and low following error are critical.
- Conveyor & Material Handling — Synchronised multi-axis web tension control, indexing tables, and sortation systems.
- Robotics & Assembly Automation — Articulated arm joints and SCARA robot axes in automotive and electronics assembly cells.
- Printing & Converting — Register control on flexographic and gravure presses where micron-level accuracy is required at production speed.
- Semiconductor & Electronics Manufacturing — Wafer-handling stages and PCB drilling machines operating in cleanroom-adjacent environments.

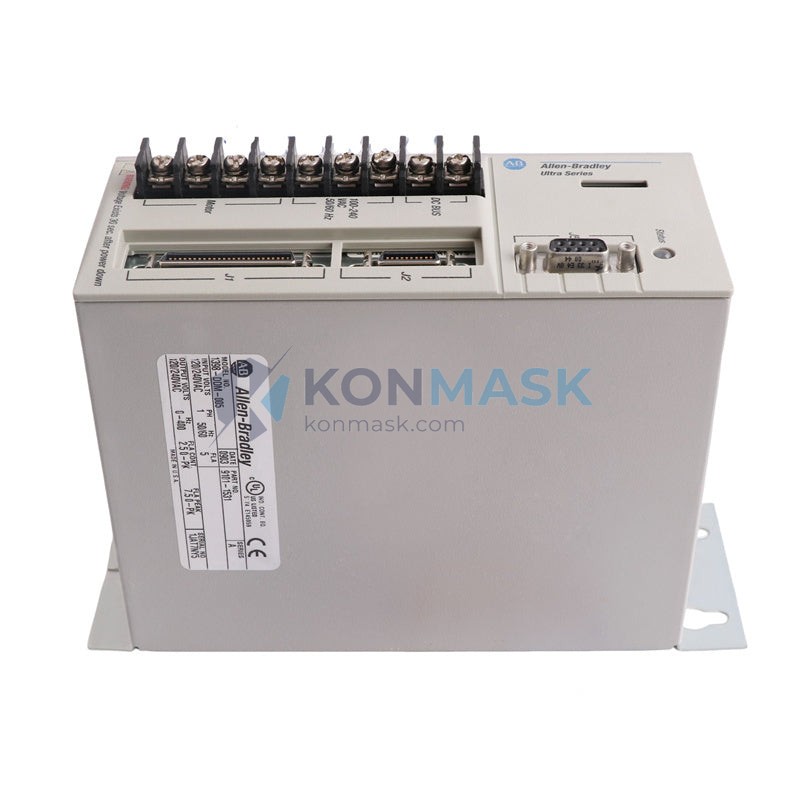

Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part Number | 1398-DDM-005 |
| Series | Ultra 100 |
| Drive Type | Digital Servo Drive (DSP-based) |
| Continuous Output Current | 5 A RMS |
| Peak Output Current | 15 A RMS (3× continuous) |
| Input Voltage | 120 / 240 VAC, Single-Phase, 50/60 Hz |
| Bus Voltage | 170 / 340 VDC (nominal) |
| Feedback Interface | Incremental Encoder (A/B/Z), 5 VDC differential |
| Command Interface | ±10 VDC Analog / Step-Direction / Serial (RS-232) |
| Control Modes | Position, Velocity, Torque |
| Switching Frequency | 8 kHz PWM |
| Protection Class | IP20 (panel-mount) |
| Operating Temperature | 0 °C to 45 °C (ambient) |
| Weight | 1.66 kg |
| Approvals | UL, CE |
Why Engineers Specify This Model
- Proven DSP Architecture — The Ultra 100 platform uses a dedicated digital signal processor for real-time current-loop closure at 8 kHz, delivering smooth torque output even at low speeds.
- Flexible Command Modes — Accepts ±10 VDC analog, step/direction pulse trains, and RS-232 serial commands, making it compatible with virtually any upstream PLC or motion controller without additional interface hardware.
- Integrated Auto-Tuning — On-board inertia identification and gain-scheduling routines reduce commissioning time from hours to minutes.
- Compact Panel Footprint — The 1398-DDM-005 occupies minimal DIN-rail or panel space, simplifying enclosure design for OEMs.
- Rockwell Ecosystem Compatibility — Pairs natively with Allen-Bradley MPL/MPF servo motors and integrates with RSLogix / Studio 5000 via serial configuration utilities.
- Long Field Service History — Introduced as part of the Ultra 100 family, this drive has an extensive installed base, ensuring availability of spare parts, documentation, and field expertise.
Complete System Bill of Materials
For a fully operational Ultra 100 servo axis, engineers typically source the following complementary components:
- Allen-Bradley MPL-A230P-MJ72AA or equivalent Ultra 3000-compatible servo motor (matched to 5 A continuous rating)
- 1398-CBL-HC050 — Motor power and feedback cable assembly (5 m)
- 1398-CBL-PC050 — Encoder feedback cable (5 m)
- 1398-DBM-005 — Dynamic brake module (for applications requiring rapid deceleration)
- 1321-3R4-B — Line reactor (recommended for input harmonic mitigation)
- 24 VDC control power supply (minimum 2 A)
- Shielded cable conduit and EMC-rated cable glands
Compliance & Industry Standards
- UL 508C — Power Conversion Equipment (listed)
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- IEC 61800-3 — Adjustable Speed Electrical Power Drive Systems — EMC requirements
- NFPA 79 — Electrical Standard for Industrial Machinery (design-compatible)
- RoHS — Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
Quality Assurance & Sourcing
Every 1398-DDM-005 unit offered through Konmask.com undergoes a structured verification process before dispatch:
- Visual Inspection — Board-level examination for corrosion, damaged components, and counterfeit indicators.
- Functional Power-On Test — Drive is energised and fault codes are cleared; basic motion response is verified where test fixtures permit.
- Serialisation Check — Serial number is cross-referenced against known production date codes to confirm authenticity.
- Packaging — Anti-static bag, foam-lined carton, and moisture-barrier seal for safe international transit.
Units are sourced from decommissioned OEM lines, authorised distributors, and verified surplus channels. Condition is clearly stated on each listing (New / Refurbished / Tested Surplus).
How to Source This Part
- Add to Cart — Select quantity and proceed to checkout. Multi-unit orders qualify for volume pricing — contact us before ordering.
- Request a Quote — For project quantities ≥ 3 units, email support@konmask.com with your delivery timeline and destination country.
- Lead Time — In-stock units ship within 1–3 business days. Out-of-stock items can typically be sourced within 7–15 business days.
- Export & Customs — We handle HS code classification and commercial invoice preparation for cross-border shipments. DDP (Delivered Duty Paid) terms available on request.
- Payment — T/T bank transfer, PayPal, and major credit cards accepted. LC available for orders above USD 5,000.
Application-Specific FAQ
Q: Is the 1398-DDM-005 compatible with third-party servo motors?
A: Yes. The drive accepts any servo motor with a standard incremental encoder (5 VDC differential, A/B/Z) and a three-phase brushless AC motor winding. Motor parameters (inertia, resistance, inductance, back-EMF) must be entered during commissioning via the RS-232 configuration port.
Q: Can this drive be controlled by a Siemens or Mitsubishi PLC?
A: Yes. The ±10 VDC analog velocity command input and step/direction pulse input are PLC-agnostic. Any controller capable of outputting these standard signals can command the 1398-DDM-005.
Q: What is the difference between the 1398-DDM-005 and the 1398-DDM-010?
A: The suffix number denotes continuous output current rating — 005 = 5 A, 010 = 10 A. Select the model matched to your motor’s continuous current requirement with a minimum 20% derating margin.
Q: Is a regen resistor required?
A: For applications with frequent deceleration or vertical loads, the optional 1398-DBM-005 dynamic brake module is strongly recommended to dissipate regenerative energy safely.
Q: Do you provide a warranty?
A: All units carry a 90-day functional warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty terms are available — contact us for details.
