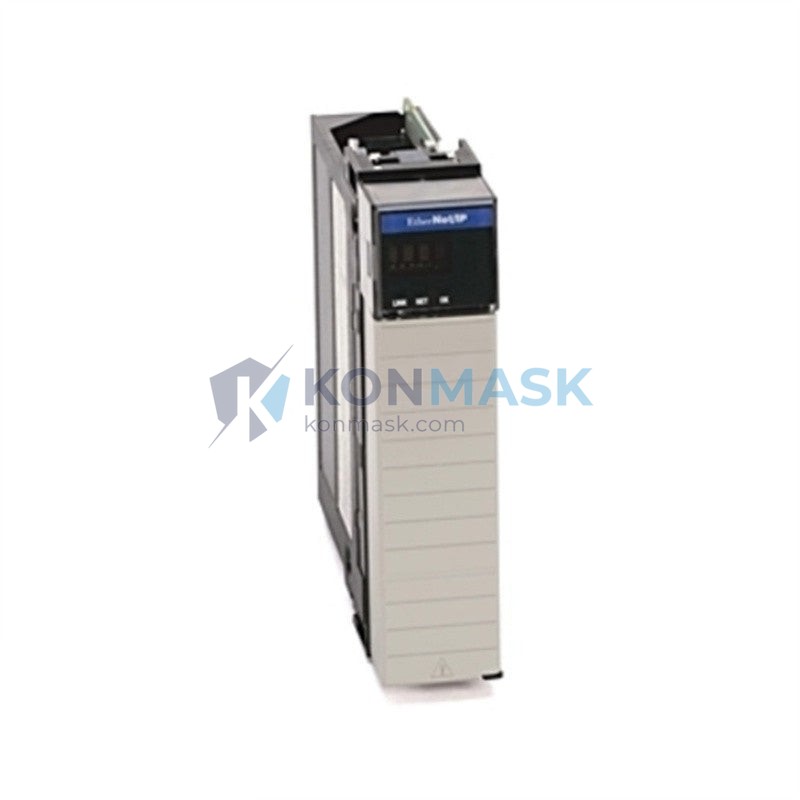

Allen-Bradley 1756-ENET – ControlLogix EtherNet Bridge Module | ControlLogix Platform
Engineering Background: The Allen-Bradley ControlLogix platform (1756 series) is Rockwell Automation’s flagship process and discrete control architecture, deployed across critical infrastructure in petrochemical refining, power generation, and municipal water treatment. Within this architecture, the 1756-ENET serves as the dedicated EtherNet/IP bridge module, enabling the ControlLogix backplane to communicate over standard 10/100 Mbps Ethernet networks. It acts as the gateway between the controller backplane and plant-floor Ethernet segments, supporting both explicit messaging (for configuration and data collection) and implicit I/O messaging (for real-time control).
Product Positioning: The 1756-ENET is a first-generation ControlLogix Ethernet bridge, distinct from the later 1756-ENBT (10/100 Mbps, dual-port) and 1756-EN2T (enhanced diagnostics, higher connection count). The 1756-ENET is suited for legacy system maintenance, spare-part replenishment, and retrofit projects where the existing rack infrastructure is already qualified around this module. It is not recommended for new greenfield designs where 1756-EN2T or 1756-EN3TR would be the current standard. Its boundary condition is single-port, 10 Mbps Ethernet with a limited concurrent connection count — sufficient for supervisory SCADA polling and peer-to-peer messaging, but not for high-density I/O adapter networks.
Complete Technical Specifications
Electrical
- Network Interface: 10 Mbps Ethernet (10BASE-T), RJ-45 connector
- Backplane Current Draw: 1.0 A @ 5 VDC (from ControlLogix chassis power supply)
- Backplane Power Consumption: 5.0 W
- Supported Protocols: EtherNet/IP (ODVA), explicit messaging (CIP), implicit I/O messaging
- Max Concurrent Connections: 64 (explicit + implicit combined)
- IP Address Configuration: BOOTP, DHCP, or static (via RSLinx / RSLogix 5000)
Mechanical
- Form Factor: Single-slot ControlLogix 1756 chassis module
- Dimensions: Standard 1756 module profile
- Weight: ~300 g
- Connector: RJ-45 (front-panel, shielded)
- Keying: Electronic keying supported via RSLogix 5000
Environmental
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5% to 95% non-condensing
- Vibration: IEC 68-2-6 compliant
- Shock: IEC 68-2-27 compliant
- Pollution Degree: 2
Certifications
- UL Listed (UL 508)
- CE Marked (EMC Directive, Low Voltage Directive)
- ODVA EtherNet/IP Conformance Tested
- RoHS Compliant
Data source: Rockwell Automation Publication 1756-UM004, ControlLogix EtherNet Bridge Module User Manual; ODVA EtherNet/IP Conformance Test Certificate.
Proven Application Environments
- Petrochemical Refining — Distributed Control System (DCS) integration nodes; continuous process units (CDU, VDU) operating 24/7 under high-vibration, high-temperature ambient conditions requiring stable Ethernet supervisory links.
- Power Generation — Turbine control and BOP (Balance of Plant) automation; coal-fired and gas-fired plants where the ControlLogix rack is installed in MCC rooms with strict EMC requirements and 24/7 uptime mandates.
- Municipal Water Treatment — SCADA-connected pump station controllers; remote lift stations communicating over managed Ethernet switches to a central SCADA server via EtherNet/IP explicit messaging.
- Automotive Manufacturing — Body-in-white welding lines; ControlLogix racks coordinating robot controllers and vision systems over a segmented plant Ethernet, where the 1756-ENET bridges the controller backplane to the line-level network.
- Pharmaceutical Production — FDA 21 CFR Part 11-compliant batch process control; clean-room environments where the module is housed in NEMA 12 enclosures and communicates with MES/historian systems via EtherNet/IP.
- Mining & Minerals Processing — Conveyor and crusher control systems; high-dust, high-vibration environments where the ControlLogix chassis is mounted in sealed enclosures and the 1756-ENET provides the sole Ethernet uplink to the control room.
Engineering Advantages
- For legacy ControlLogix systems requiring Ethernet connectivity, this bridge module integrates directly into the existing 1756 chassis without backplane redesign, because it occupies a single standard slot and draws power from the existing chassis supply — eliminating the need for external media converters or protocol gateways.
- For SCADA polling applications with moderate update rates, this communication module delivers deterministic EtherNet/IP explicit messaging, because the 10 Mbps dedicated port is not shared with I/O traffic, preserving bandwidth for supervisory data collection.
- For spare-part lifecycle management in aging plants, this module provides a direct form-fit-function replacement for failed 1756-ENET units, because the module catalog number, firmware revision, and electronic keying parameters are preserved — minimizing re-commissioning time during unplanned outages.
- For multi-rack ControlLogix systems, this bridge module enables rack-to-rack produced/consumed tag communication over Ethernet, because EtherNet/IP implicit messaging supports controller-to-controller data exchange without requiring a dedicated ControlNet backbone.
- For environments with strict network segmentation requirements, this module supports static IP addressing and VLAN-compatible operation, because it does not require DHCP and can be configured offline via RSLogix 5000 before installation.
- For maintenance teams operating under tight MTTR targets, this module supports hot-swap removal and insertion (RIUP — Remove and Insert Under Power) within the ControlLogix chassis, because the 1756 backplane architecture isolates module power sequencing from the controller CPU state.
System Architecture & Signal Flow
Signal Flow: Plant Ethernet Switch (10BASE-T) → RJ-45 Port (1756-ENET) → EtherNet/IP Protocol Stack → ControlLogix Backplane (1756 chassis) → Controller CPU (1756-L series) → I/O Modules. In the reverse direction, the controller CPU writes output data to I/O modules via the backplane; the 1756-ENET simultaneously services incoming explicit message requests from SCADA/HMI clients on the Ethernet segment.
Compatible Modules & Reason:
- 1756-L1 / L2 / L3 / L4 / L5x series controllers — all share the same 1756 backplane protocol; the 1756-ENET is compatible with any ControlLogix CPU generation that supports EtherNet/IP messaging.
- 1756-PA72 / PB72 / PA75 / PB75 power supplies — standard ControlLogix chassis power supplies that provide the 5 VDC backplane rail required by the 1756-ENET.
- RSLogix 5000 / Studio 5000 Logix Designer — the module is configured and monitored via these Rockwell programming environments using the standard Add-On Profile (AOP).
Substitution Conditions: The 1756-ENBT is the preferred upgrade path when dual-port redundancy or 100 Mbps speed is required. The 1756-EN2T is recommended for new designs requiring higher connection counts (>64) or enhanced diagnostics. Substitution requires firmware compatibility verification and electronic keying reconfiguration in the controller project file.
Sourcing & Quality Verification
All 1756-ENET units are sourced through established industrial automation distribution channels, including authorized Rockwell Automation distributors and verified secondary-market suppliers with documented chain-of-custody records. Each unit undergoes the following 4-step verification process before shipment:
- Visual Inspection: Housing integrity check, label authenticity verification (Rockwell holographic label, catalog number, series letter, firmware revision sticker), and connector condition assessment.
- Functional Power-On Test: Module is installed in a live 1756 chassis; LED status indicators (OK, NET, LNK) are verified for correct boot sequence and network link establishment.
- Communication Test: RSLinx Classic is used to browse the module via EtherNet/IP; explicit messaging round-trip is confirmed; firmware revision is read back and recorded.
- Packaging & Documentation: Module is packed in anti-static ESD bag with foam insert; test report and sourcing record are included in the shipment.
Available Documentation: Test report, sourcing declaration, firmware revision record, original Rockwell Automation datasheet (1756-UM004), and certificate of conformance upon request.
Procurement Process
- Submit Inquiry: Provide the catalog number (1756-ENET), required quantity, and any firmware revision or series letter requirements via email to support@konmask.com or via the product page inquiry form.
- Receive Quote & Stock Confirmation: A technical response including unit price (HKD/USD), available quantity, lead time, and shipping options will be provided within 24 hours on business days.
- Order Confirmation & Shipment: Upon payment confirmation, the unit is tested, packed, and dispatched with full tracking. Express international shipping (DHL/FedEx) is available for urgent maintenance requirements.
Technical Support: Pre-sales support includes compatibility verification, firmware revision guidance, and substitution analysis. Post-sales support includes installation guidance and RSLinx/Studio 5000 configuration assistance. Contact: support@konmask.com | +0086 19859288691.
Technical FAQ
- Q: Is the 1756-ENET compatible with Studio 5000 Logix Designer v30 and later?
- A: The 1756-ENET is supported in Studio 5000 Logix Designer through the standard ControlLogix EtherNet/IP module profile. However, Rockwell Automation has progressively deprecated support for first-generation 1756-ENET in newer firmware releases. It is strongly recommended to verify the specific firmware revision of the unit against the target controller firmware version using the Rockwell Automation Product Compatibility and Download Center (PCDC) before installation.
- Q: Can the 1756-ENET replace a 1756-ENBT in an existing rack without reprogramming?
- A: Direct substitution requires caution. The 1756-ENET (10 Mbps, single-port) and 1756-ENBT (10/100 Mbps, single-port) share similar functionality but differ in speed and connection count. If the existing project uses electronic keying set to “Exact Match,” the keying parameters must be updated in the controller project file. If keying is set to “Compatible Module” or “Disabled,” the substitution may be transparent. Network speed compatibility with the connected switch port must also be confirmed.
- Q: Is the 1756-ENET certified for use in SIL-rated safety applications?
- A: The 1756-ENET is a standard (non-safety) ControlLogix communication module and is not certified for use in IEC 61508 SIL-rated safety functions. For safety-rated Ethernet communication in ControlLogix Safety systems, the 1756-EN2TSK or equivalent safety-rated modules must be used. The 1756-ENET may coexist in the same chassis as safety modules but must not be used as part of the safety function itself.
