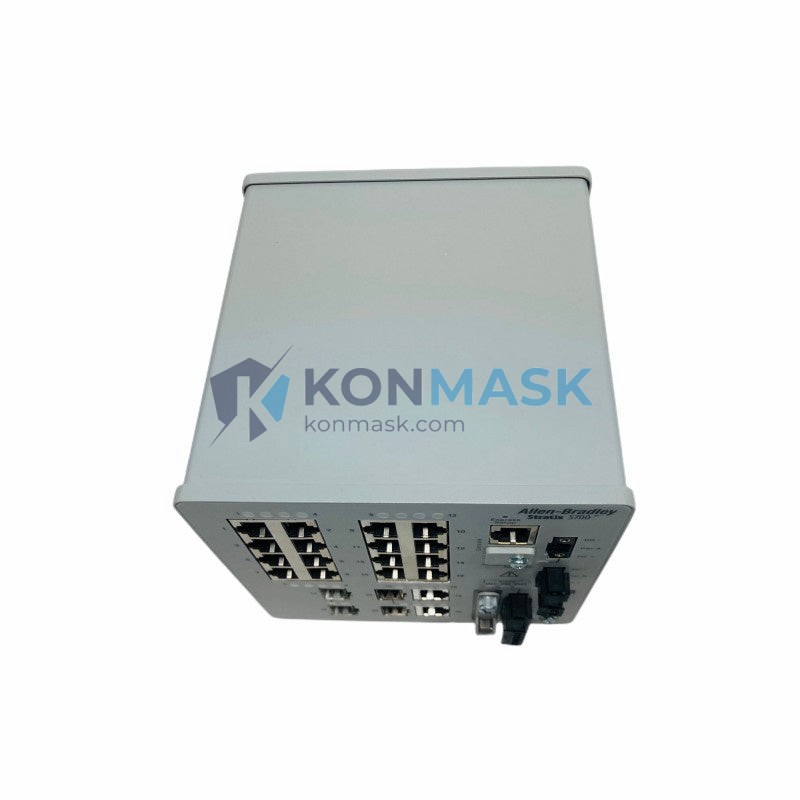

Genuine Allen-Bradley 1783-BMS20CL Stratix 5700 20-Port Managed Industrial Ethernet Switch | Stratix 5700 Series – Verified Source
Konmask.com is a verified distributor of Allen-Bradley industrial automation components. Every unit we ship undergoes a rigorous 4-step quality verification process before dispatch. When you order the 1783-BMS20CL, you receive an authentic, fully tested Stratix 5700 managed switch backed by our sourcing transparency and post-sale support commitment.
Technical Specifications
- Part Number: 1783-BMS20CL
- Series: Stratix 5700
- Manufacturer: Allen-Bradley / Rockwell Automation
- Port Configuration: 20-port managed Ethernet switch

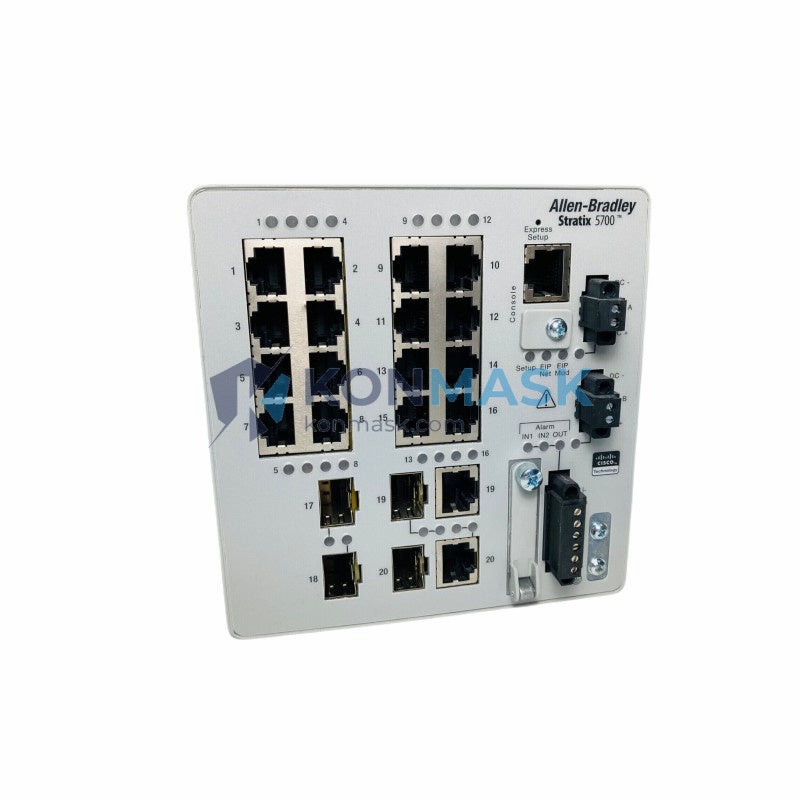

- Port Types: 16 × 10/100BASE-TX copper + 4 × 100BASE-FX fiber (LC connector)
- Management: Full Layer 2 managed (IGMP snooping, VLAN, QoS, RSTP/MSTP)
- Power Supply: 24 VDC nominal (18–32 VDC range), dual redundant input
- Operating Temperature: 0 °C to +60 °C
- Storage Temperature: −40 °C to +85 °C
- Relative Humidity: 5–95% non-condensing

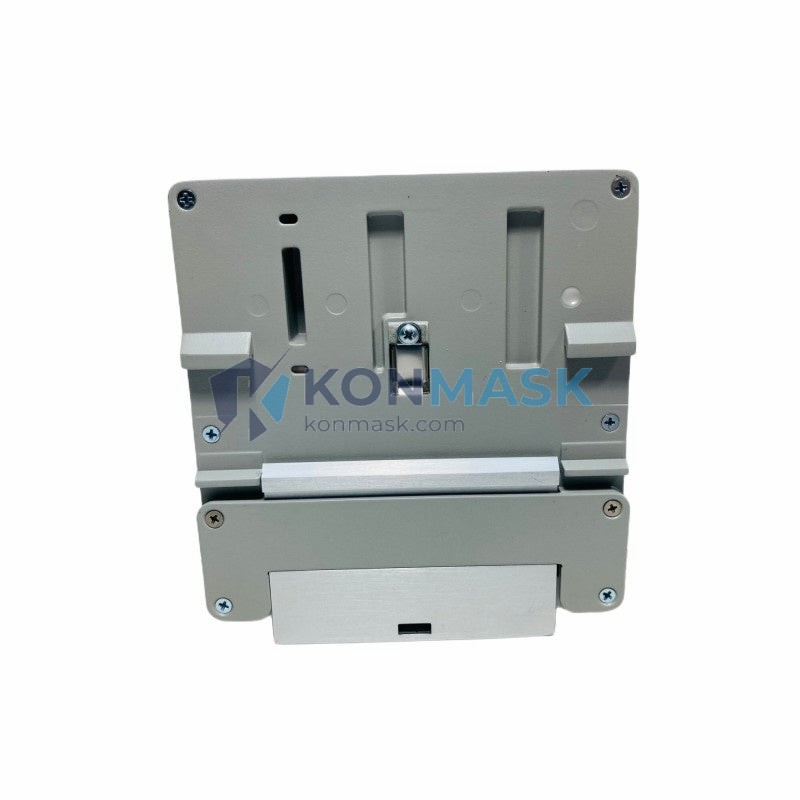

- Mounting: DIN rail
- Protection Rating: IP30
- Dimensions (H × W × D): Approx. 150 × 60 × 120 mm
- Weight: ~2.5 kg
- Firmware: Cisco IOS-based, compatible with Studio 5000 / RSLogix 5000
- Protocols: EtherNet/IP, PROFINET-compatible topology, SNMP v1/v2c/v3, RMON
Our 4-Step Quality Verification Process
Every 1783-BMS20CL unit sold by Konmask passes through the following verification stages before shipment:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors or verified OEM-surplus channels. Supplier credentials are documented and retained on file.
- Step 2 — Physical Inspection: Label integrity, serial number format, housing quality, and port condition are inspected against Allen-Bradley factory standards. Counterfeit indicators are cross-checked against known databases.
- Step 3 — Functional Power-On Test: Each switch is powered on, port LEDs verified, and basic Layer 2 connectivity confirmed. Firmware version is read and logged.
- Step 4 — Packaging & Documentation Review: Unit is repackaged with original or equivalent ESD-safe materials. Test log, sourcing record, and packing slip are included in every shipment.
Key Features & Benefits
- ✅ Fiber + Copper hybrid topology — ideal for long-distance ring or star architectures in plant-floor environments
- ✅ Cisco IOS integration — familiar CLI management for IT/OT convergence teams
- ✅ EtherNet/IP native support — seamless integration with Allen-Bradley PLCs, drives, and HMIs
- ✅ Redundant power inputs — eliminates single point of failure in 24 VDC control panels
- ✅ IGMP snooping & QoS — prioritizes real-time control traffic, suppresses multicast flooding
- ✅ DIN rail mount — compact form factor fits standard control cabinet layouts
- ✅ Wide temperature range — reliable operation in demanding industrial environments
Typical Applications
- Automotive assembly line control networks
- Oil & gas SCADA and DCS backbone switching
- Water/wastewater treatment plant automation
- Food & beverage processing with hygienic zone separation
- Pharmaceutical batch control systems
- Mining and heavy industry remote I/O networks
- Building automation and energy management systems
Compatible System Components
- PLCs: Allen-Bradley ControlLogix (1756 series), CompactLogix (1769 series), MicroLogix
- HMIs: PanelView Plus 6 / 7, FactoryTalk View SE/ME
- Drives: PowerFlex 525, 755, 70 series via EtherNet/IP
- Network Management: Cisco Network Assistant, FactoryTalk Network Manager
- Complementary Switches: 1783-BMS10CL, 1783-BMS20CA, Stratix 8000 (1783-RMS series)
- Power Supplies: 1606-XLP series 24 VDC panel power supplies
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China warehouse with consolidated export capability
- Lead Time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Compliance: EAR99 / ECCN classification confirmed; commercial invoice and packing list provided for customs clearance
- Regions Served: Southeast Asia, Middle East, Europe, North America, South America, Africa
- Minimum Order: 1 unit; volume pricing available for 5+ units
- Insurance: Full cargo insurance available on request for high-value shipments
Certifications & Compliance Statement
- CE Marking: Compliant with EU EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
- UL Listed: UL 508 (Industrial Control Equipment)
- cULus: Canadian market compliance
- RoHS: Compliant with EU Directive 2011/65/EU (restriction of hazardous substances)
- ATEX / IECEx: Not rated for hazardous area use in this configuration
- Konmask Disclaimer: Konmask.com is an independent distributor and is not an authorized Allen-Bradley / Rockwell Automation dealer. All trademarks belong to their respective owners. Products are sourced from legitimate secondary market and surplus channels.
How to Order
- Step 1: Confirm part number 1783-BMS20CL matches your BOM or replacement requirement
- Step 2: Add to cart or contact us directly for volume pricing and lead time confirmation
- Step 3: Provide your shipping address and preferred freight method at checkout
- Step 4: Receive order confirmation with tracking number within 24 hours of dispatch
- 📧 Email: [email protected]
- 📞 Phone/WhatsApp: +0086 19859288691
- 🌐 Website: https://konmask.com
Authenticity & Trust FAQ
Q: Is this a genuine Allen-Bradley product?
A: Yes. All units are sourced from verified supply channels and pass our 4-step QC process. We provide sourcing documentation upon request for enterprise buyers.
Q: Can I get a test report or inspection certificate?
A: Yes. A functional test log is included with every shipment. Third-party inspection (SGS, BV) can be arranged for orders of 3+ units at buyer’s cost.
Q: What is your return policy?
A: We accept returns within 30 days for DOA (dead on arrival) units. Buyer must provide photographic evidence and return the unit in original packaging. Contact [email protected] to initiate.
Q: Do you provide a warranty?
A: Konmask offers a 90-day functional warranty on all units. This covers hardware failure under normal operating conditions and excludes physical damage caused after delivery.
Q: Can you source other Allen-Bradley or Rockwell Automation part numbers?
A: Yes. We maintain sourcing relationships for the full Stratix, ControlLogix, CompactLogix, PowerFlex, and PanelView product families. Send your RFQ to [email protected].
