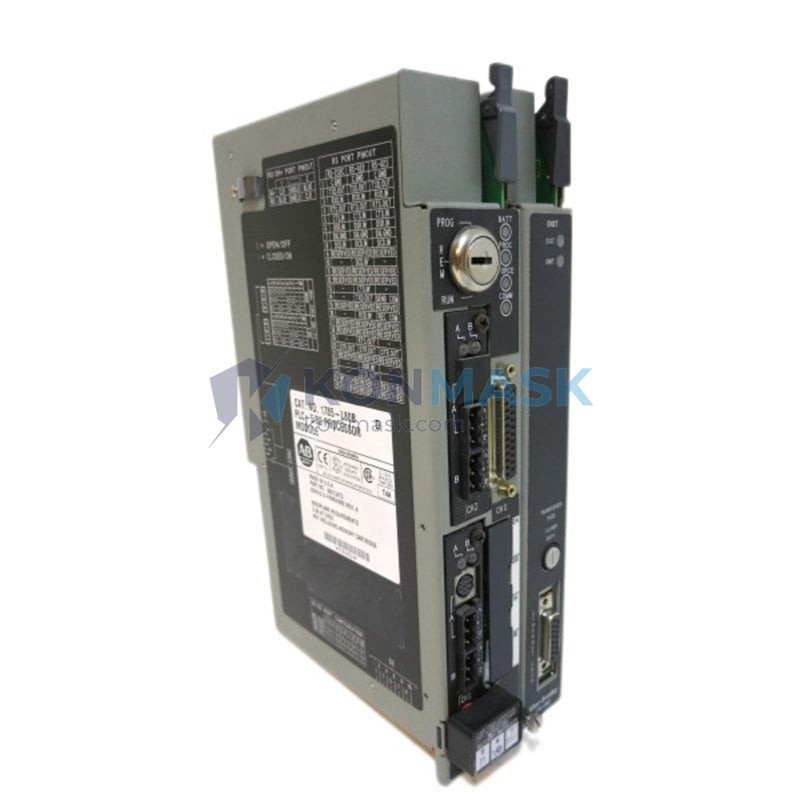

Allen-Bradley 1785-L80B PLC-5/80 Processor Module | PLC-5 Series Platform
Engineering Background
The Allen-Bradley PLC-5 series represents Rockwell Automation’s legacy flagship programmable controller platform, engineered for large-scale discrete and process control applications across heavy industry. Deployed globally since the 1980s, PLC-5 systems remain deeply embedded in automotive assembly lines, oil & gas facilities, water treatment plants, and continuous manufacturing environments where proven reliability outweighs migration cost.
Product Positioning
The 1785-L80B is the high-memory variant of the PLC-5/80 processor family, offering 80KB of user program memory — the largest in the PLC-5 fixed-chassis lineup. It is the preferred replacement and upgrade path for facilities running complex ladder logic programs, large I/O trees, or multi-network architectures that demand maximum on-board memory without transitioning to ControlLogix. Konmask.com supplies verified surplus and refurbished 1785-L80B units to maintenance engineers and procurement teams requiring immediate availability with full traceability.
Complete Technical Specifications
| Catalog Number | 1785-L80B |
| Series | PLC-5/80 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| User Memory | 80KB (80,000 words) |
| I/O Capacity | Up to 3,072 I/O points (local + remote) |
| Communication Ports | DH+ (Data Highway Plus), Remote I/O (RIO) |
| Programming Software | RSLogix 5 / 6200 Series |
| Backplane Compatibility | 1771 I/O chassis (fixed and universal) |
| Power Supply | Supplied via 1771 chassis power supply |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Scan Time | Approx. 1ms per 1K of logic (typical) |
| Battery Backup | Lithium battery for program retention (field-replaceable) |
| Dimensions (W×H×D) | Single-slot 1771 module form factor |
| Weight | Approx. 1,400 g |
| Certifications | UL Listed, CE Marked, CSA Certified |
Proven Application Environments
- Automotive Manufacturing — Body-in-white welding lines, paint shop conveyors, and press transfer systems with high I/O density requirements
- Oil & Gas — Wellhead control panels, pipeline SCADA integration, and compressor station automation with DH+ network supervisory control
- Water & Wastewater Treatment — Pump station sequencing, chemical dosing control, and SCADA-linked remote I/O architectures
- Pulp & Paper / Metals — Continuous process lines requiring large program memory for complex interlocking and recipe management
- Food & Beverage — Batch processing systems with multi-zone temperature and flow control integrated via RIO drops
- Power Generation — Auxiliary control systems for turbine balance-of-plant and switchgear automation
Engineering Advantages
- Maximum On-Board Memory — 80KB user memory accommodates the most complex PLC-5 programs without external memory modules, reducing single points of failure
- Dual Network Architecture — Native DH+ and RIO ports enable simultaneous peer-to-peer messaging and distributed I/O expansion without additional communication modules
- Drop-In Replacement Compatibility — Fully backward-compatible with existing 1771 chassis, wiring, and RSLogix 5 programs; zero re-engineering required for like-for-like swap
- Field-Proven Longevity — Designed for 24/7 industrial duty cycles with MTBF ratings exceeding 100,000 hours under rated conditions
- Deterministic Scan Performance — Fixed scan-time architecture ensures predictable control response critical for synchronized multi-axis and interlock-heavy applications
- Battery-Backed Program Retention — Lithium battery maintains program and data table integrity through power interruptions; battery is field-replaceable without program loss
System Architecture & Signal Flow
The 1785-L80B occupies the processor slot (Slot 0) of a 1771 I/O chassis. The processor communicates with local I/O modules via the 1771 backplane at the chassis scan rate. Remote I/O drops are connected via the RIO port using a shielded twisted-pair trunk cable (Belden 9463 or equivalent), supporting up to 32 remote racks at distances up to 3,048 m (10,000 ft). DH+ networking (1784-KT, 1784-PKTX, or equivalent interface) enables peer-to-peer MSG instructions to other PLC-5, SLC 500, or MicroLogix controllers and SCADA/HMI workstations running RSView or FactoryTalk View SE. Program upload/download is performed via the DH+ port or a direct RS-232 programming cable (1784-CP or 1747-CP3).
Sourcing & Quality Verification
All 1785-L80B units supplied by Konmask.com undergo a structured incoming inspection process:
- Visual Inspection — Board-level examination for corrosion, component damage, and counterfeit indicators
- Functional Power-On Test — Processor boot verification, memory self-test pass confirmation, and LED status validation
- Firmware Revision Check — Series and firmware revision documented and disclosed prior to shipment
- Battery Status — Battery voltage tested; replacement included or disclosed if below threshold
- Packaging — ESD-safe anti-static bag, foam-lined carton, and moisture barrier for international transit
Units are sourced from decommissioned OEM lines, authorized surplus channels, and controlled inventory estates. Counterfeit-risk screening follows industry best practices aligned with AS6081 guidelines.
Procurement Process
- Confirm Part Number & Series — Verify your existing module’s catalog label: 1785-L80B, Series B or later. Contact us if series confirmation is required before ordering.
- Request Stock Availability — Contact support@konmask.com or use the live chat to confirm current stock, firmware revision, and lead time before placing order.
- Place Order — Add to cart and complete checkout. Purchase orders (PO) accepted for qualified B2B accounts — email PO to support@konmask.com.
- Inspection & Dispatch — Unit undergoes final inspection and is dispatched within 1–3 business days. Tracking number provided via email.
- Incoming Acceptance — Recommended: perform incoming functional test in a bench chassis before installation in live system. Konmask provides 30-day return window for DOA units.
Technical FAQ
Q: Is the 1785-L80B compatible with my existing 1771 chassis and I/O modules?
A: Yes. The 1785-L80B is fully compatible with all standard 1771 chassis (1771-A1B through 1771-A4B series) and the full range of 1771 I/O modules. No chassis or wiring modifications are required for a like-for-like processor replacement.
Q: What programming software is required?
A: RSLogix 5 (v7.x or later recommended) running on a Windows PC with a 1784-PKTX, 1784-U2DHP, or equivalent DH+ interface card. Legacy 6200 Series software is also compatible for older installations.
Q: Can I use this processor with ControlNet or EtherNet/IP?
A: The 1785-L80B does not have native ControlNet or EtherNet/IP ports. These protocols require additional communication modules (e.g., 1785-CHBM for ControlNet) installed in the same chassis. For EtherNet/IP integration, a 1761-NET-ENI or similar bridge device is typically used.
Q: What is the difference between Series B and Series C?
A: Series revisions reflect minor hardware and firmware improvements by Rockwell Automation. Series C units typically support later RSLogix 5 firmware features. Konmask discloses the series revision of each unit prior to shipment — contact us to specify your series requirement.
Q: Do you provide a warranty?
A: Yes. Konmask.com provides a 30-day DOA (Dead on Arrival) guarantee. Units that fail functional testing upon receipt may be returned for replacement or full refund. Extended warranty options are available — contact us for details.
Q: Can you source other PLC-5 family modules?
A: Yes. Konmask.com maintains sourcing networks for the full PLC-5 processor family (1785-L11B, L20B, L40B, L60B, L80B, L86B) as well as 1771 I/O modules, power supplies, and chassis. Submit a sourcing request to support@konmask.com.
