Process Control & Multi-Loop Solution — Allen-Bradley 1794-IE8 | FLEX I/O Series
Where This Product Is Used

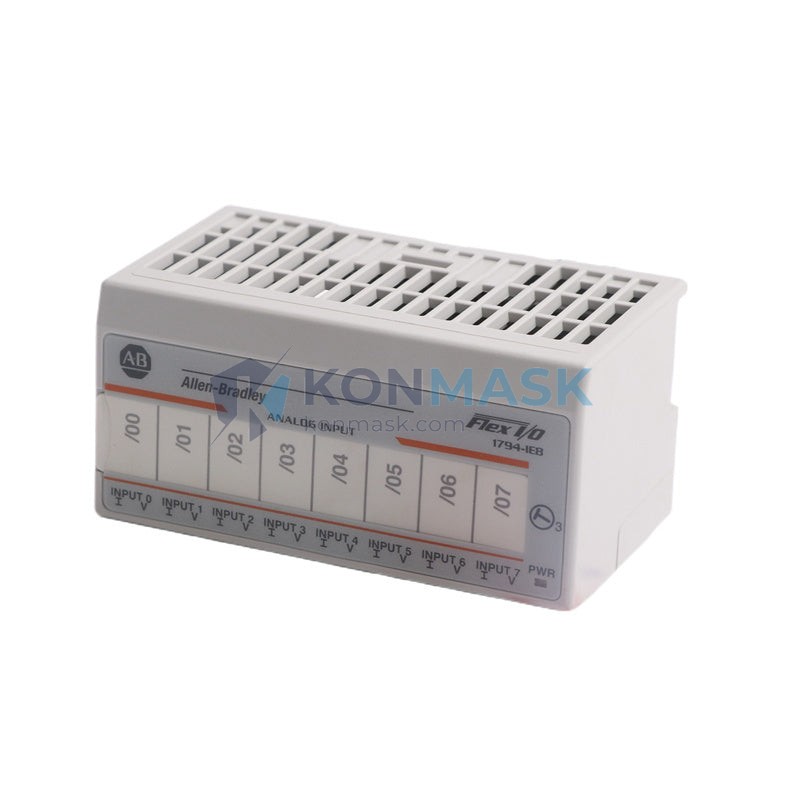

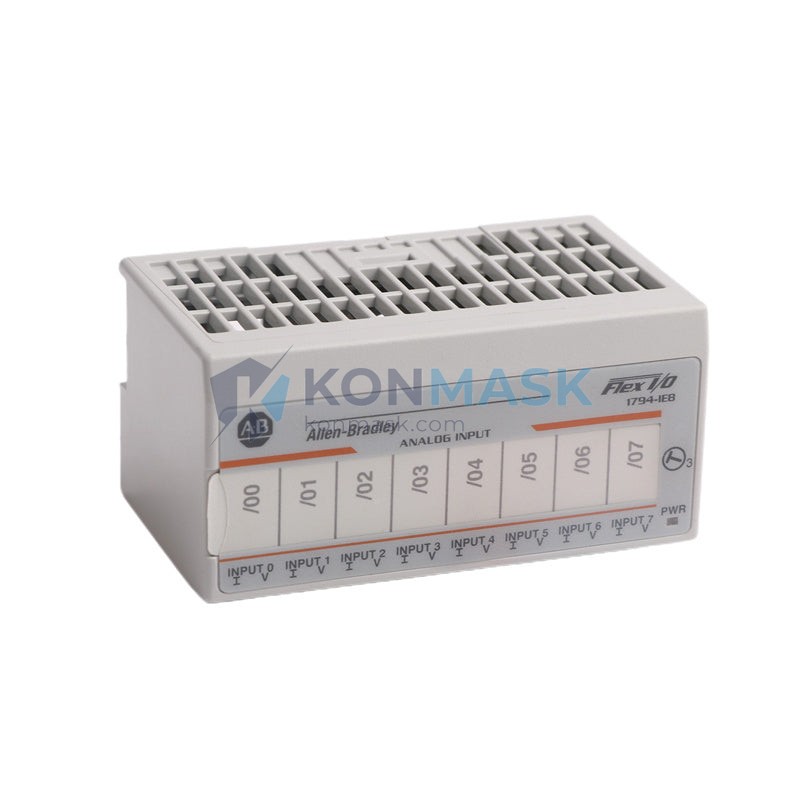

The Allen-Bradley 1794-IE8 is a high-density analog input module engineered for demanding industrial process environments. Engineers and system integrators specify this module across a broad range of applications:
- Continuous Process Manufacturing — Chemical plants, refineries, and water treatment facilities rely on the 1794-IE8 to acquire real-time signals from pressure transmitters, flow meters, and temperature sensors across multiple process loops simultaneously.
- PID Loop Control — The module’s 8-channel simultaneous sampling capability makes it the preferred choice for multi-variable PID control architectures where loop interaction and scan-time consistency are critical.
- Batch & Blending Systems — Food & beverage and pharmaceutical plants use the 1794-IE8 to monitor ingredient flow rates, vessel levels, and temperature profiles within a single compact FLEX I/O node.
- HVAC & Building Automation — Integrators deploy this module to aggregate analog signals from VAV controllers, chiller sensors, and air-handling units into a centralized control backbone.
- Machine Tool & Press Control — Servo drive feedback, hydraulic pressure monitoring, and force measurement in precision manufacturing lines benefit from the module’s 12-bit resolution and fast update rates.
- Oil & Gas Field Instrumentation — Remote I/O nodes in wellhead and pipeline monitoring systems use the 1794-IE8 for multi-channel 4–20 mA signal acquisition over ControlNet or DeviceNet backplanes.

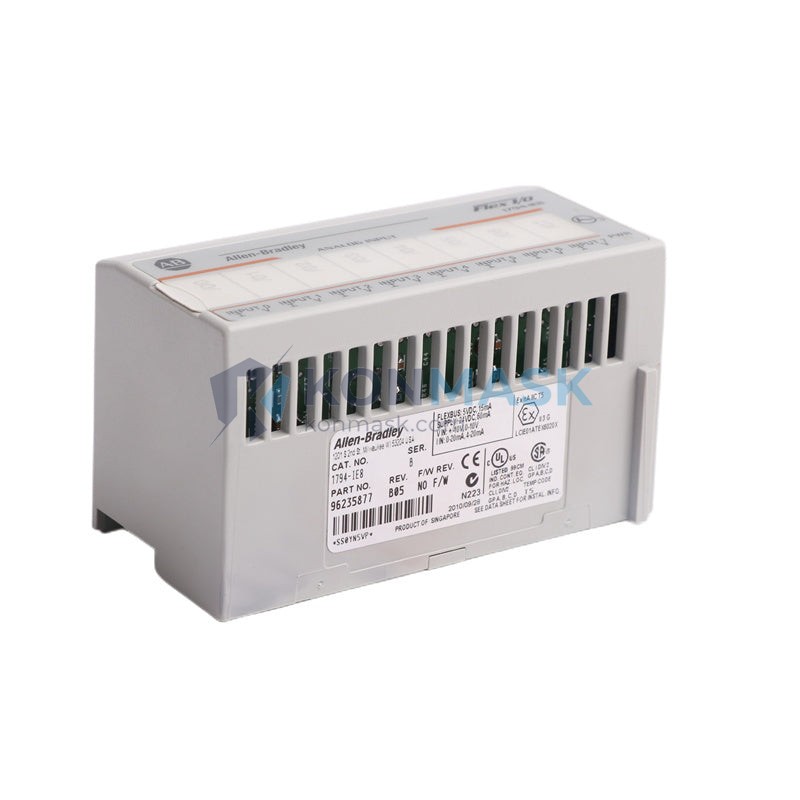

Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1794-IE8 |
| Series | Allen-Bradley FLEX I/O |
| Number of Input Channels | 8 (differential) |
| Input Signal Range | 4–20 mA / 0–20 mA (current); 0–10 V / ±10 V (voltage, adapter-dependent) |
| Resolution | 12-bit (0–4095 counts) |
| Input Impedance (Current) | 249 Ω |
| Input Impedance (Voltage) | >10 MΩ |
| Conversion Method | Successive approximation |
| Update Rate | All 8 channels updated each adapter scan |
| Isolation | 500 V AC channel-to-backplane |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Power Consumption (from backplane) | 75 mA @ 5 V DC |
| Backplane Compatibility | FLEX I/O (1794-series adapters) |
| Dimensions (H × W × D) | 94 mm × 23 mm × 87 mm (approx.) |
| Weight | 120 g (approx.) |
| Certifications | UL, CE, CSA, C-Tick |
Why Engineers Specify This Model
- High Channel Density — 8 differential analog inputs in a single 23 mm-wide FLEX I/O slot minimizes panel footprint and wiring complexity compared to discrete transmitter cards.
- Simultaneous Channel Sampling — All 8 channels are sampled within the same adapter scan cycle, eliminating phase skew errors in multi-loop control strategies.
- Universal Signal Compatibility — Supports both current (4–20 mA) and voltage (0–10 V / ±10 V) inputs, reducing the need for signal conditioners in mixed-sensor installations.
- Proven FLEX I/O Ecosystem — Seamlessly integrates with the full 1794-series adapter lineup (ControlNet, DeviceNet, EtherNet/IP, RIO), enabling network-agnostic deployment.
- Robust Isolation — 500 V AC channel-to-backplane isolation protects the control system from ground loops and transient surges common in industrial field wiring.
- Long Product Lifecycle — The 1794-IE8 has been a cornerstone of Allen-Bradley’s FLEX I/O platform for over two decades, with broad spare-parts availability and extensive integrator familiarity.
Complete System Bill of Materials
A typical FLEX I/O analog input node using the 1794-IE8 requires the following components:
- 1794-IE8 — 8-Point Analog Input Module (this item)
- 1794-TB3 / 1794-TB3S — FLEX I/O Terminal Base (screw or spring-clamp)
- 1794-AENT / 1794-ACN15 / 1794-ADN — FLEX I/O Adapter (EtherNet/IP, ControlNet, or DeviceNet)
- 1794-PS13 / 1794-PS3 — FLEX I/O Power Supply (if local power required)
- 1756-L8x ControlLogix / 1769-L3x CompactLogix — Compatible PLC controller
- Field Transmitters — 4–20 mA loop-powered sensors (pressure, flow, temperature, level)
- 24 V DC Field Power Supply — For powering 2-wire transmitters
Contact Konmask for complete BOM pricing and availability on multi-item orders.
Compliance & Industry Standards
- UL Listed — UL 508 (Industrial Control Equipment)
- CE Marked — EN 61131-2 (Programmable Controllers), EMC Directive 2014/30/EU
- CSA Certified — C22.2 No. 142 (Process Control Equipment)
- C-Tick / RCM — Australian Communications and Media Authority compliance
- RoHS Compliant — Directive 2011/65/EU (Restriction of Hazardous Substances)
- ATEX / IECEx — Not rated for hazardous locations; use appropriate barriers for Zone 1/2 installations
Quality Assurance & Sourcing
Konmask.com sources the 1794-IE8 exclusively through verified industrial distribution channels. Every unit offered on this listing is subject to the following quality controls:
- Authenticity Verification — Each module is inspected for genuine Rockwell Automation labeling, date codes, and firmware revision markings prior to listing.
- Functional Pre-Check — Where applicable, modules are bench-tested for backplane communication and channel continuity before dispatch.
- Condition Grading — Units are clearly graded as New (factory-sealed), Surplus New (unused, open box), or Refurbished (tested, warranted). Refer to the product variant selected at checkout.
- Traceability — Lot numbers and source documentation are retained for a minimum of 3 years to support customer audit requirements.
- Packaging — Anti-static ESD bags, foam-lined cartons, and moisture-barrier packaging are used for all shipments.
How to Source This Part
- Select Condition & Quantity — Choose your required condition grade and quantity from the variant selector above.
- Request a Quote — For orders of 5+ units or urgent delivery requirements, email support@konmask.com for a dedicated quote with lead-time confirmation.
- Place Your Order — Secure checkout with bank transfer (T/T), PayPal, or credit card. Pro-forma invoices available for institutional buyers.
- Shipping & Lead Time — In-stock units ship within 1–3 business days from our Xiamen warehouse. International DHL/FedEx express available. Typical transit: 3–7 business days worldwide.
- After-Sales Support — Our technical team is available to assist with integration questions, compatibility checks, and warranty claims post-delivery.
Application-Specific FAQ
Q: Can the 1794-IE8 accept thermocouple or RTD inputs directly?
A: No. The 1794-IE8 is designed for current (4–20 mA) and voltage (0–10 V) signals. For thermocouple inputs, specify the 1794-IT8 (thermocouple) or 1794-IR8 (RTD) modules instead.
Q: Is the 1794-IE8 compatible with EtherNet/IP adapters?
A: Yes. The module is fully compatible with the 1794-AENT and 1794-AENTR EtherNet/IP adapters, enabling integration with Studio 5000 Logix Designer and FactoryTalk View.
Q: What is the maximum number of 1794-IE8 modules per adapter?
A: Up to 8 FLEX I/O modules can be mounted per adapter, subject to the adapter’s total backplane current budget (typically 800 mA @ 5 V DC).
Q: Can I mix current and voltage inputs on the same module?
A: Input type (current vs. voltage) is configured per-module via the terminal base wiring and adapter configuration, not per-channel. Consult the 1794-IE8 User Manual (Pub. 1794-UM009) for wiring diagrams.
Q: Do you offer programming or configuration support?
A: Konmask provides basic integration guidance. For full commissioning support, we can refer you to certified Rockwell Automation system integrators in your region.
Q: What warranty is provided?
A: New units carry the original manufacturer’s warranty. Surplus and refurbished units carry a 90-day Konmask functional warranty. Extended warranty options are available on request.
