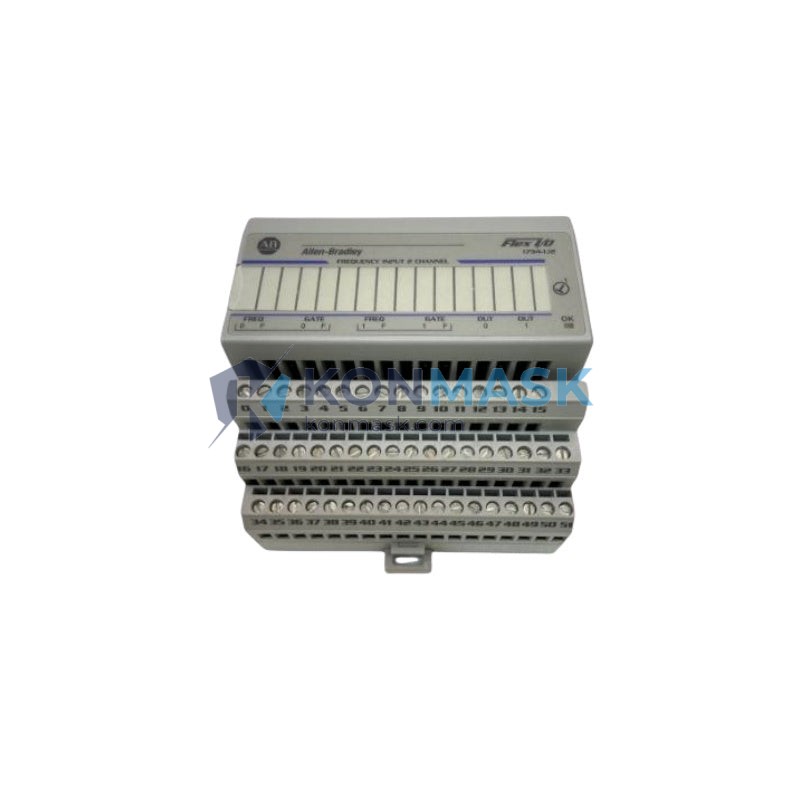

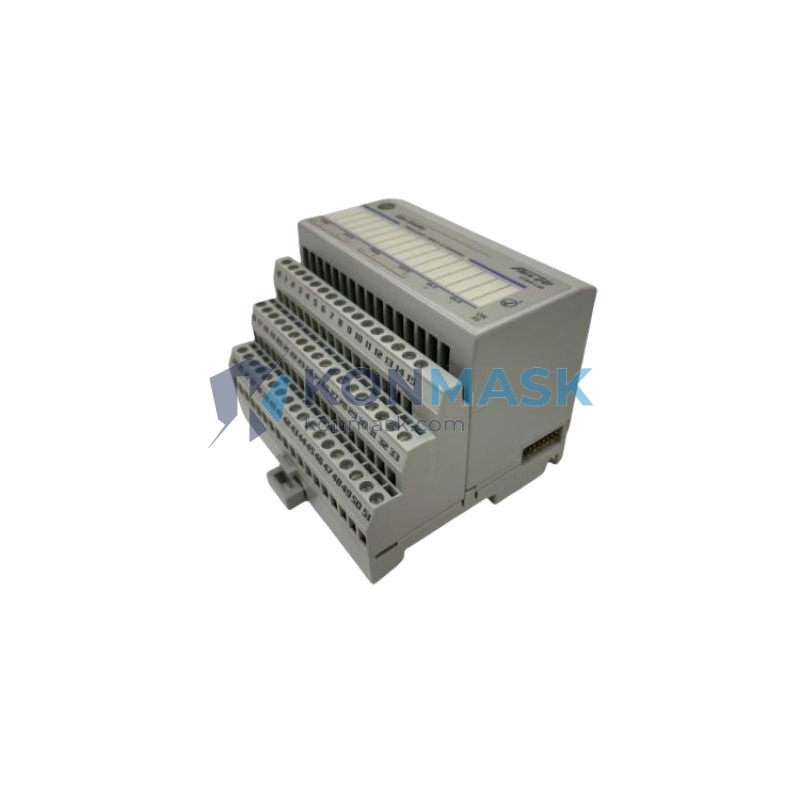

Allen-Bradley 1794-IJ2 FLEX I/O Incremental Encoder Module | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1794-IJ2 is a FLEX I/O Incremental Encoder/Counter Module designed for high-speed pulse counting and encoder feedback in Rockwell Automation control systems. Whether you are sourcing an original unit, evaluating compatible replacements, or selecting the right encoder interface module for your application, this guide provides the technical depth and cross-reference data you need.
Technical Specifications
- Part Number: 1794-IJ2
- Brand: Allen-Bradley / Rockwell Automation
- Series: FLEX I/O
- Module Type: Incremental Encoder / High-Speed Counter Input Module
- Number of Channels: 2 (dual-axis)
- Input Voltage: 5 V DC / 12 V DC / 24 V DC (selectable per channel)
- Maximum Input Frequency: 250 kHz per channel
- Encoder Types Supported: Single-ended and differential (RS-422) incremental encoders
- Counter Resolution: 32-bit up/down counter per channel
- Communication: FLEX I/O backplane (1794 adapter required)
- Power Consumption: 130 mA @ 5 V DC (backplane)
- Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)
- Storage Temperature: -40 °C to 85 °C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions (H × W × D): 94 mm × 23 mm × 87 mm (standard FLEX I/O form factor)
- Weight: Approx. 200 g
- Certifications: UL, CE, CSA
- Catalog Number: 1794-IJ2
Compatible Replacement & Equivalent Models
When the 1794-IJ2 is unavailable or end-of-life in your region, the following models are commonly evaluated as replacements. Always verify electrical and firmware compatibility before substitution.
- 1794-IJ2 (Series B/C) — Direct drop-in replacement within the same FLEX I/O family; confirm series revision compatibility with your adapter firmware.
- 1734-IJ (POINT I/O) — Rockwell’s POINT I/O equivalent for encoder input; requires 1734 adapter and different backplane wiring.
- 1756-IJ16 (ControlLogix) — High-channel-count encoder module for ControlLogix chassis; suitable when migrating to a larger platform.
- 1769-HSC (CompactLogix) — High-speed counter module for Compact I/O; 2-channel encoder input, compatible with Studio 5000 Logix Designer.
- Siemens FM 350-1 / FM 350-2 — Third-party equivalent for Siemens S7-300 platforms; not a direct replacement but functionally comparable for encoder counting applications.
- Beckhoff EL5101 / EL5151 — EtherCAT-based incremental encoder interface; suitable for system migrations to PC-based control.
Note: Third-party equivalents require engineering validation. Contact Konmask for cross-reference support.
Why Choose the Original Model
- Native Rockwell Integration: Seamless configuration in RSLogix 5000 / Studio 5000 with pre-built Add-On Instructions (AOIs).
- Proven Reliability: Designed and validated for industrial environments with full UL/CE certification.
- Firmware Compatibility: Guaranteed compatibility with 1794 adapter firmware revisions and ControlLogix/CompactLogix controllers.
- Warranty & Support: Eligible for Rockwell Automation TechConnect support contracts.
- Long Service Life: Designed for 24/7 continuous operation in demanding manufacturing environments.
Typical Applications
- CNC machine tool spindle speed and position feedback
- Conveyor belt speed monitoring and synchronization
- Rotary encoder position tracking in packaging machinery
- Web tension control systems
- Servo drive feedback verification
- High-speed parts counting on assembly lines
- Winding and unwinding reel position control
System Compatibility
- Required Adapter: Any 1794 FLEX I/O adapter (e.g., 1794-AENT, 1794-ADN, 1794-ACN15)
- Compatible Controllers: ControlLogix (1756), CompactLogix (1769), SoftLogix 5800, PLC-5 (via bridge)
- Programming Software: RSLogix 5000, Studio 5000 Logix Designer v20+
- Backplane Compatibility: 1794 FLEX I/O backplane only; not compatible with POINT I/O or ControlLogix chassis directly
- Terminal Base Required: 1794-TB3 or 1794-TB3S (sold separately)
Selection Guide
Use the following criteria to determine if the 1794-IJ2 is the right module for your application:
- Number of encoder axes needed: 1794-IJ2 supports 2 axes. For 4+ axes, consider 1756-IJ16 or multiple 1794-IJ2 modules.
- Encoder signal type: Supports both single-ended (5 V/12 V/24 V) and differential (RS-422). Confirm your encoder output type before ordering.
- Maximum pulse frequency: Rated to 250 kHz. For higher-frequency applications (>250 kHz), evaluate 1756-IJ16 or dedicated motion modules.
- Platform: Only compatible with 1794 FLEX I/O backplane. If your system uses POINT I/O or ControlLogix, select the appropriate platform equivalent.
- Budget vs. new vs. refurbished: New units offer full warranty; certified refurbished units from Konmask are tested to OEM specifications and offer significant cost savings.
Quality Assurance & Sourcing
All 1794-IJ2 modules supplied by Konmask.com undergo a rigorous inspection process:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Functional power-on test and backplane communication verification
- Firmware revision check and documentation
- Anti-static packaging with humidity indicator cards
- Certificate of conformance available upon request
We source from authorized distributors, OEM surplus, and certified refurbishment channels. All units are traceable and backed by our quality guarantee.
How to Order
- Online: Add to cart directly on this page. We accept T/T bank transfer, PayPal, and major credit cards.
- Email RFQ: Send your BOM or part list to support@konmask.com for a bulk quote within 24 hours.
- Phone/WhatsApp: +0086 19859288691 — available Monday–Saturday, 09:00–18:00 CST.
- Lead Time: In-stock units ship within 1–3 business days. Out-of-stock items: 7–21 business days depending on sourcing.
- Export: We ship worldwide via DHL, FedEx, UPS, and EMS. Export documentation (commercial invoice, packing list, CO) provided.
Replacement & Compatibility FAQ
Q: Can I replace a 1794-IJ2 Series A with a Series B unit?
A: In most cases yes, but verify the adapter firmware supports the newer series revision. Check Rockwell’s release notes for your adapter model.
Q: Is the 1794-IJ2 compatible with a 1794-AENT EtherNet/IP adapter?
A: Yes. The 1794-IJ2 is compatible with all standard 1794 adapters including the 1794-AENT, provided the adapter firmware is current.
Q: Can I use a 1769-HSC as a direct replacement?
A: Not a direct drop-in — the 1769-HSC uses a different backplane (Compact I/O) and requires a CompactLogix controller. It is functionally equivalent for encoder counting but requires rewiring and re-configuration.
Q: Do you provide a warranty on refurbished units?
A: Yes. Konmask provides a 90-day functional warranty on all certified refurbished modules. New units carry the standard Rockwell Automation warranty.
Q: Can you supply the required terminal base (1794-TB3) together?
A: Yes. Contact us to bundle the terminal base with your module order for a discounted package price.
