Multi-Axis Servo Control Solution — Allen-Bradley 2094-BC07-M05-S SER C | Kinetix 6000
Where This Product Is Used

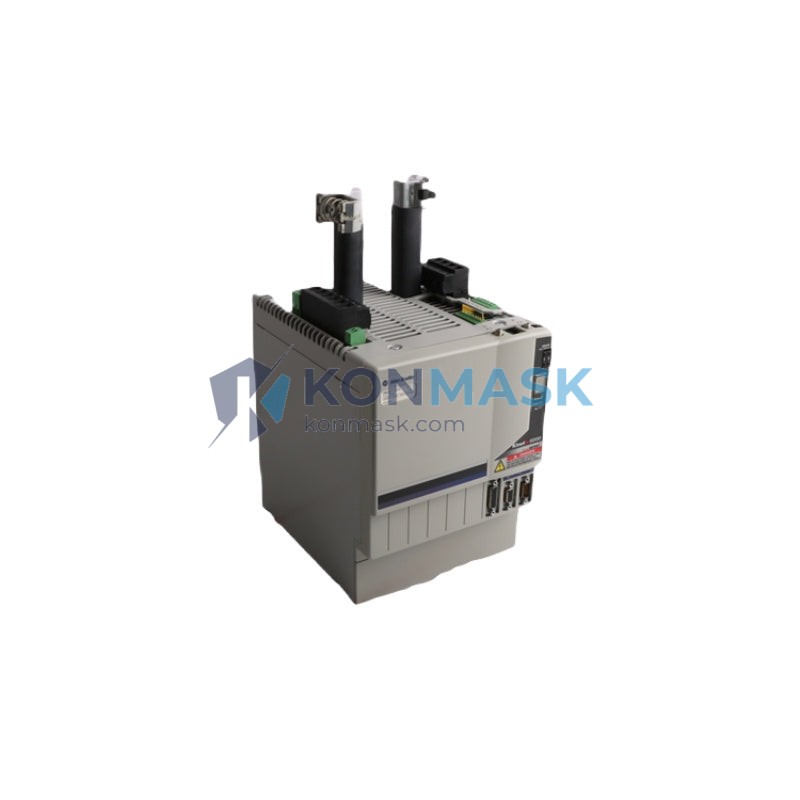

The Allen-Bradley 2094-BC07-M05-S SER C Integrated Axis Module is a core component of the Kinetix 6000 multi-axis servo drive system, engineered for high-performance motion control in demanding industrial environments. Typical deployment scenarios include:
- Automotive Assembly Lines — Precision positioning for robotic welding, body-in-white transfer systems, and press-feed automation where sub-millisecond synchronization is mandatory.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and cartoning lines requiring coordinated multi-axis motion with deterministic timing.
- Semiconductor & Electronics Manufacturing — Wafer handling, PCB routing, and SMT placement equipment demanding micron-level repeatability.
- Printing & Converting — Web tension control, register mark tracking, and multi-roll coordination in flexographic and gravure press lines.
- Material Handling & Gantry Systems — Multi-axis overhead cranes, palletizers, and AS/RS (Automated Storage and Retrieval Systems) requiring synchronized axis interpolation.
- Food & Beverage Processing — Hygienic-zone conveyors, filling stations, and labeling systems operating under washdown conditions.
Technical Specifications
| Part Number | 2094-BC07-M05-S |
| Series | SER C |
| Product Family | Kinetix 6000 Multi-Axis Servo Drive |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Module Type | Integrated Axis Module (IAM) |
| Converter Output Current | 7 A RMS continuous |
| Inverter Output Current | 5 A RMS continuous |
| Input Voltage | 195–264 V AC, 3-phase |
| DC Bus Voltage | 375 V DC nominal |
| Communication Interface | SERCOS II fiber-optic ring |
| Feedback Compatibility | Stegmann Hi-resolution, incremental encoder, resolver |
| Safe-Off Feature | Yes (integrated Safe Torque-Off, SIL 2 capable) |
| Enclosure Rating | IP20 (panel-mount) |
| Weight | 200 g (module only) |
| Certifications | UL, CE, cUL |
Why Engineers Specify This Model
- Integrated Converter + Inverter — The IAM combines the AC-to-DC converter and the first servo axis inverter in a single module, reducing panel footprint and wiring complexity versus standalone drive architectures.
- SERCOS II Determinism — Fiber-optic SERCOS II ring topology delivers jitter-free, deterministic communication at 2 or 4 ms cycle times, essential for tight multi-axis interpolation.
- Safe Torque-Off (STO) — The integrated STO function meets IEC 62061 SIL 2 and ISO 13849 PLd requirements, enabling safety-rated axis disable without a separate safety relay in many architectures.
- Shared DC Bus Architecture — Energy regenerated by decelerating axes is shared across the bus to accelerating axes, reducing net energy consumption and eliminating the need for individual braking resistors in most applications.
- Logix Integration — Native integration with Studio 5000 Logix Designer and ControlLogix/CompactLogix platforms via the Motion Axis Drive (MAD) instruction set, enabling unified programming of motion and logic.
- Series C Enhancements — SER C incorporates firmware and hardware revisions that improve thermal management, EMC performance, and compatibility with the latest Rockwell Automation motion libraries.
Complete System Bill of Materials
A functional Kinetix 6000 axis requires the following components. Konmask stocks the majority of these line items:
- 2094-BC07-M05-S SER C — Integrated Axis Module (this unit)
- 2094-BM02-S / 2094-BM03-S / 2094-BM05-S — Axis Expansion Modules (additional axes)
- 2094-XL75S-C1 / 2094-XL150S-C1 — Kinetix 6000 Power Rail (4-slot or 8-slot)
- 2090-XXLF-Dxxx — Servo Motor Power Cable (motor-specific length)
- 2090-XXNFMF-Sxx — Feedback Cable (Hi-resolution encoder)
- MPL / MPM / TL-Series Servo Motor — matched to axis current rating
- 1756-M02AE / 1756-M08SE — ControlLogix SERCOS Motion Module
- 1756-L7x ControlLogix Controller — system coordinator
- 2094-PRF — Kinetix 6000 Precharge Module (if required by bus configuration)
Compliance & Industry Standards
- UL 508C — Power Conversion Equipment
- CE Marking — Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- IEC 61800-5-1 — Adjustable Speed Electrical Power Drive Systems — Safety
- IEC 62061 / ISO 13849 — Functional Safety (SIL 2 / PLd via integrated STO)
- SERCOS II — IEC 61491 serial real-time communication standard
- RoHS Compliant — Restriction of Hazardous Substances
Quality Assurance & Sourcing
Konmask sources Allen-Bradley components through verified industrial distribution channels. Every unit offered on this listing is:
- Inspected for physical integrity, label authenticity, and series/revision marking prior to listing.
- Stored in ESD-safe, climate-controlled warehousing to preserve electronic component integrity.
- Traceable to documented supply chain records available upon request for regulated industries.
- Tested for power-on functionality where test bench infrastructure permits (noted in individual unit condition description).
We do not list counterfeit, remarked, or field-repaired units. If a unit does not meet our inspection criteria, it is not listed.
How to Source This Part
Ready to procure? Here are your options:
- Add to Cart — Immediate checkout for stocked units. Ships within 1–3 business days from our warehouse.
- Request a Quote — For volume orders (5+ units), OEM blanket orders, or project-based procurement, contact us for preferential pricing.
- Expedite Request — Need same-day or next-flight-out shipping? Contact our team directly and we will confirm availability and logistics options.
- Cross-Reference Check — If you are unsure whether this part number matches your existing drive configuration, send us your full drive catalog number and we will verify compatibility before you order.
📧 support@konmask.com | 📞 +0086 19859288691
Application-Specific FAQ
Q: Can the 2094-BC07-M05-S be used as a standalone single-axis drive?
A: No. As an Integrated Axis Module, it requires mounting on a Kinetix 6000 Power Rail (2094-XL75S-C1 or 2094-XL150S-C1) and must be coordinated by a SERCOS-capable ControlLogix or CompactLogix motion module.
Q: What is the maximum number of axes this IAM can support on a single power rail?
A: The IAM occupies one axis slot and provides the shared DC bus for the rail. Additional axes are added via Axis Expansion Modules (AMs). A standard 8-slot rail supports up to 7 expansion axes plus this IAM.
Q: Is SER C backward compatible with SER A and SER B installations?
A: Generally yes for mechanical and electrical fit, but firmware version compatibility with the SERCOS motion module and Studio 5000 project must be verified. Rockwell Automation’s Product Compatibility and Download Center (PCDC) is the authoritative reference.
Q: What servo motors are compatible with this axis module?
A: The 2094-BC07-M05-S (5 A inverter) is compatible with Allen-Bradley MPL, MPM, and TL-Series motors rated within the inverter’s continuous and peak current envelope. Motor selection should be validated using Rockwell’s Motion Analyzer software.
Q: Do you provide a warranty on this unit?
A: Yes. Konmask provides a standard 90-day warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty options are available — contact us for details.
