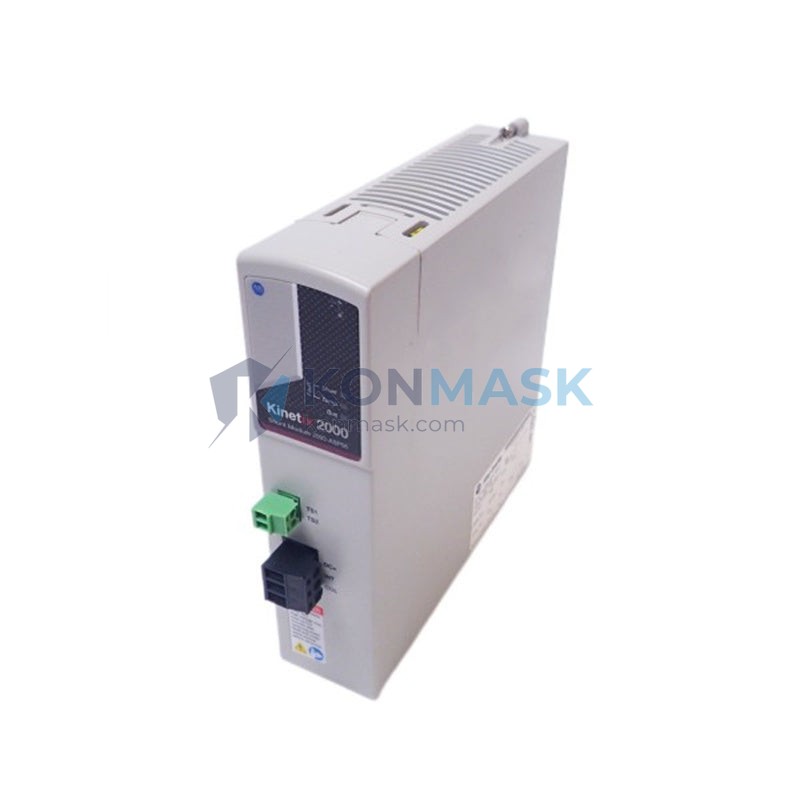

Regenerative Braking & Overvoltage Protection Solution — Allen-Bradley 2093-ASP06 | Kinetix 2000
Where This Product Is Used
The Allen-Bradley 2093-ASP06 Shunt Module is deployed wherever Kinetix 2000 multi-axis servo drive systems encounter rapid deceleration cycles that generate regenerative energy exceeding the drive’s internal absorption capacity. Typical installation environments include:
- Packaging machinery — high-speed pick-and-place and form-fill-seal lines with frequent start/stop cycles
- Printing & converting equipment — web tension control axes with aggressive deceleration profiles
- Material handling systems — conveyor indexing, palletizers, and robotic gantries
- Machine tool & CNC applications — spindle and feed-axis drives requiring tight velocity control
- Semiconductor & electronics assembly — precision motion stages with sub-second cycle times
- Automotive assembly lines — servo-driven transfer systems and press-feed applications
Whenever the DC bus voltage on a Kinetix 2000 system rises above the safe threshold during braking, the 2093-ASP06 dissipates the excess energy as heat — protecting the drive, the motor, and the connected load from overvoltage faults.
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number | 2093-ASP06 |
| Series | Kinetix 2000 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Module Type | External Shunt (Regenerative Braking Resistor Module) |
| Compatible Drive Family | Kinetix 2000 Multi-Axis Servo Drive (2093-AC05-MP1, -MP2, -MP5) |
| Shunt Resistor Power Rating | Refer to Rockwell Publication 2093-UM001 for derating curves |
| Mounting | Panel-mount, DIN-rail compatible bracket (accessory) |
| Weight | 600 g (approx.) |
| Enclosure Rating | IP20 (open type — requires enclosure installation) |
| Operating Temperature | 0 °C to +55 °C (derating above 40 °C) |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5–95% non-condensing |
| Connection Interface | Shunt connector on Kinetix 2000 power rail |
| Catalog / SKU | 2093-ASP06 |
Note: Always cross-reference with the official Rockwell Automation publication 2093-UM001 and the system sizing tool (Motion Analyzer) for application-specific derating and duty-cycle validation.
Why Engineers Specify This Model
- System-native compatibility — designed exclusively for the Kinetix 2000 power rail; plug-and-play integration with no additional wiring harness required
- Overvoltage fault elimination — prevents nuisance F004/F005 DC bus overvoltage faults that cause unplanned downtime on high-cycle applications
- Thermal management — built-in thermal protection circuitry monitors shunt temperature and signals the drive to limit regenerative current before damage occurs
- Compact form factor — mounts directly alongside the Kinetix 2000 axis modules on the shared power rail, minimizing panel footprint
- Rockwell ecosystem compliance — fully supported in Studio 5000 Logix Designer and MotionView Onboard configuration environments
- Proven field reliability — widely deployed in OEM machine designs across North America, Europe, and Asia-Pacific since the Kinetix 2000 platform launch
Complete System Bill of Materials
A typical Kinetix 2000 servo system requiring the 2093-ASP06 shunt module includes the following components:
- 2093-AC05-MP2 — Kinetix 2000 2-Axis Servo Drive (or MP1 / MP5 variant per axis count)
- 2093-ASP06 — Shunt Module (this item)
- 2090-XXNPMF-xxSxx — Kinetix 2000 motor power cable (length and gauge per axis)
- 2090-XXNFMF-Sxx — Feedback cable (encoder/resolver per motor type)
- MPL-Bxxxx / VPL-Bxxxx — Allen-Bradley servo motor (MPL or VPL series, matched to drive rating)
- 1756-L7x / 1769-L3x — ControlLogix or CompactLogix PLC (motion controller)
- 1756-M02AE / 1756-M08SE — Servo drive interface module (if using ControlLogix rack)
- 2093-PRS7 — Kinetix 2000 power rail (7-slot, or appropriate slot count)
Contact Konmask for complete BOM pricing and availability on multi-axis system packages.
Compliance & Industry Standards
- CE Marking — compliant with EU Low Voltage Directive (LVD) 2014/35/EU and EMC Directive 2014/30/EU
- UL Listed — UL 508C (Power Conversion Equipment)
- RoHS Compliant — Directive 2011/65/EU (restriction of hazardous substances)
- ISO 13849 / IEC 62061 — compatible with Kinetix 2000 safe-torque-off (STO) safety architecture
- IEC 61800-5-1 — adjustable speed electrical power drive systems safety requirements
Quality Assurance & Sourcing
Konmask sources Allen-Bradley components through established industrial distribution channels with full traceability. Every 2093-ASP06 unit offered on this listing:
- Is inspected for physical integrity, label authenticity, and connector condition prior to listing
- Ships with original manufacturer packaging where available
- Carries a 90-day Konmask warranty covering defects in materials and workmanship
- Is traceable to documented sourcing records retained for a minimum of 3 years
- Can be accompanied by a Certificate of Conformance (CoC) upon request for regulated industries
We do not list counterfeit, refurbished-as-new, or untested surplus stock. If a unit does not pass our intake inspection, it is not listed for sale.
How to Source This Part
- Add to cart and proceed to checkout — B2B invoice and wire transfer options available at checkout
- Request a quote — email support@konmask.com with your required quantity, delivery timeline, and destination for a formal quotation within 1 business day
- Bulk / project orders — for multi-axis system BOM requirements or standing purchase orders, contact our sales team directly at +0086 19859288691
- Lead time — in-stock units ship within 1–3 business days; out-of-stock units are sourced on a 5–15 business day lead time depending on origin
- Export compliance — we handle EAR/ECCN classification and export documentation for international shipments
Application-Specific FAQ
Q: How do I know if my Kinetix 2000 system needs an external shunt module?
A: If you are experiencing F004 or F005 DC bus overvoltage faults during deceleration, or if Rockwell’s Motion Analyzer sizing tool indicates that regenerative energy exceeds the drive’s internal shunt capacity, the 2093-ASP06 is the correct solution. Review publication 2093-UM001 Chapter 3 for sizing guidance.
Q: Can the 2093-ASP06 be used with Kinetix 6000 or Kinetix 5500 drives?
A: No. The 2093-ASP06 is mechanically and electrically specific to the Kinetix 2000 power rail. Kinetix 6000 uses the 2094-BSP2 shunt module; Kinetix 5500 uses the 2198-R004 or 2198-R012 regenerative bus supply. Do not cross-install.
Q: Is the shunt module hot-swappable?
A: No. The Kinetix 2000 system must be powered down and the DC bus fully discharged (minimum 5-minute wait after power removal) before installing or removing the shunt module. Follow lockout/tagout (LOTO) procedures per NFPA 70E.
Q: What is the duty cycle limitation of the 2093-ASP06?
A: Duty cycle is application-dependent and must be validated using Motion Analyzer with your specific motor, load inertia, and deceleration profile. Exceeding the rated duty cycle will trigger thermal protection and may cause premature failure.
Q: Do you provide a datasheet or Rockwell documentation with the order?
A: Yes. We can provide a link to the official Rockwell Automation publication 2093-UM001 and the 2093-ASP06 installation instructions. Request at time of order or email support@konmask.com.
