Allen-Bradley 845H-SJDZ24FWY2C Incremental Encoder | Replacement, Equivalent & Selection Guide

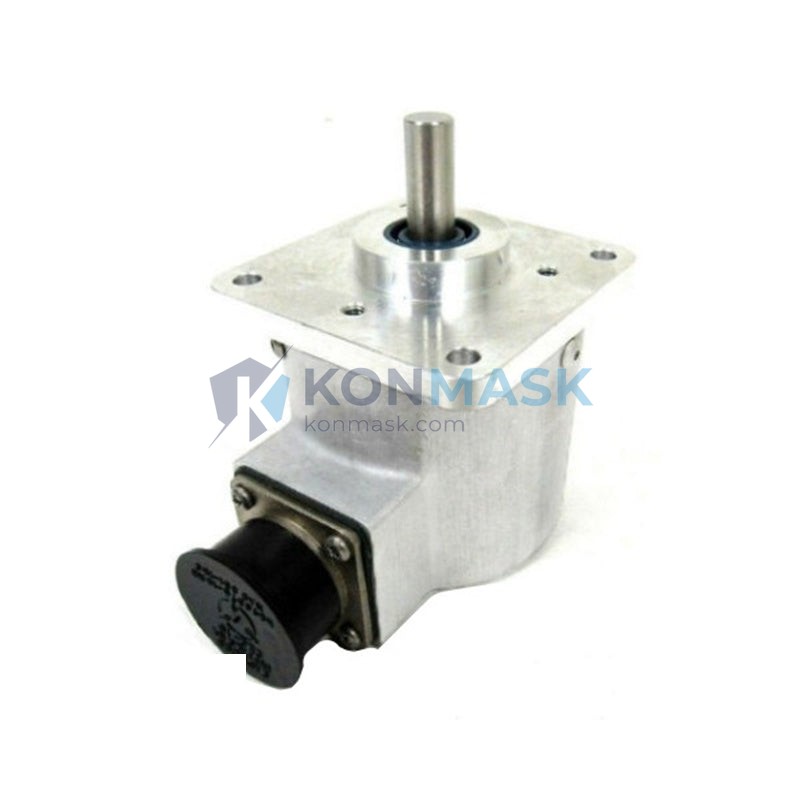

The Allen-Bradley 845H-SJDZ24FWY2C is a heavy-duty incremental rotary encoder designed for demanding industrial automation environments. This guide covers technical specifications, compatible replacement models, system compatibility, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Part Number | 845H-SJDZ24FWY2C |
| Series | 845H Heavy Duty |
| Encoder Type | Incremental Rotary Encoder |
| Output Type | Differential Line Driver (RS-422) |
| Resolution (PPR) | 2,500 PPR (pulses per revolution) |
| Supply Voltage | 10–26 VDC |
| Output Channels | A, B, Z (index) |
| Shaft Diameter | 24 mm |
| Housing Material | Stainless Steel / Heavy-Duty Aluminum |
| IP Rating | IP67 |
| Max Shaft Speed | 6,000 RPM |
| Operating Temperature | -40°C to +100°C |
| Connection Type | Flange with cable exit |
| Weight | Approx. 140 g |
Note: Always verify specifications against the official Rockwell Automation datasheet before final selection.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the 845H-SJDZ24FWY2C. Compatibility should be verified for your specific application before substitution.
| Brand | Model | Type | Notes |
|---|---|---|---|
| Allen-Bradley | 845H-SJDZ24FWY2C | OEM Original | Exact match |
| Allen-Bradley | 845H-SJDZ12FWY2C | Same series, lower PPR | 1,200 PPR variant |
| Heidenhain | ROD 426 | Functional equivalent | Differential output, similar PPR options |
| Sick/Stegmann | DFS60B-S4EK02500 | Functional equivalent | 2,500 PPR, RS-422, IP67 |
| Omron | E6C2-CWZ6C 2500P/R | Functional equivalent | Verify shaft and mounting dimensions |
| Autonics | E50S8-2500-3-T-24 | Cost-effective alternative | Check voltage and output compatibility |
| Pepperl+Fuchs | ENI58IL-***G2500-K | Industrial-grade alternative | Confirm connector pinout |
⚠ Disclaimer: Third-party replacements require engineering validation. Konmask.com recommends testing in a non-production environment before full deployment.
Why Choose the Original Model
- Guaranteed compatibility with Rockwell Automation PLC systems (ControlLogix, CompactLogix, MicroLogix)
- Factory-calibrated for precise motion feedback with zero re-tuning required
- Full OEM warranty and Rockwell TechConnect support eligibility
- Proven reliability in harsh environments: washdown, vibration, and extreme temperature cycles
- Seamless integration with Studio 5000 / RSLogix 5000 drive configurations
Typical Applications
- CNC machine tool spindle and axis feedback
- Conveyor speed and position monitoring
- Servo drive closed-loop control (PowerFlex, Kinetix series)
- Packaging line synchronization
- Crane and hoist positioning systems
- Printing and converting machinery
- Robotics joint feedback
System Compatibility
| Platform | Compatible Controllers / Drives |
|---|---|
| Rockwell Automation | ControlLogix, CompactLogix, MicroLogix, PowerFlex 525/755, Kinetix 5500/6500 |
| Siemens | S7-1200/1500 with appropriate encoder input module (verify signal level) |
| Mitsubishi | MELSEC iQ-R/F series with differential encoder input cards |
| Omron | NJ/NX series with EtherCAT encoder interface modules |
| Generic | Any controller accepting RS-422 differential quadrature (A/B/Z) input |
Selection Guide
Use the following criteria to confirm the 845H-SJDZ24FWY2C is the right encoder for your application, or to identify the best alternative:
- Resolution: Require 2,500 PPR? → 845H-SJDZ24FWY2C is a direct fit. Need higher resolution? → Consider Heidenhain ROD 426 series.
- Shaft size: 24 mm solid shaft required? → Confirm with 845H-SJDZ24FWY2C. Different shaft? → Select appropriate 845H sub-variant.
- Output signal: RS-422 differential required for long cable runs (>10 m)? → 845H-SJDZ24FWY2C is ideal. Short runs with single-ended acceptable? → Lower-cost alternatives may apply.
- Environment: IP67 washdown or outdoor? → 845H-SJDZ24FWY2C confirmed. Standard IP54 sufficient? → Broader alternatives available at lower cost.
- Budget: OEM preferred for critical production lines. Third-party alternatives suitable for non-critical or backup applications.
- Lead time: Contact Konmask.com for current stock availability and expedited sourcing options.
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus with full traceability documentation
- Pre-shipment inspection: visual, dimensional, and functional verification available on request
- Certificate of Conformance (CoC) and test reports provided upon request
- Anti-counterfeit measures: hologram labels, serial number verification, and OEM packaging inspection
- Export compliance: ECCN classification and export documentation available for international orders
How to Order
- Confirm part number: 845H-SJDZ24FWY2C
- Specify quantity and required delivery date
- Request a quote via support@konmask.com or add to cart directly
- Provide application details if substitution guidance is needed
- Receive order confirmation with lead time and shipping options (DHL, FedEx, sea freight)
For bulk orders (>10 units) or OEM procurement, contact our B2B team for volume pricing and blanket order arrangements.
Replacement & Compatibility FAQ
Q: Can I replace the 845H-SJDZ24FWY2C with a Sick DFS60B encoder?
A: Functionally yes for most applications — both offer 2,500 PPR and RS-422 output. However, shaft diameter, mounting flange, and connector pinout must be verified before installation.
Q: Is the 845H-SJDZ24FWY2C compatible with Siemens drives?
A: Yes, when connected to a differential encoder input module. Verify the input voltage range of the Siemens module matches the encoder’s 10–26 VDC supply.
Q: What is the difference between 845H-SJDZ24FWY2C and 845H-SJDZ12FWY2C?
A: The primary difference is resolution — 2,500 PPR vs. 1,200 PPR. Choose based on the positioning accuracy required by your motion control application.
Q: Do you supply new or refurbished units?
A: Konmask.com supplies new OEM units as primary stock. Tested surplus units are available and clearly labeled. All units include documentation.
Q: What is the typical lead time?
A: In-stock orders ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on OEM availability. Contact us for real-time stock status.
