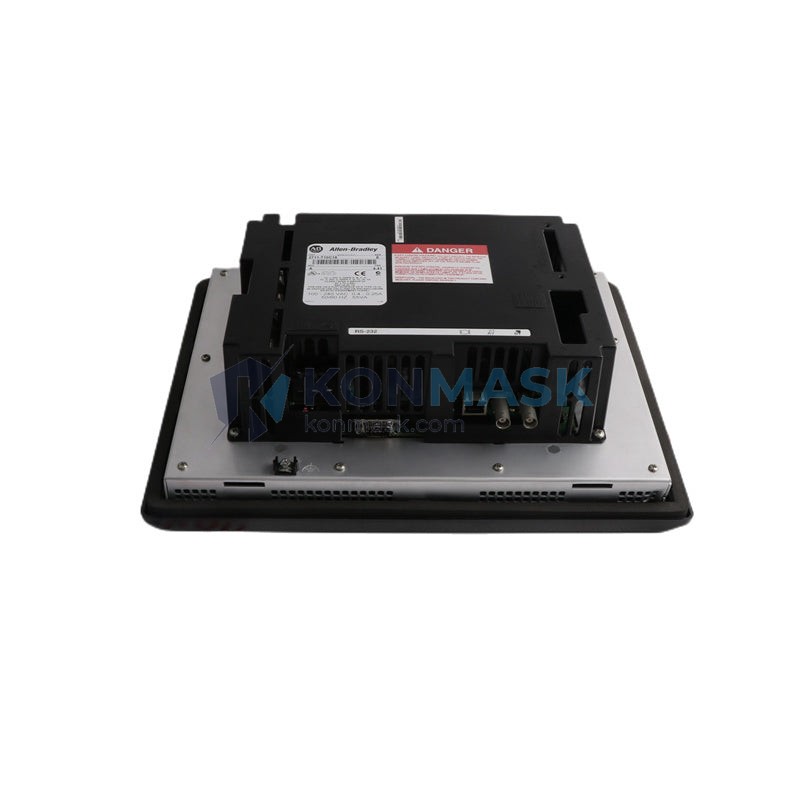

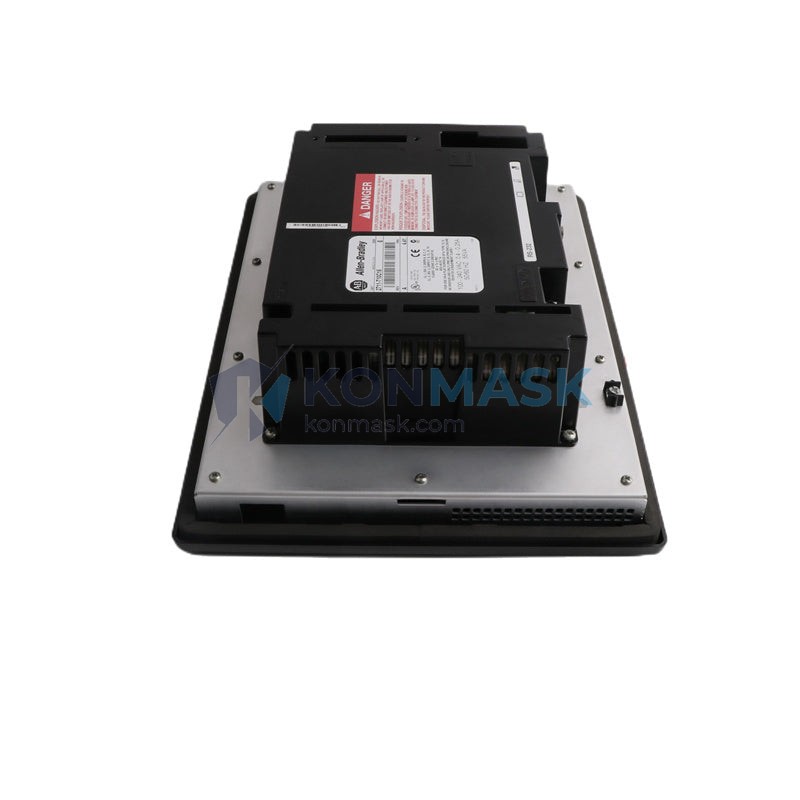

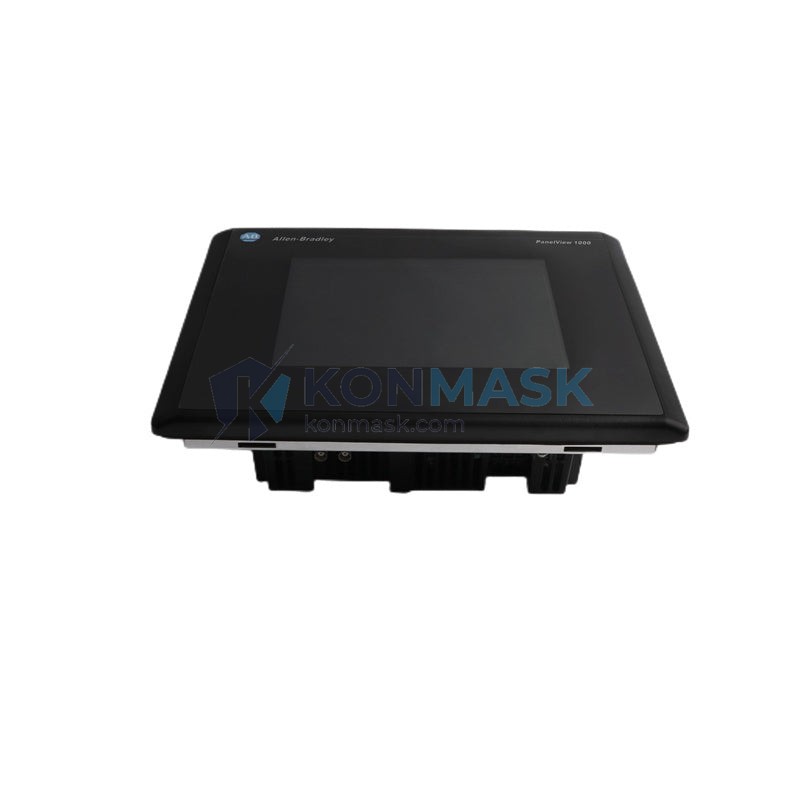

HMI Operator Interface Solution – Allen-Bradley 2711-T10C15 | PanelView 1000 Series
Where This Product Is Used
The Allen-Bradley 2711-T10C15 PanelView 1000 Color Terminal is deployed across demanding industrial environments where reliable human-machine interaction is critical. Typical application scenarios include:
- Automotive Manufacturing Lines – Machine status monitoring, fault acknowledgment, and production count display on assembly conveyors and robotic welding cells.
- Food & Beverage Processing – Recipe management, batch control, and CIP (Clean-In-Place) cycle visualization on filling, mixing, and packaging lines.
- Water & Wastewater Treatment – Pump station control, flow rate display, and alarm management at remote lift stations and filtration plants.
- Oil & Gas Upstream/Midstream – Wellhead monitoring, compressor control panels, and pipeline SCADA local operator stations.
- Pharmaceutical Production – GMP-compliant batch record display, environmental monitoring, and cleanroom equipment control.
- Material Handling & Warehousing – Conveyor routing control, sortation system interfaces, and AGV dispatch panels.
- Power Generation & Utilities – Generator set control, switchgear status, and substation local HMI panels.
- HVAC & Building Automation – Chiller plant control, AHU management, and BMS local operator terminals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 2711-T10C15 |
| Brand / Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | PanelView 1000 |
| Display Type | Color Touch Screen (Resistive) |
| Display Size | 10.4-inch diagonal |
| Resolution | 640 × 480 (VGA) |
| Input Method | Touch Screen |
| Communication | DH+ / RS-232 (DH-485) |
| Power Supply | 24 VDC |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -40 °C to 85 °C |
| Enclosure Rating | NEMA 4 / 4X (front panel) |
| Weight | Approx. 2.7 kg |
| Memory | Non-volatile flash application storage |
| Programming Software | PanelBuilder 1400e / PanelBuilder32 |
| Backlight | CCFL (replaceable) |
Why Engineers Specify This Model
- Proven Field Reliability – The PanelView 1000 platform has accumulated decades of runtime hours across global industrial installations, with a well-documented MTBF record.
- Native DH+ Integration – Direct DH+ network connectivity eliminates gateway hardware when interfacing with legacy SLC 500 and PLC-5 controllers, reducing panel BOM cost and latency.
- 10.4″ Color Display – Large, high-contrast color screen supports multi-state indicator graphics, trend displays, and alarm banners readable under harsh ambient lighting.
- NEMA 4/4X Front Panel Rating – Suitable for wash-down environments and outdoor enclosures without additional sealing modifications.
- Backward Compatibility – Accepts application files developed on PanelBuilder 1400e, protecting legacy engineering investment during panel refurbishment projects.
- Spare Parts Availability – Widely stocked as a maintenance spare for installed base protection; critical for facilities with long equipment lifecycle policies (15–25 years).
- Touch + Keypad Flexibility – Touch input reduces operator training time compared to function-key-only terminals.
Complete System Bill of Materials
For a fully operational PanelView 1000 operator station, engineers typically specify the following complementary components:
- 2711-T10C15 – PanelView 1000 Color Touch Terminal (this unit)
- 2711-NC13 – DH+ Network Cable (1 m), terminal to controller
- 2711-NM11 – Memory Module for application backup
- 1747-L553 – SLC 5/05 Processor (typical paired controller)
- 1746-P4 – SLC 500 Power Supply, 24 VDC output
- 1784-KTX – DH+ PCI Communication Card (for programming workstation)
- 2711-CBL-PM02 – Programming Cable, RS-232 to terminal
- Panel Enclosure – NEMA 12 or NEMA 4X rated, sized per I/O count
Contact Konmask for bundle pricing on complete BOM sourcing.
Compliance & Industry Standards
- UL Listed – UL 508 (Industrial Control Equipment)
- CE Marked – EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- NEMA 4 / 4X – Front panel ingress protection per NEMA 250
- RoHS Compliant – Restriction of Hazardous Substances (EU Directive 2011/65/EU)
- FCC Part 15 Class A – Radiated and conducted emissions compliance
- CSA Certified – Canadian Standards Association industrial equipment certification
Quality Assurance & Sourcing
Konmask.com sources the 2711-T10C15 through verified supply channels with full traceability documentation. Our quality process includes:
- Visual Inspection – Housing, connector pins, label integrity, and screen surface checked against OEM reference standards.
- Functional Power-On Test – Unit powered and display/touch response verified prior to shipment.
- Authenticity Verification – Date codes, firmware revision, and serial number cross-referenced against known-good OEM records.
- Anti-Static Packaging – ESD-safe bags and foam-lined cartons used for all shipments.
- Documentation Package – Certificate of conformance and test report available upon request.
How to Source This Part
- Add to Cart – Click the purchase button above to place an order directly through Konmask.com.
- Request a Quote – For quantities ≥ 2 units or BOM-level sourcing, email support@konmask.com with your project details for volume pricing.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock units sourced within 5–15 business days depending on supply chain availability.
- Export & Cross-Border Orders – We support international shipments with full commercial invoice, packing list, and HS code documentation (HS: 8537.10).
- Warranty – 90-day functional warranty on all units. Extended warranty available upon request.
Application-Specific FAQ
Q: Can the 2711-T10C15 communicate with ControlLogix or CompactLogix PLCs?
A: Not natively via DH+. A 1761-NET-AIC or 1747-AIC link coupler is required to bridge DH-485 to DH+, or consider upgrading to a PanelView Plus terminal for EtherNet/IP connectivity with Logix platforms.
Q: Is PanelBuilder32 still available for programming this terminal?
A: PanelBuilder32 runs on Windows XP/7 (32-bit). It can be operated in a virtual machine environment (VMware/VirtualBox) on modern Windows 10/11 hosts. Konmask can advise on VM configuration.
Q: What is the backlight lifespan and can it be replaced?
A: The CCFL backlight has a rated lifespan of approximately 50,000 hours. Replacement backlights (2711-NL2) are available. Field replacement requires panel disassembly; Konmask can supply the part and installation guidance.
Q: Can this unit be used in a hazardous (Class I, Division 2) location?
A: The standard 2711-T10C15 is not rated for Class I Div 2. A purged/pressurized enclosure (NEMA 7/9) or an intrinsically safe barrier system would be required for hazardous area installation.
Q: Do you offer exchange/repair services for faulty units?
A: Yes. Konmask partners with certified repair facilities for PanelView 1000 series refurbishment. Contact us with the fault description for a repair quote and turnaround estimate.
Q: What is the minimum order quantity?
A: MOQ is 1 unit for standard orders. Volume discounts apply for orders of 3+ units.
