Allen-Bradley 1769-L23E-QBFC1B CompactLogix 512KB EtherNet/IP DI/O AI/O Controller | Replacement, Equivalent & Selection Guide

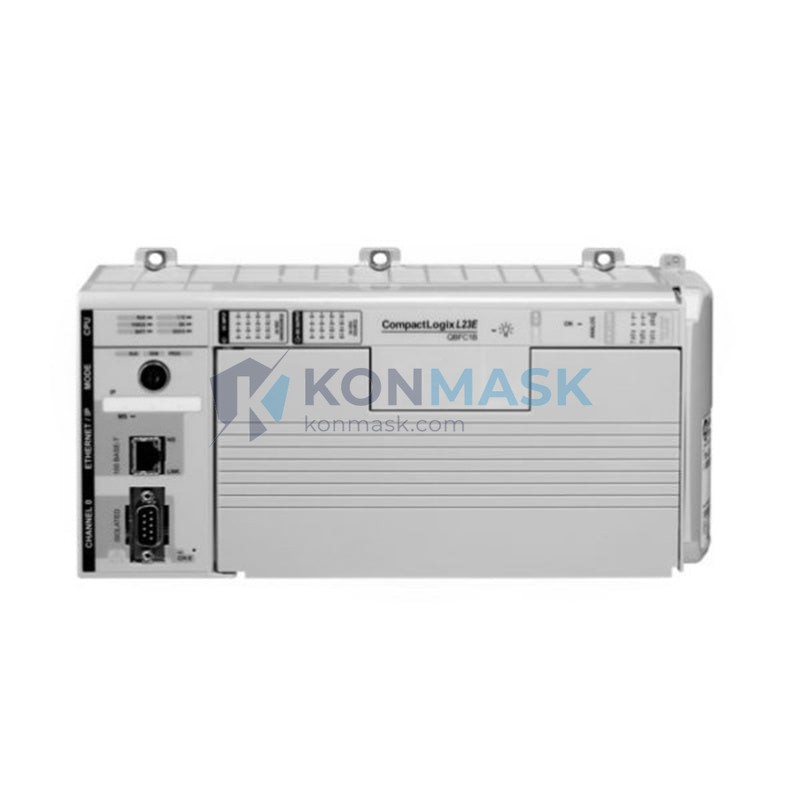

The Allen-Bradley 1769-L23E-QBFC1B is a fixed-hardware CompactLogix controller from Rockwell Automation, integrating 512 KB user memory, an EtherNet/IP communication port, and onboard discrete and analog I/O into a single compact package. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 1769-L23E-QBFC1B
- Brand / Manufacturer: Allen-Bradley (Rockwell Automation)
- Series: CompactLogix™ L23E
- User Memory: 512 KB
- Communication Port: EtherNet/IP (10/100 Mbps, RJ-45)
- Onboard Digital Inputs: 16 × 24 VDC sink/source
- Onboard Digital Outputs: 16 × 24 VDC source
- Onboard Analog Inputs: 4 × ±10 V / 0–20 mA (12-bit)
- Onboard Analog Outputs: 2 × ±10 V / 0–20 mA (12-bit)
- Expansion I/O: Up to 4 × 1769 Compact I/O modules
- Programming Software: Studio 5000 Logix Designer / RSLogix 5000
- Power Supply: 24 VDC (external)
- Operating Temperature: 0 °C to 60 °C
- Certifications: UL, CE, RCM, ATEX (Zone 2)
- Dimensions (W × H × D): Approx. 270 × 148 × 87 mm
- Weight: ~1,200 g
- Firmware: Compatible with v16 and later
Compatible Replacement & Equivalent Models
The table below lists verified drop-in replacements and functional equivalents for the 1769-L23E-QBFC1B. Always confirm firmware revision and I/O count before substitution.
| Part Number | Brand | Memory | Comm Port | Notes |
|---|---|---|---|---|
| 1769-L23E-QB1B | Allen-Bradley | 512 KB | EtherNet/IP | No onboard analog I/O; otherwise identical |
| 1769-L24ER-QB1B | Allen-Bradley | 1 MB | EtherNet/IP | Upgraded memory; direct upgrade path |
| 1769-L27ERM-QBFC1B | Allen-Bradley | 2 MB | EtherNet/IP + MotionBus | Motion-capable upgrade |
| 1769-L30ER | Allen-Bradley | 1 MB | Dual EtherNet/IP | DLR-capable; larger form factor |
| IC693CPU374 | GE Fanuc | 512 KB | Ethernet | Cross-brand functional equivalent; requires I/O remapping |
| Q03UDECPU | Mitsubishi | 60 KB steps | Ethernet | Cross-brand; different programming environment |
Contact support@konmask.com for compatibility verification before ordering a cross-brand replacement.
Why Choose the Original Model
- Integrated I/O saves panel space: Onboard DI/DO and AI/AO eliminate the need for separate I/O modules in small-to-mid-scale applications.
- EtherNet/IP native: Seamless integration with Rockwell’s FactoryTalk suite, SCADA systems, and third-party EtherNet/IP devices.
- Proven reliability: Widely deployed in automotive, food & beverage, and material handling since 2008.
- Extensive ecosystem: Full support for 1769 Compact I/O expansion, motion modules, and safety I/O.
- Long-term parts availability: Rockwell extended lifecycle support; spare parts and firmware updates remain available.
Typical Applications
- Conveyor and material handling control
- Packaging machine automation
- HVAC and building management systems
- Water and wastewater treatment skids
- Small-to-medium OEM machine control
- Process control with mixed discrete and analog signals
- Remote I/O nodes in distributed EtherNet/IP architectures
System Compatibility
- Programming Software: Studio 5000 Logix Designer v21+, RSLogix 5000 v16–v20
- Communication Protocols: EtherNet/IP, Modbus TCP (via AOI), PCCC
- Compatible I/O Modules: All 1769 Compact I/O series (digital, analog, specialty)
- HMI Compatibility: PanelView Plus, FactoryTalk View SE/ME, third-party EtherNet/IP HMIs
- Network Topology: Linear, star; DLR not supported on L23E (upgrade to L30ER+ for DLR)
- Power Supply: 1769-PA2, 1769-PB2, or equivalent 24 VDC external supply
Selection Guide
Use the criteria below to determine whether the 1769-L23E-QBFC1B is the right controller for your application, or to identify the best alternative:
- Memory ≤ 512 KB & I/O ≤ 36 points: 1769-L23E-QBFC1B is the optimal choice.
- Need > 512 KB memory: Upgrade to 1769-L24ER-QB1B (1 MB) or 1769-L27ERM-QBFC1B (2 MB).
- Need motion control: Select 1769-L27ERM-QBFC1B or higher L3x series.
- Need Device Level Ring (DLR): Minimum 1769-L30ER required.
- No onboard analog required: Consider 1769-L23E-QB1B for lower cost.
- Budget-constrained / cross-brand acceptable: Contact us for GE or Mitsubishi equivalent options with full I/O mapping support.
- Replacement for failed unit: Verify firmware revision on existing unit; supply us the revision for exact-match sourcing.
Quality Assurance & Sourcing
- Source: Authorized distributors, factory-refurbished stock, and verified surplus channels.
- Inspection: Every unit undergoes visual inspection, label verification, and functional power-on test before shipment.
- Warranty: 12-month warranty against manufacturing defects on all units shipped from Konmask.com.
- Traceability: Batch records and supplier documentation available on request for critical applications.
- Anti-counterfeit: We source exclusively from traceable supply chains; counterfeit screening included at no extra charge.
How to Order
- Confirm the exact part number: 1769-L23E-QBFC1B (check nameplate on existing unit).
- Note the firmware revision currently running (visible in RSLogix / Studio 5000 controller properties).
- Add to cart directly, or email support@konmask.com with your PO and required delivery date.
- For bulk orders (> 5 units) or urgent requirements, call +0086 19859288691 for priority processing.
- Export documentation (CO, packing list, commercial invoice) provided for international shipments.
Replacement & Compatibility FAQ
Q: Can I replace a 1769-L23E-QBFC1B with a 1769-L24ER-QB1B without reprogramming?
A: In most cases yes — the L24ER is backward-compatible. You will need to update the controller type in Studio 5000 and re-download the program. I/O configuration remains the same if you are not adding expansion modules.
Q: Is the 1769-L23E-QBFC1B still in production?
A: Rockwell Automation has moved this model to “Active Mature” status. It remains available through distribution but has been superseded by the L2x and L3x series. Konmask.com maintains stock for MRO and replacement needs.
Q: What is the difference between 1769-L23E-QBFC1B and 1769-L23E-QB1B?
A: The QBFC1B variant includes onboard analog I/O (4 AI + 2 AO). The QB1B variant has discrete I/O only. All other specifications are identical.
Q: Can this controller communicate with Siemens or Mitsubishi PLCs?
A: Yes, via Modbus TCP or OPC-UA gateways. Native EtherNet/IP cross-brand communication requires a protocol converter. Contact us for recommended gateway models.
Q: Do you provide a test report or certificate of conformance?
A: Yes. Certificate of conformance and functional test report are available upon request at no additional charge.
