Allen-Bradley 2711P-RP3 Marine Certified Logic Module | Replacement, Equivalent & Selection Guide

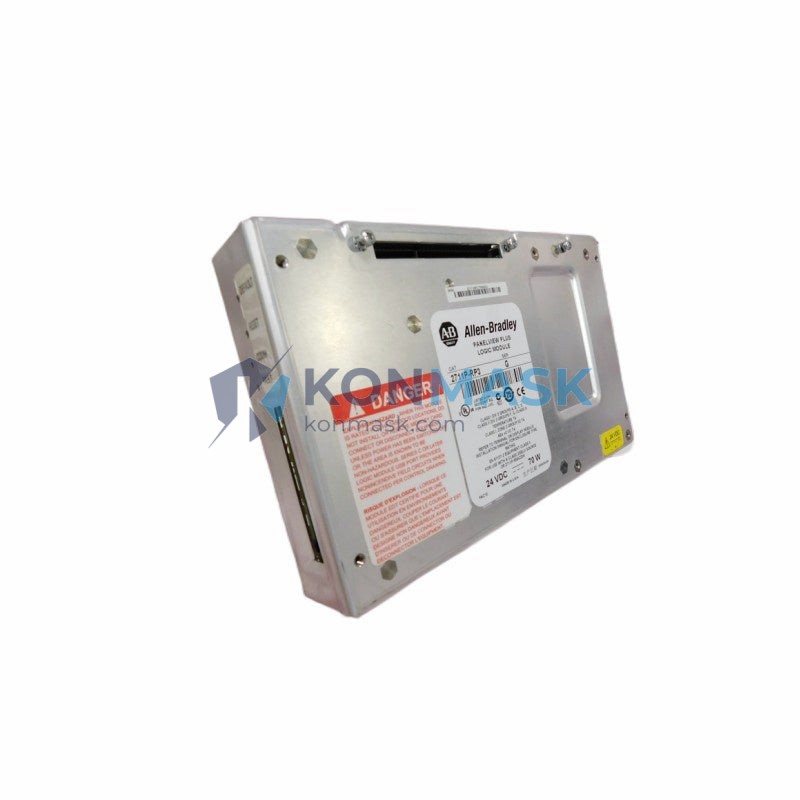

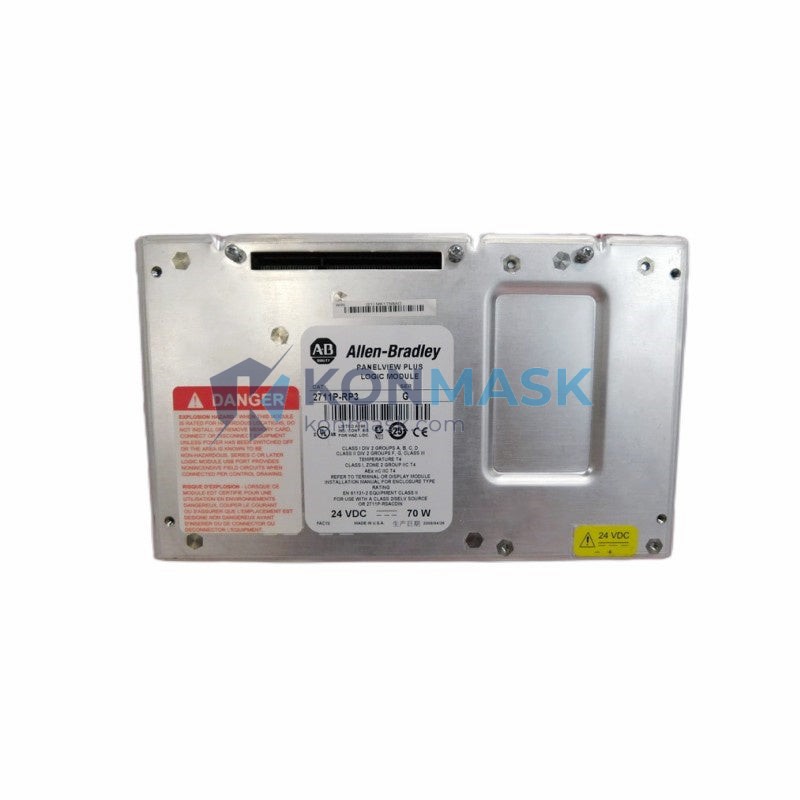

The Allen-Bradley 2711P-RP3 is a Marine-certified logic module designed for PanelView Plus 6 terminals, featuring 256 MB Flash storage. It serves as the core processing unit for HMI applications in harsh marine and industrial environments. This page provides full technical specifications, compatible replacement options, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 2711P-RP3
- Manufacturer: Allen-Bradley / Rockwell Automation
- Description: Marine Certified Logic Module
- Flash Memory: 256 MB
- Certification: Marine (DNV, ABS, or equivalent — verify with current Rockwell documentation)
- Compatible Terminal Series: PanelView Plus 6 (2711P series)
- Weight: 660 g
- Form Factor: Plug-in logic module (field-replaceable)
- Operating Environment: Industrial / Marine grade
- Communication: Supports EtherNet/IP, DH-485, DF1, DH+ (terminal-dependent)
Compatible Replacement & Equivalent Models
The following modules are functionally compatible or serve as direct/near-direct replacements for the 2711P-RP3. Always verify firmware compatibility and terminal model before substituting.
- 2711P-RP1 — Standard Logic Module, 512 MB Flash (non-marine; higher storage)
- 2711P-RP2 — Standard Logic Module, 256 MB Flash (non-marine certified)
- 2711P-RP4 — Logic Module with expanded memory (check Rockwell compatibility matrix)
- 2711P-RP8D — Logic Module with display interface variant
- 2711P-RP9G — Logic Module, 1 GB Flash (upgrade path for high-application-load systems)
Note: Marine certification is specific to the 2711P-RP3. Non-marine variants may not meet DNV/ABS requirements for shipboard installations.
Why Choose the Original Model
- Marine Certification: The 2711P-RP3 carries marine-grade certification, making it the only compliant choice for vessels requiring DNV or ABS-approved HMI components.
- OEM Compatibility: Guaranteed firmware and hardware compatibility with existing PanelView Plus 6 installations — no re-engineering required.
- Proven Reliability: Designed and tested to Rockwell Automation’s industrial durability standards for vibration, humidity, and temperature extremes.
- Warranty & Support: Eligible for Rockwell Automation TechConnect support and OEM warranty coverage.
- Regulatory Compliance: Simplifies vessel inspection and classification society audits by using certified components.
Typical Applications
- Marine vessel HMI control panels (offshore platforms, cargo ships, naval vessels)
- Shipboard automation and monitoring systems
- Industrial process control with marine-grade requirements
- Replacement/repair of existing PanelView Plus 6 terminals in marine environments
- Retrofit projects requiring certified logic module upgrades
System Compatibility
- Compatible Terminals: PanelView Plus 6 — 2711P-T6, 2711P-T7, 2711P-T9, 2711P-T10, 2711P-T12, 2711P-T15 series
- Software: FactoryTalk View ME (Machine Edition)
- PLC Connectivity: Allen-Bradley ControlLogix, CompactLogix, MicroLogix (via supported communication cards)
- Firmware: Compatible with FactoryTalk View ME v5.x and later (verify specific version with Rockwell Automation)
- Not Compatible With: PanelView Plus 7 (2711R series) — different logic module form factor
Selection Guide
Use the following criteria to select the correct logic module for your application:
- Marine / Offshore Installation? → Select 2711P-RP3 (marine certified). Non-marine variants will not satisfy classification society requirements.
- Standard Industrial (Non-Marine)? → Consider 2711P-RP2 (256 MB) or 2711P-RP1 (512 MB) for cost-optimized deployments.
- High Application Load / Large HMI Projects? → Evaluate 2711P-RP9G (1 GB Flash) for projects with extensive graphics, logging, or multi-screen configurations.
- Replacement / Repair? → Match the exact part number of the failed module to ensure firmware and certification continuity. Contact us if you need cross-reference assistance.
- Budget-Constrained? → Konmask offers certified pre-owned and surplus 2711P-RP3 units — contact us for availability and pricing.
Quality Assurance & Sourcing
- All units sourced through verified industrial distributors and authorized supply chains.
- Each module undergoes visual inspection and functional verification prior to shipment.
- Certificates of conformance (CoC) available upon request.
- Surplus and refurbished units clearly labeled and priced accordingly.
- Packaging: anti-static ESD bag + foam-lined carton for safe international shipping.
How to Order
- Online: Add to cart directly from this page.
- Email: Send your PO or inquiry to support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 1–3 business days. Contact us for bulk order lead times.
- Export: We support international orders with commercial invoice, packing list, and customs documentation.
Replacement & Compatibility FAQ
Q: Can I replace a 2711P-RP3 with a 2711P-RP2?
A: Functionally yes for non-marine applications, but the 2711P-RP2 is not marine certified. For vessels requiring classification society compliance, only the 2711P-RP3 is acceptable.
Q: Is the 2711P-RP3 compatible with PanelView Plus 7 terminals?
A: No. PanelView Plus 7 (2711R series) uses a different logic module form factor. The 2711P-RP3 is exclusively for PanelView Plus 6 (2711P series).
Q: Do I need to reload my HMI application after replacing the logic module?
A: Yes. The application stored on the original module’s Flash must be transferred to the replacement module via FactoryTalk View ME or a USB backup.
Q: Can Konmask provide a test report or CoC for this module?
A: Yes. Certificate of conformance and inspection reports are available upon request. Contact us before placing your order.
Q: What is the difference between 2711P-RP3 and 2711P-RP1?
A: The 2711P-RP3 is marine certified with 256 MB Flash. The 2711P-RP1 has 512 MB Flash but is not marine certified. Choose based on your certification and storage requirements.
