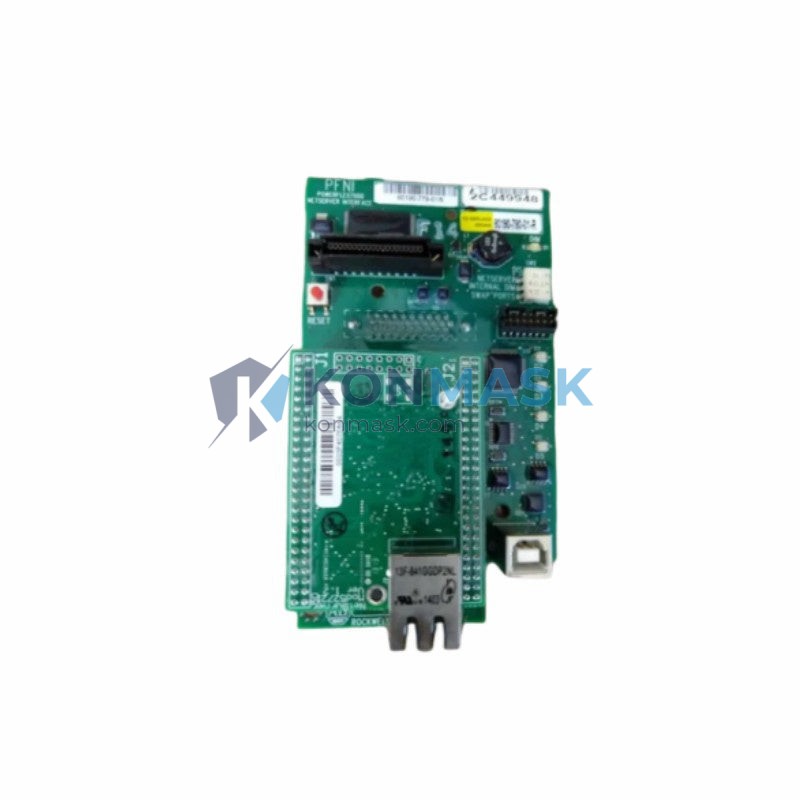

Allen-Bradley 80190-780-01-R Drive Board – PowerFlex Series
When a drive board fails on the production floor, the consequences are immediate and costly. Variable frequency drives lose gate-signal integrity, motor control becomes erratic, and entire production lines grind to a halt — sometimes within seconds. Unplanned downtime in manufacturing environments can cost thousands of dollars per hour, and sourcing a certified replacement quickly is the difference between a brief interruption and a prolonged shutdown. The Allen-Bradley 80190-780-01-R Drive Board is the precision-engineered solution that restores full drive functionality and gets your equipment back online.
The 80190-780-01-R is a factory-specification drive board designed for Allen-Bradley’s PowerFlex series of AC variable frequency drives — one of the most widely deployed drive platforms in global industrial automation. As a core gate-driver and control interface board, it sits at the heart of the drive’s power conversion architecture, managing IGBT switching signals, fault detection, and feedback loops. Its role is non-negotiable: without a fully functional drive board, the PowerFlex drive cannot safely or reliably control motor speed, torque, or direction. This part is trusted by maintenance engineers across automotive, food & beverage, water treatment, oil & gas, and discrete manufacturing industries worldwide.
Technical Specifications
- Part Number: 80190-780-01-R
- Manufacturer: Allen-Bradley (Rockwell Automation)
- Product Type: Drive Board (Gate Driver / Control Interface Board)
- Compatible Platform: Allen-Bradley PowerFlex Series AC Drives
- Revision: -R (as indicated by suffix)
- Weight: 500 g (approx.)
- Condition Available: New / Refurbished / Tested Surplus
- Lead Time: Subject to stock availability — contact us for real-time inventory
Note: All specifications are based on manufacturer documentation. We do not fabricate or alter any technical parameters. Contact our engineering team for datasheet confirmation.
Key Features & Benefits
- OEM-Grade Precision: Manufactured to Allen-Bradley’s exact design tolerances, ensuring drop-in compatibility with existing PowerFlex drive assemblies.
- IGBT Gate Signal Integrity: Delivers clean, noise-immune gate drive signals critical for stable motor control and reduced harmonic distortion.
- Fault Detection & Protection: Integrated overcurrent, overvoltage, and thermal fault logic protects both the drive and connected motor assets.
- Rapid Restoration: Board-level replacement is significantly faster than full drive replacement, minimizing mean time to repair (MTTR).
- Long Service Life: Designed for continuous industrial duty cycles in demanding environments.
- Globally Sourced, Rigorously Verified: Every unit at Konmask.com passes multi-point inspection before dispatch.
Industry & Equipment Applications
- Automotive Manufacturing: Conveyor systems, robotic welding cells, paint line drives
- Food & Beverage: Mixer drives, bottling line VFDs, refrigeration compressor controls
- Water & Wastewater Treatment: Pump station drives, aeration blower controls
- Oil & Gas: Pump jack drives, compressor station VFDs, pipeline booster stations
- Pulp & Paper / Metals: Rolling mill drives, winder/unwinder controls
- HVAC & Building Automation: Chiller drives, AHU fan speed control
- General Discrete Manufacturing: Any facility running Allen-Bradley PowerFlex AC drives
System Integration & Compatible Parts
The 80190-780-01-R Drive Board is designed to integrate within the Allen-Bradley PowerFlex drive ecosystem. When performing a board-level repair or preventive maintenance, consider sourcing the following complementary components to ensure full system reliability:
- PowerFlex Control Interface Boards
- PowerFlex Gate Driver Boards
- PowerFlex Power Supply Boards
- Allen-Bradley IGBT Modules (compatible frame sizes)
- Rockwell Automation HIM (Human Interface Module) panels
Contact our technical team at support@konmask.com to confirm cross-compatibility with your specific drive frame size and firmware revision.
Our Quality Assurance Process
At Konmask.com, every Allen-Bradley 80190-780-01-R Drive Board undergoes a structured quality verification process before it reaches your facility:
- Visual Inspection: PCB surface, solder joints, component seating, and connector integrity checked under magnification.
- Functional Bench Test: Where applicable, boards are powered and tested against known-good reference parameters.
- ESD-Safe Handling: All boards are handled, stored, and shipped in anti-static packaging to prevent latent damage.
- Traceability: Lot and serial data recorded for full supply chain transparency.
- Warranty: All units carry a Konmask.com quality guarantee — contact us for warranty terms applicable to your order.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will confirm stock availability, condition, lead time, and pricing within one business day.
- Confirm & Pay: We support T/T (bank transfer), PayPal, and other B2B payment methods. Proforma invoice issued upon order confirmation.
- Shipping & Tracking: Orders are dispatched via DHL, FedEx, or UPS with full tracking. Export documentation provided for international shipments.
- After-Sales Support: Our engineering team remains available post-delivery for installation guidance and technical questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, VFD, and industrial control components — not a generalist marketplace.
- Global Sourcing Network: Access to genuine Allen-Bradley parts from authorized and verified supply channels worldwide.
- B2B-First Service: Dedicated account management, volume pricing, and flexible payment terms for MRO buyers and system integrators.
- Fast Response: Inquiries answered within 24 hours. Emergency sourcing support available.
- Transparent Documentation: Full traceability, test reports, and export compliance documentation on request.
- Trusted by Engineers: Serving maintenance teams, OEMs, and EPC contractors across Asia, Europe, and the Americas.
Frequently Asked Questions
Q: Is the 80190-780-01-R a new or refurbished part?
A: We supply both new and tested-refurbished units depending on availability. The condition will be clearly stated in your quotation. All units pass our QA process regardless of condition.
Q: Which PowerFlex drive models is this board compatible with?
A: The 80190-780-01-R is associated with the Allen-Bradley PowerFlex series. Please provide your drive’s full catalog number and frame size when inquiring so we can confirm exact compatibility.
Q: Can you provide a test report or certificate of conformance?
A: Yes. Test reports and certificates of conformance are available upon request for qualified B2B buyers. Please specify your documentation requirements when placing your inquiry.
Q: What is the lead time for this part?
A: Lead time depends on current stock levels. In-stock units typically ship within 1–3 business days. For out-of-stock items, our sourcing team will provide an estimated lead time with your quotation.
Q: Do you ship internationally?
A: Yes. We ship globally via DHL, FedEx, and UPS. We handle all export documentation including commercial invoices, packing lists, and certificates of origin as required.
Q: What warranty do you offer?
A: All parts carry a Konmask.com quality guarantee. Specific warranty duration and terms are provided with each quotation based on part condition and application.
