HMI Application Backup & Storage Solution — Allen-Bradley 2711P-RW2 | PanelView Plus Series
Where This Product Is Used

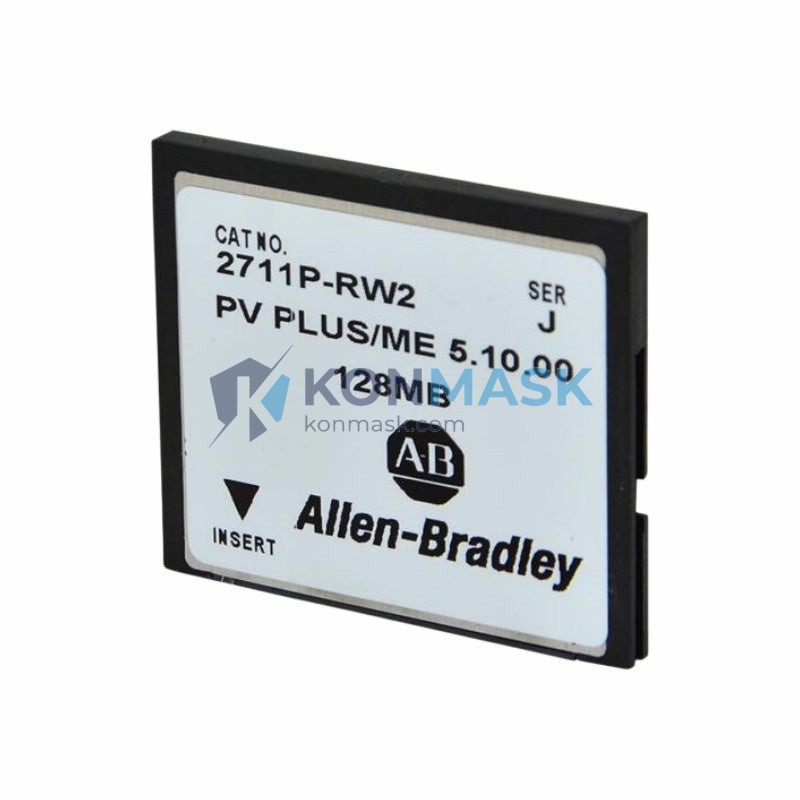

The Allen-Bradley 2711P-RW2 Internal Compact Flash Card is purpose-built for PanelView Plus 6 and compatible PanelView Plus HMI terminals deployed across demanding industrial environments. Typical deployment sites include:
- Automotive Assembly Lines — Stores HMI runtime applications and operator screen projects for robotic welding and paint-line control panels.
- Food & Beverage Processing Plants — Retains recipe data, batch logs, and alarm histories in washdown-rated enclosures where panel replacement must be fast and data loss is unacceptable.
- Water & Wastewater Treatment Facilities — Provides non-volatile OS and application storage for remote pump-station HMIs operating in high-humidity environments.
- Oil & Gas Upstream/Midstream — Enables rapid field swap of HMI terminals without re-programming; the card carries the full application image.
- Pharmaceutical Manufacturing — Supports 21 CFR Part 11-compliant audit-trail data logging and validated application version control.
- Power Generation & Utilities — Stores SCADA interface screens and event logs for substation HMI panels requiring long-term unattended operation.
- Material Handling & Conveyor Systems — Backs up sorter logic interfaces and conveyor speed-control HMI projects in distribution centers.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2711P-RW2 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | PanelView Plus / PanelView Plus 6 |
| Media Type | Internal Compact Flash (CF) Card |
| Storage Capacity | 128 MB |
| Form Factor | Internal slot-mount (not external USB) |
| Compatible Terminals | 2711P-T6xx, 2711P-T7xx, 2711P-T10xx, 2711P-T12xx, 2711P-T15xx series |
| Primary Function | OS storage, application backup, firmware updates, data logging |
| Operating Temperature | 0 °C to +55 °C (32 °F to 131 °F) |
| Storage Temperature | -40 °C to +85 °C |
| Weight | Approx. 200 g (packaged) |
| Catalog Number | 2711P-RW2 |
Why Engineers Specify This Model
- OEM-Specified Internal Slot — The 2711P-RW2 occupies the dedicated internal CF slot, keeping the external USB ports free for runtime peripherals such as barcode scanners or printers.
- Non-Volatile Retention — Flash memory retains application data and OS image through complete power loss — critical for unattended remote installations.
- Rapid Terminal Swap — In the event of HMI hardware failure, a pre-loaded 2711P-RW2 allows field technicians to restore full operation in minutes without a laptop or programming cable.
- Firmware & OS Update Vehicle — Rockwell Automation’s recommended method for delivering FactoryTalk View ME OS updates to PanelView Plus terminals in the field.
- Validated Compatibility — Designed and tested by Rockwell Automation specifically for the 2711P platform; eliminates compatibility risk associated with generic CF cards.
- Long Service Life — Industrial-grade flash endurance rated for the write cycles typical of HMI data-logging applications over a multi-year service horizon.
Complete System Bill of Materials
Engineers integrating the 2711P-RW2 into a PanelView Plus system typically source the following complementary components:
- 2711P-T10C21D8S — PanelView Plus 6 1000, 10.4″ Color Touch, DC
- 2711P-T7C21D8S — PanelView Plus 6 700, 7″ Color Touch, DC
- 2711P-T12W21D8S — PanelView Plus 6 1250, 12.1″ Wide Color Touch, DC
- 2711P-RN15S — EtherNet/IP Communication Module for PanelView Plus
- 2711P-T6M20D8 — PanelView Plus 6 600, 6.5″ Monochrome Touch, DC
- 1756-L73 — ControlLogix L73 PLC (common upstream controller)
- 1783-US8T — Stratix 2000 Unmanaged Switch (panel network)
Contact Konmask.com for bundle pricing on multi-unit PanelView Plus deployments.
Compliance & Industry Standards
- CE Marking — Complies with EU Low Voltage and EMC Directives for industrial equipment.
- UL Listed — Recognized under UL 508 (Industrial Control Equipment).
- RoHS Compliant — Restriction of Hazardous Substances Directive (EU 2011/65/EU).
- ATEX / IECEx — Consult Rockwell Automation for zone-specific hazardous-location ratings when used in classified areas.
- 21 CFR Part 11 — Supports compliant audit-trail and electronic-records workflows when used with FactoryTalk View ME in validated pharmaceutical environments.
- IEC 61131-3 — Compatible with PLC platforms programmed to IEC 61131-3 standards via EtherNet/IP integration.
Quality Assurance & Sourcing
Konmask.com sources Allen-Bradley 2711P-RW2 units through established industrial distribution channels with full traceability. Every unit dispatched from our warehouse undergoes the following checks:
- Visual inspection of housing, label, and catalog number against Rockwell Automation published specifications.
- Verification of original manufacturer packaging and tamper-evident seals where applicable.
- Cross-reference of date codes and lot numbers against known counterfeit advisories.
- Functional continuity check prior to shipment on request.
We maintain documentation records for each shipment to support your incoming inspection and MRO audit requirements.
How to Source This Part
- Add to Cart — Click Add to Cart above to place an immediate order at the listed price.
- Request a Quote — For quantities of 5+ units or project-based procurement, email support@konmask.com with your PO number and required delivery date.
- Expedite Orders — Same-day dispatch available for in-stock units when orders are confirmed before 14:00 CST. Contact us to confirm real-time stock status.
- International Shipping — We ship to North America, Europe, Southeast Asia, and the Middle East. DDP (Delivered Duty Paid) terms available on request.
- Phone / WhatsApp — Reach our technical sales team directly at +0086 19859288691 for urgent requirements.
Application-Specific FAQ
Q: Can the 2711P-RW2 be used to clone an existing PanelView Plus application to a replacement terminal?
A: Yes. The card can be removed from a functioning terminal (with power off), inserted into a replacement unit of the same model, and the terminal will boot from the stored application image — eliminating the need for a programming workstation on-site.
Q: Is the 2711P-RW2 compatible with PanelView Plus 7 terminals?
A: The 2711P-RW2 is designed for the PanelView Plus and PanelView Plus 6 (2711P) platform. PanelView Plus 7 (2711R) uses a different internal storage architecture. Verify your terminal catalog number before ordering.
Q: What is the maximum application size the card can store?
A: The 128 MB capacity accommodates the FactoryTalk View ME OS image plus typical HMI application projects. Large projects with extensive graphics libraries should be audited for total size before relying solely on this card.
Q: Can we use a standard commercial Compact Flash card instead?
A: Rockwell Automation does not support or warrant operation with non-OEM CF cards in the internal slot. Using the 2711P-RW2 ensures compatibility, correct formatting, and maintains your support agreement.
Q: Do you offer a warranty on this part?
A: Konmask.com provides a 90-day replacement warranty on all Allen-Bradley parts against defects in materials and workmanship. Extended warranty and on-site swap programs are available for volume customers.
