Machine Control & Process Automation Solution — Allen-Bradley 2711P-T6C5A | PanelView Plus 600
Where This Product Is Used

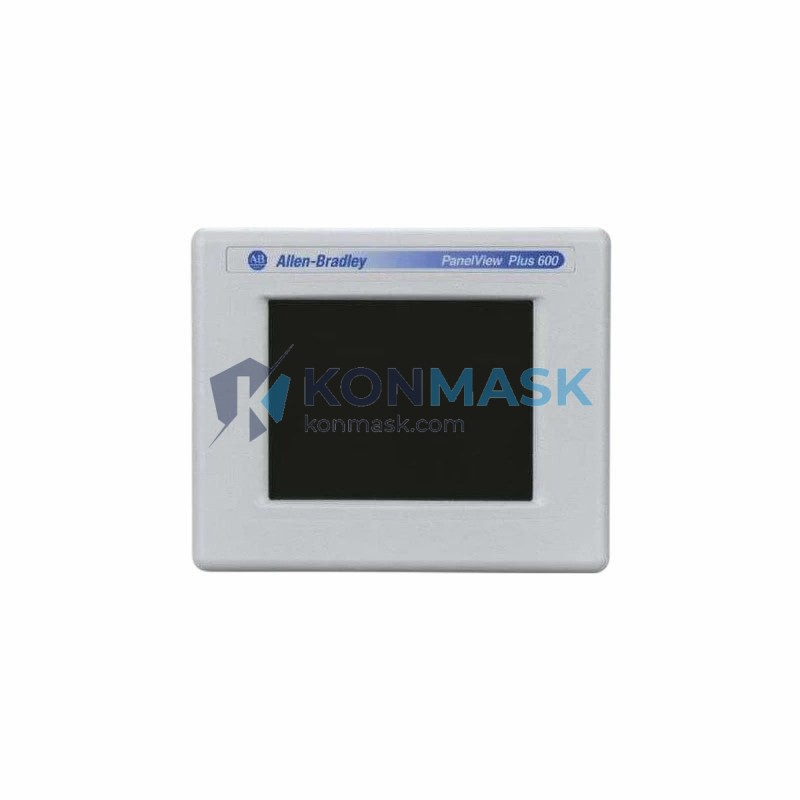

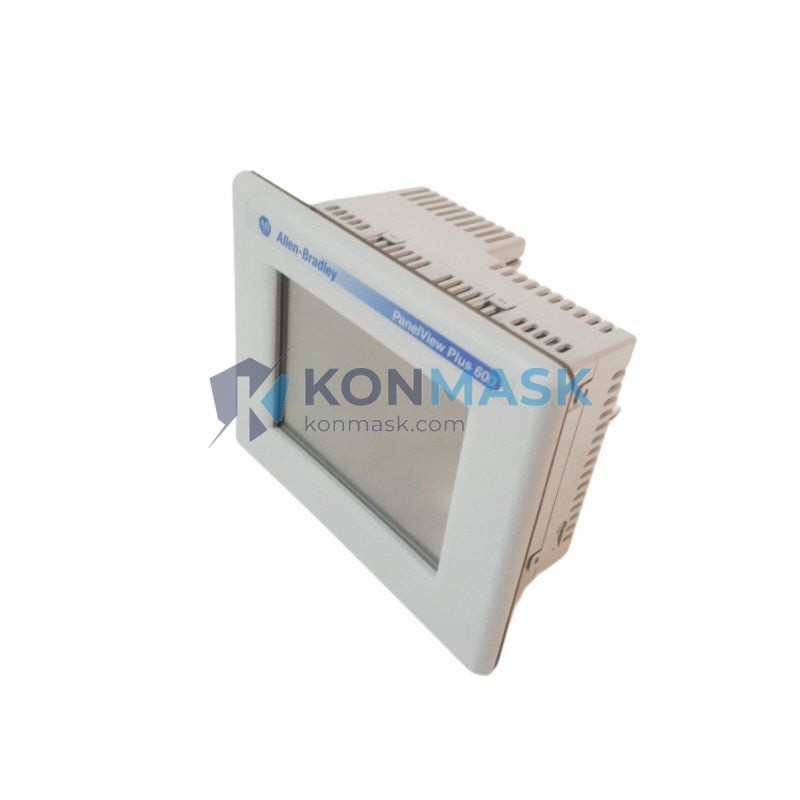

The Allen-Bradley 2711P-T6C5A PanelView Plus 600 is a 6-inch color touch-screen HMI (Human-Machine Interface) widely deployed across discrete manufacturing, process control, and infrastructure applications. Engineers specify this terminal wherever a compact, ruggedized operator interface is required in a space-constrained panel or machine enclosure.
- Automotive Assembly Lines — Line-speed monitoring, fault acknowledgment, and recipe management at individual work cells.
- Food & Beverage Packaging — Hygienic-rated enclosure integration for filling, capping, and labeling machines requiring real-time batch control.
- Water & Wastewater Treatment — Pump station and dosing skid operator interfaces with alarm annunciation and trend display.
- Oil & Gas Wellhead / Skid Control — Hazardous-area panel builds where a compact HMI must survive vibration, dust, and wide temperature swings.
- Pharmaceutical Manufacturing — GMP-compliant batch control terminals integrated with ControlLogix or CompactLogix PLCs.
- Material Handling & Conveyor Systems — Operator stations for sortation, palletizing, and AGV dispatch consoles.
- HVAC & Building Automation — Chiller plant and air-handling unit local operator panels.
- OEM Machine Builders — Standard HMI platform embedded into custom machinery for global distribution.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2711P-T6C5A |
| Series | PanelView Plus 600 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Display Size | 6.5-inch color TFT LCD |
| Display Resolution | 640 × 480 (VGA) |
| Touch Technology | Analog resistive touch screen |
| Communication Ports | RS-232, DH-485, DF1 |
| Ethernet | Not included (see 2711P-T6C5D8 for Ethernet variant) |
| Operating Voltage | 24 VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +85 °C |
| Enclosure Rating | NEMA 4/4X, 12, 13; IP65 (front face) |
| Memory | 64 MB Flash / 64 MB RAM |
| Operating System | Windows CE 5.0 |
| Programming Software | FactoryTalk View Studio ME |
| Panel Cutout | 192 mm × 138 mm (W × H) |
| Weight | Approx. 600 g |
| Certifications | UL, CE, cUL |
Why Engineers Specify This Model
- Proven Platform Reliability — The PanelView Plus 600 series has accumulated millions of field hours across global installations, with a documented MTBF that satisfies the most demanding uptime requirements.
- Seamless Rockwell Ecosystem Integration — Native communication with MicroLogix, SLC 500, PLC-5, and ControlLogix families via DH-485 and DF1 eliminates gateway hardware and reduces commissioning time.
- Compact 6-Inch Form Factor — Fits standard 192 × 138 mm panel cutouts, enabling retrofit into existing enclosures without structural modification.
- IP65 Front-Face Sealing — Withstands wash-down, dust ingress, and coolant splash in production environments.
- FactoryTalk View ME Compatibility — Leverages the industry-standard HMI development environment, reducing engineering hours and enabling reuse of existing application libraries.
- Wide Temperature Tolerance — Operates reliably from 0 °C to 55 °C, suitable for both climate-controlled and non-air-conditioned plant floors.
- Long-Term Parts Availability — Konmask.com maintains verified surplus and refurbished stock, supporting legacy system maintenance without costly platform migrations.
Complete System Bill of Materials
For a fully operational PanelView Plus 600 operator station, engineers typically source the following components:
- 2711P-T6C5A — PanelView Plus 600 color touch HMI (this unit)
- 2711P-RN6 — DH-485 / RS-232 communication module (if required)
- 2711P-RN15S — EtherNet/IP communication module (for network-enabled builds)
- 2711P-B6C5A8 — Keypad + touch combination variant (alternative form factor)
- 1763-L16AWA / 1769-L18ER — MicroLogix or CompactLogix PLC (controller pairing)
- 1747-AIC — DH-485 isolated link coupler (multi-drop network)
- 2711P-RY2032 — Replacement battery for real-time clock
- 2711P-T6C5A Mounting Gasket — Panel sealing gasket (IP65 maintenance)
- 24 VDC Power Supply (1606-XLP or equivalent) — Regulated panel power
Contact support@konmask.com to source complete BOM packages.
Compliance & Industry Standards
- UL 508A — Industrial Control Panel standard (USA)
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- cUL — Canadian Standards compliance
- NEMA 4 / 4X / 12 / 13 — Enclosure ingress protection ratings
- IP65 — IEC 60529 front-face ingress protection
- RoHS — Restriction of Hazardous Substances compliant
- ATEX / Class I Div 2 — Consult factory for hazardous location variants
Quality Assurance & Sourcing
Konmask.com specializes in verified industrial automation components for mission-critical applications. Every 2711P-T6C5A unit offered through our platform undergoes the following process:
- Visual & Physical Inspection — Screen integrity, connector condition, housing damage assessment.
- Power-On Functional Test — Boot sequence verification, touch calibration, and communication port continuity check.
- Firmware Version Documentation — Recorded and disclosed prior to shipment.
- Anti-Static Packaging — ESD-safe bags with moisture barrier and desiccant for international transit.
- Traceability Records — Batch and inspection records available upon request for regulated industries.
We source from authorized distributors, verified surplus channels, and OEM decommissioning programs. Counterfeit-risk screening is applied to all inbound stock.
How to Source This Part
- Add to Cart — Immediate checkout for in-stock units with same-day dispatch (orders placed before 3 PM CST).
- Request a Quote — For volume orders (5+ units), OEM pricing, or project BOM sourcing, email support@konmask.com.
- Lead Time Inquiry — If the unit shows as out of stock, contact us — we maintain active sourcing networks and can typically locate stock within 3–7 business days.
- International Shipping — We ship globally via DHL Express, FedEx International, and UPS Worldwide. Export documentation (commercial invoice, packing list, HS code 8537.10) provided.
- Phone / WhatsApp — +0086 19859288691 (Monday–Friday, 09:00–18:00 CST)
Application-Specific FAQ
Q: Is the 2711P-T6C5A compatible with ControlLogix PLCs?
A: Yes. Via DF1 serial or with the addition of a 2711P-RN15S EtherNet/IP module, the terminal communicates with ControlLogix (1756 series) controllers. Direct DH+ connectivity requires a 1784-PKTX gateway.
Q: Can I use FactoryTalk View Studio ME v8 or v9 to program this terminal?
A: The 2711P-T6C5A runs Windows CE 5.0 and supports FactoryTalk View ME up to version 8.x. Version 9+ may have limited compatibility — verify the runtime version shipped with the unit before upgrading application software.
Q: What is the difference between 2711P-T6C5A and 2711P-T6C5D8?
A: The D8 suffix denotes a dual Ethernet port variant. The T6C5A uses serial communication (RS-232 / DH-485 / DF1) only. If your architecture requires EtherNet/IP, specify the D8 variant or add the 2711P-RN15S module.
Q: Is this unit suitable for outdoor installation?
A: The front face is rated IP65, but the operating temperature ceiling of 55 °C and the lack of sunlight-readable backlight make direct outdoor exposure inadvisable without a sun shield and thermal management enclosure.
Q: Do you offer a warranty on surplus / refurbished units?
A: Yes. All units sold through Konmask.com carry a 90-day functional warranty covering defects identified during normal operation. Extended warranty options are available — contact us for details.
Q: Can you supply the matching panel cutout template?
A: Yes. The 192 mm × 138 mm cutout drawing (DXF and PDF) is available upon request. Email support@konmask.com with your order number.
