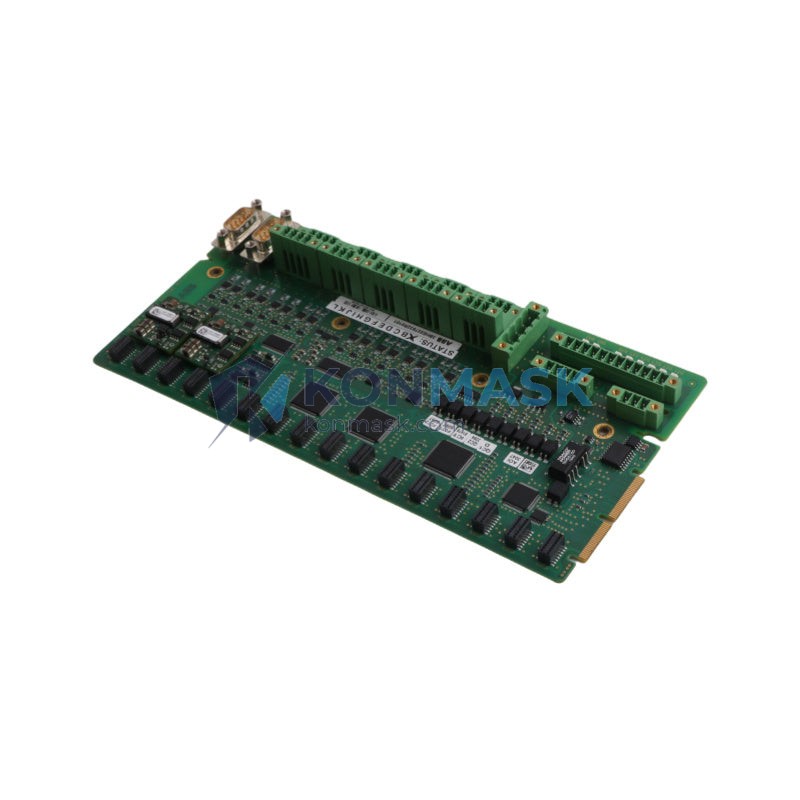

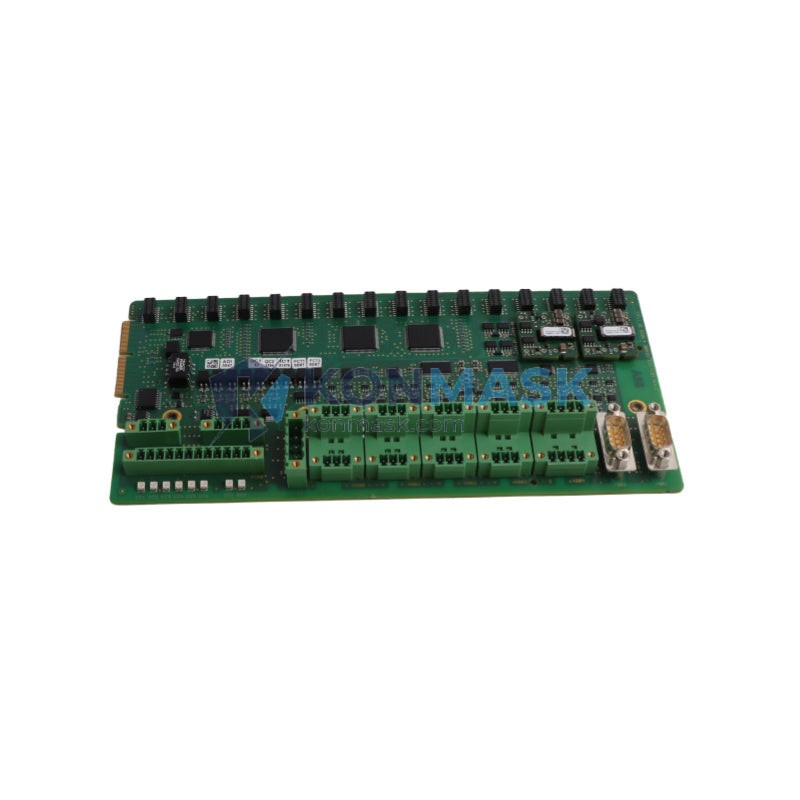

ABB 3BHE027632R0101 – AC800M DCS Control Board | AC800M Controller Platform
Engineering Background: The ABB AC800M is ABB’s flagship distributed control system (DCS) controller platform, widely deployed across power generation, oil & gas, pulp & paper, and chemical processing industries. The AC800M architecture is built around a modular CPU/control board design that separates processing logic from I/O, enabling hot-swap maintenance and scalable redundancy configurations.
Product Positioning: The ABB 3BHE027632R0101 is a processor/control board module designed for the AC800M controller family. It serves as the computational core responsible for executing control logic, managing communication buses, and interfacing with I/O modules across the DCS network. This part number is specified by process engineers requiring a verified, drop-in replacement or expansion board for existing AC800M installations.
Complete Technical Specifications
- Part Number: 3BHE027632R0101
- Manufacturer: ABB Ltd (Sweden)
- Product Family: AC800M DCS Controller Platform
- Module Type: Processor / Control Board
- Form Factor: Rack-mount PCB module (AC800M backplane compatible)
- Communication Interfaces: Profibus DP, FOUNDATION Fieldbus, Modbus, OPC (platform-dependent)
- Operating Temperature: 0°C to +55°C (standard industrial range)
- Storage Temperature: -40°C to +70°C
- Humidity: 5% to 95% RH, non-condensing
- Power Supply: Supplied via AC800M backplane (24 VDC bus)
- Weight: Approx. 200 g
- Compliance: CE, IEC 61131-3, ATEX (zone-dependent configuration)
- Country of Origin: Sweden
Proven Application Environments
- Power Generation: Turbine governor control, boiler management systems, and plant-wide DCS integration in coal, gas, and hydro power stations running ABB Symphony or 800xA platforms.
- Oil & Gas Upstream/Downstream: Wellhead control panels, compressor station automation, and refinery process control where AC800M controllers manage safety-critical loops.
- Pulp & Paper Mills: Continuous digester control, bleaching sequence automation, and paper machine drive coordination via AC800M multi-controller networks.
- Chemical & Petrochemical Plants: Reactor temperature/pressure loop control, batch process sequencing, and SIL-rated safety instrumented systems (SIS) integrated with AC800M.
- Water & Wastewater Treatment: SCADA-linked pump station control, dosing system automation, and remote telemetry nodes using AC800M’s communication flexibility.
- Marine & Offshore: Vessel automation, ballast control, and offshore platform process management certified to DNV/ABS standards with AC800M hardware.
Engineering Advantages
- Platform Continuity: Direct drop-in replacement for existing AC800M installations — no firmware re-engineering or backplane modification required when replacing a failed control board.
- Redundancy Support: AC800M architecture supports 1:1 CPU redundancy; this control board participates in hot-standby configurations, ensuring zero-downtime switchover during faults.
- Deterministic Execution: Real-time control loop execution with deterministic scan times, critical for tight PID loops in process industries.
- Multi-Protocol Communication: Native support for Profibus DP, FOUNDATION Fieldbus H1, and Ethernet-based protocols reduces gateway hardware requirements.
- Long Product Lifecycle: ABB AC800M platform has an extended support lifecycle, making spare board procurement a long-term investment rather than a short-term fix.
- 800xA Integration: Fully compatible with ABB System 800xA DCS software suite for advanced process graphics, alarm management, and asset monitoring.
System Architecture & Signal Flow
In a typical AC800M DCS node, the 3BHE027632R0101 control board is seated in the PM8xx controller module housing and connects to the AC800M backplane. Control logic (IEC 61131-3 structured text, function block, or ladder) executes on the board’s processor. Field signals arrive via S800 I/O modules connected over the ModuleBus; the control board reads inputs, executes the control algorithm, and writes outputs — all within a configurable scan cycle. Upstream, the board communicates with the 800xA operator station via Industrial Ethernet (PROFINET or standard TCP/IP), enabling real-time HMI updates and historian data logging.
Sourcing & Quality Verification
- ✅ Authentic ABB Hardware: All units sourced through verified industrial supply channels; counterfeit screening performed on every batch.
- ✅ Functional Test: Each board undergoes power-on verification and communication bus check prior to shipment.
- ✅ Condition Grading: New (factory-sealed), Refurbished (tested to OEM spec), or Surplus (inspected, cleaned) — condition stated clearly on order confirmation.
- ✅ Traceability: Serial number and firmware revision documented; available on request for maintenance records.
- ✅ ESD-Safe Packaging: Shipped in anti-static bags with foam cushioning inside double-wall cartons.
Procurement Process
- Confirm Part Number: Verify 3BHE027632R0101 against your AC800M controller’s existing board label or ABB spare parts list.
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for current stock availability and lead time.
- Order & Payment: Purchase order accepted; T/T bank transfer, PayPal, and trade assurance options available.
- Shipping: DHL / FedEx / UPS express worldwide; EXW Xiamen or CIF destination port available. Typical lead time: 3–7 business days.
- After-Sales Support: 12-month warranty on new units; 90-day warranty on refurbished. Technical support available for installation guidance.
Technical FAQ
Q: Is 3BHE027632R0101 compatible with all AC800M controller variants?
A: This board is designed for the AC800M platform. Compatibility depends on the specific PM8xx controller housing revision. Please provide your existing controller model number when ordering to confirm fit.
Q: Can this board be used in a redundant CPU configuration?
A: Yes. The AC800M platform supports 1:1 CPU redundancy. Two identical control boards are required — one active, one standby — with synchronization handled automatically by the AC800M firmware.
Q: What firmware version does this board ship with?
A: Firmware version varies by production batch. We document the firmware revision on each unit. ABB Control Builder M software is required for firmware upgrades.
Q: Do you provide installation support?
A: Yes. Our technical team can provide remote guidance for board swap procedures. For on-site commissioning in China, contact us to arrange field service coordination.
Q: What is the lead time for out-of-stock units?
A: For units not in current stock, typical sourcing lead time is 2–4 weeks. Contact us for urgent requirements — we maintain relationships with multiple ABB authorized distributors globally.
