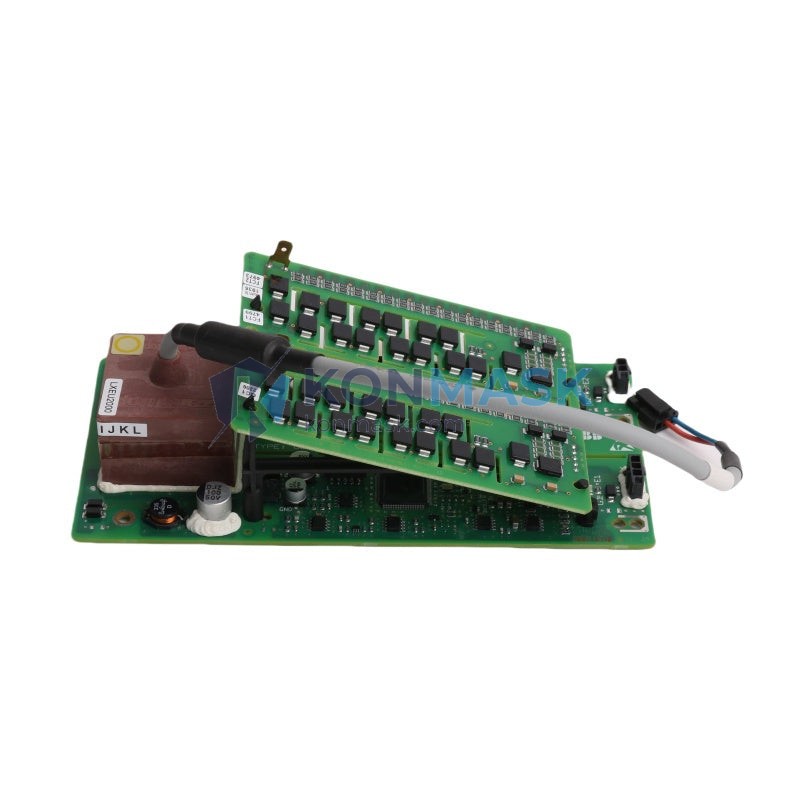

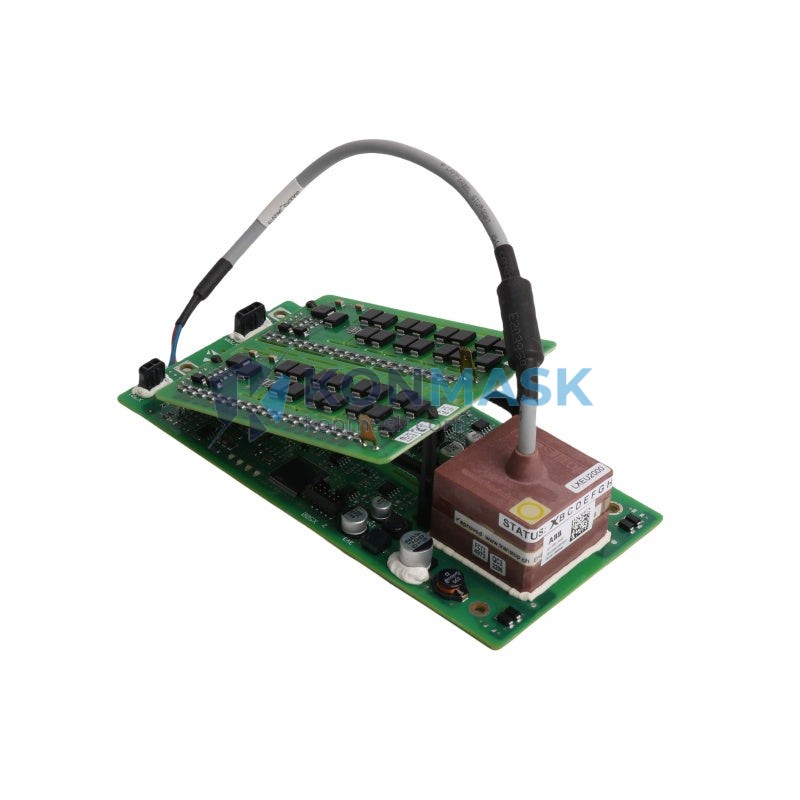

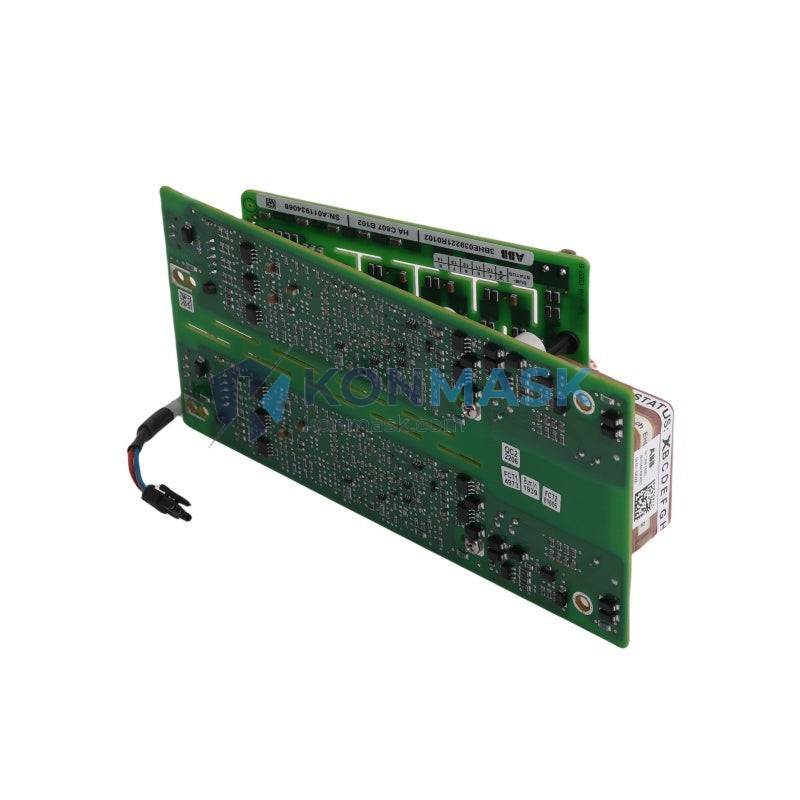

ABB 3BHE044249R04002 GDC806 C4002 – Gate Drive Control Board | ACS6000 Medium Voltage Inverter Platform
Engineering Background
The GDC806 C4002 is a precision gate drive control board engineered by ABB for deployment within the ACS6000 medium voltage drive platform — one of ABB’s flagship solutions for high-power industrial applications operating in the 3–36 MW range. This board sits at the heart of the IGCT (Integrated Gate-Commutated Thyristor) firing chain, translating control-level switching commands into precisely timed gate pulses that govern power semiconductor switching events.
Product Positioning
Designed for procurement engineers and maintenance teams responsible for sustaining ACS6000 drive availability in critical process industries — including oil & gas, mining, marine propulsion, and large-scale HVAC — the 3BHE044249R04002 is a direct OEM replacement board. It eliminates the risk of compatibility gaps associated with third-party alternatives and ensures full compliance with ABB’s drive firmware and protection logic.
Complete Technical Specifications
- Part Number: 3BHE044249R04002
- Board Designation: GDC806 C4002
- Manufacturer: ABB (ASEA Brown Boveri)
- Compatible Platform: ACS6000 Medium Voltage AC Drive
- Function: Gate Drive Control – IGCT firing pulse generation & feedback
- Voltage Class: Medium Voltage (3 kV – 6.9 kV AC output)
- Power Semiconductor Technology: IGCT (Integrated Gate-Commutated Thyristor)
- Communication Interface: Fiber optic signal isolation (internal drive bus)
- Mounting: PCB card, rack-mounted within ACS6000 inverter cabinet
- Weight: Approx. 200 g
- Country of Origin: Germany
- HS Code: 8537.10
- OEM Reference: ABB Drive Systems, Turgi / Baden, Switzerland
Proven Application Environments
- Oil & Gas: Compressor drives, pump drives on offshore platforms and LNG terminals
- Mining & Minerals: SAG mill drives, conveyor belt drives, hoist systems
- Marine Propulsion: Podded propulsion systems, thruster drives
- Power Generation: Hydro turbine speed control, wind turbine pitch/yaw drives
- Cement & Steel: Kiln drives, rolling mill main drives
- Water & Wastewater: Large pump station variable speed drives
Engineering Advantages
- OEM Authenticity: Direct ABB factory part — no reverse-engineered substitutes
- IGCT Compatibility: Precisely matched gate pulse timing for ABB IGCT modules; prevents desaturation faults and shoot-through events
- Fiber Optic Isolation: Full galvanic isolation between control and power stages eliminates ground loop interference
- Firmware Alignment: Compatible with ACS6000 control firmware revisions; no parameter re-mapping required post-replacement
- Thermal Robustness: Designed for continuous operation in high-ambient industrial enclosures
- Reduced MTTR: Plug-and-play board swap reduces mean time to repair versus component-level rework
System Architecture & Signal Flow
Within the ACS6000 architecture, the GDC806 C4002 receives switching commands from the main control unit (MCU) via a fiber optic link. It conditions and amplifies these signals into gate drive pulses delivered to the IGCT gate terminals. Simultaneously, it monitors IGCT conduction state and feeds back status signals to the MCU for real-time fault detection. The board interfaces with the DC bus voltage measurement circuit and participates in the drive’s active protection scheme — including overcurrent, overvoltage, and dv/dt limiting functions.
Sourcing & Quality Verification
- All units sourced through verified ABB authorized distribution channels or certified industrial surplus with full traceability
- Pre-shipment inspection: visual PCB inspection, component-level continuity check, and functional bench test where applicable
- Anti-static packaging (ESD-safe bag + foam insert) for safe international transit
- Certificate of conformity available upon request
- Serial number and date code recorded for each unit shipped
Procurement Process
- Confirm part number 3BHE044249R04002 against your ACS6000 drive BOM or existing board label
- Submit inquiry via support@konmask.com or WhatsApp +0086 19859288691 for lead time and quantity confirmation
- Receive proforma invoice with EXW / DDP pricing options
- Payment via T/T, PayPal, or trade finance — net terms available for qualified accounts
- Dispatch within 1–3 business days; DHL / FedEx express with full tracking
- Post-delivery technical support included at no charge
Technical FAQ
Q: Is 3BHE044249R04002 interchangeable with earlier GDC806 revisions?
A: The C4002 revision designation indicates a specific hardware revision. Cross-compatibility with earlier revisions (e.g., C4001) should be confirmed with ABB service documentation or our technical team before installation.
Q: Can this board be repaired rather than replaced?
A: Component-level repair is possible for experienced power electronics technicians, but ABB recommends board-level replacement to maintain drive warranty and protection integrity. We supply both new and tested-serviceable units.
Q: What is the typical lead time for stock units?
A: In-stock units ship within 1–3 business days. For non-stock orders, lead time is typically 2–4 weeks depending on ABB factory availability.
Q: Do you provide installation support?
A: Yes. Our technical team can provide remote commissioning guidance and reference ABB service manual sections relevant to GDC806 replacement procedures.
