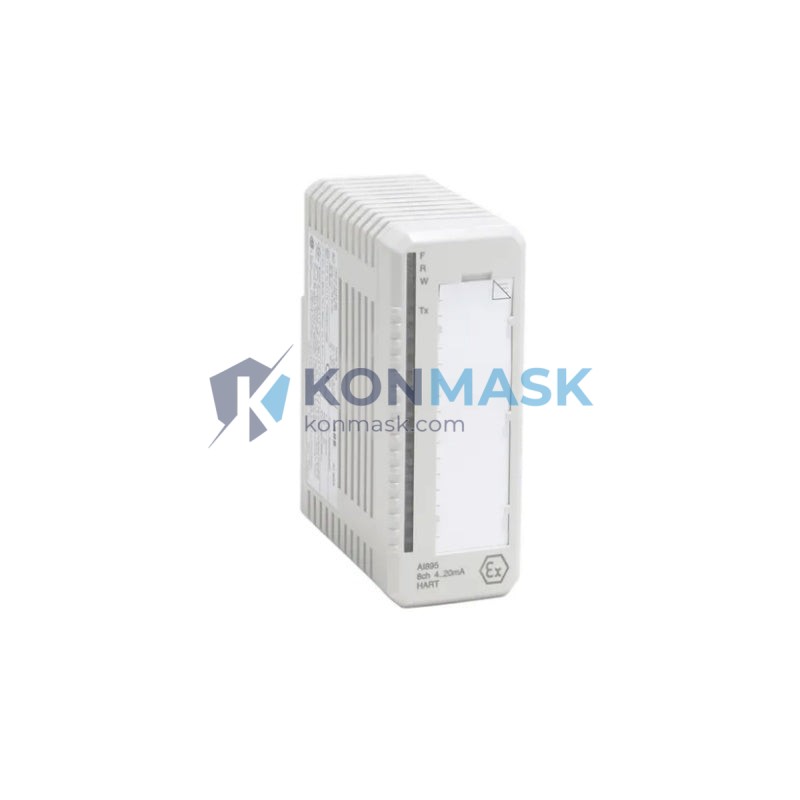

ABB 3BSC690086R1 Module Termination Unit | Replacement, Equivalent & Selection Guide
The ABB 3BSC690086R1 is a Module Termination Unit (MTU) designed for use within ABB’s industrial automation and DCS (Distributed Control System) platforms. It provides a standardized termination interface between field wiring and I/O modules, ensuring reliable signal integrity and simplified maintenance in demanding process environments.
Technical Specifications
- Part Number: 3BSC690086R1
- Manufacturer: ABB
- Product Type: Module Termination Unit (MTU)
- Series: ABB Advant / Symphony Plus / S800 I/O Compatible
- Function: Field wiring termination for I/O modules
- Mounting: DIN rail / panel mount
- Weight: Approx. 300 g
- Operating Temperature: 0°C to +55°C
- Compliance: CE, RoHS
Compatible Replacement & Equivalent Models
When the ABB 3BSC690086R1 is unavailable or discontinued, the following models may serve as functional equivalents or drop-in replacements depending on your system configuration:
- ABB 3BSC690086R2 – Revised revision of the same MTU series (verify connector pinout)
- ABB TB820V2 – ModuleBus Optical Port module, compatible in S800 I/O racks
- ABB 3BSE008516R1 – AI810 Analog Input Module with compatible termination footprint
- Third-party MTU equivalents – Contact Konmask.com for cross-reference validation
⚠ Always verify electrical ratings, connector type, and firmware compatibility before substituting modules in live systems.
Why Choose the Original Model
- ✅ Factory-certified ABB component — guaranteed compatibility with ABB DCS/PLC platforms
- ✅ Plug-and-play installation — no re-engineering of field wiring required
- ✅ Long service life — designed for 24/7 industrial operation
- ✅ Full ABB documentation and firmware support available
- ✅ Traceable supply chain — sourced from authorized ABB distributors
Typical Applications
- Process automation in oil & gas, chemical, and power generation plants
- Field I/O termination in ABB Symphony Plus and Advant OCS systems
- Retrofit and expansion of existing ABB DCS installations
- Spare parts inventory for critical control system maintenance
- MRO (Maintenance, Repair & Operations) procurement
System Compatibility
- ABB Symphony Plus (S+ series)
- ABB Advant OCS / Master
- ABB S800 I/O System
- ABB AC800M Controller Platform
- Compatible with standard 24 VDC field power architectures
Selection Guide
Use the following criteria to confirm the ABB 3BSC690086R1 is the correct module for your application:
- Step 1: Confirm your DCS/PLC platform is ABB Symphony Plus, Advant, or S800 I/O series
- Step 2: Verify the termination unit slot dimensions and connector type match your existing rack
- Step 3: Check the I/O module type (analog/digital) that will mate with this MTU
- Step 4: Confirm operating voltage and signal range requirements
- Step 5: Contact support@konmask.com for a free compatibility check if uncertain
Quality Assurance & Sourcing
All ABB modules sold through Konmask.com are:
- Sourced from verified ABB authorized distributors or OEM surplus channels
- Inspected for physical integrity and label authenticity prior to shipment
- Shipped with original packaging where available
- Backed by our 30-day return and replacement guarantee
- Supported by full export documentation (commercial invoice, packing list, COO)
How to Order
- Click Add to Cart or Request a Quote above
- For bulk orders (>5 units), email support@konmask.com for volume pricing
- Lead time: In-stock items ship within 1–3 business days; sourced items 7–15 business days
- Payment: T/T, PayPal, credit card accepted
- Shipping: DHL / FedEx / UPS worldwide express available
Replacement & Compatibility FAQ
Q: Can the 3BSC690086R1 be used as a direct replacement for 3BSC690086R2?
A: In most cases yes, but always verify the revision change log in the ABB product bulletin. Contact us for confirmation.
Q: Is this module compatible with third-party DCS systems?
A: The 3BSC690086R1 is designed specifically for ABB platforms. Third-party compatibility is not guaranteed without engineering review.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. CoC and test reports are available upon request for all orders.
Q: What is the warranty period?
A: We offer a 12-month warranty against manufacturing defects on all new modules.
Q: Can I return the module if it doesn’t fit my system?
A: Yes, within 30 days of receipt in original, unused condition. See our Returns Policy for details.
