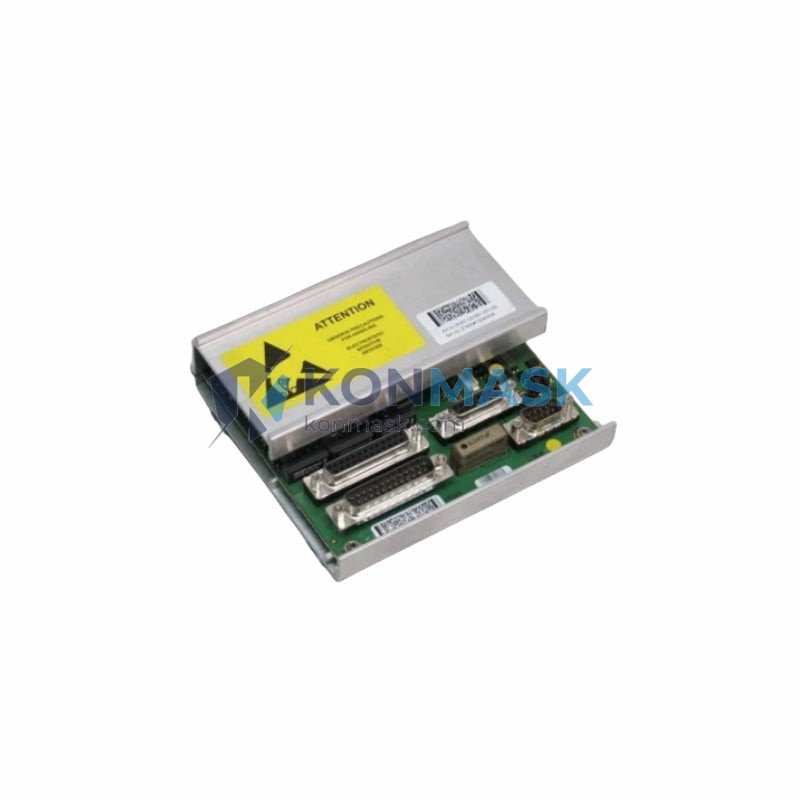

ABB 3HAC022286-001 Serial Measurement Unit | IRC5 Robot Controller Platform
Engineering Background: The ABB Serial Measurement Unit (SMU) is a core feedback and signal-conditioning board within the IRC5 robot controller family. It bridges the robot’s axis computer and the resolver/encoder feedback chain, enabling precise position measurement across all robot axes. This board carries three cross-referenced part numbers — 3HAC022286-001 (ABB spare part catalog), A350-2004-T242/03 (PCB assembly revision), and A20B-2200-0321/06 (OEM board revision) — all referring to the same functional unit.
Product Positioning: Designed for maintenance engineers and system integrators managing ABB IRC5-based robotic cells in automotive, electronics, and general manufacturing environments. This unit is a direct OEM replacement, eliminating the need for firmware reconfiguration or axis recalibration when swapping like-for-like.
Complete Technical Specifications
- ABB Part Number: 3HAC022286-001
- PCB Assembly Revision: A350-2004-T242/03
- OEM Board Revision: A20B-2200-0321/06
- Function: Serial Measurement Unit (SMU) — axis position feedback processing
- Compatible Platform: ABB IRC5 Robot Controller (single cabinet & dual cabinet)
- Compatible Robot Series: IRB 140, IRB 1600, IRB 2400, IRB 4400, IRB 6600, IRB 7600 (IRC5 variants)
- Interface: Serial resolver feedback bus; internal backplane connector
- Mounting: Internal controller rack, DIN-rail compatible sub-assembly
- Weight: 420 g
- Country of Origin: Sweden / EU (OEM)
- Condition: New OEM / Refurbished OEM (specify at inquiry)
Proven Application Environments
- Automotive body-in-white welding and assembly lines (IRC5 multi-robot cells)
- Electronics PCB handling and pick-and-place systems
- Palletizing and depalletizing stations in FMCG logistics
- Precision arc welding and plasma cutting workcells
- Cleanroom semiconductor wafer handling (IRC5 cleanroom variants)
- Maintenance replacement in legacy IRC5 installations (2005–present)
Engineering Advantages
- Drop-in OEM replacement: Identical firmware baseline — no axis re-mastering required in most IRC5 configurations.
- Triple cross-reference: Verified match across 3HAC022286-001, A350-2004-T242/03, and A20B-2200-0321/06 to eliminate procurement errors.
- Minimizes downtime: Stocked for immediate dispatch — critical for production-line recovery scenarios.
- Broad IRC5 compatibility: Covers the full IRC5 generation without hardware modification.
- Traceable provenance: Each unit ships with inspection record and cross-reference documentation.
System Architecture & Signal Flow
Within the IRC5 controller, the Serial Measurement Unit sits between the Axis Computer Board (DSQC 668/673) and the resolver feedback harness from each robot joint. The SMU digitizes analog resolver signals into a serial data stream, which the axis computer uses for real-time position and velocity control. A failure in the SMU typically manifests as axis measurement fault (error codes 50xxx series in RobotWare) or loss of position feedback on one or more axes. Replacing the SMU restores the feedback chain without requiring drive or motor replacement.
Sourcing & Quality Verification
- All units are sourced from authorized ABB spare-parts channels or decommissioned OEM equipment with full traceability.
- Pre-shipment functional test: power-on self-test (POST) pass, resolver signal integrity check.
- Anti-static packaging (ESD bag + foam insert) as standard.
- Batch and revision documentation available on request.
- 12-month warranty on new OEM units; 90-day warranty on refurbished units.
Procurement Process
- Submit your inquiry via [email protected] or WhatsApp +0086 19859288691 with your IRC5 controller serial number and RobotWare version.
- Receive stock confirmation and lead-time within 24 business hours.
- Confirm order — payment via T/T, PayPal, or trade-term (FOB Xiamen).
- Dispatch within 1–3 business days; DHL / FedEx express available worldwide.
- Post-delivery technical support included at no charge.
Technical FAQ
Q: Is 3HAC022286-001 compatible with both single-cabinet and dual-cabinet IRC5?
A: Yes. The SMU board is shared across both IRC5 cabinet configurations. Verify your controller’s main computer revision (DSQC 668 vs 673) before ordering if unsure.
Q: Do I need to re-master robot axes after replacing the SMU?
A: In most cases, no — provided the resolver harness and motor encoders are intact. However, ABB recommends verifying axis calibration positions after any SMU replacement as a precaution.
Q: What RobotWare versions are supported?
A: The SMU hardware is compatible with RobotWare 5.x and 6.x. It is a hardware component and does not carry RobotWare firmware itself.
Q: Can you supply the matching Axis Computer Board (DSQC 668)?
A: Yes. Contact us for bundled pricing on SMU + Axis Computer Board sets for complete IRC5 main computer restoration.
Q: What is the lead time for urgent orders?
A: In-stock units ship within 24 hours of payment confirmation. DHL Express delivery to most destinations in 3–5 business days.
