ABB 3HAC027186-001 Robotic Gearbox IRB660 Axis 1 | Replacement, Equivalent & Selection Guide

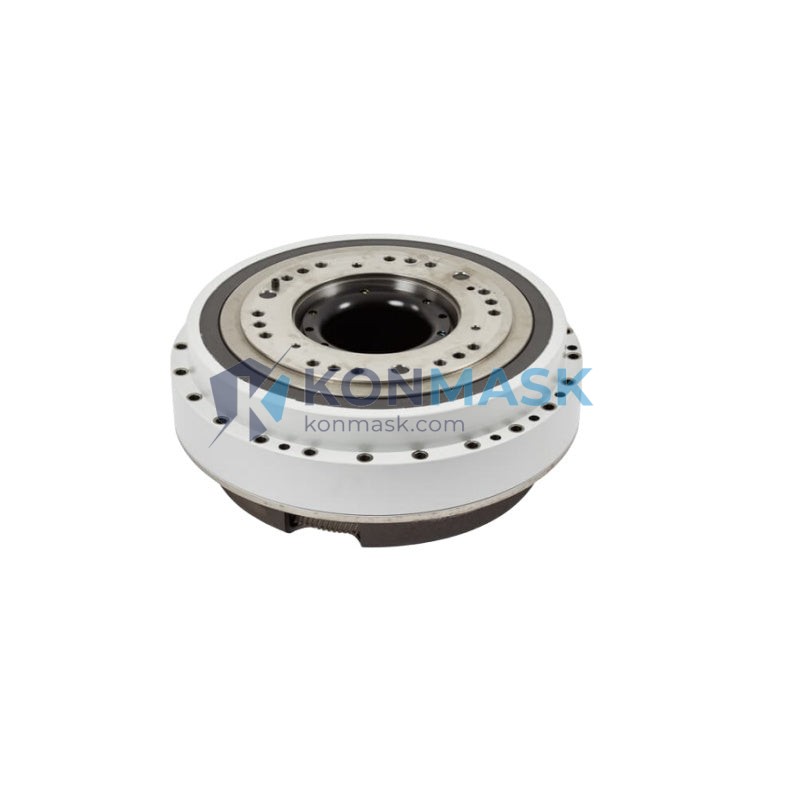

The ABB 3HAC027186-001 is the OEM axis-1 gearbox assembly for the ABB IRB 660 palletizing robot series. Paired with companion parts 3HAC034863-005 (axis-2 gearbox) and 3HAC022644-001 (axis-3 gearbox), this precision planetary gearbox transmits torque from the servo motor to the robot arm with minimal backlash. Konmask.com stocks new, refurbished, and compatible-equivalent units to minimize your downtime.
Technical Specifications
- Part Number: 3HAC027186-001
- Companion Parts: 3HAC034863-005 / 3HAC022644-001
- Robot Series: ABB IRB 660 (all variants: IRB 660-180/3.15, IRB 660-250/3.15)
- Axis: Axis 1 (base rotation)
- Gearbox Type: Precision planetary / cycloidal reduction
- Weight: 4.5 kg (approx.)
- Manufacturer: ABB Robotics
- Condition Available: New OEM · Refurbished OEM · Compatible Equivalent
Compatible Replacement & Equivalent Models
The following parts are confirmed compatible or serve as direct drop-in replacements for the 3HAC027186-001 in IRB 660 applications:
- 3HAC027186-001 — OEM original (this listing)
- 3HAC034863-005 — Axis-2 gearbox, same robot platform (often replaced together)
- 3HAC022644-001 — Axis-3 gearbox, same robot platform
- Third-party precision planetary equivalents rated for IRB 660 axis-1 torque envelope (contact us for cross-reference)
Always verify mounting flange dimensions, reduction ratio, and output shaft spec before substituting. Contact support@konmask.com for a free compatibility check.
Why Choose the Original Model
- Factory-matched reduction ratio ensures rated payload accuracy (180 kg / 250 kg)
- OEM backlash tolerance ≤ 1 arc-min — critical for palletizing repeatability
- Plug-and-play with ABB IRC5 / OmniCore controller — no parameter re-tuning
- Full traceability: ABB serial number, batch code, and test certificate available
- Warranty-compliant replacement — preserves ABB service contract eligibility
Typical Applications
- High-speed palletizing and depalletizing lines (food & beverage, FMCG, logistics)
- Heavy-payload pick-and-place automation
- End-of-line packaging systems
- Automotive parts handling
- Preventive maintenance overhaul of IRB 660 fleets
System Compatibility
- Robot: ABB IRB 660-180/3.15 · IRB 660-250/3.15
- Controller: IRC5 (M2004 / M2004 SP) · OmniCore C90XT
- Software: RobotWare 5.x / 6.x
- Drive: ABB DSQC series servo drives
Selection Guide
Use the table below to select the correct gearbox for your IRB 660 maintenance scenario:
- Axis 1 (base rotation) noise / vibration / oil leak → 3HAC027186-001 ✓
- Axis 2 (lower arm) stiffness loss → 3HAC034863-005
- Axis 3 (upper arm) backlash increase → 3HAC022644-001
- Full overhaul kit (all 3 axes) → Order all three part numbers together for a discounted bundle — contact us
- Budget-sensitive replacement → Ask about certified refurbished OEM units with 6-month warranty
Quality Assurance & Sourcing
- All units inspected and tested before dispatch
- Sourced from ABB authorized channels and certified secondary-market suppliers
- Refurbished units include full disassembly, bearing replacement, seal kit, and load test
- Packaging: anti-static foam + wooden crate for international freight
- Export documentation (CO, packing list, commercial invoice) provided on request
How to Order
- Confirm your robot model and axis number (see nameplate or ABB FlexPendant → System Info)
- Select condition: New OEM / Refurbished / Compatible Equivalent
- Add to cart or contact us for volume pricing and lead time
- Provide your shipping address — we quote DDP/DAP for most destinations
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can 3HAC034863-005 replace 3HAC027186-001?
A: No — they are different axes. 3HAC027186-001 is axis 1; 3HAC034863-005 is axis 2. Both may need replacement simultaneously after high-cycle operation.
Q: Is a refurbished gearbox safe for production use?
A: Yes, when rebuilt to OEM spec with new bearings and seals. Our refurbished units carry a 6-month performance warranty.
Q: Do I need to re-calibrate after gearbox replacement?
A: Yes. ABB recommends a full axis calibration (CalPendulum II or Levelmeter) after any gearbox swap. We can supply the calibration pendulum on loan.
Q: What is the lead time for a new OEM unit?
A: New OEM units typically ship within 3–7 business days. Refurbished units ship within 1–3 business days. Contact us for urgent requirements.
Q: Do you ship internationally?
A: Yes — we ship worldwide with DHL Express, FedEx, and sea freight options. Export documentation included.
