ABB 3HAC029034-004 – AC Motor with Pinion FP | IRB 4600 Robot Platform

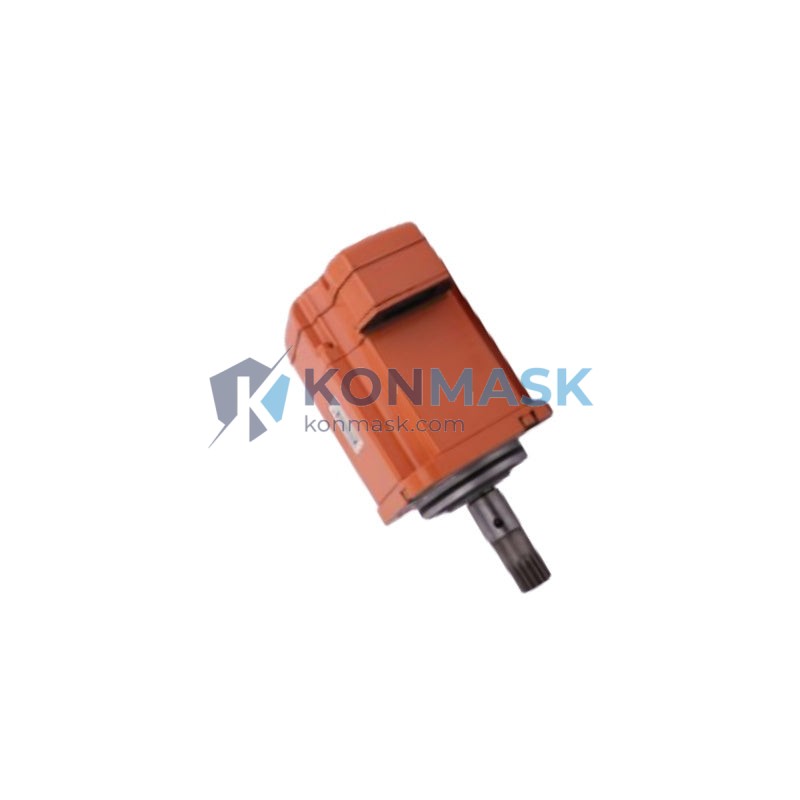

The ABB 3HAC029034-004 is an OEM-grade AC servo motor with integrated pinion (FP configuration) engineered specifically for the ABB IRB 4600 series industrial robots. This motor drives the axis articulation system with precision torque delivery, making it a critical replacement component for maintaining robot uptime in high-cycle manufacturing environments.
Cross-Reference Part Numbers: 3HAC029034-004 | 3HAC029236-001 | 3HAC043569-004 | 3HAC035062-003
Complete Technical Specifications
- Part Number (Primary): 3HAC029034-004
- Cross-Reference SKUs: 3HAC029236-001 / 3HAC043569-004 / 3HAC035062-003
- Motor Type: AC Servo Motor with Pinion (FP)
- Compatible Robot: ABB IRB 4600 Series
- Manufacturer: ABB Robotics (Sweden)
- Component Category: Drive / Axis Motor Assembly
- Pinion Configuration: FP (Full Pinion integrated)
- OEM Status: Genuine ABB / OEM-equivalent verified
- Condition: New / Refurbished available upon request
Proven Application Environments
- Automotive body welding and assembly lines (IRB 4600 standard deployment)
- Material handling and palletizing cells requiring high-cycle axis reliability
- Arc welding and spot welding robot stations
- Machine tending applications with continuous duty cycles
- Painting and coating robot systems using IRB 4600 platform
- Preventive maintenance replacement programs for ABB robot fleets
Engineering Advantages
- Integrated Pinion Design: FP configuration eliminates field assembly errors — motor and pinion are factory-aligned for immediate installation
- OEM Dimensional Compliance: Direct bolt-on replacement; no machining or adapter required
- Multi-SKU Cross-Reference: Covers four ABB part numbers (3HAC029034-004, 3HAC029236-001, 3HAC043569-004, 3HAC035062-003), simplifying procurement across revision levels
- High Torque Density: Engineered for the IRB 4600’s payload and reach envelope demands
- Reduced Downtime: Drop-in replacement minimizes robot offline time during scheduled or emergency maintenance
System Architecture & Signal Flow
The 3HAC029034-004 motor interfaces with the ABB IRC5 controller via the robot’s axis computer and drive unit. The motor receives PWM-modulated power signals from the drive module, with encoder feedback routed back through the SMB (Serial Measurement Board) for closed-loop position control. The integrated pinion meshes directly with the axis gearbox, transmitting torque to the robot arm linkage. Proper installation requires torque verification per ABB Product Manual 3HAC026876-001.
Sourcing & Quality Verification
- All units sourced through verified ABB authorized distribution channels or certified surplus with full traceability
- Pre-shipment inspection includes visual, dimensional, and where applicable, electrical continuity checks
- Part numbers verified against ABB Robotics spare parts database
- Packaging: anti-static, moisture-barrier protected for international freight
- Certificate of conformance available upon request for regulated industries
Procurement Process
- Step 1: Confirm your IRB 4600 variant and axis number requiring replacement
- Step 2: Submit inquiry via support@konmask.com or place order directly
- Step 3: Lead time confirmation within 24 business hours
- Step 4: Secure payment — T/T, PayPal, or trade terms for qualified accounts
- Step 5: Shipment with tracking; DHL / FedEx / sea freight options available
- Step 6: Post-delivery technical support for installation queries
Technical FAQ
Q: Are 3HAC029034-004 and 3HAC029236-001 interchangeable?
A: Yes. These are ABB revision-level cross-references for the same motor assembly. Both are compatible with the IRB 4600 axis drive system.
Q: Does this motor include the encoder?
A: The FP configuration includes the motor body and integrated pinion. Encoder inclusion depends on the specific unit — please confirm at time of order.
Q: What is the warranty?
A: Standard 12-month warranty against manufacturing defects. Extended warranty available for volume orders.
Q: Can you supply the matching gearbox or drive unit?
A: Yes. Konmask.com stocks a broad range of ABB IRB 4600 spare parts. Contact us with your full BOM for a consolidated quote.
Q: What is the lead time?
A: In-stock units ship within 3–5 business days. Non-stock items: 2–4 weeks depending on sourcing channel.
