Robotic Axis Drive Solution – ABB 3HAC057547-004 | IRB 6640 Series

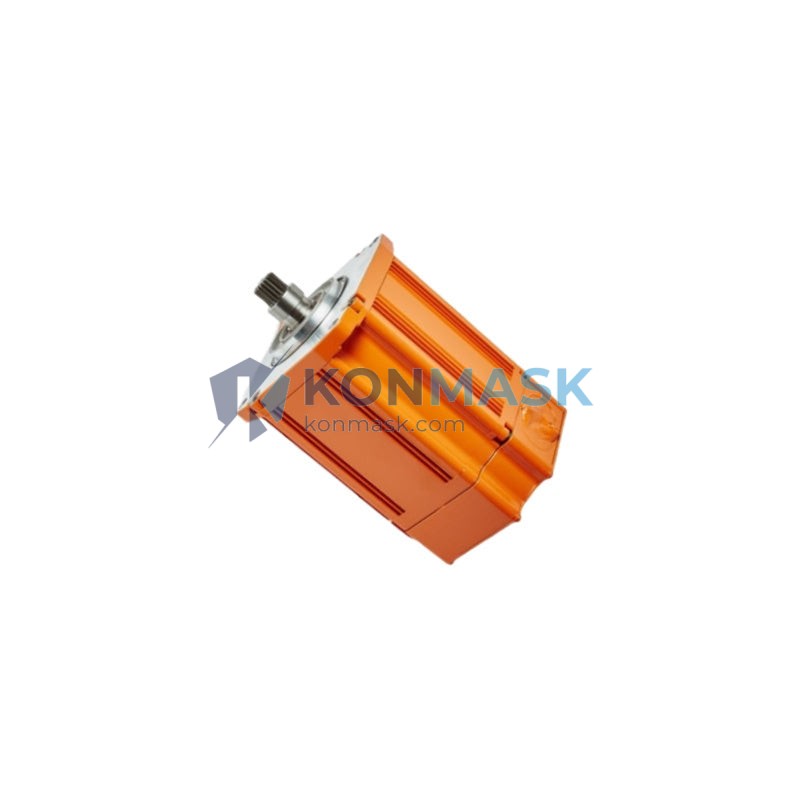

The ABB 3HAC057547-004 (cross-reference: 3HAC057547-005) is the OEM servo motor assembly with integrated pinion gear designed exclusively for the ABB IRB 6640 industrial robot platform. This axis drive unit delivers the torque, precision, and thermal resilience demanded by continuous-duty robotic applications in automotive, heavy manufacturing, and process automation environments.
Where This Product Is Used
- Automotive Body-in-White Welding Lines – Powers axis joints on IRB 6640 robots performing MIG/MAG and spot welding on vehicle chassis and door panels, where cycle times under 6 seconds and ±0.07 mm repeatability are mandatory.
- Heavy Payload Material Handling – Drives the primary load-bearing axes when transferring castings, engine blocks, and press-formed parts up to 235 kg across transfer lines.
- Foundry & Die-Casting Extraction – Operates reliably in high-ambient-temperature cells (up to 52 °C) during die-cast part extraction and quenching sequences.
- Machine Tending & CNC Loading – Provides the axis torque needed for consistent part placement into machining centers, reducing tool-change scrap rates.
- Palletizing & Depalletizing – Sustains high-duty-cycle operation in logistics and end-of-line packaging cells running 24/7 shifts.
Technical Specifications
- Part Number: 3HAC057547-004
- Cross-Reference: 3HAC057547-005
- Compatible Platform: ABB IRB 6640 (all variants: /180, /185, /205, /235)
- Component Type: Servo Motor Assembly with Integrated Pinion Gear
- Manufacturer: ABB Robotics
- Series: IRB 6640
- Condition: New / Surplus New (OEM)
- Certification: CE, RoHS compliant
- Typical Axis Application: Axis 1 / Axis 2 / Axis 3 (confirm with robot serial number)
Why Engineers Specify This Model
- OEM Pinion Integration: The motor ships with the factory-matched pinion gear, eliminating backlash caused by aftermarket gear substitution and preserving the robot’s rated repeatability of ±0.07 mm.
- Drop-In Replacement: Bolt pattern, encoder connector, and power connector are identical to the original factory unit — no re-parameterization of the IRC5 controller required in most cases.
- Thermal Stability: Designed for continuous-duty cycles in cells where ambient temperatures fluctuate between −10 °C and +52 °C.
- Reduced Downtime Risk: Sourcing the complete motor-plus-pinion assembly from a single part number eliminates the risk of mismatched gear ratios from split-sourcing motor and pinion separately.
- Traceability: Each unit carries ABB’s original serial label, supporting your maintenance CMMS records and warranty documentation.
Complete System Bill of Materials
For a full IRB 6640 axis motor replacement, engineers typically source the following alongside this unit:
- ABB 3HAC057547-004 – Motor incl. Pinion (this item)
- ABB Gearbox / Axis Reducer (axis-specific — confirm with robot BOM)
- ABB SMB (Serial Measurement Board) – 3HAC14550-1 or equivalent
- ABB Motor Cable Harness (axis-specific)
- ABB IRC5 Drive Module (if drive replacement is concurrent)
- Loctite 243 / 270 thread-locking compound (per ABB service manual torque specs)
Compliance & Industry Standards
- CE Marking: Compliant with EU Machinery Directive 2006/42/EC
- RoHS: Restriction of Hazardous Substances compliant
- ISO 9283: Robot performance tested to ISO 9283 pose repeatability standards
- IEC 60034: Motor construction per IEC rotating machinery standards
- REACH: Substance compliance per EU REACH regulation
Quality Assurance & Sourcing
Konmask.com sources ABB spare parts through authorized distribution channels and verified surplus inventories. Every unit undergoes the following before dispatch:
- Visual inspection for transport damage, connector integrity, and pinion gear condition
- Part number label verification against ABB’s published BOM cross-reference
- Anti-static packaging with desiccant for long-term storage protection
- Photographic documentation available on request for insurance and audit purposes
How to Source This Part
- Confirm your robot’s axis: Check the IRB 6640 service manual or the robot’s nameplate to verify which axis this motor serves (Axis 1, 2, or 3).
- Verify the part number: Cross-check 3HAC057547-004 or 3HAC057547-005 against your ABB spare parts list or IRC5 controller documentation.
- Request a quote: Contact us at support@konmask.com or +0086 19859288691 for volume pricing, lead time, and export documentation.
- Place your order: Add to cart and proceed to checkout, or request a proforma invoice for B2B procurement.
- Receive & install: Follow ABB IRB 6640 Product Manual Section 4 (Motor Replacement) for safe installation procedures.
Application-Specific FAQ
Q: Is 3HAC057547-004 the same as 3HAC057547-005?
A: These two part numbers are ABB’s revision designations for the same motor assembly. In most cases they are functionally interchangeable, but always confirm with your ABB service representative or robot serial number documentation before installation.
Q: Which axes does this motor cover on the IRB 6640?
A: This motor assembly is typically specified for the primary load axes (Axis 1–3). Axis 4–6 wrist motors carry different part numbers. Confirm via the IRB 6640 spare parts list (document 3HAC028284-001).
Q: Can this motor be used on IRB 6650 or IRB 6700?
A: No. The IRB 6640 motor assembly is platform-specific. IRB 6650 and IRB 6700 use different motor frame sizes and gear interfaces. Do not cross-fit without ABB engineering approval.
Q: Do you provide an ABB warranty on this part?
A: New surplus units carry the remaining OEM shelf warranty. Refurbished units carry Konmask’s 90-day functional warranty. Contact us for details.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For out-of-stock inquiries, typical lead time is 2–4 weeks depending on sourcing channel. Contact us for real-time availability.
