Robot Painting & Atomizer Solution — ABB P65E071E22 / RV-320E-141 | 3HNA012770-001 Series
Where This Product Is Used

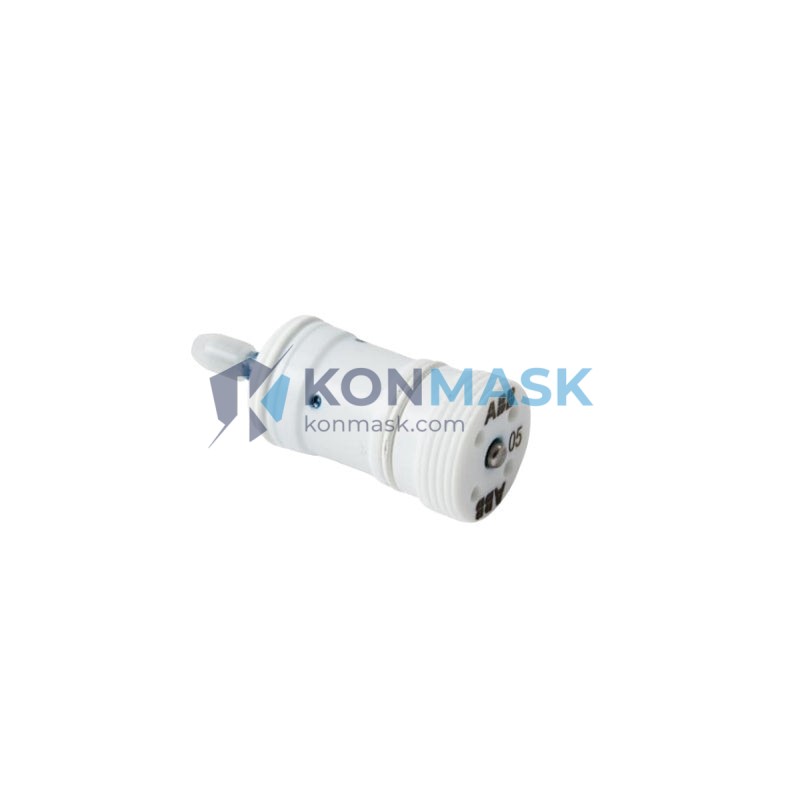

The ABB 3HNA012770-001 (cross-references: P65E071E22, R320-0D42527, 60217-1079, RV-320E-141) is a 2/2-way pneumatic needle valve with a 3.2 mm orifice, purpose-engineered for ABB robotic painting and atomizer systems. It is a critical flow-control component found in:
- ABB IRB 5500 / IRB 5400 painting robot atomizer assemblies
- Electrostatic rotary bell (ERBS) spray systems in automotive body shops
- High-voltage paint application units requiring precise solvent/paint metering
- Automotive OEM paint booths (primer, base coat, clear coat lines)
- General industrial spray finishing lines using ABB FlexPainter platforms
Technical Specifications
| OEM Part Number | 3HNA012770-001 |
| Cross-Reference SKUs | P65E071E22 / R320-0D42527 / 60217-1079 / RV-320E-141 |
| Valve Type | 2/2-way Normally Closed Needle Valve |
| Orifice Diameter | 3.2 mm |
| Function | On/Off flow control for paint / solvent media |
| Actuation | Pneumatic (air-piloted) |
| Compatible Platform | ABB IRB 5500, IRB 5400, FlexPainter series |
| Country of Origin | Sweden (ABB OEM) |
| HS Code | 8481.20.00 |
| Weight | ~100 g |
Why Engineers Specify This Model
- Precision metering: The 3.2 mm needle orifice delivers repeatable, micro-volume flow control critical for consistent film build in electrostatic spray applications.
- Solvent compatibility: Wetted materials are selected for resistance to aromatic solvents, waterborne paints, and isocyanate-based clear coats.
- Drop-in OEM replacement: Identical form, fit, and function to the original ABB assembly — no re-commissioning or parameter changes required.
- Low dead volume: Minimizes color-change waste and flush time in multi-color painting cells.
- Proven field reliability: Widely deployed across Tier-1 automotive OEM paint shops globally.
Complete System Bill of Materials
This valve is typically ordered alongside the following ABB painting system components:
- ABB atomizer bell cup assembly (IRB 5500 series)
- ABB paint hose / solvent hose manifold block
- ABB high-voltage cascade unit (HVCA)
- ABB color changer valve block
- ABB process controller / paint dosing unit
- Pneumatic pilot solenoid valve (24 VDC, 3/2-way)
Contact support@konmask.com for complete BOM sourcing support.
Compliance & Industry Standards
- Designed and manufactured under ABB’s ISO 9001-certified quality management system
- CE-marked for use in European industrial machinery (Machinery Directive 2006/42/EC)
- Compatible with ATEX Zone 1/2 painting environments when installed per ABB system documentation
- HS Code 8481.20.00 — Pneumatic valves for industrial process control
Quality Assurance & Sourcing
- OEM-grade parts: Sourced through verified ABB authorized distribution channels and reputable industrial surplus networks.
- Inspection: Each unit is visually inspected and cross-checked against ABB part number documentation before shipment.
- Traceability: Batch records and supplier documentation available upon request for MRO and audit purposes.
- Packaging: Anti-static, moisture-barrier packaging with part label and cross-reference card included.
How to Source This Part
- Submit your inquiry via support@konmask.com with your required quantity and delivery timeline.
- Our team will confirm stock availability, lead time, and provide a formal quotation within 24 hours.
- Payment via T/T, PayPal, or trade terms for qualified accounts.
- Global shipping via DHL / FedEx / UPS with full tracking and export documentation.
Application-Specific FAQ
Q: Is 3HNA012770-001 the same as P65E071E22?
A: Yes. P65E071E22, R320-0D42527, 60217-1079, and RV-320E-141 are all cross-reference numbers for the same ABB OEM valve assembly (3HNA012770-001). Always verify against your robot’s spare parts manual.
Q: Which ABB robot models use this valve?
A: This valve is primarily used in ABB IRB 5500 and IRB 5400 painting robots equipped with the integrated atomizer and paint supply system. Confirm compatibility with your system’s BOM before ordering.
Q: Can this valve be used with waterborne paints?
A: Yes, the valve’s wetted materials are compatible with both solvent-borne and waterborne paint systems as used in ABB FlexPainter installations.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–6 week lead time depending on sourcing. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. We offer a 90-day functional warranty on all parts. DOA claims are handled within 5 business days of receipt.
