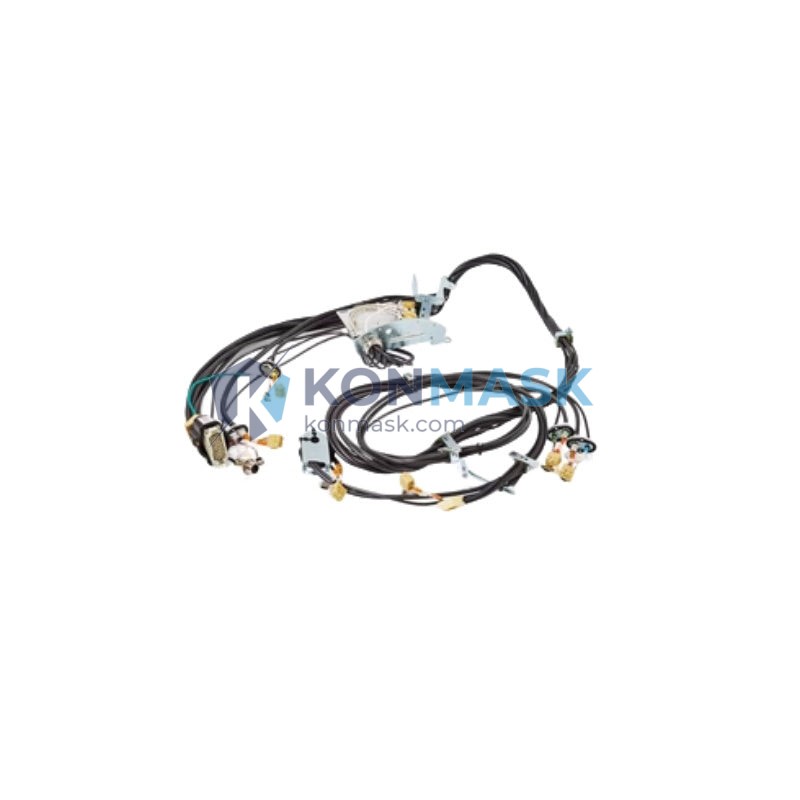

ABB 3HAC069655-001 Cable Harness Man Ax1-6 – Axis 1–6 Manipulator Cable Assembly for IRB 6600 Series
When the main axis cable harness of an ABB IRB 6600 robot fails, the entire production line comes to a halt. Axis motion errors, communication faults, and uncontrolled stops cascade through the cell — costing manufacturers thousands of dollars per hour in downtime. The ABB 3HAC069655-001 Cable Harness Man Ax1-6 is the OEM-specified replacement that restores full robot functionality, eliminates signal interference, and gets your automation cell back online with zero compromise on reliability.
The 3HAC069655-001 is the primary manipulator cable harness covering Axes 1 through 6 on the ABB IRB 6600 platform — one of ABB’s most widely deployed heavy-payload industrial robots globally. Cross-referenced as 3HAC022544-008 and 3HAC022544-001, this assembly is a critical OEM component used in automotive body shops, foundries, heavy-duty material handling, and large-scale press-tending applications worldwide. Its design integrates power, signal, and feedback wiring into a single routed harness, reducing installation complexity and ensuring long-term mechanical durability under continuous high-cycle operation.
Technical Specifications
- Part Number: 3HAC069655-001
- Cross References: 3HAC022544-008 / 3HAC022544-001
- Description: Cable Harness Man Ax1-6 (Manipulator, Axes 1–6)
- Compatible Robot Series: ABB IRB 6600 / IRB 6601
- Component Type: Manipulator Cable Harness Assembly
- Axis Coverage: Axis 1 through Axis 6
- OEM Manufacturer: ABB Robotics
- Condition: New / Refurbished (specify on inquiry)
- Weight: 100 g (shipping weight; actual may vary)
Key Features & Benefits
- Full Axis Coverage: Single harness assembly routes power and signal for all six robot axes, simplifying maintenance and reducing cable management complexity.
- OEM-Grade Construction: Manufactured to ABB’s original specifications — ensuring compatibility with IRC5 and S4C+ controllers without parameter adjustments.
- High-Flex Durability: Engineered for millions of flex cycles in continuous-duty industrial environments, including high-temperature and high-vibration conditions.
- EMI Shielding: Integrated shielding protects encoder and resolver signals from electromagnetic interference common in welding and press environments.
- Drop-In Replacement: Exact OEM form, fit, and function — no modifications required for installation on IRB 6600 / IRB 6601 platforms.
- Reduced Downtime: Stocked and ready to ship globally, minimizing robot offline time for critical production operations.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding, press tending, and heavy-payload material transfer on IRB 6600 robot cells.
- Foundry & Die Casting: High-temperature part extraction and machine tending where cable harness integrity is critical.
- Heavy Material Handling: Palletizing, depalletizing, and large-part assembly in logistics and industrial manufacturing.
- Metal Fabrication: Plasma cutting, waterjet, and large-format welding automation cells.
- General Industrial Automation: Any application utilizing ABB IRB 6600 or IRB 6601 robots requiring axis cable harness replacement or preventive maintenance.
System Integration & Compatible Parts
The 3HAC069655-001 is designed for use within the ABB IRB 6600 / IRB 6601 robot ecosystem. Commonly paired or replaced alongside:
- ABB IRC5 Controller Cabinet components
- ABB IRB 6600 / IRB 6601 Servo Drive Modules
- ABB SMB (Serial Measurement Board) units
- ABB Axis Computer boards
- ABB FlexPendant teach pendant cables
- ABB 3HAC series manipulator wrist and base cable assemblies
Contact our technical team to confirm compatibility with your specific robot serial number and controller revision before ordering.
Our Quality Assurance Process
- Source Verification: All parts are sourced from authorized ABB distributors or directly from ABB-certified supply chains.
- Visual & Dimensional Inspection: Each harness is inspected for connector integrity, sheath condition, and labeling accuracy prior to dispatch.
- Continuity Testing: Electrical continuity is verified on all signal and power conductors before shipment.
- Secure Packaging: Anti-static and moisture-resistant packaging protects the harness during international transit.
- Documentation: Certificate of conformity and packing list provided with every order.
How to Order
- Submit an inquiry via the Contact / Request a Quote button on this page.
- Provide your robot serial number, controller type, and required quantity.
- Our technical team will confirm part compatibility and provide a formal quotation within 24 hours.
- Upon order confirmation, we arrange expedited international shipping with full tracking.
For urgent requirements, contact us directly at support@konmask.com or call +0086 19859288691.
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, robot, and drive components — not a generalist marketplace.
- Global B2B Supply: Serving OEMs, system integrators, and MRO teams across Asia, Europe, the Americas, and the Middle East.
- Technical Expertise: Our team includes experienced automation engineers who can assist with part identification, cross-referencing, and compatibility verification.
- Fast Turnaround: Most in-stock items ship within 1–3 business days with DHL, FedEx, or UPS express options.
- Competitive Pricing: Direct sourcing relationships allow us to offer competitive pricing on genuine OEM and high-quality equivalent parts.
- After-Sales Support: We stand behind every part we supply with responsive post-sale technical assistance.
Frequently Asked Questions
- Q: Is 3HAC069655-001 the same as 3HAC022544-008 or 3HAC022544-001?
- A: Yes. These part numbers are cross-references for the same Cable Harness Man Ax1-6 assembly used on the ABB IRB 6600 / IRB 6601 robot platform. The 3HAC069655-001 is the current active part number; 3HAC022544-008 and 3HAC022544-001 are legacy or regional references. Always verify with your robot’s BOM or contact us to confirm.
- Q: Which ABB robot models is this cable harness compatible with?
- A: This harness is designed for the ABB IRB 6600 and IRB 6601 series robots. Compatibility may vary by robot variant and production year. Please provide your robot serial number for confirmation.
- Q: Do you supply new or refurbished parts?
- A: We supply both new OEM parts and professionally refurbished units depending on availability and customer requirements. Condition is clearly stated in the quotation.
- Q: How long does international shipping take?
- A: Standard express shipping (DHL/FedEx) typically takes 3–7 business days to most destinations. Expedited options are available for urgent requirements.
- Q: Can I get a datasheet or installation guide?
- A: Yes. ABB technical documentation can be provided upon request. Contact our team with your part number and robot model.
